1965-1972

Manuals

145 files

  1. Free

    Tractor 1966 1046 D&A TPL Wiring Rev SN.pdf

    Parts list only
    with PSB #338B corrections
    6 pages 1.35MB

    Wiring for 1056 should be the same Revised pdf
    1 page 304KB

    Long frame tractor

    Transmission drive belt 1586 replaced by 9714 (HA x 76" or 1/2" x 76")

    Starter/generator belt
    Kohler 10hp, 12hp - 235262 (7345 Gates .410" x 35.09" 36 degree) (25-7345 Napa .410" x 35.09" 36 degree)
    Wheel Horse 1593 (3L x 34.4") - nla (Gates replacement 6735 3/8" x 35" 38 degree)

    Uses Kohler K241S-462198 (This should be K241S-46219a) with 1" crankshaft, starter/generator and battery ignition
    Same as 1056 except for engine and pto.
    3 pint oil capacity
    (PT-6 is wrong Should be PT-7) pto as standard equipment, Uses 6936 engine pulley for 1" crankshaft
    PT-6 fits 1-1/8" crankshaft

    Ignition switch 4988 3-terminal 3-position replaced by 7263

    Lube chart SS - Not in chart but same as 1055 model

    Details & Attachments
    4 pages 118.10KB

    1966 model 1046
    1966 serial numbers that have shown up for the 1046
    261312
    261326
    261340
    261356
    261373
    261387
    261398
    261402
    261403
    261428
    261490
    261522
    261523
    261524
    261567
    261568



    148 downloads

    Updated

  2. Free

    Tractor 1967 857 D&A OM IPL Wiring Rev SN.pdf

    Operator manual #A-5090
    IPL
    Wiring
    12 pages 2.01MB

    Wiring Color pdf
    1 page 296KB

    Tractor drive belt for 857 #9691 - 1/2" x 70"

    Starter/Generator belt
    Original Wheel Horse 1583 nla Used on 6, 7, 8hp Kohler Starter generator {3Lx33" in belt charts is 3/8" x 33" but some applications use a shorter belt. Belt should have raw rubber sides for grip.}
    3V315 Gates .38"x31.5"
    3V315 Napa .38"x31.5"

    Kohler #231605 Starter generator belt Replaces 232613 [.41"x32.08" 36 degree] PSB #061 Should use raw rubber edge belt for grip
    7315 Gates .41"x32.08" 36 degree
    25-7315 Napa .41"x32.08" 36 degree

    Small Block Kohler Napa # 25-7320 .41" wide x 32.5" long Side angle 36 degrees Cross section HC41

    Original ignition switch 4988 replaced by 7263
    No decal on belt guard. Indentation was dropped on 4993 guard in 1967

    Last line of the parts list is missing
    Item 139 - 920127-4 Lockwasher 9/16
    Item 186 - 6998 Decal Grille

    Lube chart SS

    Details & Attachments
    3 pages 114.91KB
    1967 model 857
    1967 serial numbers that have shown up for the 857
    266108
    266307
    266388
    266526
    266622
    266896
    266949
    284035
    284158
    290859
    290869
    29116x
    291215
    306554
    306723
    306820
    307114
    307220
    307426
    307477
    325035
    325050
    325396
    325402
    336561 - Located in UK
    336677
    336700
    336833
    336998
    372790
    372875

    926 downloads

    Updated

  3. Free

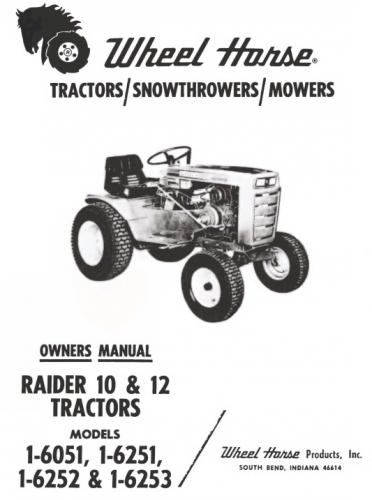

    Tractor 1970 Raider 10 & 12 D&A OM Wiring Rev SN.pdf

    Operator manual #A-5199
    Wiring
    12 pages 4.75MB
    Revised 3/70

    Wiring Color pdf for Raider 10 model 1-6051
    1 page 210KB

    Lube chart SS

    Details & Attachments
    3 pages 116.62KB
    Terminals on 8362 magneto ignition switch may not be identified
    1 page 126KB
    1970 Raider 10 model 1-6051 Early production using HH100-115145b. Late production using HH100-115145c (Engine oil capacity 2-1/2 quarts)
    1970 serial numbers that have shown up for the 1-6051
    644577
    644784
    646218
    646238
    646311 - Made in USA Located in UK G. D. Mountfield serial 1916
    646313 - Early production using HH100-115145b
    646347
    646490
    661085
    694739
    695089
    695090
    695278
    722387
    722523
    722597
    722791
    733892
    824004
    824183 - May be a model 1-0300
    834837
    -----------------------------------------------------------------------------------------
    Wiring Color pdf for Raider 12 models 1-6251 and 1-6252
    1 page 224KB

    Details & Attachments
    3 pages 115.86KB
    Terminals on 8362 magneto ignition switch may not be identified
    1 page 126KB
    1970 Raider 12 model 1-6251 - Uses Kohler K301S-47371c with breakerless magneto ignition (Engine oil capacity 2 quarts)
    1970 serial numbers that have shown up for the 1-6251
    570383 - Low - Looks like a 1969 model 1-6241 serial number
    640907
    662785 - Has stirrups for footrests
    662787
    662874
    663299
    695643
    695766 - Has full footrests
    695780 - May be a 1-6252 or 1-6253

    Details & Attachments
    3 pages 113.19KB
    Terminals on 8362 magneto ignition switch may not be identified
    1 page 126KB
    1970 Raider 12 model 1-6252 - Uses Kohler K301S-47147c with breakerless magneto ignition (Engine oil capacity 2 quarts)
    1970 serial numbers that have shown up for the 1-6252
    695780 - May be a 1-6251 or 1-6253

    Wiring Color pdf for Raider 12 model 1-6253
    1 page 205KB

    Details & Attachments
    3 pages 115.68KB
    Terminals on 8362 magneto ignition switch may not be identified
    1 page 126KB
    1970 Raider 12 model 1-6253 using Tecumseh HH120-120129c (Engine oil capacity 2-1/2 quarts)
    1970 serial numbers that have shown up for the 1-6253
    695780 - May be a 1-6251 or 1-6252
    723619
    732114
    732260
    732270
    732358
    732422
    732669
    732762

    798 downloads

    Updated

  4. Free

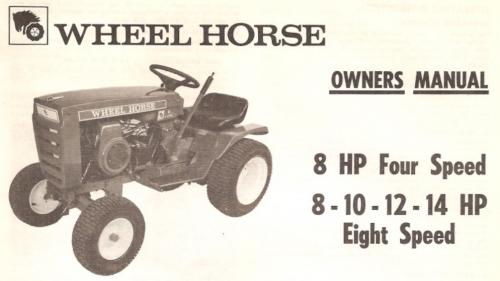

    Tractor 1972 Commando 800 D&A OM Wiring Rev SN.pdf

    This is a 1973 operator manual listed by Toro for the 1972 Commando 800 #A-5324
    Wiring
    6 pages 1.98MB
    Dated 7/72

    Wiring Color pdf
    1 page 267KB

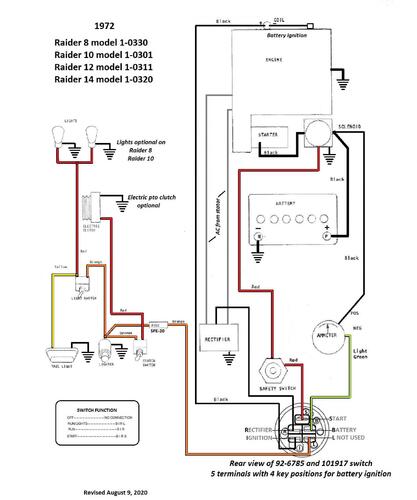

    Terminals on 101917 ignition switch may not be identified. This switch has been replaced by 92-6785.
    3 pages 269KB

    Medium frame 43-1/2" wheelbase

    Lube chart SS

    Details & Attachments
    3 pages 115.94KB
    1972 Commando 800 model 1-0110

    1972 serial numbers that have shown up for the 1-0110
    123940 - Made in Belgium
    123982 - Made in Belgium
    125150 - Made in Belgium - Model 1-0110
    125306 - Made in Belgium
    125389 - Made in Belgium
    136859 - Made in Belgium
    862315
    862320 - Model 1-0110-7
    862379 - Model 1-0110-7
    862973 - Model 1-0110-7
    862976
    863137 - Model 1-0110-7
    867110
    867210
    870877 - Model 1-0110-7
    870903 - Model 1-0110-7
    871005 - Model 1-0110-7
    883689
    883829
    884012
    885710
    889265
    889625 - Model 1-0110-7
    889720
    889765
    889878
    890042
    890255
    895187
    895226
    895656
    895723 - Model 1-0110-7
    895746
    898599

    484 downloads

    Updated

  5. Free

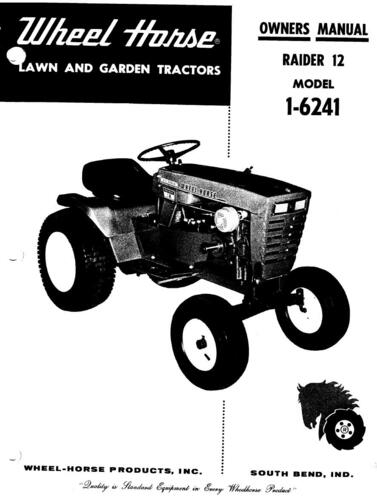

    Tractor 1969 Raider 12 D&A TPL Wiring Rev'd SN.pdf

    Parts list from Toro Master Parts Viewer
    4 pages 279.97KB

    Wiring Color pdf with heavy duty 4-position key switch
    1 page 347KB

    Wiring Color pdf with light duty ignition 3-position key switch and added solenoid. Included an optional diode in the ignition wire to save the breakerless ignition.
    1 page 408KB

    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

    Lube chart SS

    Details & Attachments
    4 pages 116.82KB

    1969 Raider 12 model 1-6241 uses Kohler K301S-47147c with breakerless magneto ignition (Engine oil capacity 2-1/2 quarts)
    1969 serial numbers that have shown up for the 1-6241
    512622
    512623
    512760
    512817
    512848
    513056
    513101
    525614
    570217
    570314
    570383 - Posted as a model 1-6251
    570398
    570451
    598627
    611820
    611910
    611970
    612132
    614084


    257 downloads

    Updated

  6. Free

    Tractor 1971 Model list 17 & Attachments.pdf

    1971 Matches Found: 17

    Attachment list
    1 page 70KB pdf

    6th digit in model number on ID plate "6" minus 5 = model year 1 or 1971
    This also applied to the attachments

    1971 800 Automatic model 1-0450 - (1-0450-6)
    1971 800 Special model 1-0150 - (1-0150-6)

    1971 Bronco 14 model 1-0420 - (1-0420-6) - Before serial 781701
    1971 Bronco 14 model 1-0421 - (1-0421-6) - After serial 781701

    1971 CG-7 model 1-0275 - (1-0275-6)
    1971 CG-7R model 1-0270 - (1-0270-6)
    1971 CG-8 model 1-0200 - (1-0200-6)

    1971 Charger 12 model 1-0400 - (1-0400-6) - Uses breakerless magneto ignition

    1971 GT-14 model 1-0500 - (1-0500-6)
    1971 GT-14 model 1-0501 - (1-0501-6)

    1971 Lawn Ranger model 2-0200 - (2-0200-6) 7hp in PSB #414
    1971 Lawn Ranger model 2-0210 - (2-0210-6) 7hp in PSB #414

    1971 R-26 Rear Engine Rider model 2-0101 - (2-0101-6) - Suspect this should be model 2-0100
    1971 R-26 Rear Engine Rider model 2-0111 - (2-0111-6) - Suspect this should be model 2-0110

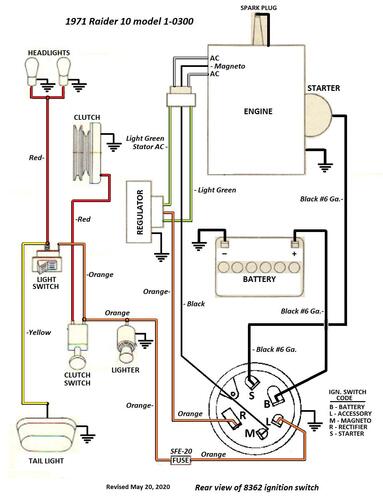

    1971 Raider 10 model 1-0300 - (1-0300-6)
    1971 Raider 12 model 1-0310 - (1-0310-6) (This model also made in Belgium) - Uses breakerless magneto ignition

    1971 WorkHorse 800 model 1-0100 - (1-0100-6)

    160 downloads

    Updated

  7. Free

    Tractor 1969 Charger 12 D&A OM IPL Wiring Rev SN.pdf

    Operator manual #1-7241-P
    IPL
    Wiring
    14 pages 1.04MB

    Wiring Color pdf
    1 page 360KB

    Terminals on 8362 magneto ignition switch may not be identified
    1 page 126KB

    5955 Sundstrand hydro pump gasket nla - 102759 gasket should work

    Tractor drive belt # 7478 replaces # 4535 - (HB/5L x 84.22" or 5/8" x 84.22")

    Lube chart SS

    Details & Attachments
    4 pages 117.40KB

    1969 Charger 12 model 1-7241
    1969 serial numbers that have shown up for the 1-7241 (4th digit in the model number 4 + 5 = model year 9 = 1969)
    520064
    520099
    520147
    521131
    521149
    521157
    572562
    572691
    572695
    587991
    588613
    588880
    597097
    597171
    597203
    597315
    615503
    618706



    655 downloads

    Updated

  8. Free

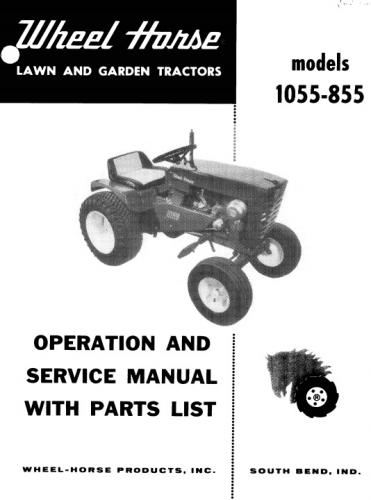

    Tractor 1965 855 & 1055 D&A OM IPL Wiring Rev SN.pdf

    Operator manual
    IPL
    Wiring
    12 pages 994.15KB - #245-246
    10 pages 1.44MB - #A-5101

    Wiring Color pdf
    1 page 303KB

    Both models are short frame tractors
    Tractor drive belt for 855 and 1055 #9691 - 1/2" x 70"
    Transmission driven pulley Woodruff key 937014 replaced by 3257-5 is a Woodruff #9 - 3/16" x 3/4" - Actual key length is .740"

    Transmission driven pulley
    855 uses part # 1611 for 3/4" input shaft
    1055 uses part # 5425 for 3/4" input shaft
    Comment by BPjunk - On the old big engined short framed tractors of the mid 60's the transmission drive pulley has the hub with the set screw pointing inwards towards the transmission so the alignment of the pulleys "V" groove is in alignment with the engines drive pulley.
    Comment by TT - The 1055 takes P/N 5425 pulley. It's the same pulley that's on a 1045/1056/1057/1257 and does stick out away from the transmission more than the P/N 1611 pulley like the "small block" (like the 656 or 855) tractors use.

    Lube chart SS

    8hp Starter/Generator belt
    Original Wheel Horse 1583 nla Used on 6, 7, 8hp Kohler Starter generator {3Lx33" in belt charts is 3/8" x 33" Belt should have raw rubber sides for grip.}
    3V315 Gates .38"x31.5"
    3V315 Napa .38"x31.5"
    Kohler #231605 Starter generator belt Replaces 232613 [.41"x32.08" 36 degree] PSB #061 Should use raw rubber edge belt for grip
    7315 Gates .41"x32.08" 36 degree
    25-7315 Napa .41"x32.08" 36 degree

    Small Block Kohler Napa # 25-7320 .41" wide x 32.5" long Side angle 36 degrees Cross section HC41

    Details & Attachments
    3 pages 117.06KB
    1965 model 855
    1965 serial numbers that have shown up for the 855
    115816
    115953
    116127
    116168
    116625
    116655
    116660
    125415
    132421
    132505
    132567
    132702
    132740
    134834
    135264
    -----------------------------------------------------------------
    10hp Starter/Generator belt
    Kohler 10hp, 12hp - 235262 (7345 Gates .410" x 35.09" 36 degree) (25-7345 Napa .410" x 35.09" 36 degree)
    Wheel Horse 1593 (3L x 34.4") - nla (Gates replacement 6735 3/8" x 35" 38 degree)
    1964 model 1045
    1964 model 1054 - Not in PSB - Wheel Horse # 1593 nla {3Lx34.4"} - Gates 7340 .410"x34.58" 36 degree or Napa 25-7340 .410"x34.58" 36 degree
    1965 model 1054A - Not in PSB - Kohler 235262 replaces 235528 [.41"x35.09" 36 degree] - Gates 7345 .41"x35.09" 36 degree or Napa 25-7345 .41"x35.09" 36 degree
    1965 model 1055
    1965 model 1075

    Big Block Kohler Napa # 25-7345   .41" wide x 35.3" long side angle 37 degrees Cross section HC41

    Details & Attachments
    3 pages 117.61KB
    1965 model 1055
    1965 serial numbers that have shown up for the 1055
    108071
    108290
    108348
    108359
    11608x
    117077
    117381
    136113

    1,047 downloads

    Updated

  9. Free

    Tractor 1972 R-26 Rear Engine Rider D&A TPL SN.pdf

    Parts list from Toro Master Parts Viewer
    4 pages 152.71KB - for model 2-0100
    5 pages 235.19KB - for model 2-0101
    4 pages 153.02KB - for model 2-0110
    6 pages 382.42KB - for model 2-0111

    Lube chart SS

    Details & Attachments
    2 pages 101.64KB
    1972 R-26 RER model 2-0100

    Details & Attachments
    2 pages 101.64KB
    1972 R-26 RER model 2-0101
    1972 serial numbers that have shown up for the 2-0101
    874867

    Details & Attachments
    2 pages 101.94KB
    1972 R-26 RER model 2-0110
    1972 serial numbers that have shown up for the 2-0110
    124429

    Details & Attachments
    2 pages 102.21KB
    1972 R-26 RER model 2-0111

    130 downloads

    Updated

  10. Free

    Tractor 1966 606 & 656 D&A OM IPL Wiring Rev SN.pdf

    Operator manual #265-266
    Illustrated parts list
    Wiring
    11 pages 807.03KB

    Wiring Revised pdf
    1 page 248KB

    Short frame tractors

    Tractor drive belt for 606 and 656 #9691 (1/2" x 70")

    Ignition switch with single terminal for 606 is 3656 replaced by 6890 and nla. See PSB #069
    Ignition switch for 656 is 4987 replaced by 101482

    Lube chart SS

    Details & Attachments
    3 pages 114.03KB
    1966 model 606
    1966 serial numbers that have shown up for the 606
    176166
    176234
    176593
    176614
    176711
    215343
    215360
    215540

    Details & Attachments
    3 pages 115.11KB
    1966 model 656
    1966 serial numbers that have shown up for the 656
    175469
    175561
    175716
    175769
    175861
    175869
    211526
    212001
    212304
    212473
    245251
    245439
    252099
    255346
    255364
    255638
    255716

    838 downloads

    Updated

  11. Free

    Tractor 1966 Lawn Ranger D&A TIPL Wiring Rev SN.pdf

    Illustrated parts list from Toro Master Parts Viewer
    9 pages 659.49KB for model L-106
    9 pages 660.21KB for model L-156

    Wiring Revised pdf
    1 page 207KB

    Tractor drive belt for L-106 and L-156 #9691 - 1/2" x 70"

    Mower belt 1555 replaced by 113912 (HAx44 or 1/2" x 44")
    8777 2-blade set replaces 3719, 7760 and 7909 left blades and 3718, 7761 and 7908 right blades

    Ignition switch for L-156 is 4987 replaced by 101482

    Mower Rotary 1966 32in RD model RM-116 standard equipment

    Lube chart SS

    Details & Attachments
    2 pages 109.07KB
    1966 model L-106
    1966 serial numbers that have shown up for the L-106
    221013
    221613
    221739
    221801
    221911
    267646

    Details & Attachments
    2 pages 109.83KB
    1966 model L-156
    1966 serial numbers that have shown up for the L-156
    177456
    177645
    177738
    177768
    177785
    177909
    199923
    208076
    219051
    219178
    219215
    219813
    249413
    249419
    249607
    249635
    249784
    249799
    249851
    256042
    256067
    256340
    262046
    262055

    416 downloads

    Updated

  12. Free

    Tractor 1970 Charger 12 D&A TPL IPLL Wiring Rev SN.pdf

    Parts list from Toro Master Parts Viewer
    5 pages 420.69KB - Model 1-7251
    5 pages 450.60KB - Model 1-7252
    5 pages 450.86KB - Model 1-7253

    Illustrated parts list link
    Use the 1971 parts list for the Charger 12 model 1-0400 with the following exceptions
    For electric pto clutch see Electro 12 model 1-7255
    Tractor 1971 1-0400 Charger 12 Parts letter.pdf
    2 pages 287KB

    5955 Sundstrand hydro pump gasket nla - 102759 gasket should work

    Terminals on 8362 magneto ignition switch may not be identified
    1 page 126KB

    Tractor drive belt # 7478 replaces # 4535 (HB/5L x 84.22" or 5/8" x 84.22")

    Lube chart SS

    Wiring Color pdf model 1-7251
    1 page 216KB

    Details & Attachments
    3 pages 115.18KB
    1970 Charger 12 model 1-7251 - Uses Kohler K301S-47371c with breakerless magneto ignition
    1970 serial numbers that have shown up for the 1-7251
    639303
    639332
    639473
    639538
    639600
    639750
    639800
    639806
    663811
    663825
    663933

    --------------------------------------------------------------------------------------------------------------------------------------------
    Wiring Color pdf model 1-7252
    1 page 213KB

    Details & Attachments
    3 pages 115.18KB
    1970 Charger 12 model 1-7252 - Uses Kohler K301S-47147c with breakerless magneto ignition
    1970 serial numbers that have shown up for the 1-7252
    638912

    --------------------------------------------------------------------------------------------------------------------------------------------
    Wiring Color pdf model 1-7253
    1 page 211KB

    Details & Attachments
    3 pages 115.01KB
    1970 Charger 12 model 1-7253 - Uses Lauson HH120-120129c
    1970 serial numbers that have shown up for the 1-7253
    730037
    730049
    730059
    730118
    730119
    730610
    730678
    730683
    730754

    388 downloads

    Updated

  13. Free

    Tractor 1972 Raider 8, 10, 12 & 14 D&A OM Wiring Rev SN.pdf

    Operator manual #A-5300
    Wiring
    6 pages 1.05MB

    Wiring Color pdf
    1 page 326KB

    Terminals on 101917 ignition switch may not be identified. This switch has been replaced by 92-6785.
    3 pages 269KB

    Lube chart SS

    Details & Attachments
    3 pages 117.21KB
    1972 Raider 8 model 1-0330
    1972 serial numbers that have shown up for the 1-0330
    846767 - Model 1-0330-7
    859577
    859692
    859729
    859777
    833563 - Model 1-0330-7
    866097
    866133
    866190
    891677

    Details & Attachments
    4 pages 119.93KB
    1972 Raider 10 model 1-0301 (Engine oil capacity 2 quarts)
    1972 serial numbers that have shown up for the 1-0301
    843635
    859793
    859806
    859966
    859979
    863626 - Model 1-0301-7
    863650
    863660
    877537
    877628 - Model 1-0301-7
    891757 - Model 1-0301-7
    891800 - Model 1-0301-7

    Details & Attachments
    4 pages 119.73KB
    1972 Raider 12 model 1-0311 (Engine oil capacity 2 quarts)
    1972 serial numbers that have shown up for the 1-0311
    123172 - Made in Belgium G. D. Mountfield Ltd. serial 3823
    125108 - Made in Belgium
    125605 - Made in Belgium - Located in the UK
    833214 - Model 1-0311-7
    848045 - Model 1-0311-7
    853219 - Model 1-0311-7
    887475
    887508
    877755

    Details & Attachments
    4 pages 119.70KB
    1972 Raider 14 model 1-0320
    1972 serial numbers that have shown up for the 1-0320
    833053
    835070 - Model 1-0320-7
    858570 - Model 1-0320-7
    858667
    858685
    858706
    878605
    892173
    892204
    892225

    998 downloads

    Updated

  14. Free

    Tractor 1965 605 & 655 D&A OM IPL Wiring Rev SN.pdf

    Operator manual #204
    Illustrated parts list
    Wiring
    11 pages 1.70MB
    Dated 9/14/64

    Wiring Revised pdf
    1 page 256KB

    Tractor drive belt for 605 and 655 #9691 - 1/2" x 70"

    Ignition switch with single terminal for 605 is 3656 replaced by 6890 and nla. See PSB #069
    Ignition switch for 655 is 4987 replaced by 101482

    Short frame 41-1/4" wheelbase

    Lube chart SS

    Details & Attachments
    3 pages 115.21KB
    1965 model 605
    1965 serial numbers that have shown up for the 605
    058835
    105895
    106126
    106147
    109816
    109959
    133206

    -----------------------------------------------------------------------

    Details & Attachments
    3 pages 116.12KB
    1965 model 655
    1965 serial numbers that have shown up for the 655
    106341
    106720
    106847
    107052
    107102
    115152
    115341
    115768
    133363
    133389
    133488
    133662
    133946
    134203
    134256
    134476


    440 downloads

    Updated

  15. Free

    Tractor 1967 Lawn Ranger D&A OM IPL Wiring Rev SN.pdf

    Operator manual #317-318
    IPL
    Wiring
    12 pages 4.29MB

    Wiring Revised pdf
    1 page 204KB

    Tractor drive belt for L-107 and L-157 #9691 - 1/2" x 70"

    Includes 32" RM-117 mower deck IPL
    Mower Rotary 1967 32in RD model RM-117 standard equipment

    Mower belt 1555 replaced by 113912 (1/2" x 44")

    8777 2-blade set replaces 3719, 7760 and 7909 left blades and 3718, 7761 and 7908 right blades

    Lube chart SS

    Details & Attachments
    2 pages 107.86KB
    1967 model L-107 Lawn Ranger - Recoil start
    1967 serial numbers that have shown up for the L-107
    037907 - Perhaps should be 037907x - Located in England
    280582
    281598
    281820
    282003
    282896
    306036
    306290
    323439
    335614
    335665
    335716 - May be a L-157
    335766
    379075

    Details & Attachments
    2 pages 108.23KB
    1967 model L-157 Lawn Ranger - Electric start
    1967 serial numbers that have shown up for the L-157
    006250
    280915
    281232
    281324
    300047
    300363
    319847
    323573
    323894
    328288
    335716 - May be a L-107
    339007
    339079
    339225
    339399
    363841
    363990
    364144

    480 downloads

    Updated

  16. Free

    Tractor 1966 856 D&A OM IPL Wiring Rev SN.pdf

    Operator manual #687
    Illustrated parts list
    Wiring
    14 pages 2.92MB

    Better copy
    11 pages 5.7MB

    Wiring Color pdf
    1 page 301KB

    Short frame 41-1/4" wheelbase
    Tractor drive belt for 856 #1576 replaced by 9691 - 1/2" x 70"

    Starter/Generator belt
    Original Wheel Horse 1583 nla Used on 6, 7, 8hp Kohler Starter generator {3Lx33" in belt charts is 3/8" x 33" but some applications use a shorter belt. Belt should have raw rubber sides for grip.}
    3V315 Gates .38"x31.5"
    3V315 Napa .38"x31.5"

    Kohler #231605 Starter generator belt Replaces 232613 [.41"x32.08" 36 degree] PSB #061 Should use raw edge belt
    7315 Gates .41"x32.08" 36 degree
    25-7315 Napa .41"x32.08" 36 degree

    Small Block Kohler Napa # 25-7320 .41" wide x 32.5" long Side angle 36 degrees Cross section HC41

    Details & Attachments
    3 pages 114.95KB

    1966 model 856
    1966 serial numbers that have shown up for the 856
    173774
    174010
    174204
    193858
    193910
    194025
    194163
    194315 - May be a 876
    194431
    194583
    194593
    209033
    209428
    209809
    234503
    234895
    234902
    235114
    235163
    251599
    2519x0
    251984 - Located in UK Made in USA
    251988 - Located in Northern Ireland
    253822
    867865 - Looks wrong - Possibly should be 267865

    1,126 downloads

    Updated

  17. Free

    Tractor 1971 800 Special D&A OM Wiring Rev SN.pdf

    Operator manual #A-5278
    Wiring
    6 pages 1.39MB

    Wiring Color pdf
    1 page 300KB

    Lube chart SS

    Details & Attachments
    3 pages 113.80KB
    1971 800 Special model 1-0150
    1971 serial numbers that have shown up for the 1-0150
    761878
    762097 - Model 1-0150-6
    762133
    762145 - Model 1-0150-6
    762183
    762544
    762803 - Model 1-0150-6
    762809
    763007
    763008
    763031
    763093
    763216
    763239
    763548
    763670 - Model 1-0150-6
    764030
    773563
    77381x
    774217 - Model 1-0150-6
    774490
    774805
    774905 - Model 1-0150-6
    775137
    784819 - Model 1-0150-6
    784846 - Model 1-0150-6
    785029
    785072
    785300 - Model 1-0150-6
    785580
    785811 - Model 1-0150-6

    360 downloads

    Updated

  18. Free

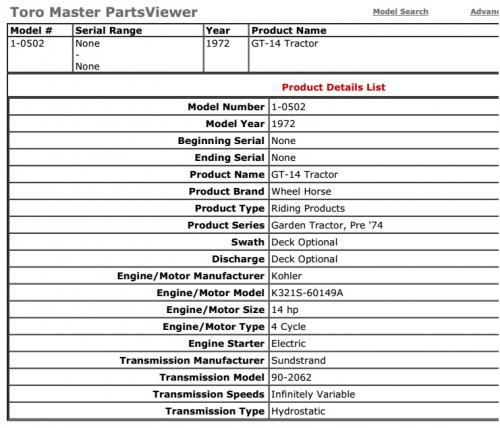

    Tractor 1971 GT-14 D&A Wiring Rev SN.pdf

    Wiring Color pdf
    1 page 417KB

    Terminals on 8362 magneto ignition switch may not be identified
    1 page 126KB

    Lube chart SS

    Details & Attachments
    3 pages 115.45KB

    Uses Kohler K321S-60125B with electric start, starter solenoid, 15 amp stator, electric clutch and breakerless ignition
    Uses 8362 (Threads 9/16"-24) 5-terminal 4-position (L-B-M-S-R) breakerless ignition switch

    Transmission drive belt 8334 - (B x 84.8" or 5/8" x 84.8") Listed in belt chart

    1971 GT-14 model 1-0500
    1971 serial numbers that have shown up for the 1-0500
    751423
    755823
    755860
    755915 - Model 1-0500-6
    755928
    790510
    790513 - Model 1-0500-6
    790559 - Model 1-0500-6
    790589
    790618
    790622 - Model 1-0500-6
    790634
    790676
    790678 - Model 1-0500-6
    790743
    807214
    825041 - Model 1-0500-6
    825066
    --------------------------------------------------------------------------------------

    Details & Attachments
    3 pages 115.25KB

    Uses Kohler K321S-60125B with electric start, starter solenoid, 15 amp stator, electric clutch and breakerless ignition
    Uses 8362 (Threads 9/16"-24) 5-terminal 4-position (L-B-M-S-R) breakerless ignition switch

    Transmission drive belt 8334 - (B x 84.8" or 5/8" x 84.8") Not listed in belt chart

    1971 GT-14 model 1-0501
    1971 serial numbers that have shown up for the 1-0501

    323 downloads

    Updated

  19. Free

    Tractor 1969 WorkHorse 700 D&A OM IPL Wiring Rev SN.pdf

    Operator manual
    IPL
    Wiring
    12 pages 3.11MB - #508-509
    Dated 7/17/68
    12 pages 2.21MB - #A-5241
    Dated 3/70

    Wiring Color pdf for 1-3745 Electric Start model
    1 page 251KB

    Tractor drive belt for 1-3741 and 1-3745 #9691 - 1/2" x 70"

    Lube chart SS

    Details & Attachments
    3 pages 113.72KB
    1969 WorkHorse 700 model 1-3741 - Recoil start and wrong on Details page. Engine is correct - H70-130042
    1969 serial numbers that have shown up for 1-3741
    111294 - Made in Belgium
    526559
    526595
    536349
    539336

    Details & Attachments
    3 pages 114.56KB
    1969 WorkHorse 700 model 1-3745 - Electric start - H70-130043
    1969 serial numbers that have shown up for 1-3745
    531804
    531945
    532198
    536055
    536194
    536411
    536754
    550869
    550950
    554063
    554067
    554193
    556012
    556095
    556102

    656 downloads

    Updated

  20. Free

    Tractor 1969 GT-14 D&A OM TIPL Wiring Rev SN.pdf

    Operator manual #416
    Wiring
    Part 1 - 6 pages 1.47MB
    Part 2 - 6 pages 3.15MB
    Dated 10/23/68 Revised 11/11/68

    IPL from Toro Master Parts Viewer
    8 pages 617.66KB

    Wiring Color pdf
    1 page 443KB

    PSB #102
    5 pages 90.91KB

    Uses Kohler K321S-6010b with electric start, starter solenoid, 10 amp stator, lighter, lights, electric pto clutch, ammeter and breakerless ignition. (Toro has the wrong engine spec 60125b posted)
    Uses 8362 (Threads 9/16"-24) 5-terminal 4-position (L-B-M-S-R) breakerless ignition switch

    5955 Sundstrand hydro pump gasket nla - 102759 gasket should work

    Transmission drive belt 8334 - (B x 84.8" or 5/8" x 84.8")

    Lube chart SS

    Details & Attachments
    3 pages 111.81KB

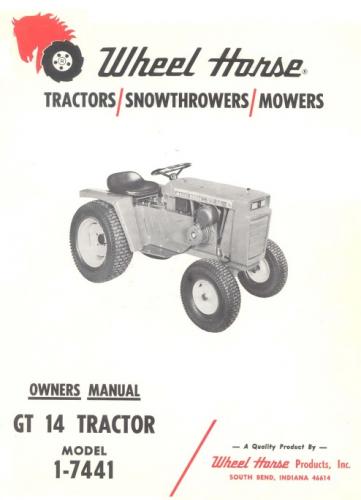

    1969 GT-14 model 1-7441

    1969 serial numbers that have shown up for the 1-7441
    54594x
    558866
    558962
    559130
    559191
    559303
    564185
    564250
    564346
    564362
    564412
    564435
    566760
    566856
    566988
    568053
    568197
    568293
    568448
    578663
    578665
    578689
    582345

    1,323 downloads

    Updated

  21. Free

    Tractor 1971 WorkHorse 800 D&A Wiring Rev SN.pdf

    Wiring Color pdf
    1 page 254KB

    Preliminary parts list changes
    2 pages 308KB
    We also have the 1971 parts list that followed
    Work Horse 800

    The 6th digit in the model number is not used but if you subtract 5 from that number you get the model year - (6-5=1=1971)

    Lube chart SS

    Details & Attachments
    3 pages 115.92KB

    1971 WorkHorse 800 model 1-0100

    1971 serial numbers that have shown up for the 1-0100
    011955 - Made in Belgium - Mountfield serial 3508
    744133
    744137
    744165
    744403
    744445
    744451
    74460x - Serial 74460 posted looks wrong
    759038 - Model 1-0100-6
    759043 - Model 1-0100-6
    759209
    759348 - Model 1-0100-6
    759574
    759592
    759691
    768512
    768567
    779158
    779198
    779233
    790336 - Model 1-0100-6
    790438 - Model 1-0100-6
    823598

    131 downloads

    Updated

  22. Free

    Tractor 1970 GT-14 D&A IPL Wiring Rev SN.pdf

    IPL for model 1-7451
    10 pages 2.04MB
    Dated 3/70

    Wiring Color pdf for 1-7451
    1 page 442KB

    Wiring Color pdf for 1-7452 and 1-7453
    1 page 443KB

    5955 Sundstrand hydro pump gasket nla - 102759 gasket should work

    IPL for models 1-7452 and 1-7453
    10 pages 2.16MB

    5955 Sundstrand hydro pump gasket nla - 102759 gasket should work

    Transmission drive belt 8334 - (B x 84.8" or 5/8" x 84.8")

    Lube chart SS

    Details & Attachments
    3 pages 113.02KB

    Uses Kohler K321S-6010b with electric start, starter solenoid, 10 amp stator, lighter, lights, electric clutch, ammeter and breakerless ignition. (Toro has the wrong engine spec 60125b posted)
    Uses 8362 (Threads 9/16"-24) 5-terminal 4-position (L-B-M-S-R) breakerless ignition switch

    1970 GT-14 model 1-7451
    1970 serial numbers that have shown up for the 1-7451
    630641
    630681
    630703
    630763
    630788
    630808
    630911
    630995
    631028
    632324
    632335
    632460
    632474
    632547
    632589
    632661
    634239
    634254
    634432
    634528
    634621
    634623

    ------------------------------------------------------------------------------------
    Details & Attachments
    3 pages 112.73KB

    Uses Kohler K321S-6010b with electric start, starter solenoid, 10 amp stator, lighter, lights, electric clutch, ammeter and breakerless ignition. (Toro has the wrong engine spec 60125b posted)
    Uses 8362 (Threads 9/16"-24) 5-terminal 4-position (L-B-M-S-R) breakerless ignition switch

    1970 GT-14 model 1-7452
    1970 serial numbers that have shown up for the 1-7452
    684221
    684322
    684548
    684553
    684803
    685064
    685077
    724882
    724889
    724931
    725096
    725183
    725193

    ----------------------------------------------------------------------------------
    Details & Attachments
    3 pages 112.93KB

    Uses Kohler K321S-6010b with electric start, starter solenoid, 10 amp stator, lighter, lights, electric clutch, ammeter and breakerless ignition. (Toro has the wrong engine spec 60125b posted)
    Uses 8362 (Threads 9/16"-24) 5-terminal 4-position (L-B-M-S-R) breakerless ignition switch

    1970 GT-14 model 1-7453 - Not in belt chart
    1970 serial numbers that have shown up for the 1-7453

    1,246 downloads

    Updated

  23. Free

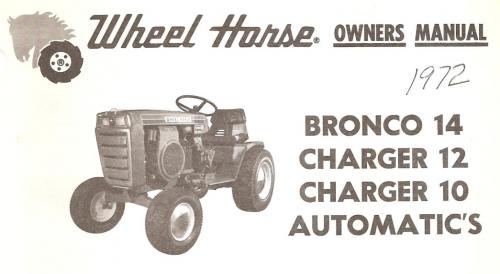

    Tractor 1972 Bronco 14, Charger 10 & Charger 12 D&A OM Wiring Rev SN.pdf

    Operator manual #A-5299
    Wiring
    8 pages 3.55MB

    Wiring for battery ignition Color pdf
    1 page 280KB

    Wiring for magneto ignition Color pdf
    1 page 272KB

    Lube chart SS

    Details & Attachments
    4 pages 119.33KB
    1972 Charger 10 model 1-0410 with battery ignition  Kohler K241S-46636D
    1972 serial numbers that have shown up for the 1-0410
    832877
    8xxxxx - [84364 posted]
    843988
    844330
    844362 - Model 1-0410-7
    844364
    851975
    863483
    870647
    885070

    Details & Attachments
    4 pages 119.12KB
    1972 Charger 12 model 1-0401 with battery ignition Kohler K301S-47421B
    1972 serial numbers that have shown up for the 1-0401
    863542
    877910 - Model 1-0401-7 (Kohler K301S-47421B serial 4039663 - Made in 1972)
    888930 - Model 1-0401-7
    889021
    892638 - Model 1-0401-7
    892764
    902465

    Details & Attachments
    4 pages 119.43KB
    1972 Charger 12 model 1-0402 with breakerless magneto ignition Kohler K301S-47407C

    Details & Attachments
    4 pages 119.13KB
    1972 Bronco 14 model 1-0422 with battery ignition (Bronco wiring diagram incorrectly listed as model 1-0502) Kohler K321S-60137A

    Details & Attachments
    4 pages 119.15KB
    1972 Bronco 14 model 1-0423 with battery ignition (Bronco wiring diagram incorrectly listed as model 1-0502) Kohler K321S-60137A
    1972 serial numbers that have shown up for the 1-0423
    855532
    855552
    889095 - Model 1-0423-7
    889098 - Model 1-0423-7
    889116
    892372

    655 downloads

    Updated

  24. Free

    Tractor 1967 1067 & 1267 D&A OM IPL Wiring Rev SN.pdf

    Operator manual #346-347
    IPL
    Wiring
    12 pages 4.17MB
    Dated 1/1/67

    Wiring Color pdf
    1 page 338KB

    Models 867, 1067 and 1267 first models to get headlamps as standard equipment

    Transmission drive belt 1586 replaced by 9714 (HA x 76" or 1/2" x 76")

    Starter/generator belt
    Kohler 10hp, 12hp - 235262 (7345 Gates .410" x 35.09" 36 degree) (25-7345 Napa .410" x 35.09" 36 degree)
    Wheel Horse 1593 (3L x 34.4") - nla (Gates replacement 6735 3/8" x 35" 38 degree)

    Small Block Kohler Napa # 25-7320 .41" wide x 32.5" long Side angle 36 degrees Cross section HC41
    Big Block Kohler Napa # 25-7345   .41" wide x 35.3" long side angle 37 degrees Cross section HC41

    Lube chart SS

    Details & Attachments
    4 pages 119.89KB

    1967 model 1067
    1967 serial numbers that have shown up for the 1067
    288721
    367453
    374404
    374405
    374479
    374530
    374566
    374623
    378854
    378895
    380818
    382828

    ------------------------------------------------------------------------------------------------

    Details & Attachments
    4 pages 119.58KB

    1967 model 1267
    1967 serial numbers that have shown up for the 1267
    367508
    367509
    367640
    374805
    374866
    374973
    379124
    379140
    379154
    379206
    380578

    549 downloads

    Updated

  25. Free

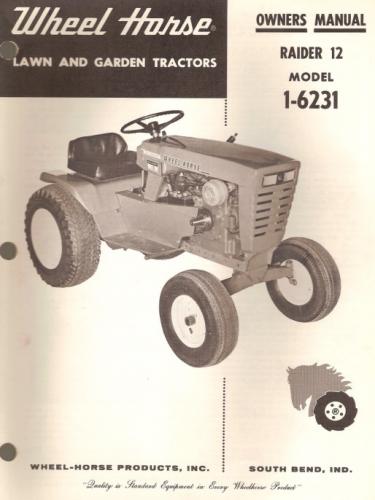

    Tractor 1968 Raider 12 Early production D&A TPL Wiring Rev SN.pdf

    PL from Toro Master Parts Viewer
    6 pages 348.66KB

    Do not know if PL is correct for early production
    Early production using Kohler K301S-4712B with starter/generator and battery ignition

    The 1967 wiring should be the same as the 1968 early production

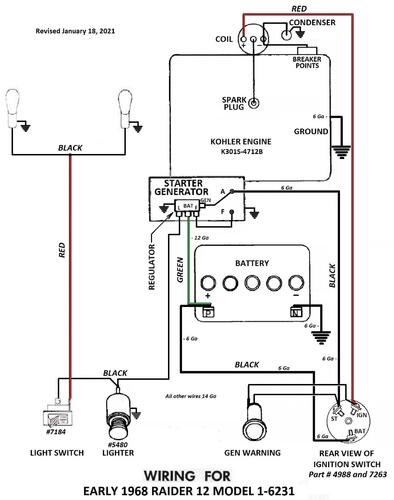

    Wiring Color pdf
    1 page 350KB

    Uses 7263 (Threads 9/16"-24) 3-terminal 3-position BAT-IGN-ST ignition switch.

    Starter/generator belt
    Kohler 10hp, 12hp - 235262 (7345 Gates .410" x 35.09" 36 degree) (25-7345 Napa .410" x 35.09" 36 degree)
    Wheel Horse 1593 (3L x 34.4") - nla (Gates replacement 6735 3/8" x 35" 38 degree)

    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

    Late production used Kohler K301S-47147B with Bendix starter, 10 amp alternator and magneto ignition with points and condenser

    Lube chart SS

    Details & Attachments
    3 pages 116.88KB
    1968 Raider 12 model 1-6231 - Early production (Engine oil capacity 2-1/2 quarts)

    1968 serial numbers that have shown up for the 1-6231
    400062 - This group is early production using Kohler K301S-4712B with starter/generator and battery ignition
    400086
    400194
    400262
    400351
    400403
    400410
    414506
    414516
    414685
    414946 - This group is early production

    Late production
    420782 - Charger 12 model 1-7231 is late production with Bendix starter and magneto ignition spec 47147b
    425043 - Has Bendix starter
    42512x
    425183
    425308 - Has starter/generator so engine assembly is likely a replacement

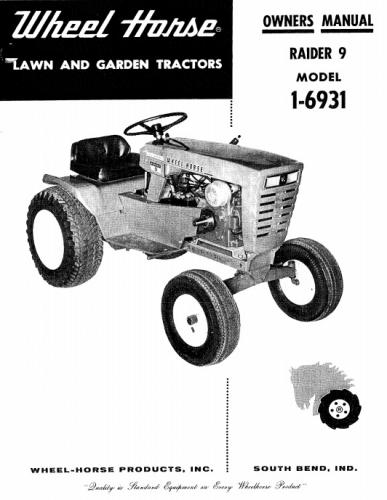

    428468 - May be a Raider 9 model 1-6931
    437097
    437141 - Located in the UK
    437408
    437437
    445005 - Has Bendix starter
    445130 - Located in Sweden
    457642
    457743
    481216
    481328
    481580
    481671
    637318 - The 6 has been added by hand - Made in USA Located in Belgium

    220 downloads

    Updated




×
×
  • Create New...
