Tractor 1972 Raider 8, 10, 12 & 14 D&A OM Wiring Rev SN.pdf

Sign in to follow this

12 Screenshots

About This File

Operator manual #A-5300
Wiring
6 pages 1.05MB



Wiring Color pdf

1 page 326KB



Terminals on 101917 ignition switch may not be identified. This switch has been replaced by 92-6785.
3 pages 269KB

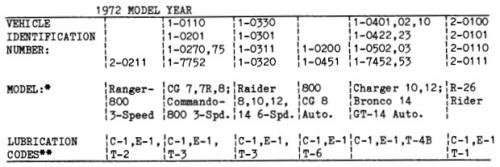

Lube chart SS


Details & Attachments
3 pages 117.21KB
1972 Raider 8 model 1-0330
1972 serial numbers that have shown up for the 1-0330
846767 - Model 1-0330-7
859577
859692

859729
859777

833563 - Model 1-0330-7
866097

866133
866190
891677



Details & Attachments
4 pages 119.93KB

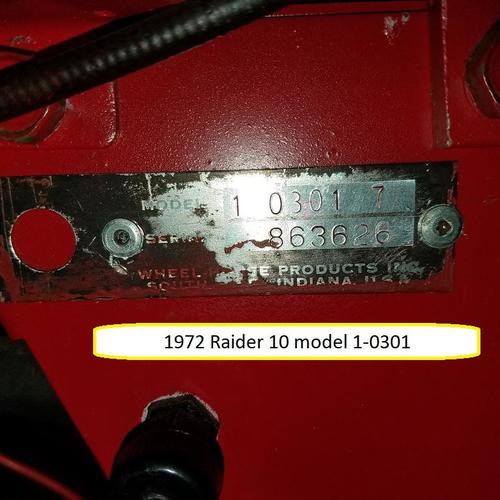

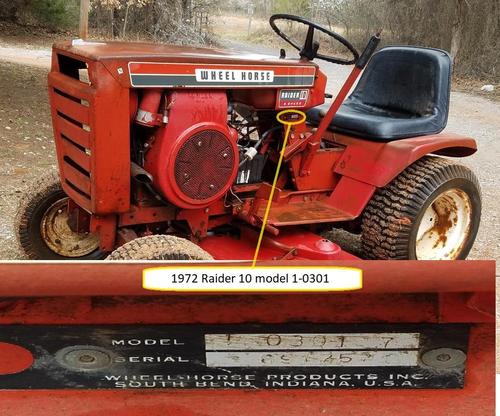

1972 Raider 10 model 1-0301 (Engine oil capacity 2 quarts)
1972 serial numbers that have shown up for the 1-0301
843635
859793
859806
859966
859979

863626 - Model 1-0301-7
863650
863660
877537

877628 - Model 1-0301-7

891757 - Model 1-0301-7
891800 - Model 1-0301-7



Details & Attachments
4 pages 119.73KB

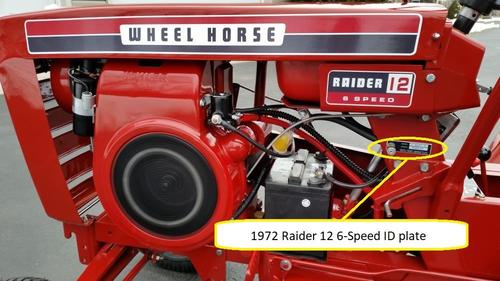

1972 Raider 12 model 1-0311 (Engine oil capacity 2 quarts)
1972 serial numbers that have shown up for the 1-0311
123172 - Made in Belgium G. D. Mountfield Ltd. serial 3823
125108 - Made in Belgium
125605 - Made in Belgium - Located in the UK

833214 - Model 1-0311-7
848045 - Model 1-0311-7

853219 - Model 1-0311-7
887475
887508

877755



Details & Attachments
4 pages 119.70KB
1972 Raider 14 model 1-0320
1972 serial numbers that have shown up for the 1-0320

832975 - Model 1-0320-7
833053

835061 - Model 1-0320-7

835070 - Model 1-0320-7

858570 - Model 1-0320-7
858667
858685
858706
878605
892173
892204

892225




×
×
