659 files
-
Free
Mower Sickle Side 42in 1962 SMS-42 OM IPL DNA SN.pdf
By admin-(Admin)
Operator manual #115
IPL
2 pages 122.89KB
Engine drive belt 1572 - A x 34" or 4L x 34" or 1/2" x 34"
Mower drive belt 1588 - A x 59" or 1/2" x 59"
Mower Sickle 1962 42in Side model SMS-42
1962 serial numbers that have shown up for the SMS-42
A-03915
A-06945 - May be a SMS-42A
Sickle DNA - 42" side mounted
1962 model SMS-42
1962-1964 model SMS-42A
1965-1967 model SMS-425
1968-1979 model 7-1321
145 downloads
Updated
-
Free
Mower Rotary Walking Toro & Lawn Boy SM #492-9333.pdf
By gwest_ca-(File Mod)
Lawn-Boy
Service manual #492-9333
168 pages 9.6MB
50 downloads
Updated
-
Free
Chart Blades and spindle cups Rotary mower 15 pages #492-0392.pdf
By admin-(Admin)
15 pages 829.23KB
Covers 1956-1999 models
Spindle cups are on the last page
Mistakes in chart
1969 mower model 5-7365 shows 101093 3-blade set - Should be 8969 3-blade set
1999 mower model 78345 shows blade set 14-4879 - Should be 106636 3-blade set
516 downloads
Updated
-
Free
Mower Rotary 48in SD 1988 05-48SC01 3-4-500 OM TIPL SN.pdf
By admin-(Admin)
Operator manual #810518R1 or 810518 R1
8 pages 1.79MB
Dated 03/87
IPL from Toro Master Parts Viewer
6 pages 426.07KB
Fits 300, 400 and 500-Series tractors
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 1594 (1/2" x 107.21")
Uses Z spindle assembly
106078 blade replaced by 106637 3-blade set (3/4" round hole)
Mower Rotary 1988 48in SD model 05-48SC01
1988 serial numbers that have shown up up the 05-48SC01
80110 - Build date 1988 8217 August 04 Thursday
219 downloads
Updated
-
Free
Mower Sickle Front 32in 1961 for 701 Photos.jpg
By gwest_ca-(File Mod)
Photos only
Mower Sickle 1961 32in Front model CBR-327 fits the model 701.
Has a smaller pulley than the CBR-32 and a chain drive to reduce speed.
Found in May 15, 1961 price list.
1/2" x 35" drive belt works but 1/2" x 37" may work better.
220 downloads
Updated
-
Free
Mower Rotary 36in RD 1991-1993 05-36MR05 OM IPL SN.pdf
By gwest_ca-(File Mod)
Operator manual #810518R1 or 810518 R1
8 pages 1.79MKB
Dated 03/87
IPL #3314-723
4 pages 737.05KB
Manual listed at Toro for this deck is 810735R1 and wrong. Has 42in and 48in decks only and dated 08-89
Fits 300-Series and 400-Series tractors
Fits B-Series and C-Series tractors
Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511
Drive belt 102741 (1/2" x 96.6") for C-Series and long frame tractors (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 8411 (1/2" x 76.94")
107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)
Mower Rotary 1991 36in RD model 05-36MR05 Serial 1000001-1099999
Mower Rotary 1992 36in RD model 05-36MR05 Serial 2000001-2999999
1992 serial numbers that have shown up for the 05-36MR05
2000271
Mower Rotary 1992 36in RD model 05-36MR05 Serial 3000001-3999999 - Listed in the Attachment Interchange for 1993
78 downloads
Updated
-
Free
Mower Rotary 32in RD 1967 RM-327 OM IPL SN.pdf
By gwest_ca-(File Mod)
Operator manual
IPL
5 pages 3.62MB
Fits short frame tractors up to 8hp
Drive belt 1577 replaced by 7430 (1/2" x 28")
Spindle belts 1578 (3/8" x 37" matched pair)
8777 2-blade set replaces 3719, 7760 and 7909 left blades and 3718, 7761 and 7908 right blades
Mower Rotary 1967 32in RD model RM-327
1967 serial numbers that have shown up for the RM-327
347393
352533
352906
380 downloads
Updated
-
Free
Mower Vacuum Lawn 42in 1974 7-2612 & Hose 7-2621 OM IPL sn.pdf
By admin-(Admin)
Operator manual #803894
IPL
8 pages 1.21MB
Fits C-Series tractors
Drive belt 1594 (1/2" x 107.21")
Impeller belt 1580 (4L x 31" or 1/2" x 31")
Mower Rotary 1974 42in SD model 7-2612 Vacuum
109 downloads
Updated
-
Free
Mower Vacuum Lawn 42in 1975 7-2613 & Hose 7-2621 OM IPL sn.pdf
By gwest_ca-(File Mod)
Operator manual #803894
IPL
8 pages pages 1.21MB
Fits C-Series tractors
Drive belt 1594 (1/2" x 107.21")
Impeller belt 1580 (4L x 31" or 1/2" x 31")
Mower Rotary 1975 42in SD model 7-2613 Vacuum
147 downloads
Updated
-
Free
Mower Rotary 37in SD 1987-1989 35-37SL01 OM IPL SN.pdf
By gwest_ca-(File Mod)
Operator manual #810422R1
8 pages 885.01KB
The operator manual listed @ Toro is #810481R1
IPL #810511R1
5 pages 1.67MB
Fits 208-4, 211-4, 211-5, 212-5, 212-6, 212-H
Mower drive and spindle belt 113141 replaced by 121000 (1/2" x 75.9")
Mower 2-blade set 109079
Mower Rotary 1987 37in SD model 35-37SL01
1987 serial numbers that have shown up for the 35-37SL01
71025 - Build date 1987 7038 February 07 Saturday
80248
82940 - Model year a guess
83181
89914 - Model year a guess
Mower Rotary 1988 37in SD model 35-37SL01
1988 serial numbers that have shown up for the 35-37SL01
09852 - Build date 1988 8144 May 23 Monday
Mower Rotary 1989 37in SD model 35-37SL01
1989 serial numbers that have shown up for the 35-37SL01
0015763
0016237
0016299
466 downloads
Updated
-
Free
Mower Rotary 36in RD 1976 65-36MR02 TIPL sn.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
5 pages 323.97KB
Fits A-90 4-Speed and A-100 4-Speed tractors
Drive belt 105477 (1/2" x 40.4")
Spindle belt 105476 replaced by 106751 (1/2" x 80.5")
Mower spindle assemblies could be D, A2, G3 or Z
For A2 and G3 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1976 36in RD model 65-36MR02
115 downloads
Updated
-
Free
Mower Rotary 36in SD 1976 65-36XS03 TIPL sn.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
6 pages 242.41KB
Fits A-90 4-Speed and A-100 4-Speed tractors
Drive belt 105477 (1/2" x 40.4")
Spindle belt 105476 replaced by 106751 (1/2" x 80.5")
Mower spindle assemblies could be D, A2, G3 or Z
For A2 and G3 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1976 36in SD model 65-36XS03
41 downloads
Updated
-
Free
Mower Rotary 36in RD 1976 65-36MR03 TIPL SN.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
5 pages 323.98KB
Fits A-90 4-Speed and A-100 4-Speed tractors
Drive belt 105477 (1/2" x 40.4")
Spindle belt 105476 replaced by 106751 (1/2" x 80.5")
Mower spindle assemblies could be D, A2, G3 or Z
For A2 and G3 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1976 36in RD model 65-36MR03
1976 serial numbers that have shown up for the 65-36MR03
027044 - Build date 1976 615x Possibly June 02 Wednesday
48 downloads
Updated
-
Free
Mower Rotary 36in SD 1977 75-36XS01 TIPL sn.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
3 pages 152.65KB
Fits A-90 4-Speed and A-100 4-Speed tractors
Drive belt 105477 (1/2" x 40.4")
Spindle belt 105475 replaced by 106751 (1/2" x 80.5")
Mower spindle assemblies could be D, A2, G3 or Z
For A2 and G3 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1977 36in SD model 75-36XS01
54 downloads
Updated
-
Free
Mower Rotary 36in SD 1977 75-36XS02 TIPL SN.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
6 pages 285.93KB
Fits A-90 4-Speed and A-100 4-Speed tractors
Drive belt 105477 (1/2" x 40.4")
Spindle belt 105475 replaced by 106751 (1/2" x 80.5")
Mower spindle assemblies could be D, A2, G3 or Z
For A2 and G3 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1977 36in SD model 75-36XS02
1977 serial numbers that have shown up for the 75-36XS02
015485 - Build date 1977 7115 April 25 Monday
45 downloads
Updated
-
Free
Mower Rotary 36in RD 1977 75-36MR01 TIPL SN.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
5 pages 324.56KB
Fits A-90 4-Speed and A-100 4-Speed tractors
Drive belt 105477 (1/2" x 40.4")
Spindle belt 105475 replaced by 106751 (1/2" x 80.5")
Mower spindle assemblies could be D, A2, G3 or Z
For A2 and G3 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1977 36in RD model 75-36MR01
1977 serial numbers that have shown up for the 75-36MR01
001673 - Build date 1976 6313 November 08 Monday
006984 - Build date 1976 6334 November 29 Monday
009132 - Build date 1976 6343 December 08 Wednesday
011624 - Build date 1977 7011 January 11 Tuesday
011804 - Build date 1977 7012 January 12 Wednesday
73 downloads
Updated
-
Free
Mower Rotary 36in RD 1978 85-36XR01 TIPL SN.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
8 pages 363.96KB
Fits B-81 4-Speed and B-111 4-Speed tractors
Drive belt 106533 (1/2" x 40.06")
Spindle belt 105476 replaced by 106751 (1/2" x 80.5")
Mower spindle assemblies could be D, A2, G3 or Z
For A2 and G3 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1978 36in RD model 85-36XR01
1978 serial numbers that have shown up for the 85-36XR01
001356
001427
80 downloads
Updated
-
Free
Mower Rotary 36in SD 1978 85-36XS01 TIPL sn.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
7 pages 301.04KB
Fits B-81 4-Speed and B-111 4-Speed tractors
Drive belt 106533 (1/2" x 40.06")
Spindle belt 105476 replaced by 106751 (1/2" x 80.5")
Mower spindle assemblies could be D, A2, G3 or Z
For A2 and G3 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1978 36in SD model 85-36XS01
57 downloads
Updated
-
Free
Mower Rotary 36in RD 1979 95-36XR00 TIPL SN.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
8 pages 363.60KB
Fits B-81 and B-111 tractors
Drive belt 106533 (1/2" x 40.06")
Spindle belt 106751 (1/2" x 80.5")
Mower spindle assemblies could be D, A2, G3 or Z
For A2 and G3 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1979 36in RD model 95-36XR00
1979 serial numbers that have shown up for the 95-36XR00
007699 - Build date 1978 8346 December 12 Tuesday
42 downloads
Updated
-
Free
Mower Rotary 36in SD 1979 95-36XS00 TIPL sn.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
7 pages 300.31KB
Fits B-81 and B-111 tractors
Drive belt 106533 (1/2" x 40.06")
Spindle belt 106751 (1/2" x 80.5")

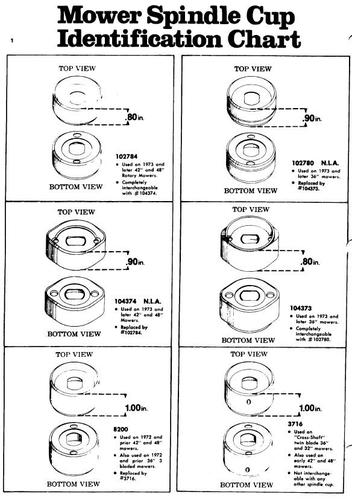

Mower spindle assemblies could be D, A2, G3 or Z
For A2 and G3 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1979 36in SD model 95-36XS00
50 downloads
Updated
-
Free
Mower Rotary 36in SD 1978 85-36MS01 TIPL SN.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
6 pages 266.09KB
Fits B-Series and C-Series tractors
Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511
Drive belt 102741 (1/2" x 96.6") for C-Series tractors (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 8411 (1/2" x 76.94")
Mower spindle assemblies could be D, A1, G1 or Z
For A1 and G1 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1978 36in SD model 85-36MS01
1978 serial numbers that have shown up for the 85-36MS01
008463
46 downloads
Updated
-
Free
Mower Rotary 36in SD 1973-1974 5-0721 CW OM PL SN.pdf
By admin-(Admin)
Operator manual #803858
6 pages 2.86MB
Parts list only
4 pages 79.38KB
CW spindle rotation
Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511
Drive belt 102741 (1/2" x 96.6") for B-Series & C-Series tractors with 45-1/2" wheelbase (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 8411 (1/2" x 76.94")
Mower spindle assemblies could be B, A1, G1 or Z
For A1 see service bulletin 292B
For G1 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1973 36in SD model 5-0721
1973 serial numbers that have shown up for the 5-0721
0921875
0932218 - Model 5-0721-8
0959140
0980298
0980368
Mower Rotary 1974 36in SD model 5-0721
1974 serial numbers that have shown up for the 5-0721
0045012
0045098
0055472
1025807 - Model 5-0721-9
251 downloads
Updated
-
Free
Mower Rotary 36in SD 1979 95-36MS00 TIPL sn.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
6 pages 266.09KB
IPL not available from Toro. Found this with 85-36MS01
Fits B-Series and C-Series tractors
Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511
Drive belt 102741 (1/2" x 96.6") for B-Series & C-Series tractors with 45-1/2" wheelbase (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 8411 (1/2" x 76.94")
Mower spindle assemblies could be D, A1, G1 or Z
For A1 and G1 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1979 36in SD model 95-36MS00
64 downloads
Updated
-
Free
Mower Rotary 36in SD 1977 75-36MS01 TIPL sn.pdf
By admin-(Admin)
IPL from Toro Master Parts Viewer
2 pages 214.38KB
Fits B-Series and C-Series tractors
Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511
Drive belt 102741 (1/2" x 96.6") for B-Series & C-Series tractors with 45-1/2" wheelbase (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 8411 (1/2" x 76.94")
Mower spindle assemblies could be D, A1, G1 or Z
For A1 and G1 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1977 36in SD model 75-36MS01
95 downloads
Updated
-
Free
Mower Rotary 36in SD 1977 75-36MS02 TIPL SN.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
6 pages 274.56KB
Fits B-Series and C-Series tractors
Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511
Drive belt 102741 (1/2" x 96.6") for B-Series & C-Series tractors with 45-1/2" wheelbase (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 8411 (1/2" x 76.94")
Mower spindle assemblies could be D, A1, G1 or Z
For A1 and G1 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1977 36in SD model 75-36MS02
1977 serial numbers that have shown up for the 75-36MS02
117188
117125
49 downloads
Updated
