Mower Rotary 36in RD 1983-1984 05-36MR02 OM TIPL sn.pdf

Sign in to follow this

admin

3 Screenshots

About This File

Operator manuals
7 pages 1.29MB #810306R1 or 810306 R1
7 pages 450.87KB #810345R1 or 810345 R1

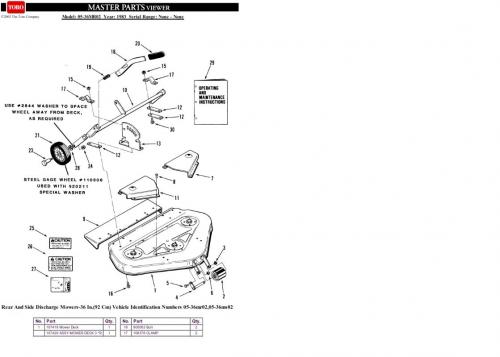

IPL from Toro Master Parts Viewer
6 pages 348.78KB

Fits GT-1100, GT-1600 and C-Series except C-195 Twin tractors
Fits B-Series tractors


Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511


Drive belt 102741 (1/2" x 96.6") for C-Series long frame tractors (Gates replacement BladeRunner 6638BR 17/32" x 96.75")



Spindle belt 8411 (1/2" x 76.94")



Mower spindle assembly H



107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)

Mower Rotary 1983 36in RD model 05-36MR02

Mower Rotary 1984 36in RD model 05-36MR02




×
×
