663 files
-
Free
Mower Rotary 30in SD 1992 35-30SL03 OM IPL sn.pdf
By gwest_ca-(File Mod)
Operator manual #3314-736
14 pages 3.83MB
IPL #3315-149
8 pages 1.12MB
Fits some 200-Series lawn tractors
Drive and spindle belt 114421 (1/2" x 53.50")
110397 and 111144 blade replaced by 112560 (3/4" center hole)
Mower Rotary 1992 30in SD model 35-30SL03 Serial 2000001-2999999
198 downloads
Updated
-
Free
Mower Rotary 36in RD 1988 E5-36MR01 OM IPL sn.pdf
By gwest_ca-(File Mod)
Operator manual #3328-950
IPL
24 pages 4.53MB
Export model fits 300, 400 and 500-Series tractors
Drive belt 102741 (1/2" x 96.6") for C-Series tractors (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 8411 (1/2" x 76.94")
107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)
Mower Rotary 1988 36in RD model E5-36MR01
95 downloads
Updated
-
Free
Mower Vacuum Lawn 42in 1972-1974 7-2611 & Hose 7-2621 OM IPL DNA SN.pdf
By admin-(Admin)
Operator manual #A-5302
IPL
9 pages 1.48MB
Fits C-Series in 1974
Belt driven blower mounted behind the tractor.
Listed in 1974 price list
Requires 5-1010 42" side discharge mower and 7-2211 dump cart
Drive belt 1594 (1/2" x 107.21")
Impeller belt 1580 (4L x 31" or 1/2" x 31")
Mower Rotary 1972 42in SD model 7-2611 Vacuum
1972 serial numbers that have shown up for the 7-2611
845210 - Model 7-2611-7
891978 - Model 7-2611-7
Mower Rotary 1973 42in SD model 7-2611 Vacuum
1973 serial numbers that have shown up for the 7-2611
0945307 - Model 7-2611-8
0981564 - Model 7-2611-8
0981694 - Model 7-2611-8
Mower Rotary 1974 42in SD model 7-2611 Vacuum
Lawn vac DNA
1972-1974 model 7-2611 replaced by
1974 model 7-2612
1975 model 7-2613
1976 model 67-42VC01
1977 model 77-42VC01
1978 model 87-42VC01
1979 model 97-42VC01
1979 model 97-42VC02
1980-1984 model 07-42VC01
348 downloads
Updated
-
Free
Mower Vacuum Lawn 42in 1977-1978 77 & 78-42VC01 TIPL SN.pdf
By admin-(Admin)
IPL from Toro Master Parts Viewer
3 pages 235.66KB
Fits C-Series tractors
Requires 5 cu. ft. dump cart
Mower Rotary 1977 42in SD model 77-42VC01 Vacuum
1977 serial numbers that have shown up for the 77-42VC01
158924 - Possibly made in Belgium
Mower Rotary 1978 42in SD model 87-42VC01 Vacuum
243 downloads
Updated
-
Free
Mower Rotary 42in RD 1977 75-42MR01 TIPL SN.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
4 pages 268.72KB
Fits B-Series and C-Series tractors
Includes PSB #209 for parts list corrections - idler arm for the spindle belt idler pulley - Some parts lists are not correct.
Drive belt 102741 (1/2" x 96.6") (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 6738 (1/2" x 86") - This model uses a triangular idler arm. See PSB 209.
Mower spindle assemblies could be K, V, W or Z
For V and W see service bulletin 207B
106586 3-blade set replaces 105837 blade and no longer available (5/8" x 3/4" double-D center hole) Last 42" rear discharge deck to use these blades
Mower Rotary 1977 42in RD model 75-42MR01
1977 serial numbers that have shown up for the 75-42MR01
002961
004155 - Build date 1976 6353 December 19 Monday
008697
013418
262 downloads
Updated
-
Free
Mower Rotary 48in SD 1977 75-48MS02 C TIPL sn.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
7 pages 332.20KB
Fits C-Series tractors
Drive belt 102742 (1/2" x 103")
Spindle belt 1594 (1/2" x 107.21")
Mower spindle assemblies could be L, M, V or Z
For V see service bulletin 292B
106078 blade replaced by 106637 3-blade set (3/4" round hole) First 48" mower to use these blades
Mower Rotary 1977 48in SD model 75-48MS02
106 downloads
Updated
-
Free
Mower Rotary Carrier Front 1997-1998 79380 OM SN.pdf
By gwest_ca-(File Mod)
Operator manual #3318-827
8 pages 349.64KB
Fits 300 400 500-Series tractors
79380 replaces 07-01MC01, 07-01MC02, 07-01MC03
Mower Rotary 1997 42in SD model 79380 Carrier Serial 7900001-7999999
Mower Rotary 1997 48in SD model 79380 Carrier Serial 7900001-7999999
Mower Rotary 1998 42in SD model 79380 Carrier Serial 8900001-8999999
Mower Rotary 1998 48in SD model 79380 Carrier Serial 8900001-8999999
1998 serial numbers that have shown up for the 79380
8900118
See 1983 service bulletin
for installation instructions and belts for the various mowers used
262 downloads
Updated
-
Free
Mower Rotary 42in SD 1994 78346 OM IPL SN.pdf
By gwest_ca-(File Mod)
Operator manual #3316-432
8 pages
IPL #3316-268
8 pages 1.17MB
Application unknown. Sold 1993 1994 1995 and possibly 1996. Suspect it fits exported 300 and 400-Series tractors
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 6738 (1/2" x 86")
Mower Rotary 1994 42in SD model 78346 Serial 4900001-4999999
1994 serial numbers that have shown up for the 78346
4900156
169 downloads
Updated
-
Free
Mower Rotary 48in SD 1996 78268 260 IPL sn.pdf
By gwest_ca-(File Mod)
IPL #3318-621
4 pages 113.44KB
Operator manual #3318-111GB RevA not available
Fits the 260-Series export models
Drive and spindle belt 92-6958 (1/2" x 142.70")
Mower Rotary 1996 48in SD model 78268 Serial 6900001-6999999
93 downloads
Updated
-
Free
Mower Rotary 48in SD 1998-2000 78268 260 IPL.pdf
By gwest_ca-(File Mod)
IPL #3321-183
8 pages 234.19KB
Fits 260-Series export models
Drive and spindle belt 92-6958 (1/2" x 142.70")
Mower Rotary 1998 48in SD model 78268 Serial 8900001-8999999
Mower Rotary 1999 48in SD model 78268 Serial 9900001-9999999
Mower Rotary 2000 48in SD model 78268 Serial 200000001-200999999
89 downloads
Updated
-
Free
Mower Rotary 48in SD 1999-2001 78448 5xi IPL.pdf
By gwest_ca-(File Mod)
IPL #3323-110
12 pages
78448 fits 520xi model 73570 export tractors
Low cut mower
Drive belt 95-4095 (HB x 97.54" or 5/8" x 97.54") - Used with adjustment knob on the front of the idler assembly
Spindle belt 95-3878 (HA x 102.44" or 1/2" x 102.44")
106078 blade replaced by 106637 3-blade set (3/4" round hole)
Mower Rotary 1999 48in SD model 78448 Serial 9900001-9999999
Mower Rotary 2000 48in SD model 78448 Serial 200000001-200999999
Mower Rotary 2001 48in SD model 78448 Serial 210000001-210999999
81 downloads
Updated
-
Free
Mower Rotary 48in SD 2001 78268 260 IPL.pdf
By gwest_ca-(File Mod)
IPL #3325-624
8 pages 348.28KB
Fits 260-Series export models
Drive and spindle belt 92-6958 (1/2" x 142.70")
Mower Rotary 2001 48in SD model 78268 Serial 210000001-210999999
67 downloads
Updated
-
Free
Mower Rotary 48in SD 2002-2005 78269 260 IPL.pdf
By gwest_ca-(File Mod)
IPL #3327-233
8 pages 166.18KB
Fits 260-Series export models
Drive and spindle belt 92-6958 (1/2" x 142.70")
Mower Rotary 2002 48in SD model 78269 Serial 220000001-220999999
Mower Rotary 2003 48in SD model 78269 Serial 230000001-230999999
Mower Rotary 2004 48in SD model 78269 Serial 240000001-240999999
Mower Rotary 2005 48in SD model 78269 Serial 250000001-250999999
67 downloads
Updated
-
Free
Mower Rotary Carrier Front 1996-1998 78380 IPL.pdf
By gwest_ca-(File Mod)
IPL #3318-580
4 pages 78.01KB
Fits 300 400 500-Series tractors
79380 replaces 07-01MC01, 07-01MC02, 07-01MC03
Mower Rotary 1996 42in SD model 79380 Carrier Serial 6900001-6999999
Mower Rotary 1997 42in SD model 79380 Carrier Serial 7900001-7999999
Mower Rotary 1998 42in SD model 79380 Carrier Serial 8900001-8999999
Mower Rotary 1996 48in SD model 79380 Carrier Serial 6900001-6999999
Mower Rotary 1997 48in SD model 79380 Carrier Serial 7900001-7999999
Mower Rotary 1998 48in SD model 79380 Carrier Serial 8900001-8999999
See 1983 service bulletin
for installation instructions and belts for the various mowers used
95 downloads
Updated
-
Free
Mower Rotary Carrier Front 1989-1993 07-01MC03 TIPL sn.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
3 pages 205.06KB
Fits C-Series tractors
The years the model numbers changed not known
Mower Rotary 1989 42in SD model 07-01MC03 Carrier
Mower Rotary 1990 42in SD model 07-01MC03 Carrier
Mower Rotary 1991 42in SD model 07-01MC03 Carrier
Mower Rotary 1992 42in SD model 07-01MC03 Carrier
Mower Rotary 1993 42in SD model 07-01MC03 Carrier
Mower Rotary 1989 48in SD model 07-01MC03 Carrier
Mower Rotary 1990 48in SD model 07-01MC03 Carrier
Mower Rotary 1991 48in SD model 07-01MC03 Carrier
Mower Rotary 1992 48in SD model 07-01MC03 Carrier
Mower Rotary 1993 48in SD model 07-01MC03 Carrier
See 1983 service bulletin
for installation instructions and belts for the various mowers used
108 downloads
Updated
-
Free
Mower Sickle Front 32in 1955 CB-32 OM IPL sn.pdf
By Lane Ranger
2 pages 1.42MB
Pond Wheel Horse - 2 Wheel Tractor Cutter Bar Manual and Parts List
In price list dated October 1, 1954 for the 1955 model year
Mower drive belt 1552 - 4L x 37" or 1/2" x 37"
Mower Sickle Front 32in 1955 model CB-32 for walking tractors
Mower Sickle Front 32in 1956 model CB-32 for walking tractors
226 downloads
Updated
-
Free

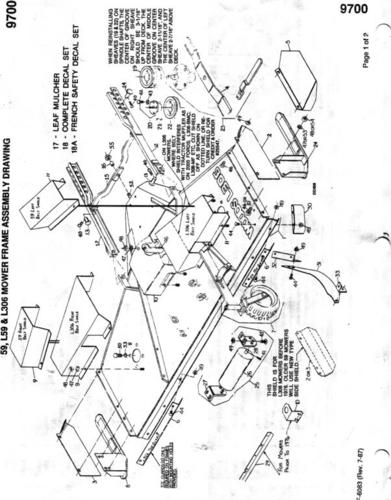

Mower Rotary 60in RD 1973-77 Woods IPL.pdf
By pfrederi
Wheel Horse 3-point hitch rear mounted mower supplied by Woods
3 pages 436KB
Woods models 59, L59 and L306
124 downloads
Updated
-
Free
Mower Reel Gang 60in 1963-67 SGM-603 OM IPL sn.pdf
By admin-(Admin)
Operator manual
IPL
4 pages each
Mfr by American Chain & Cable Includes 2621W OM IPL
Mower Reel 1963 60in Gang model SGM-603
Mower Reel 1964 60in Gang model SGM-603
Mower Reel 1965 60in Gang model SGM-603
Mower Reel 1966 60in Gang model SGM-603
Mower Reel 1967 60in Gang model SGM-603
From 1956 price list dated February 1, 1956
Mower Reel 1956 57in Gang model GM-60 Used on Ride-Away Junior and Ride-Away Senior
From 1958 price list dated October 1, 1957
Mower Reel 1958 57in Gang model GM-60P supplied by Pennsylvania Reel
Mower Reel 1958 57in Gang model GM-60Y supplied by Yard-Man
From 1959 price list dated February 10, 1959
Mower Reel 1959 57in Gang model GM-60P supplied by Pennsylvania Reel
182 downloads
Updated
-
Free

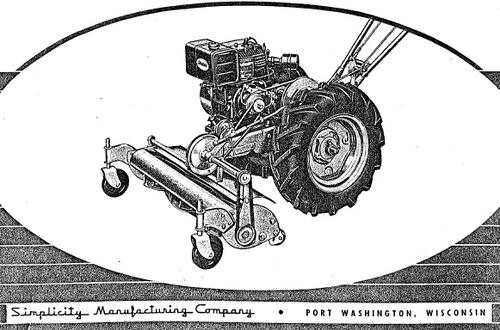

Mower Reel Front 24in 1955 LM-24 Info.jpg
By gwest_ca-(File Mod)
Info only - No file
Picture of the Simplicity mower at the time
From price list dated October 1, 1954 for the 1955 model year
Mower Reel Front mount 24in 1955 model LM-24 - Fits walking tractors
From price list dated February 1, 1956
Mower Reel Front mount 24in 1956 model LM-24 - Fits walking and riding tractors
73 downloads
Updated
-
Free
Mower Rotary 48in SD 1977 75-48MS01 C TIPL SN.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
6 pages 333.47KB
Fits C-Series tractors
Drive belt 102742 (1/2" x 103")
Spindle belt 1594 (1/2" x 107.21")
Mower spindle assemblies could be K, V, Y or Z
For V and Y see service bulletin 292B
4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D) Last mower to use these blades
Mower Rotary 1977 48in SD model 75-48MS01
1977 serial numbers that have shown up for the 75-48MS01
006285 - Build date 1976 6321 November 16 Tuesday
006378 - Build date 1976 6327 November 22 Monday
132 downloads
Updated
-
Free
Mower Rotary 36in RD 1980-1982 05-36XR01 TIPL SN.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
7 pages 421.40KB
Fits B-Series and LT-Series tractors
Drive belt 106533 (1/2" x 40.06")
Spindle belt 106751 (1/2" x 80.5")
Mower spindle assemblies could be A2, F or Z
For A2 see service bulletin 221B
107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)
Mower Rotary 1980 36in RD model 05-36XR01
1980 serial numbers that have shown up for the 05-36XR01
00009556
00011097 - Build date 1979 9290 October 17 Wednesday
00017302 - Build date 1980 0053 February 22 Friday
Mower Rotary 1981 36in RD model 05-36XR01
1981 serial numbers that have shown up for the 05-36XR01
033616 - Build date 1980 0285 October 11 Saturday
037449
038104
Mower Rotary 1982 36in RD model 05-36XR01
110 downloads
Updated
-
Free
Chart Belts Mower Spindle & drive 20 pages #492-0392.pdf
By admin-(Admin)
1956-1999 Chart belt
20 pages 1.77MB
Belt sizes on the last pages
Mistakes in mower belt chart
1967
RL-367 drive belt lists 1587 Correct belt is 1563
1968
5-1361 drive belt lists 8975 Correct belt is 1563
5-1362 drive belt lists 8975 Correct belt is 1563
5-2321 drive belt lists 8975 Correct belt is 1577 replaced by 7430
5-2322 drive belt lists 8975 Correct belt is 1577 replaced by 7430
5-2361 drive belt lists 1587 Correct belt is 1577 replaced by 7430
5-2362 drive belt lists 1587 Correct belt is 1577 replaced by 7430
1969
5-8321 drive belt 8975 (1/2" x 58") [1561 in the belt chart is wrong]
1970
5-8322 drive belt 8975 (1/2" x 58") [104865 in the belt chart is wrong]
1971
5-1000 drive belt 9782 (1/2" x 69") [9783 in the chart is wrong]
1978
85-42MR01 drive belt 108834 is correct as per PSB #272
1979
95-42MR01 drive belt 108834 is correct as per PSB #272
95-42MR02 drive belt 108834 is correct as per PSB #272
1980-1983
05-42MR01 drive belt 108834 is correct as per PSB #272
1983
The 2nd A5-42MS02 in the chart should be A5-48MS02
1984
Model 23-11BP03 tractor shows belt 108491 (1/2" x 67"). Believe it should be 108503 (1/2" x 65.25") for 05-32XS02 mower on the A-111 5-Speed
05-42MS02 should be 05-42MR02
1985
There is one model number missing for every style and size of deck listed. Do a search of the Files for a deck model number if it is not listed in the chart. The belts are listed there.
1991
Model C5-60SC02 not in the chart { (Drive belt 113072 (1/2" x 103") (Spindle belt 112449 (5/8" x 131.25") }
1993
8-32 Rear Engine Rider Recycler model 70042 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
10-32 Rear Engine Rider Recycler model 70080 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
12-32 Rear Engine Rider Recycler model 70120 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
12-32 Rear Engine Rider model 70140 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
1994
10-32 Rear Engine Rider Recycler model 70080 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
12-32 Rear Engine Rider Recycler model 70120 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
10-32e Rear Engine Rider Recycler model 70100 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
12-32e Rear Engine Rider Recycler model 70141 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
1996
78345 42`side discharge lists drive belt 108834 and spindle belt 106125 - Correct drive belt is 102742 and spindle belt 6738
78355 42`recycler lists drive belt 102742 and spindle belt 6738 - Correct drive belt is 108834 and spindle belt 106125
1997
78345 42`side discharge lists drive belt 108834 and spindle belt 106125 - Correct drive belt is 102742 and spindle belt 6738
78355 42`recycler lists drive belt 102742 and spindle belt 6738 - Correct drive belt is 108834 and spindle belt 106125
1998
78345 42`side discharge lists drive belt 108834 and spindle belt 106125 - Correct drive belt is 102742 and spindle belt 6738
78355 42`recycler lists drive belt 102742 and spindle belt 6738 - Correct drive belt is 108834 and spindle belt 106125
1999
78345 42`side discharge lists drive belt 108834 and spindle belt 106125 - Correct drive belt is 102742 and spindle belt 6738
1999 and 2000
79375 36" tiller for 5xi models
Front belt 98-8707 or 94-7877 (1/2" x 113.75" found with Google search)
Rear belt 98-8706 (1/2" x 92.66" found with Google search)
2,007 downloads
Updated
-
Free
Mower Rotary 42in RD 2002-2014 78350 OM SN.pdf
By gwest_ca-(File Mod)
Operator manual #3326-935RevA or 3326-935 RevA
20 pages 556.45KB
Fits 300, 400 and 500-Series tractors
Mower Rotary 2002 42in RD model 78350 Serial 220000001-220999999
Mower Rotary 2003 42in RD model 78350 Serial 230000001-230999999
Mower Rotary 2004 42in RD model 78350 Serial 240000001-240999999
Mower Rotary 2005 42in RD model 78350 Serial 250000001-250999999
2005 serial numbers that have shown up for the 78350
250000127
Mower Rotary 2006 42in RD model 78350 Serial 260000001-260999999
Mower Rotary 2007 42in RD model 78350 Serial 270000001-270999999
Mower Rotary 2008 42in RD model 78350 Serial 280000001-280999999
Mower Rotary 2009 42in RD model 78350 Serial 290000001-290999999
Mower Rotary 2010 42in RD model 78350 Serial 310000001-310999999
Mower Rotary 2011 42in RD model 78350 Serial 311000001-311999999
Mower Rotary 2012 42in RD model 78350 Serial 312000001-312999999
Mower Rotary 2013 42in RD model 78350 - None built
Mower Rotary 2014 42in RD model 78350 Serial 314000001-314999999
Mower Rotary 2016 42in RD model 78350 Serial 316000001-316999999
2016 serial numbers that have shown up for the 78350
316000154
154 downloads
Updated
-
Free
Mower Rotary 48in SD 2002-2005 78269 260 OM German sn.pdf
By gwest_ca-(File Mod)
Operator manual #3327-228
20 pages 561.99KB
Fits 260-Series export models
Available in English, French, Dutch, Italian
Mower Rotary 2002 48in SD model 78269 Serial 220000001-220999999
Mower Rotary 2003 48in SD model 78269 Serial 230000001-230999999
Mower Rotary 2004 48in SD model 78269 Serial 240000001-240999999
Mower Rotary 2005 48in SD model 78269 Serial 250000001-250999999
80 downloads
Updated
-
Free
Mower Rotary 48in SD 2002-2005 78269 260 OM French sn.pdf
By gwest_ca-(File Mod)
Operator manual #3327-229
20 pages 475.53KB
Fits 260-Series export models
Available in English, Dutch, German, Italian
Mower Rotary 2002 48in SD model 78269 Serial 220000001-220999999
Mower Rotary 2003 48in SD model 78269 Serial 230000001-230999999
Mower Rotary 2004 48in SD model 78269 Serial 240000001-240999999
Mower Rotary 2005 48in SD model 78269 Serial 250000001-250999999
101 downloads
Updated
Sign in to follow this
Followers
0
