Manuals for the Round Hood years

33 files

  1. Free

    Tractor 1960 400 & 550 Suburban D&A OM IPL SN.pdf

    Operator manual
    Illustrated parts list
    8 pages 847.19KB

    Illustrated parts list #A-7136
    12 pages 981.18KB

    Serial number
    1960 Suburban - Stamped into the metal throttle/choke plate just under the upper screw. (CasualObserver)

    Tractor drive belt for 400 and 550  #1569 - (4L x 28.95" or 1/2" x 28.95")

    Wheel Horse # 1014 clutch pedal spring replaced by 83-2730
    4.500" between hooks,
    .070" wire,
    .520" coil OD,
    .380 coil ID,
    3.570" coil length,
    52 + 2 half coils

    Ignition switch with 3 terminals for 550 is 3656 and nla. See PSB #069
    According to operator manual optional starter is activated by push button.
    Magneto ignition controlled by throttle control.

    Lube chart SS

    Details and attachments
    2 pages 05.19KB
    1960 model 400
    1960 serial numbers that have shown up for the 400
    21900 - 1960 Suburban 400 began production at serial #21900 somewhere around Aug-Oct 1959.- CasualObserver
    22221
    22991 - Model a guess
    22502
    22928
    23343
    23374
    23443
    23719
    23920 - Kohler K91 with 110v electric starter
    2428x
    24434 - Kohler K91 with Fairbanks recoil
    24500
    24750 - First 550 built
    24910 - May be a 550
    25078
    25285
    25921 - May be a 550
    26286
    26637 - May be a 550
    26737 - May be a 550
    27385
    27405
    27419
    28166
    29023
    29060
    30253
    30929 - May be a 550
    30931 or 40931 - May be a 550 401 or 551
    32506 - May be a 550
    33007
    33022
    33190
    33445
    33536 - May be a 550
    34016
    34233
    34478
    36064
    37875
    38718 - May be a 550
    40241 - May be a 550
    41524
    42383

    ---------------------------------------------------------------------

    Details and attachments
    2 pages 104.70KB
    1960 model 550
    1960 serial numbers that have shown up for the 550
    24750 - First 550 built
    24910 - May be a 400
    25921 - May be a 400
    26026
    26171 - Lauson engine with electric start - solid pan seat without holes
    26637 - May be a 400
    26737 - May be a 400
    27956
    28676
    28886
    29255
    30929 - May be a 400
    30931 or 40931 - May be a 400 401 or 551
    31170
    31276
    32352
    32506 - May be a 400
    33536 - May be a 400
    35952
    36536
    38718 - May be a 400
    39442
    40241 - May be a 400
    41345

    1,608 downloads

    Updated

  2. Free

    Tractor 1963 633, 653 & 753 D&A IPL Wiring Rev SN.pdf

    IPL #A-7136
    Service notes
    Wiring
    20 pages 1.97MB
    Includes PSB #038 #050 #058 #060 #069 #070 #080 #348 #394A #430

    653 Wiring Color pdf
    1 page 168KB

    753 Wiring Color pdf
    1 page 206KB

    Tractor drive belt for 633, 653 and 753 #9691 - 1/2" x 70"

    Kohler Starter/Generator belt
    Original Wheel Horse 1583 nla Used on 6, 7, 8hp Kohler Starter generator {3Lx33" in belt charts is 3/8" x 33" but some applications use a shorter belt. Belt should have raw rubber sides for grip.}
    3V315 Gates .38"x31.5"
    3V315 Napa .38"x31.5"

    Kohler #231605 Starter generator belt Replaces 232613 [.41"x32.08" 36 degree] PSB #061 Should use raw edge belt
    7315 Gates .41"x32.08" 36 degree
    25-7315 Napa .41"x32.08" 36 degree

    Small Block Kohler Napa # 25-7320 .41" wide x 32.5" long Side angle 36 degrees Cross section HC41

    Toggle ignition switch for 633 magneto ignition 3279
    Keyed ignition switch with single terminal for 653 is 3656 magneto replaced by 6890 and nla. See PSB #069
    Keyed ignition switch for 753 battery type 1747

    Lube chart SS

    Details & Attachments
    3 pages 116.08KB
    1963 model 633
    1963 serial numbers that have shown up for the 633
    62-18509
    25933
    26108 - Model a guess Now has 8hp engine
    26210
    26234 - Original thought to be a 653
    26355
    26898
    27126
    27167 - Has K141T-29102A Serial 654682
    27256
    28649- Model number a guess
    28818
    28878 - Has K141T-29136A Serial 681196
    28954 - Model number a guess
    29190 - Has K141T-29136A Serial 681560
    29250
    29309
    29454
    29515
    29681 - Model number a guess
    29693
    29735
    31602
    32336
    33332
    35309 - Could be 653 or 753
    35380
    38003
    38760
    38894

    ---------------------------------------------------------------------

    Details & Attachments
    3 pages 116.72KB
    1963 model 653
    1963 serial numbers that have shown up for the 653
    62-23813
    62-23886
    62-24087
    62-24186 - Model number a guess
    62-24495 - Model and year a guess
    62-25049
    26234
    26693
    26798
    32416 - Could be a 753
    32417 - Could be a 753
    32492 - Could be a 753
    33212
    35242 - Could be a 753
    35309 - Could be a 753
    35818
    35819
    36207
    37240 - Model number a guess
    37241
    37349
    38815
    38885
    39131
    44370 - Could be a 753

    -------------------------------------------------------------------------

    Details & Attachments
    3 pages 117.49KB
    1963 model 753
    1963 serial numbers that have shown up for the 753
    62-02093 - Looks wrong
    62-22031
    62-22113
    62-22415
    62-22929 - Model and year a guess
    62-23113
    62-23128
    62-23191
    62-23207
    62-23435
    62-23481
    62-23486
    62-23573
    62-23646 - Model and year a guess
    62-23737 - Model and year a guess
    62-23823
    62-23884
    62-23960
    62-24027 - Model a guess
    62-24063 - Model a guess
    62-24085
    62-24420 - Located in Australia
    62-24434 - Located in Australia
    62-24500
    62-24526
    62-24618
    62-24661 - Model a guess
    26293 - Model a guess
    26456 - Model a guess
    27911
    28007
    29299 - Model a guess
    2969x - Model a guess
    30148
    30204
    30239
    30285 - Added 02-17-2019
    30341 - Added 06-06-2019
    30458
    31624
    31802
    32416 - Could be a 653
    32417 - Could be a 653
    32492 - Could be a 653
    35242 - Could be a 653
    35309 - Could be a 653
    32532
    32536
    32537
    32599 - Located in France
    32628 - Model 753 is a guess
    32713 - Model 753 is a guess
    32829
    32970
    35518
    35663 - Model 753 is a guess
    36477
    38033
    39750
    44370 - Could be a 653
    44594 - Model a guess
    45681 - Found in France - Moved to Belgium
    46567 - Model a guess
    47889 - Model a guess
    47957 - Thought to be a 753 but most likely a model 754


    973 downloads

    Updated

  3. Free

    Tractor 1962 502, 552 & 702 Suburban D&A OM IPL Wiring Rev SN.pdf

    Operator manual
    Wiring
    IPL
    8 pages 1.08MB

    IPL #A-1736 and service bulletins
    21 pages 1.79MB

    552 Wiring revised
    1 page 217KB

    702 Wiring revised
    1 page 247KB

    Diagram showing how to replace ammeter with voltmeter
    1 page 75KB

    Photo of 1745 replaced by 102046 ammeter - nla from Toro

    Tractor drive belt for 502, 552 and 702 #1576 replaced by 9691 - 1/2" x 70"

    Starter/Generator belt
    Original Wheel Horse 1583 nla Used on 6, 7, 8hp Kohler Starter generator {3Lx33" in belt charts is 3/8" x 33" but some applications use a shorter belt. Belt should have raw rubber sides for grip.}
    3V315 Gates .38"x31.5"
    3V315 Napa .38"x31.5"

    Kohler #231605 Starter generator belt Replaces 232613 [.41"x32.08" 36 degree] PSB #061 Should use raw rubber edge belt for grip
    7315 Gates .41"x32.08" 36 degree
    25-7315 Napa .41"x32.08" 36 degree

    Small Block Kohler Napa # 25-7320 .41" wide x 32.5" long Side angle 36 degrees Cross section HC41

    Ignition switch for 502 is 3279
    Ignition switch with single terminal for 552 is 3656 replaced by 6890 and nla. See PSB #069
    Ignition switch for 702 is 1747

    Lube chart SS

    Details & Attachments
    3 pages 116.10KB
    1962 model 502
    1962 serial numbers that have shown up for the 502
    62-01006
    62-01621
    62-01622
    62-01825
    62-02417 - May be a 552 or 702
    62-02623 - Trivia - Serial 62-2623 and on use a cast iron lift lever plunger 4438
    62-02741 - Trivia - Serial 62-2741 and on have a plastic strip 4443 on the left side of the hood
    62-02823
    62-03239 - Model a guess
    62-06137
    62-06716
    62-07394
    62-07545
    62-08450
    62-08840
    62-09328
    62-10294
    62-10777
    62-12502
    62-12563
    62-15465 - Model number a guess
    62-18107
    62-20010 - May be a 552

    Details & Attachments
    3 pages 116.09KB
    1962 model 552
    1962 serial numbers that have shown up for the 552
    62-01712
    62-01844
    62-01913
    62-01948 - Model number a guess
    62-02047
    62-02077
    62-02417 - May be a 502 or 702
    62-02623 - Trivia - 1962 serial 62-2623 and on use a cast iron lift lever plunger 4438
    62-02625 - May be a 702
    62-02856 - Trivia - 1962 serial 62-02856 and on have a bent shifter to clear the hydraulic pump
    62-03094
    62-03113 - May be a 702
    62-04953
    62-06802 - Model 552 a guess
    62-08293
    62-08721
    62-08763
    62-08768
    62-08817
    62-08840 - May be a 502
    62-09328 - May be a 502
    62-09398
    62-09616 - May be a 702
    62-11071 - May be a 702
    62-11273
    62-12502
    62-13985
    62-15992
    62-16395
    62-188xx
    62-19586
    62-20010 - May be a 502
    62-20026 - May be a 702

    Details & Attachments
    3 pages 116.87KB
    1962 model 702
    1962 serial numbers that have shown up for the 702
    62-01104
    62-01127
    62-01151
    62-01177
    62-01187
    62-01195
    62-01235
    62-01364
    62-01386
    62-01481
    62-01511
    62-02134
    62-02187
    62-02348
    62-02417 - May be a 502 or 552
    62-02532
    62-02623 - Trivia - 1962 serial 62-2623 and on use a cast iron lift lever plunger part # 4438
    62-02625 - May be a 552
    62-02833
    62-02856 - Trivia - 1962 serial 62-2856 and on have a bent shifter to clear the hydraulic pump
    62-02933
    62-03009
    62-03113 - Could be a 552
    62-03298
    62-03639
    62-03680 - 62-3680 does not appear to have had electric start
    62-03796
    62-04216
    62-05001
    62-05004
    62-05270
    62-05506
    62-05608
    62-06597
    62-06649
    62-07158
    62-07439
    62-07566
    62-07715
    62-07857
    62-07938
    62-08001
    62-08102
    62-08171
    62-08618
    62-08654
    62-08656
    62-08657
    62-08666
    62-09120
    62-09138
    62-09264
    62-09431
    62-09456
    62-09538
    62-09549
    62-09616 - May be a 552
    62-09714
    62-09841
    62-09865
    62-10096
    62-10549
    62-10637
    62-10648
    62-10657
    62-10682
    62-11044
    62-11071 - May be a 552
    62-11483
    62-11557
    62-11840
    62-11934
    62-12127
    62-12359 - Located in Norway
    62-12730
    62-13252
    62-13345
    62-13368
    62-13892
    62-14156
    62-14256
    62-14393
    62-14397
    62-14425
    62-15319
    62-15525
    62-15691
    62-15758
    62-16442
    62-16595
    62-18234
    62-20026 - Could be a 552
    62-20692

    1,945 downloads

    Updated

  4. Free

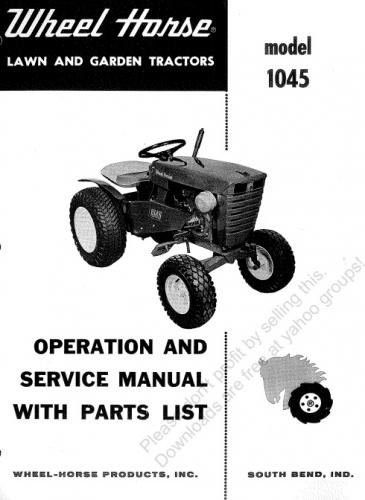

    Tractor 1964 1045 D&A OM IPL Wiring Rev SN.pdf

    Operator manual #201
    IPL
    Wiring
    12 pages 1.28MB
    Dated 4/22/64

    Wiring Color pdf
    1 page 297KB

    Tractor drive belt for 1045 #9691 - 1/2" x 70"

    Another Special model built to use up an excess of parts inventory. It has been said there were 1100 units built.
    1965 model 1045 - Often considered a 1964 model but in a 1965 manual also.
    Only 1100 built between August and October 1964

    Lube chart SS

    Details & Attachments
    3 pages 117.25KB
    1964 model 1045 - Built late in the 1964 model year
    1964 serial numbers that have shown up for 1045
    021505
    021510
    021532
    021533
    021536
    021555
    021622
    021626
    021663
    021781
    021818
    021819
    021858
    021866
    021872
    021874
    021896
    022018
    022036
    022141
    022144
    022168
    022214
    022296
    022305
    022456
    022494
    022628
    022743
    022759
    022781
    022797
    022869
    022929
    022987
    02xxxx
    044225

    228 downloads

    Updated

  5. Free

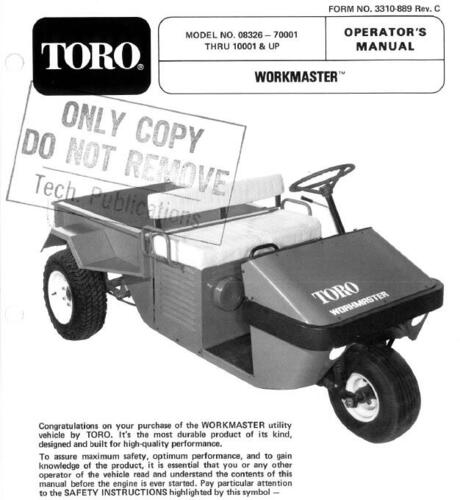

    Tractor 1962-1991 Toro Workmaster OM IPL Wiring.pdf

    1977-1991 Operator manual Wiring 3310-889 RevC
    56 pages 16.7MB

    1985 Illustrated parts list Wiring 3312-541
    28 pages 6.8MB

    1989-1991 Illustrated parts list Wiring 3313-952 RevA
    28 pages 1.25MB

    1962  Workmaster model 90022 Serial 20001-29999 - --------------------------- - IPL 8061 RevA

    1975  Workmaster model 08300 Serial 50001-50435 - OM 3310-602 - IPL  3310-603 - Addendum 3310-729
    1975  Workmaster model 08300 Serial 50436-59999 - OM 3310-602 - IPL  3310-724 - Addendum 3310-729
    1976  Workmaster model 08300 Serial 60001-69999 - OM 3310-602 - IPL  3310-753 - Addendum 3310-729

    1977  Workmaster model 08326 Serial 70001-70400 - OM 3310-889 RevC - IPL 3310-890 - Addendum 3310-906
    1977  Workmaster model 08326 Serial 70401-79999 - OM 3310-889 RevC - IPL 3310-890
    1978  Workmaster model 08326 Serial 80001-89999 - OM 3310-889 RevC - IPL 3311-147
    1979  Workmaster model 08326 Serial 90001-99999 - OM 3310-889 RevC - IPL 3311-361
    1980  Workmaster model 08326 Serial 00001-09999 - OM 3310-889 RevC - IPL 3311-641 RevA
    1981  Workmaster model 08326 Serial 10001-19999 - OM 3310-889 RevC - IPL 3311-641 RevA
    1982  Workmaster model 08326 Serial 20001-29999 - --------------------------- - IPL 3311-641 RevA
    1983  Workmaster model 08326 Serial 30001-39999 - --------------------------- - IPL 3312-370
    1984  Workmaster model 08326 Serial 40001-49999 - OM 3310-889 RevC - IPL 3312-370
    1985  Workmaster model 08326 Serial 50001-59999 - OM 3310-889 RevC - IPL 3312-541
    1986  Workmaster model 08326 Serial 60001-69999 - OM 3310-889 RevC - IPL 3312-915
    1987  Workmaster model 08326 Serial 70001-79999 - OM 3310-889 RevC - IPL 3313-242
    1988  Workmaster model 08326 Serial 80001-89999 - OM 3310-889 RevC - IPL 3313-424
    1989  Workmaster model 08326 Serial 90001-99999 - OM 3310-889 RevC - IPL 3313-952 RevA
    1990  Workmaster model 08326 Serial 00001-09999 - OM 3310-889 RevC - IPL 3313-952 RevA
    1991  Workmaster model 08326 Serial 10001-19999 - OM 3310-889 RevC - IPL 3313-952 RevA

    12 downloads

    Updated

  6. Free

    Tractor 1961 401, 551 & 701 D&A OM IPL Wiring Rev SN.pdf

    Operator manual
    Illustrated parts list
    Wiring
    12 pages 1.88MB
    Dated 1/10/61

    Another scan of the above with figure 3 for the 701 missing
    11 pages 1.64MB

    551 Wiring revised pdf
    1 page 288KB

    701 Wiring revised pdf
    1 page 340KB

    ID plates and serial numbers by CasualObserver
    1961 Suburban - early used the top section of the 1960 plate, cut off and screwed to the hood stand.
    1961 Suburban - later used a decal on the right frame rail ahead of the foot peg.

    Tractor drive belt for 401 and 551 #1569 - (4L x 28.95" or 1/2" x 28.95")
    Tractor drive belt for 701 #1576 replaced by 9691 - 1/2" x 70"
    -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
    Starter/Generator belt
    Original Wheel Horse 1583 nla Used on 6, 7, 8hp Kohler Starter generator {3Lx33" in belt charts is 3/8" x 33" but some applications use a shorter belt. Belt should have raw rubber sides for grip.}
    3V315 Gates .38"x31.5"
    3V315 Napa .38"x31.5"

    Kohler #231446 shown in the Kohler parts list
    Gates replacement 7330 - .410" x 33.58" with 36 degree angle. Replacement is notched with raw rubber sides

    Kohler #231605 Starter generator belt Replaces 232613 [.41"x32.08" 36 degree] PSB #061 Should use raw rubber edge belt for grip
    7315 Gates .41"x32.08" 36 degree
    25-7315 Napa .41"x32.08" 36 degree

    Small Block Kohler Napa # 25-7320 .41" wide x 32.5" long Side angle 36 degrees Cross section HC41
    ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

    Ignition switch with 3 terminals for 550 is 3656 and nla. See PSB #069

    Not documented - 1961 CBR-327 front mounted sickle bar mower for the 701
    1 page of part number corrections 30.15KB

    Model 701 only model to use braces on the rear fenders because the tool box was short.
    701 used Kohler K161S-28522E. Toro have the engine used as K161S-28622E as used on the 702
    3 photos 463KB supplied by CasualObserver for dimensions. Brace not in the parts list.

    Lube chart SS

    Details & Attachments
    2 pages 103.48KB
    1961 model 401
    1961 serial numbers that have shown up for the 401
    42646 - Reported to be the first 401
    42908
    43062
    43082
    43380
    43437
    43755
    43810
    43867
    43950
    43963
    43975
    44034
    44506
    44641
    48188
    49361
    49925
    49982
    50023
    50053
    50181
    50217
    50930 - May be a 551 or 701
    53101
    53166
    53217
    56299
    56547
    56660
    56806 - May be a 551
    56870
    56936 - May be a 551
    57103 - May be a 551
    60304
    60315
    60419
    60436
    60610
    60695
    60719
    --------------------------------------------------------------------
    551 frame is 6" wide
    Details and attachments
    2 pages 103.99KB
    1961 model 551
    1961 serial numbers that have shown up for the 551
    41724 - May be a 701, misread or typo
    46309
    46412
    46574
    46630
    46891
    46906
    47115
    49694
    50930 - May be a 401 or 701
    52220
    52596
    53812
    53882
    53890
    56806 - May be a 401
    56936 - May be a 401
    57103 - May be a 401
    57322
    58532
    59014
    59148
    59745
    [M]

    ----------------------------------------------------------------------
    Details and attachments
    3 pages 117.93KB
    1961 model 701
    1961 serial numbers that have shown up for the 701
    41724 - May be a 551, misread or typo
    45709
    47457
    47479
    47676
    47754
    47770
    47793
    47969
    48085
    48110
    48210
    48226
    48232
    48234
    48237
    48289
    48317
    48358
    48411
    48441
    48584
    48596
    48684
    48695
    48736
    48773
    48832 - Model a guess
    48852
    48862
    48939
    48927
    48967
    48982
    49022
    49026 - Now decaled a 702
    49116
    49118
    49122
    50930 - May be a 401 or 551
    51222
    51337
    51434
    51588
    51630
    51688
    51691
    51858 - Kohler K161S
    51887
    51908
    51952
    51967
    52014
    54100
    54140
    54157
    54209
    54276
    54395
    54480
    54530
    54545
    54609 - Model and year a guess
    54666
    54695
    54735
    54817
    54836
    54867
    55082
    55894
    55895
    55907
    55939
    55968
    55978
    56000
    56015
    56108
    56141
    56142
    56193
    56991
    57012
    57014
    57078
    57165
    57222
    57662
    57673
    57707
    57720
    57782
    57797
    57811
    57834
    57854
    57888
    58037
    58048
    58351
    58364
    59247
    59279
    59309
    59366
    59382
    59385 - Located in the UK
    59479
    59480
    59520
    59960
    59963
    59969
    [M]

    To see the above in consecutive order go to



    2,196 downloads

    Updated

  7. Free

    Tractor 1961 Serials in numerical order

    1961 serial numbers that have shown up for the 401 551 701

    02294 Model RMR-3261 32" RD mower deck
    03068 Model RMR-3261 32" RD mower deck
    05690 Model RMR-3261 32" RD mower deck
    10588 Model RMR-3661 36" RD mower deck
    11296 Model BD-4271 42" dozer blade
    11331 Model BD-4271 42" dozer blade
    12121 Model BD-4261 42" dozer blade
    12661 Model RMR-3661 36" RD mower deck
    13239 Model RMR-3661 36" RD mower deck
    13341 Model RMR-3661 36" RD mower deck
    13376 Model RMR-3661 36" RD mower deck
    13984 Model RMR-3661 36" RD mower deck
    14391 Model RMR-3661 36" RD mower deck
    14729 Model RMR-3661 36" RD mower deck
    41724  model 551 - May be a 701, misread or typo
    41724   model 701 - May be a 551, misread or typo
    42646 model 401 - Reported to be the first
    42908 model 401
    43062 model 401
    43082 model 401
    43380 model 401
    43437 model 401
    43755 model 401
    43810 model 401
    43867 model 401
    43950 model 401
    43963 model 401
    43975 model 401
    44034 model 401
    44506 model 401
    44641 model 401
    45709   model 701
    46309  model 551
    46412  model 551
    46630  model 551
    46891  model 551
    46906  model 551
    47115  model 551
    47457   model 701
    47479   model 701
    47676   model 701
    47754   model 701
    47770   model 701
    47793   model 701
    47969   model 701
    48085   model 701
    48110   model 701
    48188 model 401
    48210   model 701
    48226   model 701
    48232   model 701
    48234   model 701
    48237   model 701
    48289   model 701
    48317   model 701
    48358   model 701
    48411   model 701
    48441   model 701
    48584   model 701
    48596   model 701
    48684   model 701
    48695   model 701
    48736   model 701
    48773   model 701
    48832   model 701 - Model a guess
    48852   model 701
    48862   model 701
    48939   model 701
    48927   model 701
    48967   model 701
    48982   model 701
    49022   model 701
    49026   model 701
    49116   model 701
    49118   model 701
    49122   model 701
    49361 model 401
    49694  model 551
    49925 model 401
    49982 model 401
    50023 model 401
    50053 model 401
    50181 model 401
    50217 model 401
    50930 model 401 - May be a 551 or 701
    50930  model 551 - May be a 401 or 701
    50930   model 701 - May be a 401 or 551
    51222   model 701
    51337   model 701
    51434   model 701
    51588   model 701
    51630   model 701
    51688   model 701
    51691   model 701
    51858   model 701
    51887   model 701
    51908   model 701
    51952   model 701
    51967   model 701
    52014   model 701
    52220  model 551
    52596  model 551
    53101 model 401
    53166 model 401
    53217 model 401
    53812  model 551
    53882  model 551
    53890  model 551
    54100   model 701
    54140   model 701
    54157   model 701
    54209   model 701
    54276   model 701
    54395   model 701
    54480   model 701
    54530   model 701
    54545   model 701
    54609   model 701 - Model and year a guess
    54666   model 701
    54695   model 701
    54735   model 701
    54817   model 701
    54836   model 701
    54867   model 701
    55082   model 701
    55894   model 701
    55895   model 701
    55907   model 701
    55939   model 701
    55968   model 701
    55978   model 701
    56000   model 701
    56015   model 701
    56108  model 701
    56141   model 701
    56142   model 701
    56193   model 701
    56299 model 401
    56547 model 401
    56660 model 401
    56806 model 401 - May be a 551
    56806  model 551 - May be a 401
    56870 model 401
    56936 model 401 - May be a 551
    56936  model 551 - May be a 401
    56991   model 701
    57012   model 701
    57014   model 701
    57078   model 701
    57103 model 401 - May be a 551
    57103  model 551 - May be a 401
    57165   model 701
    57222   model 701
    57322  model 551
    57662   model 701
    57673   model 701
    57707   model 701
    57720   model 701
    57782   model 701
    57797   model 701
    57811   model 701
    57834   model 701
    57854   model 701
    57888   model 701
    58037   model 701
    58048   model 701
    58351   model 701
    58364   model 701
    58532  model 551
    59014  model 551
    59148  model 551
    59247   model 701
    59279   model 701
    59309   model 701
    59366   model 701
    59382   model 701
    59385   model 701 - Located in the UK
    59479   model 701
    59480   model 701
    59520   model 701
    59745  model 551
    59960   model 701
    59963   model 701
    59969   model 701
    60304 model 401
    60315 model 401
    60419 model 401
    60436 model 401
    60610 model 401
    60695 model 401
    60719 model 401

    237 downloads

    Updated

  8. Free

    Tractor 1964 1054 D&A OM IPL Wiring Rev SN.pdf

    Operator manual #177
    IPL
    Wiring
    12 pages 2.55MB
    Dated 9-3-63
    Service notes

    IPL
    Wiring
    17 pages 1.72MB
    Includes PSB #050 #058 #060 #080 #399C

    Wiring Color pdf
    1 page 182KB

    Tractor drive belt 1592 nla from Toro (4L x 82.00" or 1/2" x 82")

    Starter/generator belt
    Kohler 10hp, 12hp - 235262 (7345 Gates .410" x 35.09" 36 degree) (25-7345 Napa .410" x 35.09" 36 degree)
    Wheel Horse 1593 (3L x 34.4") - nla (Gates replacement 6735 3/8" x 35" 38 degree)

    Hydraulic pump belt - Wheel Horse 1591 nla Use Toro 83-2900, Gates 6748 3/8"x48", Napa 3L480W 3/8"x48".
    [The online parts lists show a 1/2"-20 female thread for the rear tie-rod end on the drag link and a 1/2"-20 nut for the stud that goes into the pitman arm. This one should be 3/8"-24. The original manual is correct.]

    Lube chart SS

    Details & Attachments
    2 pages 109.33KB

    1964 model 1054
    1964 serial numbers that have shown up for the 1054 - Appears the late 1964 model production went straight to early 1965 model production but we do not know at what serial that happened. Results as posted may not be correct because owners often don't know what model they have.
    019578 - May be a typo Also posted as 049578
    019725 - May be a typo Also posted as 049725
    042143 - May be a 953
    042159 - May be a 953
    042296
    042299
    042321
    042416
    042424
    042431
    042540
    042649
    042654
    042698
    042805
    042810
    042912
    042915
    043186
    043225
    043350
    043506
    043531
    043553
    04363x
    043745
    043826
    048732
    048735
    048793
    048804
    048870
    048914
    049039
    049106
    049186
    049192
    049349
    049439
    049539
    049578 - Posted as being 19578
    049591
    049605
    049675
    049723
    049725 - Posted as being 19725
    049927
    050203
    050284

    Early 1965 model 1054A serials posted - One can see some are not identified correctly.
    049065
    049183
    049533
    049578 - Posted as being 19578
    049725 - Posted as being 19725
    049819
    049829
    049869
    049905
    050039
    050154
    050203
    050224
    050237
    050272
    050335
    050366
    101637 - Model and year a guess

    1,300 downloads

    Updated

  9. Free

    Tractor 1964 854 D&A OM IPL Wiring Rev SN.pdf

    Operator manual #176
    IPL
    Wiring
    9 pages 3.48MB
    Dated 10/16/63

    Wiring Color pdf
    1 page 267KB

    Tractor drive belt for 854 #9691 - 1/2" x 70"

    Starter/Generator belt
    Original Wheel Horse 1583 nla Used on 6, 7, 8hp Kohler Starter generator {3Lx33" in belt charts is 3/8" x 33" but some applications use a shorter belt. Belt should have raw rubber sides for grip.}
    3V315 Gates .38"x31.5"
    3V315 Napa .38"x31.5"

    Kohler #231605 Starter generator belt Replaces 232613 [.41"x32.08" 36 degree] PSB #061 Should use raw rubber edge belt for grip
    7315 Gates .41"x32.08" 36 degree
    25-7315 Napa .41"x32.08" 36 degree

    Small Block Kohler Napa # 25-7320 .41" wide x 32.5" long Side angle 36 degrees Cross section HC41

    Ignition switch 4988 (5/8"-32 threads) replaced by 7263 (9/16"-24 threads)

    Lube chart SS

    Details & Attachments
    3 pages 116.37KB

    1964 model 854
    1964 serial numbers that have shown up for the 854
    030509
    036069
    040246
    040338
    040458
    040466 - Model a guess
    040621
    040742
    040779
    040927
    041052
    041107
    041124
    041137
    041236
    041306
    044105
    044155
    044284
    044334
    044371
    044452
    044523
    044571
    044816
    044863
    04510x - x may be a 2
    045104
    045191
    045248
    045288
    045297
    045362
    045382
    045389
    045451
    045750
    045772
    045955
    045960
    045996
    046122
    046218
    046269
    046584
    046628
    046643
    046686
    046913
    046943
    046944
    047083
    047106
    047126
    047176
    047359
    047367
    047394
    047545
    047807
    047809
    047951

    1,000 downloads

    Updated

  10. Free

    Tractor 1964 754 Flyer Wiring Rev SN.pdf

    Sales flyer
    1 page 218.26K
    Dated 5/20/64

    Wiring Color pdf
    1 page 265KB

    Tractor drive belt for 754 #9691 - 1/2" x 70"

    Used 1963 engine in a 854 chassis
    Available for sale May 20, 1964
    422 built
    Production started May 26, 1964 and ended on June 11, 1964

    Lube charts SS - not on list but same as 753

    1964 model 754
    1964 serial numbers that have shown up for the 754
    047916 - The first 754 serial
    047956
    047957 - Thought to be a 753
    047974
    048022
    048034
    048038
    048049
    048056
    048074
    048092
    048110
    048115
    048116
    048180
    048191
    048208
    048223
    048247
    048253
    048265
    048267
    048301
    048306
    048337 - The last 754 serial
    048689 - Possibly serial recorded wrong or not for a 754

    157 downloads

    Updated

  11. Free

    Tractor 1964 604 654 704 D&A OM IPL Wiring Rev SN.pdf

    Operator manual #163-164-165
    IPL
    Wiring
    8 pages 1.00MB
    Dated 8/9/63

    654 Wiring Color pdf
    1 page 253KB

    Modified 2294 replaced by 6216 front axle pin drawing pdf
    1 page 100KB

    Tractor drive belt for 604, 654 and 704 #9691 - 1/2" x 70"

    Ignition switch for 654 is 4987 replaced by 101482
    Models 604 and 704 have recoil starters

    Lube chart SS

    Details & Attachments
    3 pages 114.50KB
    1964 model 604
    1964 serial numbers that have shown up for the 604
    A-58657 - May be a 604
    A-58686
    A-59380
    A-59523
    A-59665
    A-59894
    A-60097
    A-60109
    A-60686 - May be a 654 or 704
    A-61058 - May be a 654
    A-64780
    A-72142
    007603
    007841
    007859
    015197 - May be a 654 or 704
    016817
    016918 - Located in the UK
    017079
    017899
    017903

    Details & Attachments
    3 pages 115.65KB
    1964 model 654
    1964 serial numbers that have shown up for the 654
    A-59467
    A-60686 - May be a 604 or 704
    A-60820
    A-60977
    A-61049
    A-61058
    A-61185
    A-61220
    A-73599 - Model a guess
    A-73633
    A-73645
    004836
    006459
    006616
    006687
    006712 - Model a guess
    007419
    008713
    008736
    008822
    015197 - May be a 604 or 704
    015561
    017845
    018195
    018225 - Model number a guess
    018929 - Model number a guess

    Details & Attachments
    3 pages 115.67KB
    1964 model 704
    1964 serial numbers that have shown up for the 704
    A-50086
    A-51977
    A-59856
    A-60180
    A-60381
    A-60437
    A-604xx
    A-60686 - May be a 604 or 654
    A-72169
    A-73091 - Model number a guess
    006013
    006139
    007788
    007807
    008090
    008147
    008526
    015197 - May be a 604 or 654
    015657
    015771
    015898
    016122
    017169
    018273 - Located in Cambridgeshire

    1,090 downloads

    Updated

  12. Free

    Tractor 1963 33E & 33R Lawn Ranger D&A OM IPL Wiring Rev SN.pdf

    Operator manual #135
    IPL
    Wiring
    8 pages 1.07MB
    Dated 8/16/62
    Includes mower deck model RM-113

    Wiring revised pdf
    1 page 216KB

    #A-7136 IPL
    8 pages 1003.19KB

    Tractor drive belt for 33E and 33R #9691 - 1/2" x 70"
    Mower drive belt 1587 (4Lx43" or 1/2" x 43")

    8777 2-blade set replaces 3719, 7760 and 7909 left blades and 3718, 7761 and 7908 right blades

    Ignition switch with single terminal for 33E is 3656 replaced by 6890 and nla. See PSB #069

    Lube chart SS

    Details & Attachments
    2 pages 108.41KB
    1963 Lawn Ranger model 33E (Electric start)
    1963 serial numbers that have shown up for the 33E
    62-20610 - May be a 32E
    62-25477 - Model and year a guess
    62-25718 - Model and year a guess
    30624
    31101
    31395
    31420 - May be a 33R
    33674 - May be a 33R
    37960

    Details & Attachments
    2 pages 107.24KB
    1963 Lawn Ranger model 33R (Recoil start)
    1963 serial numbers that have shown up for the 33R
    31420 - May be a 33E
    33674 - May be a 33E
    33790
    38410
    38482

    343 downloads

    Updated

  13. Free

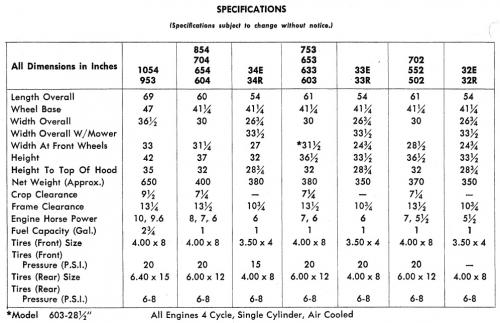

    Tractor 1964 34E & 34R Lawn Ranger D&A IPL Wiring Rev SN.pdf

    Service notes #A-7136
    IPL
    Wiring
    8 pages 867.16KB

    Wiring revised pdf
    1 page 64KB

    Tractor drive belt for 34E and 34R #9691 (1/2" x 70")

    RM-114 mower deck
    Mower belt 1555 replaced by 113912 (1/2" x 44")

    8777 2-blade set replaces 3719, 7760 and 7909 left blades and 3718, 7761 and 7908 right blades

    Ignition switch for 34E is 4987 replaced by 101482

    Lube chart SS

    Details & Attachments
    2 pages 108.72KB
    1964 model 34E Lawn Ranger
    1964 serial numbers that have shown up for the 34E
    A-61568
    A-61827
    A-72425 - May be a 34R
    A-73376
    A-73408
    004073
    006285
    006356
    006453
    006824 - May be a 34R
    007050 - May be a 34R
    007096
    007321
    008438
    015871 - May be a 34R
    016420
    016581 - May be a 34R
    017471

    Details & Attachments
    2 pages 107.84KB
    1964 model 34R Lawn Ranger
    1964 serial numbers that have shown up for the 34R
    A-72425 - May be a 34E
    006015
    006824 - May be a 34E
    007050 - May be a 34E
    015084
    015159
    015212
    015871 - May be a 34E
    016581 - May be a 34E

    227 downloads

    Updated

  14. Free

    Tractor 1963 953 D&A OM IPL Wiring Rev SN.pdf

    Operator manual
    IPL
    Wiring
    Dated 11/29/62
    Supplement #1 #123-A dated 1/15/63
    Supplement #2 #123-B dated 5/10/63
    15 pages 1.97MB

    #123 manual is an earlier version.
    #A-7136 has later info, including the 1054 style steering

    IPL #A-7136
    Wiring
    17 pages 2.19MB
    Includes PSB #048 #058 #060 #080 #399C

    Wiring Color pdf
    1 page 176KB

    Tractor drive belt 1592 nla from Toro (4L x 82.00" or 1/2" x 82")

    Starter/generator belt
    Kohler 10hp, 12hp - 235262 (7345 Gates .410" x 35.09" 36 degree) (25-7345 Napa .410" x 35.09" 36 degree)
    Wheel Horse 1593 (3L x 34.4") - nla (Gates replacement 6735 3/8" x 35" 38 degree)

    Generator light bulb #57

    Hydraulic pump belt - Wheel Horse 1591 nla Use Toro 83-2900, Gates 6748 3/8"x48", Napa 3L480W 3/8"x48".

    Lube chart SS

    Details & Attachments
    2 pages 108.96KB

    1963 model 953
    1963 serial numbers that have shown up for the 953 - Late models may not be correct because owners often don't know what model they have
    62-00100
    62-00137
    62-00155
    62-00168
    62-00176
    62-00292
    62-00304
    62-00369
    62-00379
    62-00381
    62-00461
    62-00533
    62-00534
    62-00560
    62-00580
    62-00589 - Thought to be a 1054?
    62-00602
    62-00604
    62-00627
    62-00672
    62-00727
    62-00728
    62-00780
    62-00798
    62-00799
    62-0083x
    62-00921
    62-00928
    30637 - May be 36637
    32508
    34148
    34250
    34444
    34578
    34598
    34637
    34661
    34683
    34696
    34698
    34728
    34945
    34976
    36637 - May be 30637
    41516
    41745
    41762
    41969
    42110
    42111
    42143 - May be a 1054
    42159 - May be a 1054

    1963 953 production changed to 1964 model 1054 production at some point
    Early 1964 model 1054
    019578 - May be a typo Also posted as 049578
    019725 - May be a typo Also posted as 049725
    042143 - May be a 953
    042159 - May be a 953
    042296
    042299
    042416
    042424
    042431
    042540
    042649
    042654
    042698
    042805
    042810

    976 downloads

    Updated

  15. Free

    Tractor 1962 32E & 32R Lawn Ranger D&A IPL Wiring Rev SN.pdf

    IPL Wiring A-7136
    7 pages 2.1MB

    TPL 2 pages
    2 pages 150.47KB

    Wiring Revised pdf
    1 page 219KB

    Mower deck model may have been RM-112

    Tractor drive belt for 32E and 32R #1576 replaced by 9691 - 1/2" x 70"
    Mower drive belt 1587 (4Lx43" or 1/2" x 43")

    8777 2-blade set replaces 3719, 7760 and 7909 left blades and 3718, 7761 and 7908 right blades

    Ignition switch for 32E is 4987 replaced by 101482

    Listed in the attachment list but little else known
    Seat back rest BR-122
    Speed reducer SR-62
    Tire chains TC-8
    Wheel disc WD-4 (80521 or 8-0521)
    Front wheel weight WF-60 (81211 or 8-1211)

    Lube chart SS

    Details & Attachments
    2 pages 108.48KB
    1962 model 32E - Electric start
    1962 serial numbers that have shown up for the 32E
    62-15649 - Production started before this serial - Trivia Mike Martino Book
    62-15649
    62-15792
    62-16564
    62-16824 - Could be a 32R
    62-17177
    62-17190 - Could be a 32R
    62-17216 - Could be a 32R
    62-17234 - Could be a 32R
    62-17303
    62-17528
    62-19551 - Could be a 32R
    62-19555 - Could be a 32R
    62-19858 - Could be a 32R
    62-20333
    62-20482 - Model a guess
    62-20610 - Could be a 32R
    62-20973 - Could be a 32R
    62-21107 - Could be a 32R
    62-21125 - Could be a 32R

    Details & Attachments
    2 pages 108.40KB
    1962 model 32R - Recoil start
    1962 serial numbers that have shown up for the 32R
    62-15649 - Production started before this serial - Trivia Mike Martino Book
    62-16944
    62-1695x
    62-17371
    62-18371
    62-19970
    62-20863
    62-20890 or 62-20896
    62-1695x
    62-19970
    62-20863
    62-20890 or 62-20896
    62-20973 - Could be a 32E

    225 downloads

    Updated

  16. Free

    Tractor 1958-1959 RJ-58 & RJ-59 D&A OM IPL SN.pdf

    Operator manual
    Illustrated parts list
    6 pages 3.73MB

    Illustrated parts list #A-7136
    Includes PSB #023 #052 #058 #060 #080
    10 pages 938.48KB

    Engines used according to Toro
    Clinton B1290-1107
    Kohler K91-31307A
    Kohler K91-31388A
    Electric start kit
    Electric starter kit model EC-35 for Clinton engine - Listed for 1958 and 1959
    Electric starter kit model EK-35 for Kohler engine - Listed for 1958 and 1959

    6-12 tire chains model TC-12 - Listed for 1958 and 1959

    Seat cushion Foam rubber with imitation leather cover model FC-24 - Listed for 1958 and 1959

    Transmission drive belt 1567 - (4L x 29" or 1/2" x 29")

    Details & Attachments
    2 pages 107.33KB

    1958 model RJ-58
    1958 serial numbers that have shown up for the RJ-58
    Early models used Kohler K90T-27107D equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
    00005
    00251
    01099 - No casting date on trans. Leather gearshift boot, large, round rear wheel hubs, "slab" hitch, replacement engine
    01188 - Has round rear wheel hubs
    01516
    01768
    01789 - No casting date on trans. Leather gearshift boot, 3-ear triangular rear wheel hubs, "slab" hitch, Clinton engine with Schnacke recoil
    01797
    01871
    02525
    03177
    03501 - Located in UK
    03796 - Kohler K90T-27107D with serial 364044 equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
    04883
    04885
    05000
    05619
    05714
    05798
    06528 - May be 16528
    06771
    07633
    07649 - Transmission J12-8 October 12, 1958
    07725
    08440
    08612
    09284
    09337 - Hard to read
    10163
    11432
    11628 - # 3521 spline gear with 10 splines changed to 11 splines in 5003 and 5010 transmissions at serial # 11628 PSB #023
    11916
    12221 - B3-9 trans casting date - Kohler K91 engine with Schnacke recoil
    12291
    14713
    16097
    16528 - May be 06528
    166x6
    16868 - F4-9 trans casting date - Kohler K91 engine with Fairbanks recoil, solid pan seat without holes
    18348
    18500 and lower
    Late 1958 units came with a Kohler K-91T-31307A equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
    ------------------------------------------------------------------------------------------------------------------

    Details & Attachments
    2 pages 106.94KB

    1959 model RJ-59
    1959 serial numbers that have shown up for the RJ-59
    Early 1959 units came with a Kohler K-91T-31307A equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
    18501 and up - Possible 1100 units built
    20078 - Located in UK
    203xx
    21033
    292xx
    21900 - 1960 Suburban 400 began production at serial #21900 somewhere around Aug-Oct 1959.
    Late model RJ-59 tractors with a Kohler would have a K-91T-31388A with the Fairbanks recoil starter and paper air filter element. The 31388A was also used on the 1960 Suburban 400.
    K91T-31388A Serial 425251 found on RJ-59

    1,528 downloads

    Updated

  17. Free

    Tractor 1963 603 Special D&A OM IPL SN.pdf

    Operator manual
    IPL
    8 pages 809.81KB
    Dated 9/6/62
    IPL 16 pages 1.64MB - Includes some service bulletins

    Tractor drive belt for 603 #9691 - 1/2" x 70"

    Wheel Horse is known to build Special models to use up an excess of inventoried parts.

    " Only model where they put the serial decal on the hood" - rj35hunter

    " The only model to use lever choke and throttle controls on the dash tower. It should have a full hood like a 604/654/704 but use the older 61-62 front axle. The front of the frame should be flat, not bumped out like the rest of the 63 models that used the new axle. It also had long cast iron foot rests instead of the stirrup style." - CasualObserver

    "The 603 is the only model that had the half moon shaped steering wheel." - clueless

    "The 603 has no rear fenders." - rmaynard

    Lube chart SS

    Details and attachments
    3 pages 114.76KB
    1963 model 603 Special
    1963 serial numbers that have shown up for the 603
    A-7355x - Most likely a digit missing
    62-21311
    62-21571
    62-21614
    62-21722
    62-21819
    62-21836
    33477
    33553
    37470
    37630
    38968
    39229

    421 downloads

    Updated

  18. Free

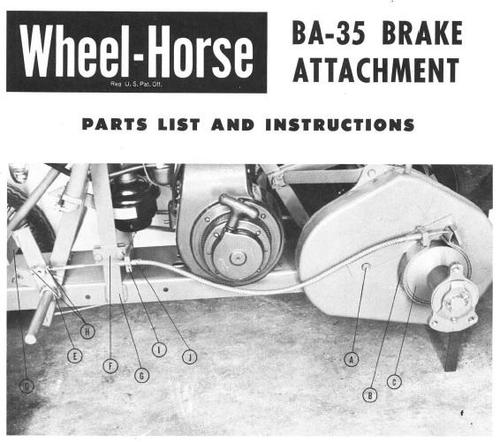

    Tractor 1955-1957 RJ BA-35 Brake.pdf

    Operator manual
    Illustrated parts list
    2 pages 246KB

    122 downloads

    Updated

  19. Free

    Tractor 1955-1957 Model list & Attachments.pdf

    1955-1957 Matches Found

    Attachment list
    3 pages 69KB pdf

    1955 model RJ-25
    1955 model RJ-35

    1956 model RJ-25
    1956 model RJ-35

    1957 model RJ-25
    1957 model RJ-35

    60 downloads

    Updated

  20. Free

    Tractor 1958 Model list 01 & Attachments.pdf

    1958 Matches Found: 1

    Attachment list
    3 pages 69KB pdf

    1958 model RJ-58

    56 downloads

    Updated

  21. Free

    Tractor 1959 Model list 01 & Attachments.pdf

    1959 Matches Found: 1

    Attachment list
    3 pages 69KB pdf

    1959 model RJ-59

    30 downloads

    Updated

  22. Free

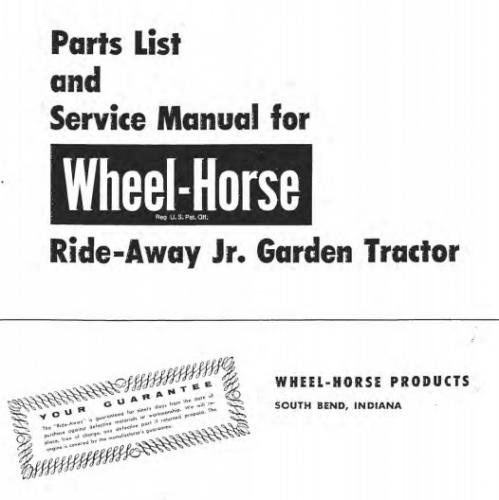

    Tractor 1955-1957 Ride-Away Junior.pdf

    Operator manual
    IPL
    4 pages 442.03KB
    4 pages 675KB

    Ride-Away Jr

    RJ-25

    RJ-35
    Late RJ-35 models used Kohler K90T-27107D equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
    One found with K90T-27107D serial 336163 in the UK

    1st Tractor drive belt (RJ-35 with 6", 6-1/2", 7" jackshaft pulley) - WH 1564 nla {4Lx18.9" or 1/2" x 19"} - Found on belt sleeve
    1st Tractor drive belt (RJ-35 with 6", 6-1/2", 7" jackshaft pulley) - WH 1556 nla {4Lx20" or 1/2" x 20"} - Found in manual

    2nd Tractor drive belt (RJ-35 with 6" jackshaft pulley) ------WH 1566 nla {4Lx35" or 1/2" x 35"} Use with 1556 belt - Found on belt sleeve
    2nd Tractor drive belt (RJ-35 with 6-1/2" jackshaft pulley) - WH 1553 nla {4L/Ax36" or 1/2" x 36"} Use with 1556 belt
    2nd Tractor drive belt (RJ-35 with 7" jackshaft pulley) ------ WH 1552 nla {4Lx37" or 1/2" x 37"} Used with 1556 belt

    From February 1, 1956 price list
    Brake Attachment model BA-35 for the riding tractors

    702 downloads

    Updated

  23. Free

    Tractor 1961 Model list 03 & Attachments.pdf

    1961 Matches Found: 3

    Attachment list
    3 pages 69KB pdf

    1961 model 401
    1961 model 551
    1961 model 701

    169 downloads

    Updated

  24. Free

    Tractor 1960 Model list 02 & Attachments.pdf

    1960 Matches Found: 2

    Attachment list
    3 pages 69KB pdf

    1960 model 400
    1960 model 550

    42 downloads

    Updated

  25. Free

    Tractor 1964 Model list 09 & Attachments.pdf

    1964 Matches Found: 8+1=9

    Attachment list
    3 pages 69KB pdf

    1964 model 34E Lawn Ranger
    1964 model 34R Lawn Ranger
    1964 model 604
    1964 model 654
    1964 model 704

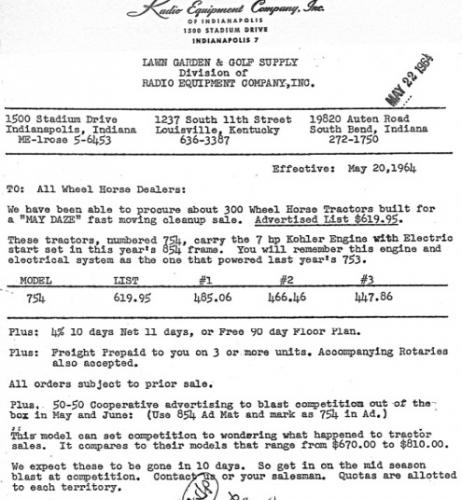

    1964 model 754 - missed @ Toro
    1964 model 854
    1964 model 1045 - Often considered a 1964 model but in a 1965 manual also. It has been said there were 1100 units built.
    1964 model 1054

    241 downloads

    Updated

Sign in to follow this



×
×
  • Create New...
