  1. Free

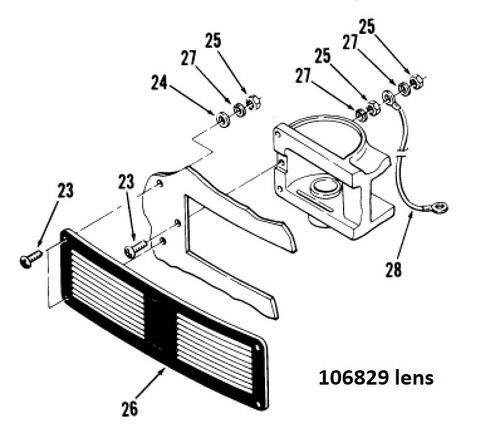

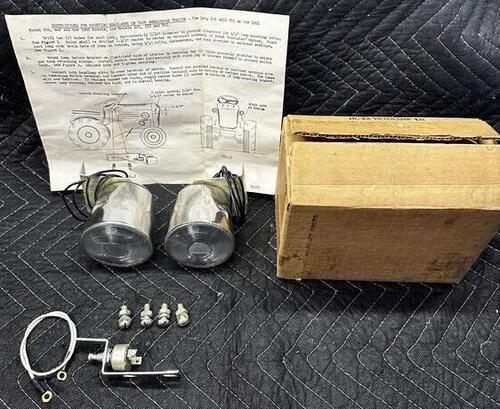

    Lens Headlamp List

    106829 Headlamp Lens
    Fits the fiberglass hoods
    Is in 1978-1983 illustrated parts lists for the Briggs and Stratton Twin powered models and electric tractors

    82-12o502* - Correct
    82 -12o502 - Not correct
    82-12o502 - Suspicious and not checked or determined yet

    106829 used on
    1978 models 81 -08K801, 81 -10K801, 81 -12K801, 81 -12KS01, 81 -14K801, 81 -14KS01, 81-16B801*, 81-16BS01*, 81 -16K801, 81 -16KS01
    1979 models 91 -08K801, 91 -08K802, 91 -10K801, 91 -10K802, 91 -11B801, 91 -12K801, 91 -12K802, 91 -12KS01, 91 -14K801, 91 -14K802, 91 -14KS01, 91-16B801*, 91-16B802*, 91-16BS01*, 91-16BS02*, 91 -16K801, 91 -16K802
    1980 model 01-14E801*
    1981 model 01-14E801*
    1982 model 01-14E801*
    1983 model 01-14E801*

    10 downloads

    Updated

  2. Free

    Cap Fuel.pdf

    Where they are used. These are listed in the parts list for the tractor model but some lists apply to more than one tractor model.

    82-12o502* - Correct
    82 -12o502 - Not correct
    82-12o502 - Suspicious and not checked or determined yet

    1753 gas cap used 1961-1962 (1753 nla) (1969 Chev pickup truck works if you remove the heavy vent valve spring - Source pullstart)
    1961 model 701
    1962 models 502, 552,702

    1789 gas cap replaced by 108011 gas cap and used 1958-1972 (1789 nla)
    1958 model RJ-58
    1959 model RJ-59
    1960 models 400, 550
    1961 models 401, 551, 7 01
    1963 model 603
    1969 models 1-4741, 1-4841, 1-6041, 1-6241, 1-7041, 1-7241, 1-7245, 1-7441, 1-7741, 1-7841, 1-8741, 1-8745
    1970 models 1-4751, 1-4752, 1-4851, 1-4852, 1-6051, 1-6251, 1-6252,1-6253, 1-7251, 1-7252, 1-7253, 1-7255, 1-7451, 1-7452, 1-7453, 1-7751, 1-7851, 1-8752, 1-8756
    1971 models 1-0100, 1-0150, 1-0200, 1-0270, 1-0275, 1-0300, 1-0310, 1-0450, 1-0500, 1-0501
    1972 models 1-0200, 1-0201, 1-0270, 1-0275, 1-0451, 1-0502, 1-0503, 1-7752

    1934 gas cap replaced by 108011 gas cap (Can not find any applications) (1934 nla)

    2714 gas cap used 1963-1965 and on D-160 replaced by 102587 gas cap with short gauge (2714 nla)
    1963 model 953 (Tank may be wrong depth for gauge) (1969 Chev pickup truck works if you remove the heavy vent valve spring - Source pullstart)
    1964 model 1054 (Tank may be wrong depth for gauge) (1969 Chev pickup truck works if you remove the heavy vent valve spring - Source pullstart)
    1965 model 1054A (Tank may be wrong depth for gauge) (1969 Chev pickup truck works if you remove the heavy vent valve spring - Source pullstart)
    1974 models 1-0611, 1 -0630, 1-0650 (1969 Chev pickup truck works if you remove the heavy vent valve spring - Source pullstart)
    1975 models 1-0612, 1 -0631, 1-0651 (1969 Chev pickup truck works if you remove the heavy vent valve spring - Source pullstart)
    1976 models 61-16OS01, 61-16OS02, 61 -20KS01, 61 -20KS02 (1969 Chev pickup truck works if you remove the heavy vent valve spring - Source pullstart)
    1977 models 71-16OS01, 71 -20KS01 (1969 Chev pickup truck works if you remove the heavy vent valve spring - Source pullstart)

    3998 gas cap used 1962-1964 (3998 nla)
    1962 models 32E, 32R
    1963 models 33E, 33R, 633, 653, 753
    1964 model 854

    5186 gas cap replaced by 55-4700 gas cap and used 1964-1968 (5186 nla) (55-4700 used on some Toro walking mowers 1986-1994 nla)
    1964 models 34E, 34R, 607, 654, 704, 1045
    1965 models 855, 875, 1055, 1075
    1966 models 706, 856, 876, 1056, 1276
    1967 models 857, 867, 877, 1067, 1257, 1267, 1277
    1968 models 1-4831, 1-6231, 1-6931, 1-7231, 1-7235, 1-7931, 1-7932

    102321 gas cap replaced by 108011 gas cap and used 1970-1979 (102321 nla)
    1970 model 1-8751
    1971 models 2-0200, 2-0210
    1972 models 1-0110, 1-0301, 1-0311, 1-0320, 1-0330, 1-0401, 1-0402, 1-0410, 1-0422, 1-0423, 2-0211
    1973 models 1-0120, 1-0130, 1-0276, 1-0277, 1-0340, 1-0350, 1-0355, 1-0360, 1-0365, 1-0370, 1-0430, 1-0435, 1-0440, 1-0460, 1-0465, 1-0470, 1-0475, 2-0220, 2-0230
    1974 models 1-0140, 1-0145, 1-0280, 1-0285, 1-0353, 1-0354, 1-0356, 1-0380, 1-0385, 1-0390, 1-0393, 1-0480, 1-0485, 1-0490, 1-0495, 1-0510, 2-4300
    1975 models 1-0141, 1-0281, 1-0282, 1-0286, 1-0287, 1-0357, 1-0375, 1-0381, 1-0391, 1-0395, 1-0396, 1-0481, 1-0491, 1-0511
    1976 models 61-07K801, 61-07K802, 61-08K801, 61-08K802, 61-08K803, 61-08K804, 61-10K801, 61-10K802, 61-10K803, 61-10K804, 61-12K801, 61-12K802, 61-12K803, 61-12K804, 61-12KS01, 61-12KS02, 61-12KS03, 61-12KS04, 61-16K801, 61-16K802, 61-16K803, 61-16K804, 61-16KS01, 61-16KS02, 61-16KS03, 61-16KS04, 62-08BP01, 62-10BP01
    1977 models 71-07K801, 71-08K801, 71-10K801, 71-12K801, 71-12KS01, 71-12KS02, 71-16K801, 71-16K802, 71-16KS01, 71-16KS02, 72-08BP01, 72-10BP01
    1978 models 82-08BP01, 82-11BP01
    1979 model 92-11BP01

    102587 gas cap with short gauge used on D-180 replaces 2714 gas cap (102587 still available April 5, 2021)
    1973 models 1-0600, 1-0601, 1-0610, 1-0620
    1974 models 1-0611, 1 -0630, 1 -0650
    1975 models 1-0612, 1 -0631, 1 -0651

    103845 gas cap with long gauge used on D-200 Series (103845 still available April 5, 2021)
    2714 gas cap should fit
    1974 models 1 -0611, 1-0630, 1 -0650
    1975 models 1 -0612, 1-0631, 1 -0651
    1976 models 61 -16OS01, 61 -16OS02, 61-20KS01, 61-20KS02
    1977 models 71 -16OS01, 71-20KS01
    1978 models 81 -16OS01, 81-20KS01
    1979 models 91 -16OS01, 91-20KS01, 91-20KS02
    1980 models 01 -16OS01, 01-20KS00
    1981 model 01-20KS00

    106945 gas cap with gauge can be replaced by 113926 gas cap (106945 still available April 5, 2021) (Stens replacement 125-112 for 7" deep tank 2-1/4" diameter)
    1978 models 81-08K801, 81-10K801, 81-12K801, 81-12KS01, 81-14K801, 81-14KS01, 81-16B801, 81-16BS01, 81-16K801, 81-16KS01
    1979 models 91-08K801, 91-08K802, 91-10K801, 91-10K802, 91-11B801, 91-12K801, 91-12K802, 91-12KS01, 91-14K801, 91-14K802, 91-14KS01, 91-16B801, 91-16B802, 91-16BS01, 91-16BS02, 91-16K801, 91-16KS01
    1980 models 01-08K801, 01-10K801, 01-11B803, 01-12K801, 01-12KE01, 01-12KS01, 01-14K801, 01-14KE01, 01-14KS01, 01-16K801, 01-16KE01, 01-16KS01, 01-17K801, 01-17KE01, 01-17KS02
    1981 models 01-08K802, 01-10K802, 01-12K802, 01-12KE02, 01-14K802, 01-14KE02, 01-16K802, 01-16KE02, 01-17K802, 01-17KE01
    1982 models 01-08K803, 01-10K803, 01-11BH01, 01-12K803, 01-14KE03, 01-16KH01, 01-17K803, 01-17KE02, A1-114201, A1-164201, A1-184801
    1983 models 01-14KE04, 01-17KE03, 11-08K801, 11-10K801, 11-12K801, 11-17K801, A1-114202, A1-164202, D1-184801
    1984 models 11-10K802, 11-12K802, 11-14KE01, 11-16K801, 11-17KE01, A1-11B801, A1-16B801, A1-18BE01
    1985 models 21-10K801, 21-12K801, 21-14K801, 21-14KE01, 31-16K801, 31-17K801, 31-17KE01
    1986 models 21-08K801, 21-08K802, 21-10K802, 21-10K803, 21-12K802, 21-12K803, 21-12KE01, 21-12KE02, 31-14K801, 31-16K802, 31-17K802, 31-17KE02, 31-20KE01
    1987 models 21-08K803, 21-10K804, 21-12K804, 21-12KE03, 31-14K802, 31-16K803, 31-18K801, 31-18KE01, 41-18KE01
    1988 models 21-08K804, 21-10K805, 21-12K805, 31-14K803, 31-16K804, B1-16O801, E1-12K801
    1989 models 21-10K806, 21-12K806, 31-14K804, 31-16O801, B1-16O802, E1-12K802
    1990 models 31-10K801, 31-12K801, 31-12KE01, 31-16O802, 41-16OE01, R1-12K801, R1-12K802, R1-16O801, R1-16O802

    108011 gas cap replaces 1789, 1934, 102321 and 109482 gas caps and used 1979-1987 (108011 still available April 5, 2021)
    1979 models 92-08BF01, 92-11BF01
    1980 models 02-08BP01, 02-11BP02, 02-11BX01, 02-16BP01
    1981 models 02-08BP02, 02-08BP03, 02-11BP03, 02-11BP04, 02-11BX02, 02-11BX03, 02-16BP02, 02-16BP03
    1982 model 02-11BH01
    1983 models 12-11BE01, 12-11BP01, 12-16BE01, 12-16BP01, A2-083202, D2-113601, D2-113701, D2-163701
    1984 models 12-11BP02, 12-16BE02, A2-11BP01, A2-11BX01, A2-16BP01, B2-11BX91
    1985 models 22-08B301, 22-11B301, 22-11B501, 22-11BE01, 22-16B501, B2-141B301, B2-16B301
    1986 models 22-08B302, 22-11B302, 22-11B502, 22-12TE01
    1987 models B2-11B392, B2-11B591, B2-16B591

    109482 gas cap replaced by 108011 gas cap and used 1982-1983 (109482 nla)
    1982 models A2-083201, A2-103201, A2-113701, A2-163701, A2-164201
    1983 models A2-083202, D2-113601, D2-113701, D2-163701

    113926 gas cap will replace 106945 gas cap with gauge (113926 still available April 5, 2021)
    1988 models 31-16OE01, 31-18OE01, 31-20OE01, C1-20OE01, E1-18OE01
    1989 models 21-10K806, 21-12K806, 31-14K804, 31-16O801, 31-18OE02, 31-20OE02, B1-16O802, C1-20OE02, E1-12K802, E1-18OE02
    1990 models 41-20O801, 41-20OE01, R1-12K801, R1-12K802, R1-16O801, R1-16O802, R1-18OE01, R1-18OE02

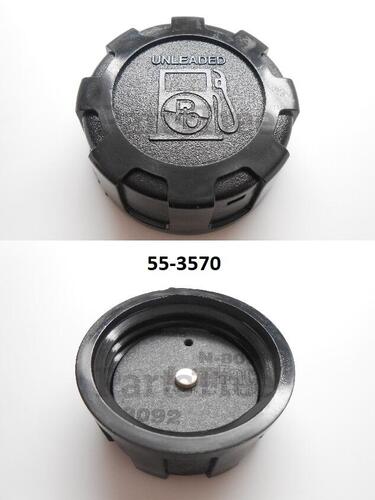

    55-3570 gas cap replaces 55-3542, 55-3550, 55-3571, 56-6110 and 114775 gas caps (55-3570 still available April 5, 2021)
    1986 models 56138, 56145, 56150, 56155, 56170
    1987 models 56138, 56145, 56150, 56155, 56170
    1988 models 56138, 56145, 56150, 56175
    1989 models 55600, 55620, 56145, 56150, 56175, 8-3300 or 83300 aux tank
    1990 models 56145, 56165, 56175, R2-17K502
    1991 models 31-10K802, 31-12K802, 31-16O803, 41-20OE02, 51-12KE01, 51-16OE01, 56176, 56177, 56185, 56190, 56195, S2-12B502, Y1-12OE02, Y1-16OE03, Y1-20OE02, Z1-24OE04
    1992 models 31-10K803, 31-12K804, 31-16O804, 41-20OE03, 51-12KE02, 51-16OE02, 56177, 56185, 56190, 56195, R1-12K804, R1-16O804, R1-20OE02, Y1-16OE04, Y1-16OEE4, Y1-20OE03, Z1-24OE05
    1993 models 70042, 70080, 70120, 70140, 73320, 73380, 73400, 73401, 73420, 73421, 73440, 73501, 73520, 74021, 74041, 74101, 74140
    1994 models 70080, 70100, 70120, 70141, 73362, 73380, 73400, 73401, 73420, 73421, 73440, 73501, 73520, 74021, 74041, 74101, 74120, 74140
    1995 models 70080, 70120, 70141, 70142, 73362, 73400, 73401 x 3, 73420 x 3, 73421 x 2, 73440 x 2, 73501 x 4, 73520 x 2, 74021, 74101, 74120, 74140
    1996 models 70080, 70081, 70120, 70131, 70142, 70183, 73362,73363, 73400, 73401, 73402, 73403, 73420, 73421, 73422, 73423, 73441, 73501, 73502, 73521
    1997 models 70081, 70131, 70142, 70183, 73363, 73402, 73403, 73422, 73423, 73441, 73502, 73521
    1998 models 70082, 70084, 73428 x 2, 73448 x 2
    1999 models 70089, 70171, 73429, 73449
    2000 models 70089 x 2, 70171, 73429, 73449
    2001 models 70089, 70171, 73429, 73449
    2002 models 70089, 73450
    2003 model 73450
    2004 model 73450
    2005 model 73450
    2007 model 73450

    95-4192 gas cap (95-4192 still available April 5, 2021)
    1998 models 73470, 73540, 73541, 73545, 73546, 73560
    1999 models 73471, 73542, 73547, 73561, 73570, 73580
    2000 models 73471 x 2, 73542 x 2, 73547 x 2, 73561 x 3, 73561SEI, 73570, 73580
    2001 models 73471, 73542, 73547, 73561, 73580
    2002 models 73542, 73561, 73570
    2003 models 73542, 73561, 73570
    2004 models 73542, 73561
    2005 model 73561

    95-4193 diesel cap replaces 95-4195 diesel cap (95-4193 still available April 5, 2021)
    1998 models 73550, 73551
    1999 models 73552, 73590
    2000 models 73552, 73590
    2001 model 73590
    2002 model 73590
    2003 model 73590
    2004 model 73590

    69 downloads

    Updated

  3. Free

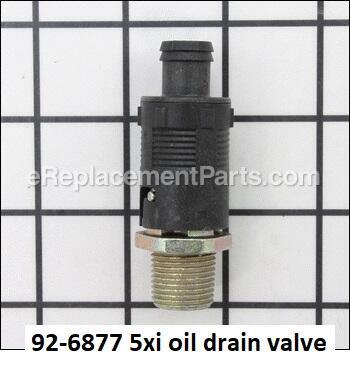

    Engine Oil drain valve.pdf

    Tool-less oil drain valve
    Toro 92-6877 List of applications
    1 page 38KB

    Stens 125-508
    1 page 101KB

    3/8" NPT

    Used on 260-Series tractors
    Used on some 5xi Series and early 260-Series

    11 downloads

    Updated

  4. Free

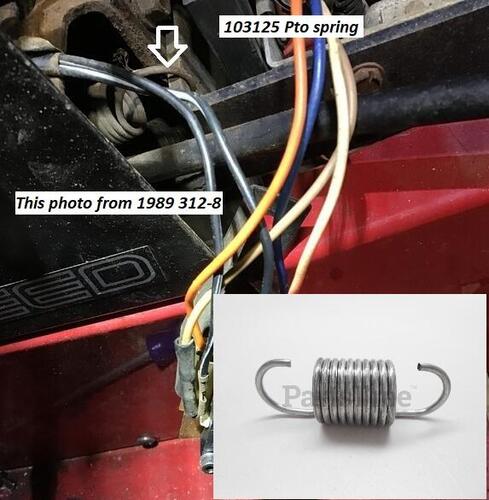

    Spring Pto engagement rod 103125.jpg

    103125 spring for pto engagement rod

    12 downloads

    Updated

  5. Free

    Spindles Front axle.jpg

    Front axle 3/4" spindles for 6" and 8" wheels used primarily on long frame tractors.

    5630 right spindle used 1965-1977 (8" wheel hub retained by bolt - Spindle retained by ring)
    Replaced by 115426

    5631 left spindle used 1965-1977 (8" wheel hub retained by bolt - Spindle retained by ring)
    Replaced by 115425
    ---------------------------------------------------------------------------------------------------------------------------
    105967 right spindle used 1977-1983 (8" wheel hub retained by ring - Spindle retained by ring)
    Replaced by 115426

    105968 left spindle used 1977-1983 (8" wheel hub retained by ring - Spindle retained by ring)
    Replaced by 115425
    -----------------------------------------------------------------------------------------------------------------------------------------
    110212 right spindle used 1984-1987 (8" wheel hub retained by cotter pin - Spindle retained by cotter pin)
    Replaced by 115426

    110213 left spindle used 1984-1987 (8" wheel hub retained by cotter pin - Spindle retained by cotter pin)
    Replaced by 115425
    -----------------------------------------------------------------------------------------------------------------------------------------------------------
    113379 left spindle used 1988-1997 (6" wheel hub retained by cotter pin - Spindle retained by ring)
    Replaced by 113380-01

    113379-01  left spindle used 1998-2001 (6" wheel hub retained by cotter pin - Spindle retained by ring)

    113380 right spindle used 1988-1997 (6" wheel hub retained by cotter pin - Spindle retained by ring)
    Replaced by 113379-01

    113380-01 right spindle used 1998-2001 (6" wheel hub retained by cotter pin - Spindle retained by ring)
    ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
    113381 left spindle used 1988-1996 (8" wheel hub retained by cotter pin - Spindle retained by ring)
    Replaced by 113381-01

    113381-01 left spindle used 1996-2005, 2007 (8" wheel hub retained by cotter pin - Spindle retained by ring)

    113382 right spindle used 1988-1996 (8" wheel hub retained by cotter pin - Spindle retained by ring)
    Replaced by 113382-01

    113382-01 right spindle used 1996-2005, 2007 (8" wheel hub retained by cotter pin - Spindle retained by ring)
    ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
    115425 left spindle used 1990 312-8 and 316-8 exported models (8" wheel hub retained by cotter pin - Spindle retained by ring)

    115426 right spindle used 1990 312-8 and 316-8 exported models (8" wheel hub retained by cotter pin - Spindle retained by ring)

    12 downloads

    Updated

  6. Free

    Pto Engine Manual 1.125in 1968-1969 8-3111 OM IPL #384.pdf

    Operator manual
    IPL
    2 pages 844.11KB
    2 pages 608.99KB

    Dated 5/5/67
    Manual pto for 1-1/8" shaft
    Clutch plate is bolted to the engine pulley
    Clutch plate assembly 6655 is 6" diameter
    83111 at Toro
    8-3111 replaced by 8-3112

    Pto Engine Manual 1968 model 8-3111

    Pto Engine Manual 1969 model 8-3111

    1968 Charger 9 model 1-7931
    1968 Charger 9 model 1-7932
    1968 Charger 12 model 1-7231
    1968 Raider 9 model 1-6931
    1968 Raider 12 model 1-6231

    1969 Charger 10 model 1-7041
    1969 Charger 12 model 1-7241
    1969 Raider 10 model 1-6041 - Toro missed this one
    1969 Raider 12 model 1-6241

    132 downloads

    Updated

  7. Free

    Pto Engine Manual 1.125in 1973 8-3120 TIPL.pdf

    IPL from Toro Master Parts Viewer
    2 pages 122.99KB
    83120 at Toro
    Fits 1973 tractors with 1-1/8" crankshafts
    Clutch plate assembly 6655 is 6" diameter

    1973 14hp Automatic model 1-0430
    1973 14hp Automatic model 1-0435
    1973 16hp Automatic model 1-0440

    52 downloads

    Updated

  8. Free

    Pto Engine Manual 1.125in 1970-1972 8-3112 OM IPL #803926.pdf

    Operator manual
    IPL
    4 pages 568.35KB
    Dated 7/74
    Manual pto 1-1/8" shaft
    Clutch plate is bolted to the engine pulley
    Clutch plate assembly 6655 is 6" diameter
    Fits 1972 and prior tractors with 1-1/8" crankshaft
    83112 at Toro
    Replaces PT-6

    1970 manual pto clutch optional as was the electric pto clutch
    1970 Charger 12 model 1-7251
    1970 Charger 12 model 1-7252
    1970 Charger 12 model 1-7253
    1970 Raider 10 model 1-6051
    1970 Raider 12 model 1-6251
    1970 Raider 12 model 1-6252
    1970 Raider 12 model 1-6253
    1971 tractors used electric clutches as original equipment
    1972 Bronco 14 model 1-0422
    1972 Bronco 14 model 1-0423
    1972 Charger 10 model 1-0410
    1972 Charger 12 model 1-0401
    1972 Charger 12 model 1-0402
    1972 Raider 10 model 1-0301
    1972 Raider 12 model 1-0311
    1972 Raider 14 model 1-0320

    113 downloads

    Updated

  9. Free

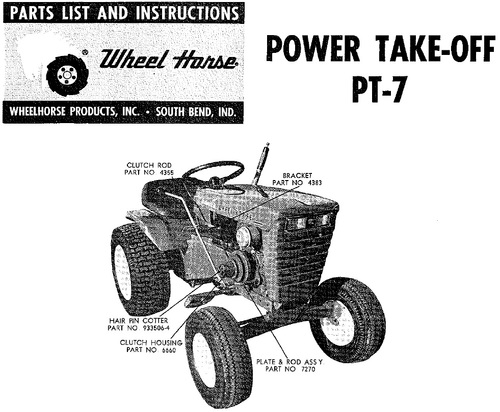

    Pto Engine Manual 1.000in 1964-1967 PT-7 OM IPL.pdf

    Operator manual #320
    IPL
    2 pages 239.74KB
    Dated 1/17/67

    Manual pto for 1" shaft
    Clutch plate is bolted to the engine pulley 1965-1967 PT-7
    Clutch plate assembly 6655 is 6" diameter
    Fits 8hp models
    Fits 10hp models 1045, 1055, 1075 and 1046 using K241S-46219a
    PT-7 replaced by 8-3311 83311

    1964 model 1045 using K241S-46219a - Requires 7363 2-1/2" engine pulley
    1965 model 855 - Requires 7363 2-1/2" engine pulley
    1965 model 875 - Requires 7362 3-1/2" engine pulley
    1965 model 1055 using K241S-46219a - Requires 7363 2-1/2" engine pulley
    1965 model 1075 using K241S-46219a - Requires 7362 3-1/2" engine pulley
    1966 model 856 - Suspect this should be included and requires 7363 2-1/2" engine pulley
    1966 model 876 - Suspect this should be included and requires 7362 3-1/2" engine pulley
    1966 model 1046 - PT-6 for 1-1/8" crankshaft came as standard equipment as per PSB #338b but may be wrong or K241S-46219a is wrong? - Requires 7363 2-1/2" engine pulley?
    1967 model 857 - Suspect this requires 7363 2-1/2" engine pulley
    1967 model 867 - Suspect this requires 7363 2-1/2" engine pulley
    1967 model 877 - Suspect this requires 7362 3-1/2" engine pulley

    90 downloads

    Updated

  10. Free

    Pto Engine Manual 1.125in 1969 8-3411 OM IPL.pdf

    Operator manual
    IPL
    #208 dated 6/18/64
    2 pages 678.30KB

    #A-5168 dated 7/69
    2 pages 582.24KB

    83411 at Toro
    Formerly PT-5
    For 1-1/8" shaft
    Clutch plate assembly is 6" diameter
    Plate and bushing is keyed to the crankshaft
    Pto Engine Manual 1963 model 8-3411
    Pto Engine Manual 1964 model 8-3411
    Pto Engine Manual 1965 model 8-3411
    1963 model 953
    1964 model 1054
    1965 model 1054A

    A possible replacement for the Wheel Horse 4398 pto seal used in the PT-5 and 8-3411 pto clutch
    Found 17211SB-H-RM
    1.750" ID
    2.125" OD
    .188" deep
    Don't know if that is the seal size or bore and shaft dimensions.
    Garry

    Adding
    SKF/Chicago Rawhide or CR 17227 replacement seal for 17211SB
    http://www.skfextranet.com/Catalogs/457010/sealdetail.asp?s=17227

    61 downloads

    Updated

  11. Free

    Pto Engine Manual 1.125in 1963-1965 PT-5 OM IPL #208.pdf

    Operator manual
    IPL
    2 pages 240.78KB
    Dated 6/18/64
    Water marked

    Manual pto for 1-1/8" shaft
    Plate and bushing is keyed to the crankshaft
    Clutch plate assembly is 6" diameter
    Replaced by 8-3411 83411
    Pto Engine Manual 1963 model PT-5
    Pto Engine Manual 1964 model PT-5
    Pto Engine Manual 1965 model PT-5
    1963 model 953
    1964 model 1054
    1965 model 1054A

    A possible replacement for the Wheel Horse 4398 pto seal used in the PT-5 and 8-3411 pto clutch
    Found 17211SB-H-RM
    1.750" ID
    2.125" OD
    .188" deep
    Don't know if that is the seal size or bore and shaft dimensions.
    Garry

    Adding
    SKF/Chicago Rawhide or CR 17227 replacement seal for 17211SB
    http://www.skfextranet.com/Catalogs/457010/sealdetail.asp?s=17227

    72 downloads

    Updated

  12. Free

    Pto Engine Manual 1.125in 1966-1967 PT-6 OM IPL #296.pdf

    Operator manual
    IPL
    2 pages 226.48KB
    Dated 7/29/65

    Manual pto for 1-1/8" shaft
    Clutch plate assembly 6655 is 6" diameter
    Clutch plate is bolted to the engine pulley
    PT-6 replaced by 8-3112 83112

    Pto Engine Manual 1966 model PT-6
    Pto Engine Manual 1967 model PT-6
    1966 model 1046 - PT-6 came as standard equipment
    1966 model 1056
    1966 model 1076
    1966 model 1276
    1967 model 1057 - Not listed @ Toro
    1967 model 1067
    1967 model 1077 - Not listed @ Toro
    1967 model 1257
    1967 model 1267
    1967 model 1277

    136 downloads

    Updated

  13. Free

    Pto Engine Manual 1.000in 1968 8-3311 OM IPL #320.pdf

    Operator manual
    IPL
    #320 dated 1/17/67
    #A-5167 dated 7/69
    4 pages

    Formerly PT-7
    Manual pto 1" shaft
    Model 83311 at Toro (8-3311)
    Clutch plate assembly 6655 is 6" diameter
    Clutch plate is bolted to the engine pulley 1965-1967 PT-7
    Fits 8hp models with gear transmissions - Requires 2-1/2" # 7363 engine pulley
    Fits 1045, 1055 and 1046 using K241S-46219a with gear transmissions - Requires 2-1/2" # 7363 engine pulley
    Fits 1075 using K241S-46219a model with automatic transmission - Requires 3-1/2" # 7362 engine pulley
    1968 Commando 8 model 1-4831 - Requires 2-1/2" # 7363 engine pulley

    There was also a 8-3412 listed for the 1972 1-0110 Commando 800

    89 downloads

    Updated

  14. Free

    Lift Hydraulic Valve and cylinder SM #810242R3.pdf

    Service manual #810242R3
    12 pages 1.52MB
    Dated 09/84

    Also listed as manual 492-4208
    Replaces manual #810242R1
    whlifhyd.pdf @ Toro

    A service manual for the hydraulic lift valves and cylinders.
    Included is a description of the adapters needed to make hoses and where to get them.

    1983 C-145 Automatic model 01-14KE04
    1994 416-H model 73421 Serial 4900001-4999999
    1997 416-H model 73423 Serial 7900001-7999999

    1,133 downloads

    Updated

  15. Free

    Radio 8-6911 OM SN.pdf

    Operator manual
    4 pages 542.05KB
    Supplied by Bendix

    8-6921 Headset also available in 1972

    8-6911 Radio
    1971 serial numbers that have shown up for the 8-6911
    783033 - model 8-6911-6
    783109 - model 8-6911-6

    72 downloads

    Updated

  16. Free

    Lift Electric 1989-1990 8-4224 TIPL Wiring Revised.pdf

    IPL from Toro Master Parts Viewer
    2 pages 159.96KB

    Wiring from 1986 service manual Color pdf
    1 page 230KB

    Model 84224 @ Toro
    Replaced 8-4223 (84223)
    May have been replaced by 8-4225 84225)

    Fits
    1989 310-8 model 21-10K806 [May have used 8-4223 (84223)]
    1989 312-8 model 21-12K806 [May have used 8-4223 (84223)]
    1989 414-8 model 31-14K804 [May have used 8-4223 (84223)]
    1989 416-8 model 31-16O801 [May have used 8-4223 (84223)]
    1990 310-8 model 31-10K801 [May have used 8-4223 (84223)]
    1990 312-8 model 31-12K801 [May have used 8-4223 (84223)]
    1990 416-8 model 31-16O802 [May have used 8-4223 (84223)]

    80 downloads

    Updated

  17. Free

    Lift Electric 1985-1990 8-4223 TIPL Wiring Revised.pdf

    IPL from Toro Master Parts Viewer
    2 pages 161.19KB

    Wiring from 1986 service manual Color pdf
    1 page 230KB

    Model 84223 @ Toro
    Replaced by 8-4224 (84224)

    Fits
    1985 310-8 model 21-10K801
    1985 312-8 model 21-12K801
    1985 314-8 model 21-14K801
    1985 314-A model 21-14KE01
    1985 416-8 model 31-16K801
    1985 417-8 model 31-17K801
    1986 310-8 model 21-10K802
    1986 310-8 model 21-10K803
    1986 312-8 model 21-12K802
    1986 312-8 model 21-12K803
    1986 312-A model 21-12KE01
    1986 312-A model 21-12KE02
    1986 414-8 model 31-14K801
    1986 416-8 model 31-16K802
    1986 417-8 model 31-17K802 (Standard equipment)
    1987 310-8 model 21-10K804
    1987 312-8 model 21-12K804
    1987 312-A model 21-12KE03
    1987 414-8 model 31-14K802
    1987 416-8 model 31-16K803
    1987 418-8 model 31-18K801 (Standard equipment)
    1988 310-8 model 21-10K805
    1988 312-8 model 21-12K805
    1988 414-8 model 31-14K803
    1988 416-8 model 31-16K804
    1989 310-8 model 21-10K806 [May have used 8-4224 (84224)]
    1989 312-8 model 21-12K806 [May have used 8-4224 (84224)]
    1989 414-8 model 31-14K804 [May have used 8-4224 (84224)]
    1989 416-8 model 31-16O801 [May have used 8-4224 (84224)]
    1990 310-8 model 31-10K801 [May have used 8-4224 (84224)]
    1990 312-8 model 31-12K801 [May have used 8-4224 (84224)]
    1990 416-8 model 31-16O802 [May have used 8-4224 (84224)]

    126 downloads

    Updated

  18. Free

    Seals

    You will notice the Chicago Rawhide / SKF seal spec sheets show a WastWatcher seal. That seal may be easier to find as they have determined it is a part number that will replace many seals with the same dimensions except for width and have characteristics that meet or exceed the seal it replaces.

    A link to the SKF interchange
    http://www2.chicago-rawhide.com/popup_parts_lookup_457012.htm

    Toro / Wheel Horse part numbers are first on each line

    Seal 47-8030 Use 703333 -- Replaced by Chicago Rawhide / SKF 6105
    Seal 56-2820 replaces 56-3270 & 112604 Eaton 1100 input shaft
    Seal 56-3130 may be -- replaced by Chicago Rawhide / SKF 7465 (Eaton part number ER92999 replaced by SKF / Chicago Rawhide 7465) [Eaton 1100 selector shaft seal]
    Seal 56-3270 replaced by 56-2820 Eaton 1100 input shaft
    Seal 83-2830 replaces 1234 -- Replaced by Chicago Rawhide / SKF 7627
    Seal 83-2840 replaces 1257, 100573 -- Available only from Toro - This seal mounts over the axle tube - See photo at the top
    Seal 93-9807 replaces 112822 -- May be Chicago Rawhide / SKF 12407
    Seal 253-44 replaces 1117, 108357, 700413, 707984 -- Replaced by Chicago Rawhide / SKF 7443
    Seal 1011 -- Replaced by Chicago Rawhide / SKF 9859
    Seal 1117 replaced by 253-44 -- Replaced by Chicago Rawhide / SKF 7443
    Seal 1213 replaced by 100443 -- Replaced by Chicago Rawhide / SKF 11050 or National 340835
    Seal 1232 replaced by 100863, See 114677, 9240 -- Replaced by Chicago Rawhide / SKF 9815
    Seal 1234 replaced by 83-2830 -- Replaced by Chicago Rawhide / SKF 7627 or National 471643
    Seal 1257 replaced by 83-2840 -- Available only from Toro - This seal mounts over the axle tube - See photo at the top
    Seal 1303 replaced by 100441 -- Replaced by Chicago Rawhide / SKF 7410
    Seal 1447 replaced by 5959 -- Replaced by Chicago Rawhide / SKF 4911
    Seal 1461 replaced by 100442 -- Replaced by Chicago Rawhide / SKF 6105
    Seal 1482 replaced by 103118 -- Replaced by Chicago Rawhide / SKF 12330
    Seal 3373 -- Replaced by Chicago Rawhide / SKF 10035 or National 204005
    Seal 5958 replaced by 100607 -- Replaced by Chicago Rawhide / SKF 9878
    Seal 5959 replaces 1447 -- Replaced by Chicago Rawhide / SKF 4911
    Seal 6449 -- Replaced by Chicago Rawhide / SKF 11124  (Original 6449 is 1/2" wide)
    Seal 6663 -- Replaced by Chicago Rawhide / SKF 14810
    Seal 7877 -- Replaced by Chicago Rawhide / SKF 7475 (Federal Mogul 480821 = CR 7474 , Original seal 9008000-7501 = CR 7443)
    Seal 7963 -- Replaced by Chicago Rawhide / SKF 6904
    Seal 9230 replaced by 703333 -- Replaced by Chicago Rawhide / SKF 6105
    Seal 9240 May be same as 1232, 100863 and 114677 -- Replaced by Chicago Rawhide / SKF 9815 a guess. Used on tiller with 5571 bushing
    Seal 100441 replaces 1303 -- Replaced by Chicago Rawhide / SKF 7410
    Seal 100442 replaces 1461 -- Replaced by Chicago Rawhide / SKF 6105 (CR 11050 to replace 100442 @ SKF is wrong)
    Seal 100443 replaces 1213 -- Replaced by Chicago Rawhide / SKF 11050 or National 340835
    Seal 100573 replaced by 83-2840 -- Available only from Toro - This seal mounts over the axle tube - See photo at the top
    Seal 100607 replaces 5958 -- Replaced by Chicago Rawhide / SKF 9878
    Seal 100608 -- Replaced by Chicago Rawhide / SKF 6904
    Seal 100863 Replaces 1232, 114677, 9240 -- Replaced by Chicago Rawhide / SKF 9815 a guess.
    Seal 103103 -- Replaced by Chicago Rawhide / SKF 8620
    Seal 103118 replaces 1482 -- Replaced by Chicago Rawhide / SKF 12330
    Seal 103269 or 103277  -- Replaced by Chicago Rawhide / SKF 10740 (National 471762 seal for 5-0900 deck thinner than originals)
    Seal 103461 -- Replaced by Chicago Rawhide / SKF 6763
    Seal 106075 -- Replaced by Chicago Rawhide / SKF 9907 (Mower spindle original had double-lip)
    Seal 108357 replaced by 253-44 -- Replaced by Chicago Rawhide / SKF 7443
    Seal 112604 replaced by 56-2820 Eaton 1100 input shaft
    Seal 112658 may be -- replaced by Chicago Rawhide / SKF 7465 (Eaton part number ER92999 replaced by SKF / Chicago Rawhide 7465) [Eaton 1100 selector shaft seal]
    Seal 112822 replaced by 93-9807 -- May be Chicago Rawhide / SKF 12407
    Seal 114677 replaced by 100863 -- Replaced by Chicago Rawhide / SKF 9815 a guess.
    Seal 700413 replaced by 253-44 -- Replaced by Chicago Rawhide / SKF 7443
    Seal 703333 replaces 9230 & 47-8030 -- Replaced by Chicago Rawhide / SKF 6105
    Seal 707984 replaced by 253-44 -- Replaced by Chicago Rawhide / SKF 7443
    Seal MW10390 -- Replaced by Chicago Rawhide / SKF 9878 Motorwheel? Used in snowthrower auger drive
    Seal MW10459 - 3/4" shaft Used in snowthrower auger drive

    97 downloads

    Updated

  19. Free

    Paint Work Horse Pewter Gray.pdf

    Ford Lincoln Mercury gray paint codes

    1 page from #3328-947 IPL
    Model E2-12K501 - Used this model number to download from Toro

    Pewter metallic part number 8-0335 for 1982 models - Automotive equivalent 1971 Lincoln-Mercury Pewter Metallic
    Pewter gray part number 8-0337 for 1983-84 models (Not metallic) - Automotive equivalent 1982 Lincoln Light Pewter

    WorkHorse
    Tractor 1984 B-1136 model B2-11BX91 (On the Belgium list - Do not know if red or gray)
    Tractor 1984 LT-1100 3-speed model A2-11BX01 Work Horse
    Tractor 1984 LT-1100 5-speed model A2-11BP01 Work Horse
    Tractor 1984 LT-1600 Twin 5-speed A2-16BP01 Work Horse
    Tractor 1984 GT-1100 8-speed model A1-11B801 Work Horse

    Tractor 1984 GT-1600 Twin 8-speed model A1-16B801 Work Horse
    Tractor 1984 GT-1800 Twin Auto model A1-18BE01 Work Horse


    83 downloads

    Updated

  20. Free

    Pto Rear 1974-1982 8-3222 OM IPL #803924.pdf

    Operator manual
    Illustrated parts list
    2 pages 550.63KB
    Dated 8/74

    83222 at Toro
    Pto for 60" mower & 38" tiller on D-Series Auto 2000 rpm
    Rear pto drive belt 103084 (B x 37.5" or 5/8" x 37.5")

    261 downloads

    Updated

  21. Free

    Chart Belts Tractor drive 1956-1999 15 pages #492-0392.pdf

    15 pages 664.75KB

    Belt chart for tractor drive belts 1956-1999
    Tractor model number required
    The belt dimensions are on the last pages in 2 lists

    780 downloads

    Updated

  22. Free

    Lift Electric-Hydraulic 260-Series SM #492-0704.pdf

    Service manual
    17 pages 1.45MB

    1996 269-H model 72102 Serial 6900001-6999999
    1996 270-H model 72110 Serial 6900001-6999999 - Export model
    1996 270-He model 72110 Serial 6900001-6999999 - Export model

    1997 269-H model 72102 Serial 7900001-7999999
    1997 270-H model 72110 Serial 7900001-7999999 - Export model
    1997 270-He model 72110 Serial 7900001-7999999 - Export model

    1998 269-H model 72102 A Serial 8900001-8900399
    1998 269-H model 72102 B Serial 8900400-8999999
    1998 270-H model 72110 A Serial 8900001-8900599 - Export model
    1998 270-He model 72110 A Serial 8900001-8900599 - Export model
    1998 270-H model 72110 B Serial 8900600-8999999 - Export model
    1998 270-He model 72110 B Serial 8900600-8999999 - Export model

    1999 270-H model 72106 Serial 9900001-9999999
    1999 270-H model 72115 Serial 9900001-9999999 - Export model
    1999 270-He model 72115 Serial 9900001-9999999 - Export model

    2000 270-H model 72108 Serial 200000001-200999999
    2000 270-H model 72116 Serial 200000001-200999999 - Export model
    2000 270-He model 72116 Serial 200000001-200999999 - Export model

    422 downloads

    Updated

  23. Free

    Lift Hydraulic 1966-67 HY-6 OM IPL #273.pdf

    Operator manual
    Illustrated parts list
    4 pages 380.39KB

    Valve assembly 6621 shows up in ipl's up to and including 1973

    Lift Hydraulic 1966 model HY-6
    Lift Hydraulic 1967 model HY-6

    128 downloads

    Updated

  24. Free

    Speed Reducer 1964-1966 SR-64 OM IPL #A-7140.pdf

    Operator manual
    IPL
    2 pages 238.28KB

    Another scan
    2 pages 88KB

    Uses 7-1/2" transmission driven pulley
    (Original 5425 transmission pulley has 4" OD)
    1586 belt replaced by 9714 (HA x 76" or 1/2" x 76")

    Speed reducer 1961 model SR-62 - Added here so it is recorded
    Speed reducer 1962 model SR-62 - Added here so it is recorded
    Speed reducer 1963 model SR-62 - Added here so it is recorded
    (SR-62 listed in the early attachment list and also in PSB #040 which we do not have)

    Speed reducer 1964 model SR-64
    Speed reducer 1965 model SR-64
    Speed reducer 1966 model SR-64

    190 downloads

    Updated

  25. Free

    Lift Hydraulic 1968-1973 8-4111 OM IPL #A-5161.pdf

    Operator manual
    IPL
    4 pages 473.91KB

    Fits Charger, Electro, Bronco, 10hp 12hp and 14hp Auto tractors
    Model 84111 @ Toro
    Hydraulic lift kit on Sundstrand 90-2046 equipped tractors.
    Lift valve assembly part # 6621

    Lift Hydraulic 1968 model 8-4111
    Lift Hydraulic 1969 model 8-4111
    Lift Hydraulic 1970 model 8-4111
    Lift Hydraulic 1971 model 8-4111
    Lift Hydraulic 1972 model 8-4111
    Lift Hydraulic 1973 model 8-4111

    294 downloads

    Updated




×
×
  • Create New...
