About This File
Front axle 3/4" spindles for 6" and 8" wheels used primarily on long frame tractors.

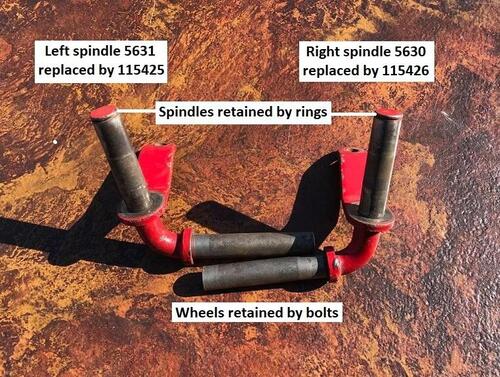

5630 right spindle used 1965-1977 (8" wheel hub retained by bolt - Spindle retained by ring)
Replaced by 115426
5631 left spindle used 1965-1977 (8" wheel hub retained by bolt - Spindle retained by ring)
Replaced by 115425
---------------------------------------------------------------------------------------------------------------------------

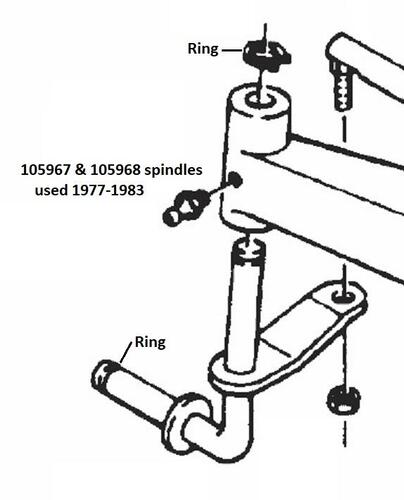

105967 right spindle used 1977-1983 (8" wheel hub retained by ring - Spindle retained by ring)
Replaced by 115426
105968 left spindle used 1977-1983 (8" wheel hub retained by ring - Spindle retained by ring)
Replaced by 115425
-----------------------------------------------------------------------------------------------------------------------------------------

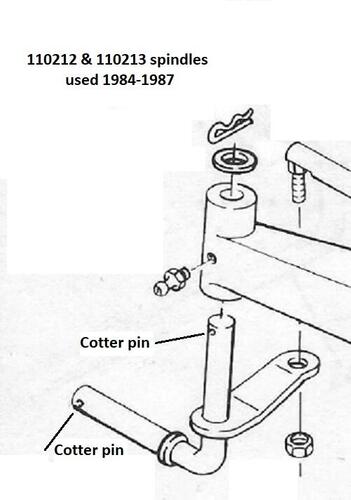

110212 right spindle used 1984-1987 (8" wheel hub retained by cotter pin - Spindle retained by cotter pin)
Replaced by 115426
110213 left spindle used 1984-1987 (8" wheel hub retained by cotter pin - Spindle retained by cotter pin)
Replaced by 115425
-----------------------------------------------------------------------------------------------------------------------------------------------------------

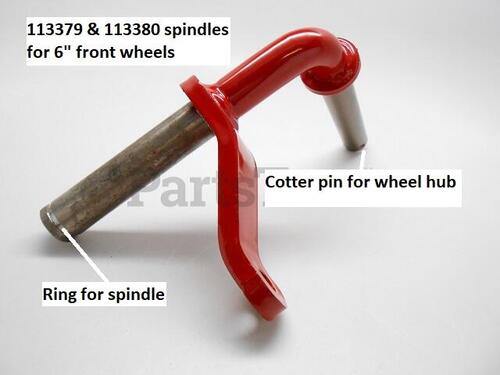

113379 left spindle used 1988-1997 (6" wheel hub retained by cotter pin - Spindle retained by ring)
Replaced by 113380-01
113379-01 left spindle used 1998-2001 (6" wheel hub retained by cotter pin - Spindle retained by ring)
113380 right spindle used 1988-1997 (6" wheel hub retained by cotter pin - Spindle retained by ring)
Replaced by 113379-01
113380-01 right spindle used 1998-2001 (6" wheel hub retained by cotter pin - Spindle retained by ring)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
113381 left spindle used 1988-1996 (8" wheel hub retained by cotter pin - Spindle retained by ring)
Replaced by 113381-01

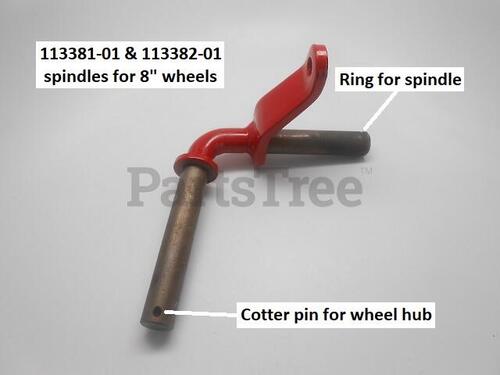

113381-01 left spindle used 1996-2005, 2007 (8" wheel hub retained by cotter pin - Spindle retained by ring)
113382 right spindle used 1988-1996 (8" wheel hub retained by cotter pin - Spindle retained by ring)
Replaced by 113382-01
113382-01 right spindle used 1996-2005, 2007 (8" wheel hub retained by cotter pin - Spindle retained by ring)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

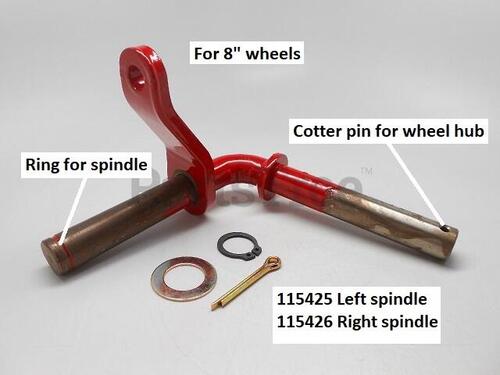

115425 left spindle used 1990 312-8 and 316-8 exported models (8" wheel hub retained by cotter pin - Spindle retained by ring)
115426 right spindle used 1990 312-8 and 316-8 exported models (8" wheel hub retained by cotter pin - Spindle retained by ring)
