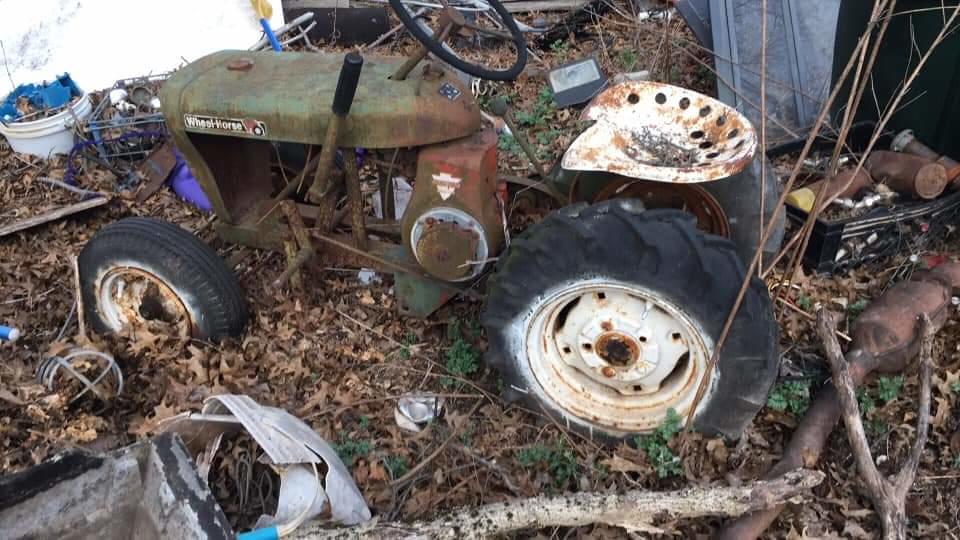

Big haul coming Thursday evening
By
12 hp Kohler, in Wheel Horse Tractors
-
Similar Content
-
By blu_stang
Hi All, It's time for me to sell the D-250 I've had for the last 8 years. It’s useable as is, or would be a great project bundle for further restoration.
I am selling a large package: the running tractor, a refurbished snowblower (48”), parts snowblower, mower deck (60”), tiller (40”), front plow blade (60”), Cat 0 3-Point Hitch with adjustable top link, WH 3-Point tool bar, wheel weights and tire chains. Also included is an extensive part collection, nearly a second tractor worth. I will include the original manuals, an original 1976 sales brochure, and repair manuals for the tractor and the engine. I made electronic copes of all of the above, and stored the paper copies to prevent further wear. This is one of the most complete D-250 tractor/attachment bundles I’ve seen.
Some highlights from the available parts: Frame rails, extra engine, water pump, extra transaxle, extra gears, including worm gears (stored in oil bath), Front wheel set, carburetor, carb rebuild kit, rebuildable original radiator, extra radiator overflow bottle, rebuilt alternator, new voltage regulator (I was planning to change over to an alternator setup from the generator), new in package Renault engine seals, new PTO seals, ignition maintenance parts. There are also many panels, frame pieces, cables, levers, tubes (lines) and hardware in the collection.
The tractor engine runs smooth. There are around 1050 original hours on it; It’s a 1976 edition. Everything works, except the dash lights and the rear lights (disconnected b/c of fender). I just haven't sorted out the wiring, but it is all there. Headlights are good and working, as are all of the gears and levers. The four tires are nearly new Carlisle Multi Trac, with nubs still on them. The rear tires have been filled (ballasted) with Rim Guard for extra traction. The hydraulic pump, front PTO clutch and brakes operate but could use a tune up. I’ve used it for mowing and snowblowing on hills, driveway and around my land. I don’t have an original WH seat. The snowblower was rebuilt a few years back, and assembled with all new hardware and bearings. The mower deck gearbox was professionally serviced recently, and has a new set of blades with only a half dozen mows. The rear fender needs a repair, but all pieces are available. The plow and tiller are due for restoration. The Points, Condenser and rotor have all been replaced and tuned in. The battery is good. I've rebuilt the carb, replaced the fuel pump and changed out the plugs within the last 30 hours. The replacement radiator is from a Kawasaki engine; it was installed with new hoses. There are also new custom hydraulic hoses and a new hydraulic lift cylinder.
Here's a video of me mowing, this past summer.
Transporting this haul in one trip will require a pickup truck and a large trailer.
-
By CasualObserver
Operator manual
Illustrated parts list
6 pages 3.73MB
Illustrated parts list #A-7136
Includes PSB #023 #052 #058 #060 #080
10 pages 938.48KB
Engines used according to Toro
Clinton B1290-1107
Kohler K91-31307A
Kohler K91-31388A
Electric start kit
Electric starter kit model EC-35 for Clinton engine - Listed for 1958 and 1959
Electric starter kit model EK-35 for Kohler engine - Listed for 1958 and 1959
6-12 tire chains model TC-12 - Listed for 1958 and 1959
Seat cushion Foam rubber with imitation leather cover model FC-24 - Listed for 1958 and 1959
Transmission drive belt 1567 - (4L x 29" or 1/2" x 29")
Details & Attachments
2 pages 107.33KB
1958 model RJ-58
1958 serial numbers that have shown up for the RJ-58
Early models used Kohler K90T-27107D equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
00005
00251
01099 - No casting date on trans. Leather gearshift boot, large, round rear wheel hubs, "slab" hitch, replacement engine
01188 - Has round rear wheel hubs
01516
01768
01789 - No casting date on trans. Leather gearshift boot, 3-ear triangular rear wheel hubs, "slab" hitch, Clinton engine with Schnacke recoil
01797
01871
02525
03177
03501 - Located in UK
03796 - Kohler K90T-27107D with serial 364044 equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
04883
04885
05000
05619
05714
05798
06528 - May be 16528
06749
06771
07633
07649 - Transmission J12-8 October 12, 1958
07725
08440
08612
09284
09337 - Hard to read
10163
11432
11628 - # 3521 spline gear with 10 splines changed to 11 splines in 5003 and 5010 transmissions at serial # 11628 PSB #023
11916
12221 - B3-9 trans casting date - Kohler K91 engine with Schnacke recoil
12291
14473
14713
16097
16528 - May be 06528
166x6
16868 - F4-9 trans casting date - Kohler K91 engine with Fairbanks recoil, solid pan seat without holes
18348
18500 and lower
Late 1958 units came with a Kohler K-91T-31307A equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
------------------------------------------------------------------------------------------------------------------
Details & Attachments
2 pages 106.94KB
1959 model RJ-59
1959 serial numbers that have shown up for the RJ-59
Early 1959 units came with a Kohler K-91T-31307A equipped with a Schnacke recoil unit with a backup rope starter contained under the recoil assembly and an oil bath air filter.
18501 and up - Possible 1100 units built
20078 - Located in UK
203xx
21033
292xx
21900 - 1960 Suburban 400 began production at serial #21900 somewhere around Aug-Oct 1959.
Late model RJ-59 tractors with a Kohler would have a K-91T-31388A with the Fairbanks recoil starter and paper air filter element. The 31388A was also used on the 1960 Suburban 400.
K91T-31388A Serial 425251 found on RJ-59
-
By Wenshu72
Hello I'm looking a deck for my C-195 48' or preferably 60' located in NW Illinois.
-
By BMW1
I bought a 3 point hitch from someone on Face book but the 3 point hitch lift assembly bearings were not included.
The are NLA.
Does any know a supplier for these or have two they are willing to sell?
I looked at McMaster and could not find one with the sizes needed.
The part# is 8340 in the 3 point hitch diagram below.
Thank You.
-
By t_furl43
1979 c-101 nice project tractor just needs a few odds and ends, steering wheel, coil, carburetor bowl, the wiring was redone by previous owner....all 4 tires are good and hold air it goes into all gears no problem, transmission fluid has been changed, 10hp Kohler, message me or call or txt with any questions, it does run and runs well, it’s been kept inside since I’ve had it, I would also trade for a mid mount grader blade thanks
