Wheelhorse WT-30 RJ-58 Tiller (k91 driven)

Recommended Posts

Vaughan32850

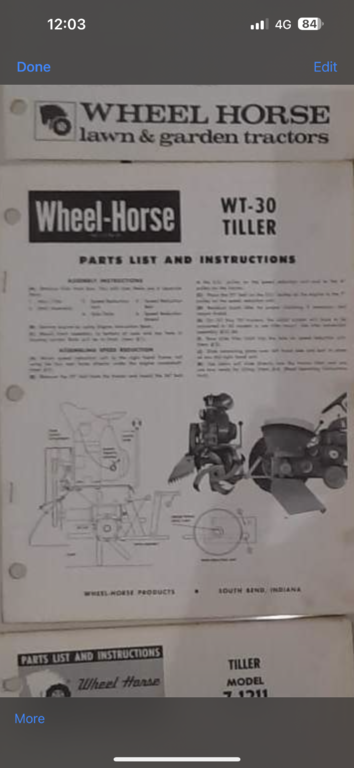

Has anyone got a WT-30 tiller they can send pictures if pleas? It’s the one fitted with a K91 engine for RJ models.

Many thanks


  • Like 2
