50” D series Tiller Top Lift Link measurement

Recommended Posts

wh315-8

Anyone be able to measure out the Top Link Bar for the 50” D Series Tiller?

Just finished rebuilding a tiller, have a adjustable type but would like to put a original type on like the manual has listed.




Edited by wh315-8

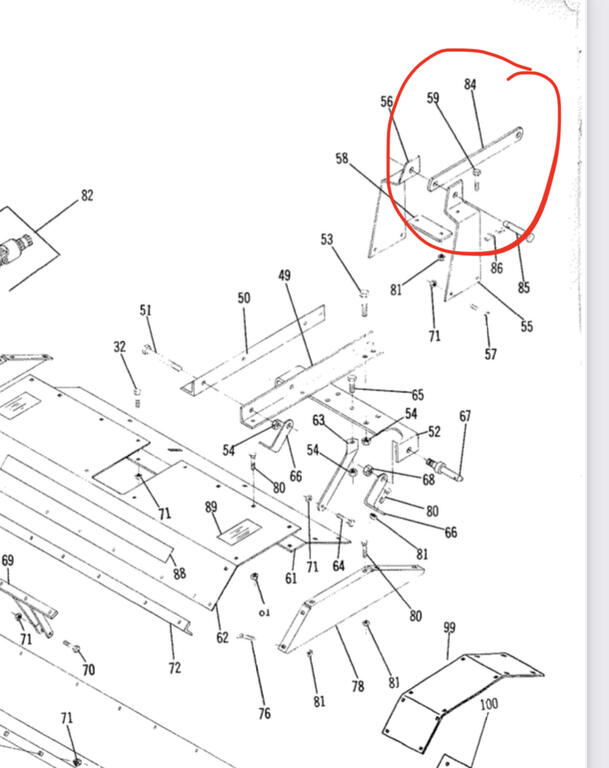

Reference picture
