About This File
IPL from Toro Master Parts Viewer
7 pages 421.40KB
Fits B-Series and LT-Series tractors
Drive belt 106533 (1/2" x 40.06")
Spindle belt 106751 (1/2" x 80.5")

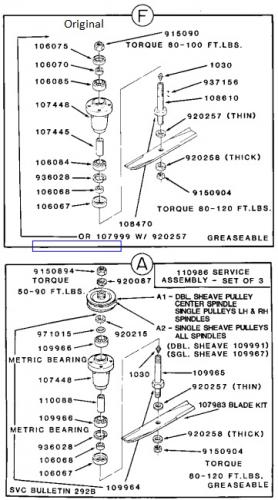

Mower spindle assemblies could be A2, F or Z
For A2 see service bulletin 221B
107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)
Mower Rotary 1980 36in RD model 05-36XR01
1980 serial numbers that have shown up for the 05-36XR01
00009556
00011097 - Build date 1979 9290 October 17 Wednesday
00017302 - Build date 1980 0053 February 22 Friday
Mower Rotary 1981 36in RD model 05-36XR01
1981 serial numbers that have shown up for the 05-36XR01
033616 - Build date 1980 0285 October 11 Saturday
037449
038104
Mower Rotary 1982 36in RD model 05-36XR01
