Bill D

Loaders: The good and the Bad. Pictures wanted.

Recommended Posts

Bill D
Posted (edited)

Thinking about a loader for my 416-8.  I would like some input from those that own them.  Your experiences, good and bad, best brands, etc.  Also, I would like some pictures, especially of subframes and mounting points, as I may have to fabricate a subframe if I find one from a different tractor.  Thanks.

Edited by Bill D
  • Like 1

Share this post


Link to post
Share on other sites

953 nut

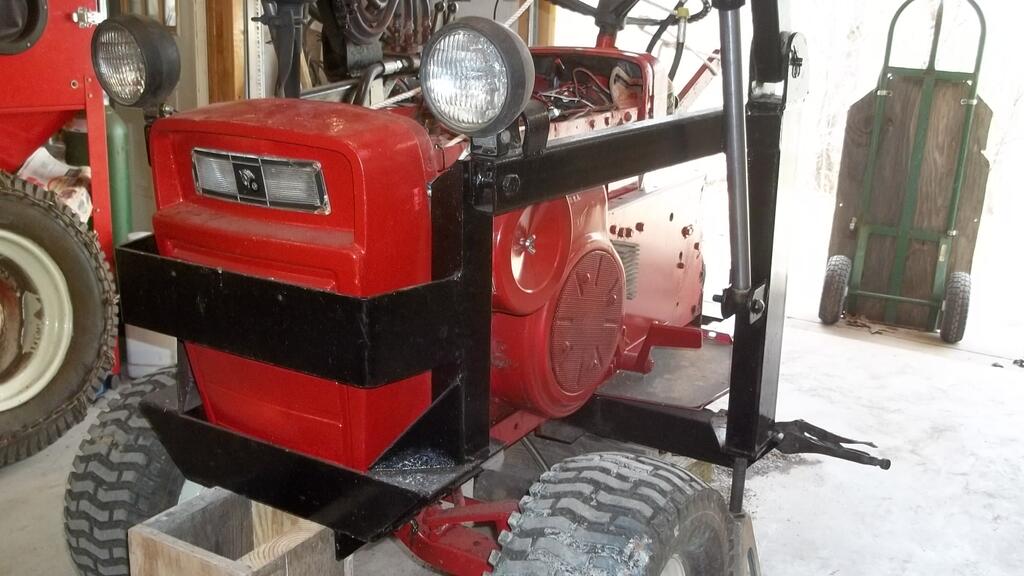

The basic principal of the sub-frame is to pass all of the load and forces of the loader to the axles protecting the frame of the :wh:.

Mine has a rear portion that bolts to the rear axle housing and the frame where a mid-mount Attach-A-Matic would be bolted to the frame. The front part bolts through the frame above the front axle. The two pieces of sub-frame are joined together by a brace from the uprights.

100_3729.JPG.ed173909855bbc559a5da48b6ca6d381.JPG100_3732.JPG.e993cd9c7b6ea12008bf5c3ed43f4ac1.JPG

@pullstart did a very good thread on this subject a couple months back.

  • Like 3
  • Thanks 1

Share this post


Link to post
Share on other sites

pullstart

Here is the thread Richard is talking about.  I built the entire subframe and did a lot of fab work on the top of the subframe as well.  Duke had a very stout beginning to the project, so I added to his original thread.



Here’s where I took over...



https://www.wheelhorseforum.com/topic/68968-ark-500-loader-rebuild-on-a-522xi/?page=6&tab=comments#comment-896001



  • Like 2

Share this post


Link to post
Share on other sites

pullstart

I had an Ark 500 in stock form as well.  It came on a C-161 and was (temporarily) installed on a 1056... but never came off until I sold it.



https://www.wheelhorseforum.com/topic/85805-c-161-blackhood-briggs-twin-ark-500-fel/


https://www.wheelhorseforum.com/topic/84537-stormy-the-1056/?page=3&tab=comments#comment-858046



Share this post


Link to post
Share on other sites

JCM

Kwik-Way loaders work well on WH tractors. The best model I found after using them on 3 models was the 520-H because of the swept front axle and gear reduction steering. JMO. Pictured on a 1986 417-8 and a 1993  520-H.





  • Like 3

Share this post


Link to post
Share on other sites

Herder

You gotta get a loader Bill.  There's all good and no bad in owning one.IMG_1472.JPG.2b5c6633414a8e4b5946be05229177f8.JPG

  • Like 2
  • Excellent 2

Share this post


Link to post
Share on other sites

pullstart
7 minutes ago, Herder said:

There's all good and no bad in owning one.


Unless you have an uneven load in the bucket and it wants to lay on it’s side!

  • Like 2
  • Sad 1

Share this post


Link to post
Share on other sites

Bill D
10 minutes ago, Herder said:

You gotta get a loader Bill.  There's all good and no bad in owning one.IMG_1472.JPG.2b5c6633414a8e4b5946be05229177f8.JPG

Seeing your loader in action is the reason I want one.

Share this post


Link to post
Share on other sites

Herder
2 minutes ago, pullstart said:


Unless you have an uneven load in the bucket and it wants to lay on it’s side!

:eusa-think:  So far so good, no layovers.  The wide rear stance keeps it very stable.

  • Like 1

Share this post


Link to post
Share on other sites

RandyLittrell
4 hours ago, 953 nut said:

The basic principal of the sub-frame is to pass all of the load and forces of the loader to the axles protecting the frame of the :wh:.

Mine has a rear portion that bolts to the rear axle housing and the frame where a mid-mount Attach-A-Matic would be bolted to the frame. The front part bolts through the frame above the front axle. The two pieces of sub-frame are joined together by a brace from the uprights.

100_3729.JPG.ed173909855bbc559a5da48b6ca6d381.JPG100_3732.JPG.e993cd9c7b6ea12008bf5c3ed43f4ac1.JPG

@pullstart did a very good thread on this subject a couple months back.



@953 nut is right on the money with his advice. You MUST secure it to the rear axle or you can break them in half, I almost did on my 1277 with Johnson 10 loader after I first got it. The person that put the loader on did not and I flexed it enough to break the hydro controls.



They will work on a gear drive and some like that, but with one on a hydro, it is so smooth on forward and reverse you can really save time.



If you buy a loader not on a tractor look for one with controls on the left, since most WH's have the hydro control on the right.









Randy

  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites

Herder
5 minutes ago, Bill D said:

Seeing your loader in action is the reason I want one.

The older and lazier I get, the more I love this tractor.  But all that aside, it's been so handy.

  • Like 3

Share this post


Link to post
Share on other sites

roadapples

I'm totally happy with my Ark, I think 550, and the way the sub frame fastens. Can't think of any negative points. You'll wonder what you did without it.




  • Like 3
  • Excellent 1
  • Heart 3

Share this post


Link to post
Share on other sites

roadapples

Also you will want a dedicated tractor for a loader.....

  • Like 5

Share this post


Link to post
Share on other sites

RandyLittrell
1 hour ago, roadapples said:

Also you will want a dedicated tractor for a loader.....





Absolutely!! And you will never be without one again!



I'm on disability with bad back and knees and use my loader to lift everything. You can make attachments to help as well. I need to send my front cylinders to Lowell right now cause they are leaking, but don't want to be without it. I just keep putting fluid in even though I hate doing that.











Randy









  • Like 3

Share this post


Link to post
Share on other sites

Wheel Horse 3D
Posted (edited)
13 hours ago, pullstart said:

I had an Ark 500 in stock form as well.  It came on a C-161 and was (temporarily) installed on a 1056... but never came off until I sold it.



Its now permanently on c141 auto Dig Dug! I love the subframe setup on this. Full length to distribute all that load to the subframe! And will be a bonus when it comes time for the backhoe. Even the weight box is an extension of the subframe. @pullstartdid a little bit of modification and its a sweet setup.


Edited by Wheel Horse 3D
  • Like 2
  • Excellent 1
  • Thanks 1

Share this post


Link to post
Share on other sites

RandyLittrell

Here is a couple of pics, I made a subframe all the way around the back to make it as stout as possible and have a place for weight, but it was probably a little overkill.



  • Like 1
  • Excellent 1

Share this post


Link to post
Share on other sites

pfrederi

One inch front spindles are a good idea with a loader.


  • Like 3
  • Excellent 3
  • Heart 1

Share this post


Link to post
Share on other sites

Wheel Horse 3D
Posted (edited)
1 hour ago, pfrederi said:

One inch front spindles are a good idea with a loader.

Workin on it! Waiting for some more tooling to arrive. Maybe have them done next week?


After that I'm thinking a reduction geared steering would be the next good idea for a loader.

Edited by Wheel Horse 3D
  • Like 3

Share this post


Link to post
Share on other sites

roadapples
1 hour ago, pfrederi said:

One inch front spindles are a good idea with a loader.


Yup, changed mine over to swept front axle and gear reduction steering, with 1in axles. Also added trailer hubs and wheels. Tires are 6ply highway tires that hold 70psi. Between the two it's like power steering even with loaded bucket...

  • Like 1
  • Excellent 1

Share this post


Link to post
Share on other sites

Wheel Horse 3D

Tryin to avoid the full swept axle expense, but might have to go that route. Been on the lookout for a reduction box with same in and out rotation to take the place of the fan gear setup.

Share this post


Link to post
Share on other sites

Country574

$2k, bill…it’s yours




Share this post


Link to post
Share on other sites


Bill D
16 hours ago, Country574 said:

$2k, bill…it’s yours




I love it.  I wish you were closer.

Share this post


Link to post
Share on other sites

Bill D
21 hours ago, Wheel Horse 3D said:

Tryin to avoid the full swept axle expense, but might have to go that route. Been on the lookout for a reduction box with same in and out rotation to take the place of the fan gear setup.

I'm curious, if a loader was installed on a dedicated hydro machine, could the hydraulics from the no longer need attachment lift be used to power some sort of power steering setup?  Has anyone done it.

Share this post


Link to post
Share on other sites

Handy Don
1 hour ago, Bill D said:

I'm curious, if a loader was installed on a dedicated hydro machine, could the hydraulics from the no longer need attachment lift be used to power some sort of power steering setup?  Has anyone done it.

I have not done it. Interesting idea.
On Eaton 1100 pump/motor system, the charge pump is good for about 1.3 gym at a max of 700psi. That would be plenty for a small hydro cylinder. One key factor is that this pump does not have integrated pressure relief (they use open center valves that have built-in pressure relief only on the A and B ports). I’m not sure how auto-style pumps and actuating valves handle pressure relief but I know that these systems run at pressures of 1000psi and higher.
Failing to put in the correct pressure relief will break a pump very quickly.

Share this post
