C-121 restoration - proper back from the dead stuff...

Recommended Posts


WHX??

What the heck holds that hood on ...looks as bad as the motor tin!

  • Like 1

Share this post


Link to post
Share on other sites

Goldnboy

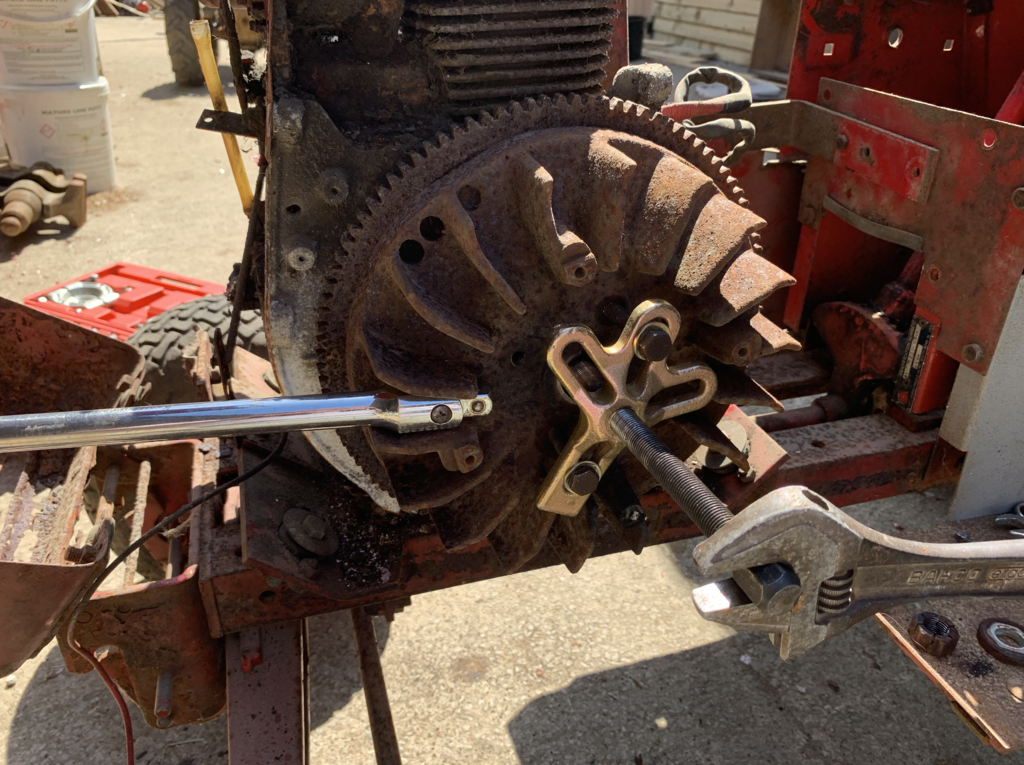

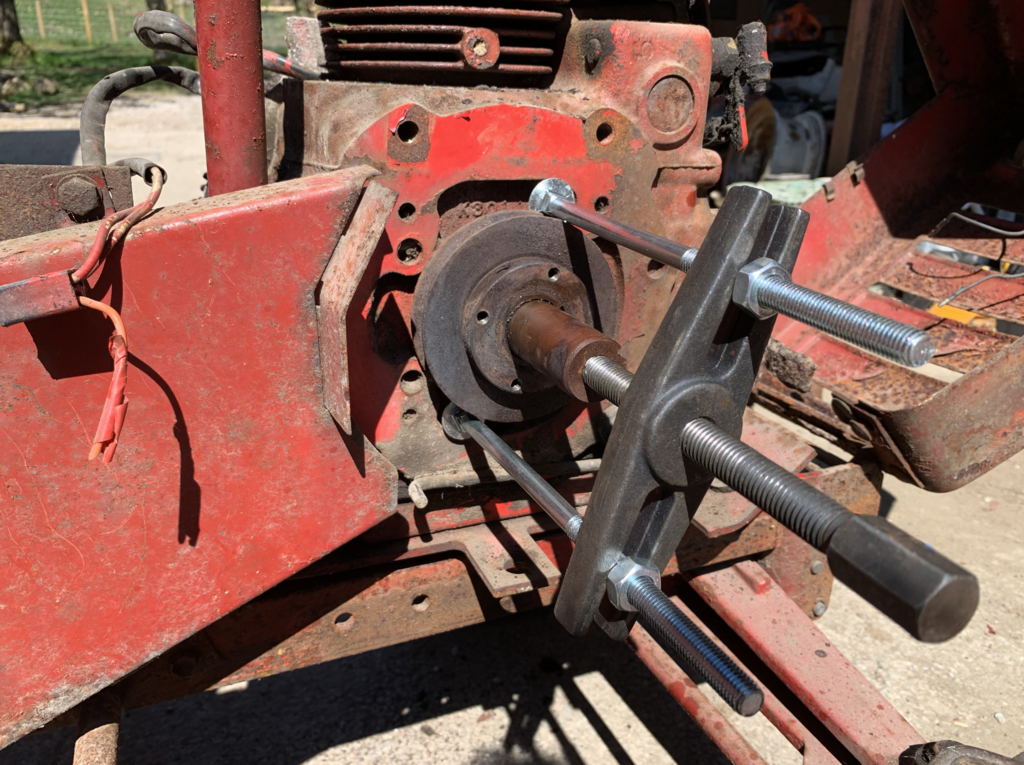

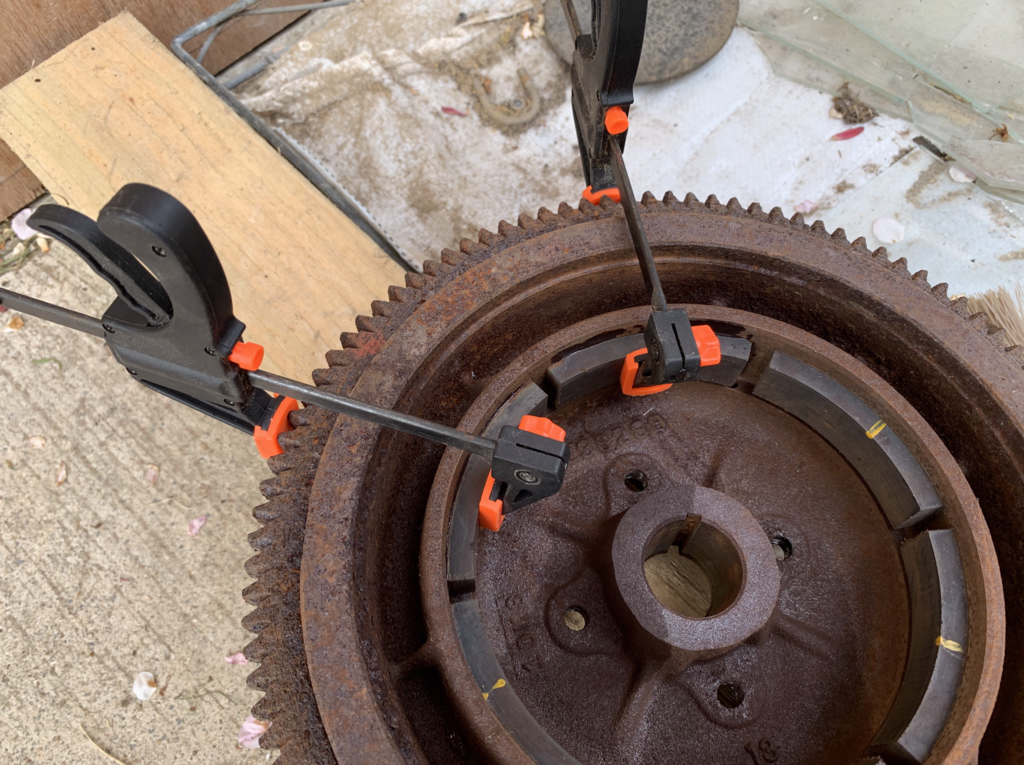

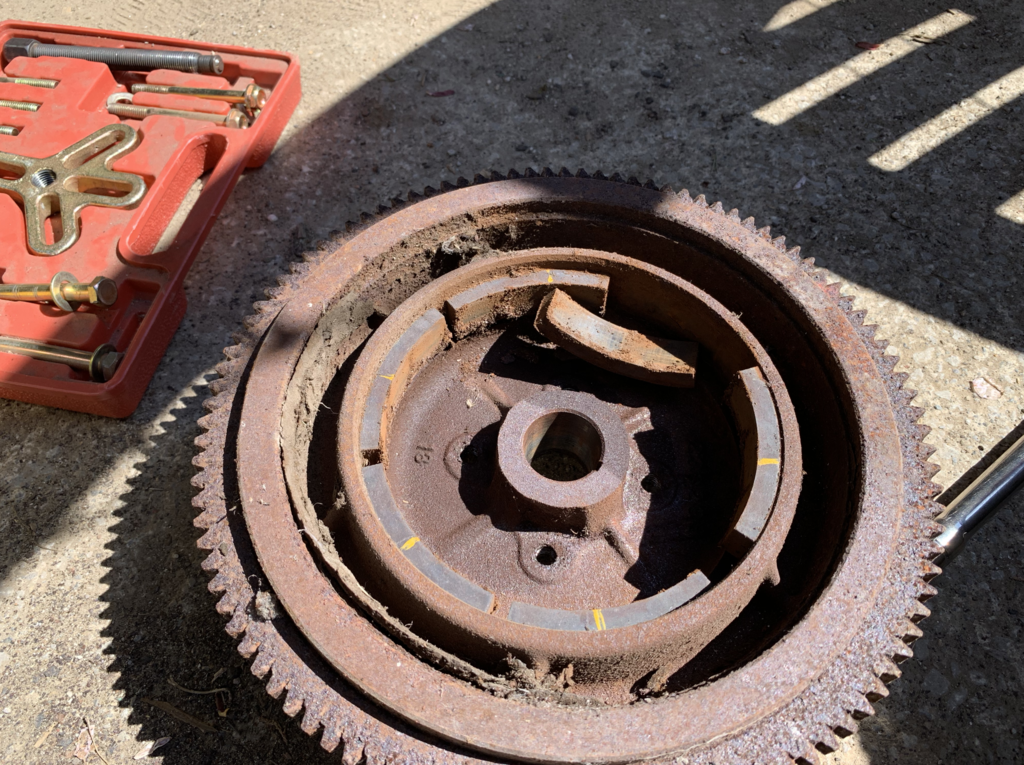

The tool you used to remove  the flywheel  is what I recommend  on removing  the engine pulley by threading 2 bolts in the 4 possible  holes. With my luck the bolts would have broken the groove on the pulley the way you accomplished  the task!

  • Like 1

Share this post


Link to post
Share on other sites

meadowfield
7 minutes ago, Goldnboy said:

The tool you used to remove  the flywheel  is what I recommend  on removing  the engine pulley by threading 2 bolts in the 4 possible  holes. With my luck the bolts would have broken the groove on the pulley the way you accomplished  the task!



I didn't have any 1/4-20 bolts to hand - so knew the risks...  Might put some on the shopping list for next time (and some longer bolts for the flywheel - they only went in a few threads)

Share this post


Link to post
Share on other sites

meadowfield
17 minutes ago, WHX24 said:

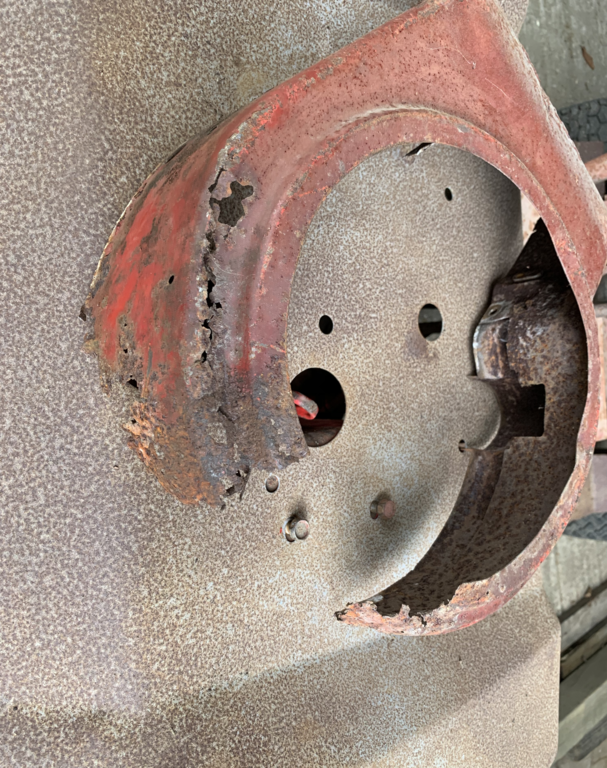

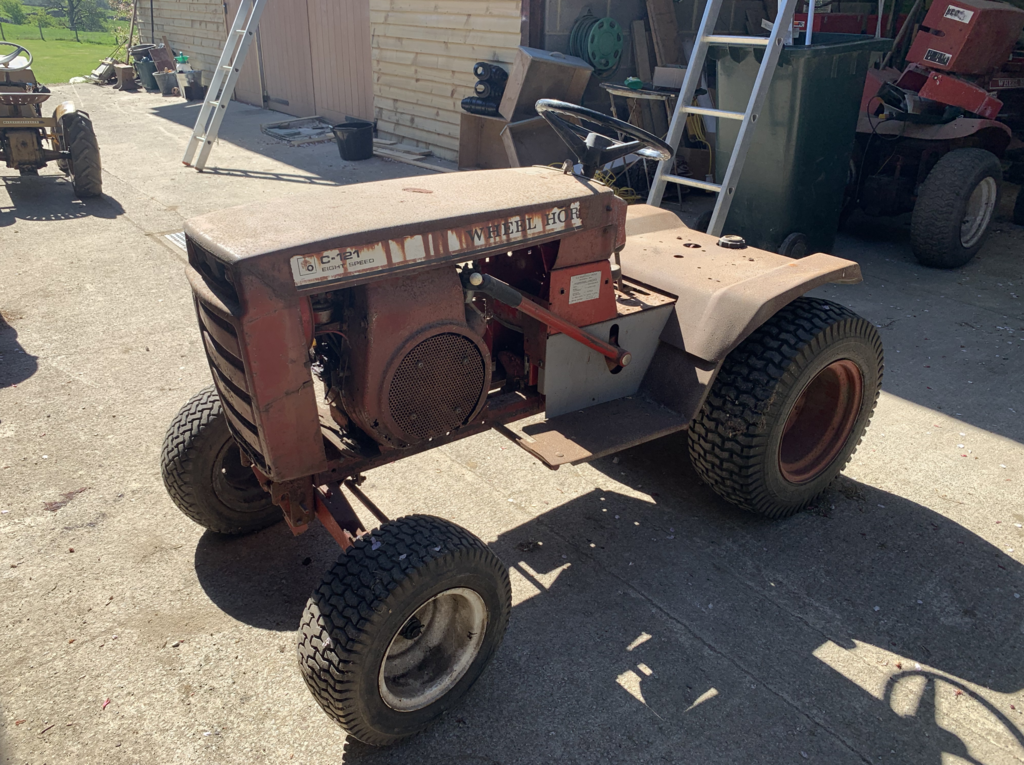

What the heck holds that hood on ...looks as bad as the motor tin!



Thats a task for another day....  lessons in welding rust :D

  • Like 3
  • Haha 1

Share this post


Link to post
Share on other sites

Pullstart

Seeing what you guys have built out of much less, this’ll be another dandy in no time!

  • Like 2

Share this post


Link to post
Share on other sites

ebinmaine

:popcorn:





This could get good. I'll be here following.





@meadowfield

I can't download those videos onto my phone. Do you have a YouTube channel or link?





Share this post


Link to post
Share on other sites

PeacemakerJack

:text-yeahthat: this will be a fun one to watch for sure!

Share this post


Link to post
Share on other sites

953 nut
21 hours ago, meadowfield said:



Thats a task for another day....  lessons in welding rust :D

:text-coolphotos:           I guess we in the USA are a bit spoiled, too many good parts available to replace rusted out items.

  • Like 2

Share this post


Link to post
Share on other sites

meadowfield
1 hour ago, ebinmaine said:

:popcorn:





This could get good. I'll be here following.





@meadowfield

I can't download those videos onto my phone. Do you have a YouTube channel or link?







added youtube :)

  • Thanks 1

Share this post


Link to post
Share on other sites


Stormin
22 hours ago, meadowfield said:

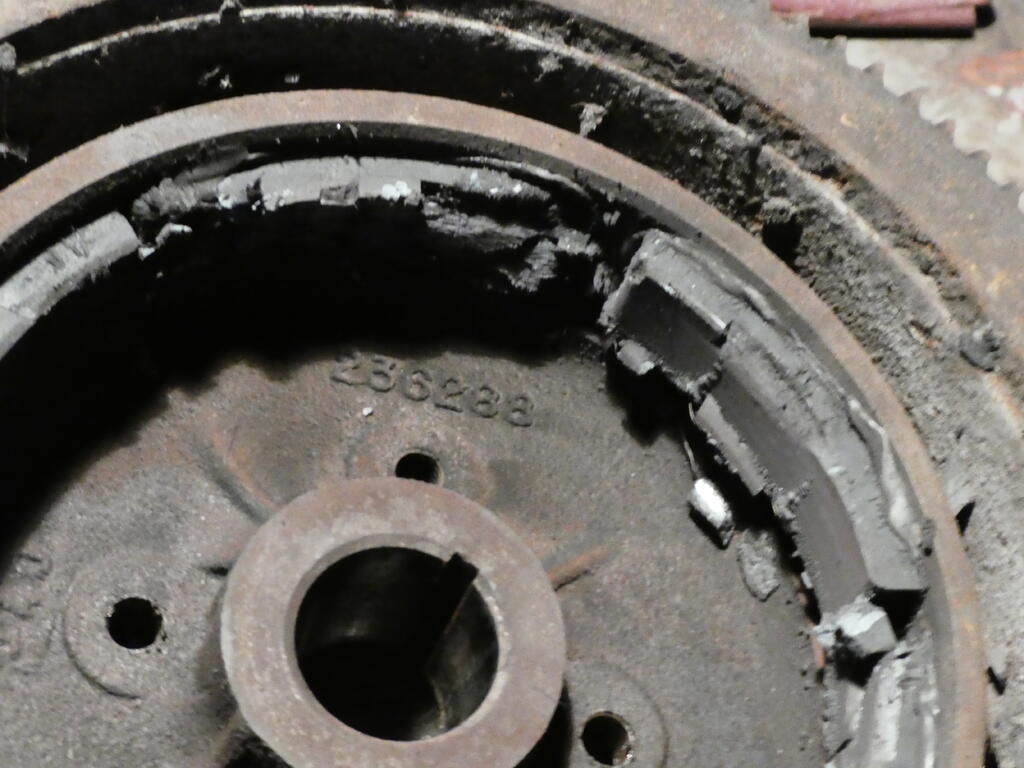

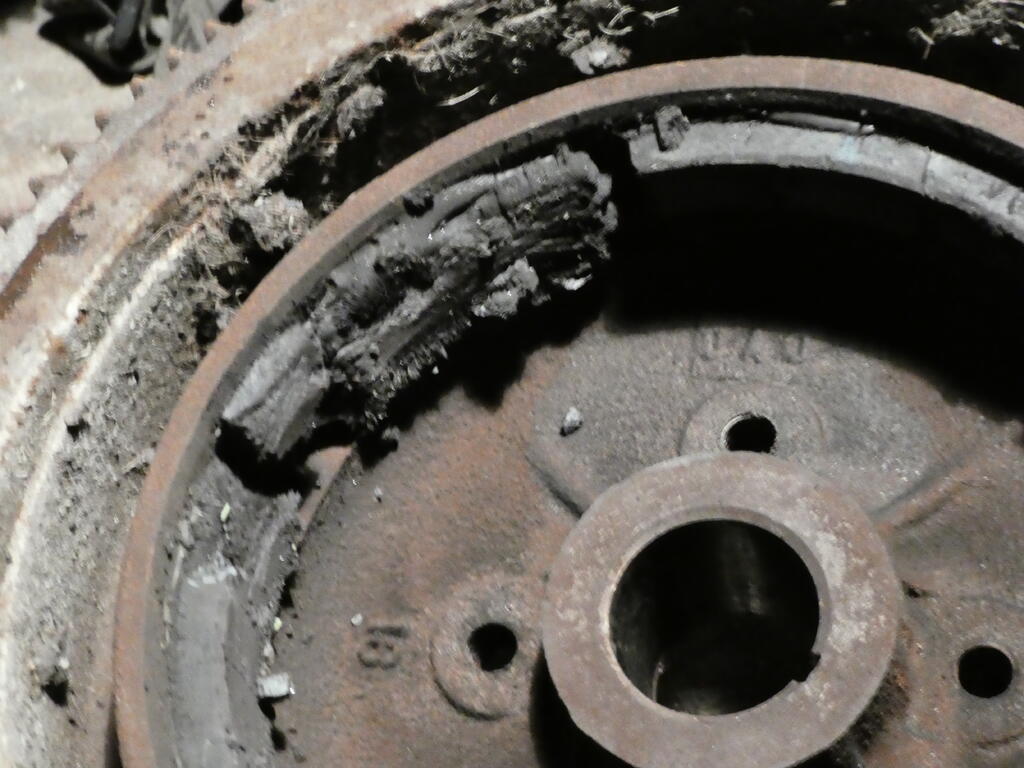

I can beat that, Tyke. :DP1030158.JPG.91f4801e0806cbe3ac77948c4d8e6fd7.JPGP1030159.JPG.1d71cb5d42e1a7bf5a9632769d16265a.JPG







  • Haha 2

Share this post


Link to post
Share on other sites

meadowfield
2 minutes ago, Stormin said:










looks like a case of poor maintenance Norm... :D



Share this post


Link to post
Share on other sites

Stormin

Nowt to do with me. C-125 I was getting up and running for a mate.:P

Edited by Stormin
  • Like 1

Share this post


Link to post
Share on other sites

meadowfield

todays update...

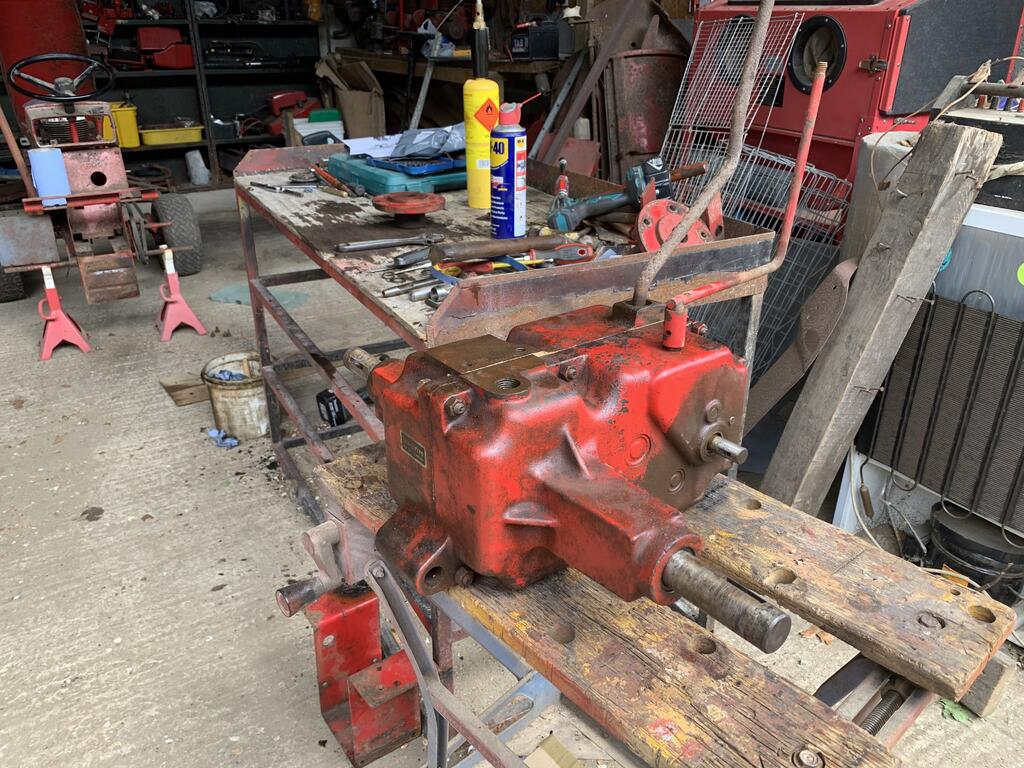

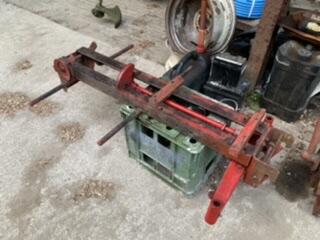

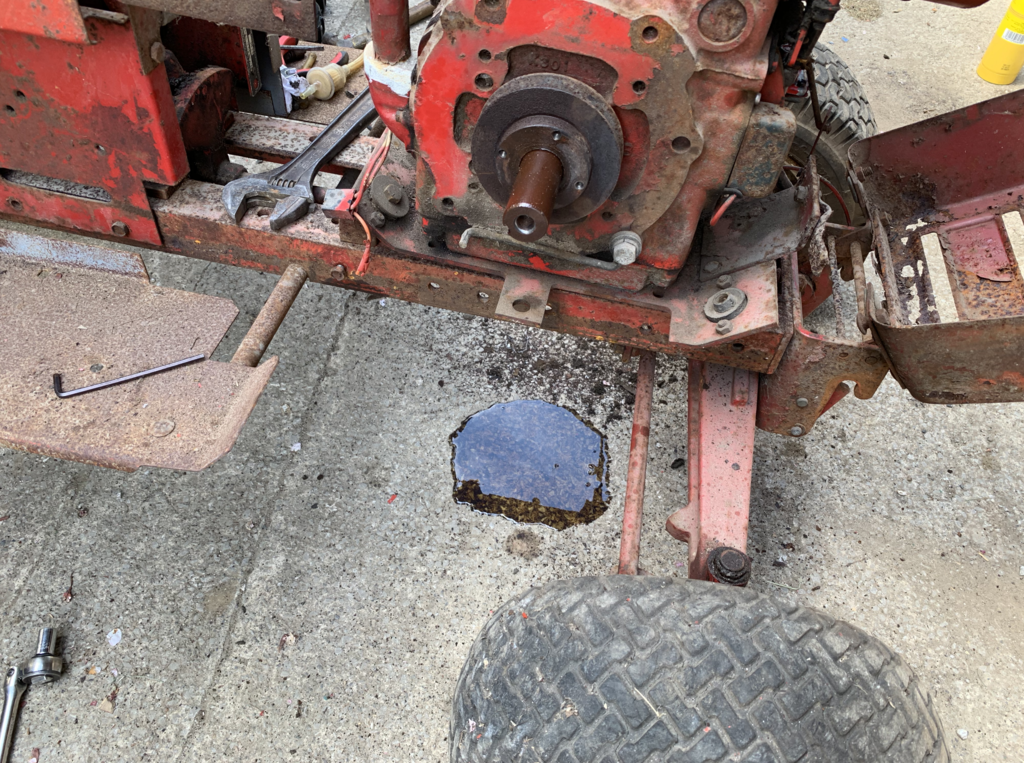

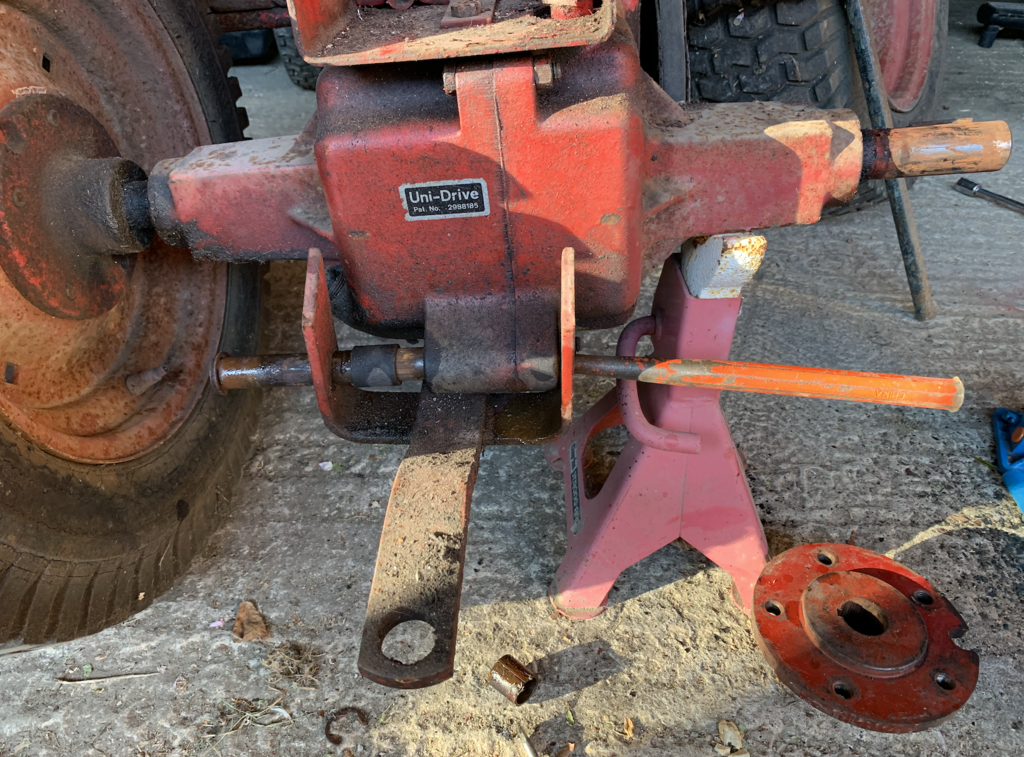

Managed to remove the seized hitch pin with a lot of heat and a big hammer - easier than drilling, but a lot of heat needed. Had to grind end where it was badly peened before knocking through.

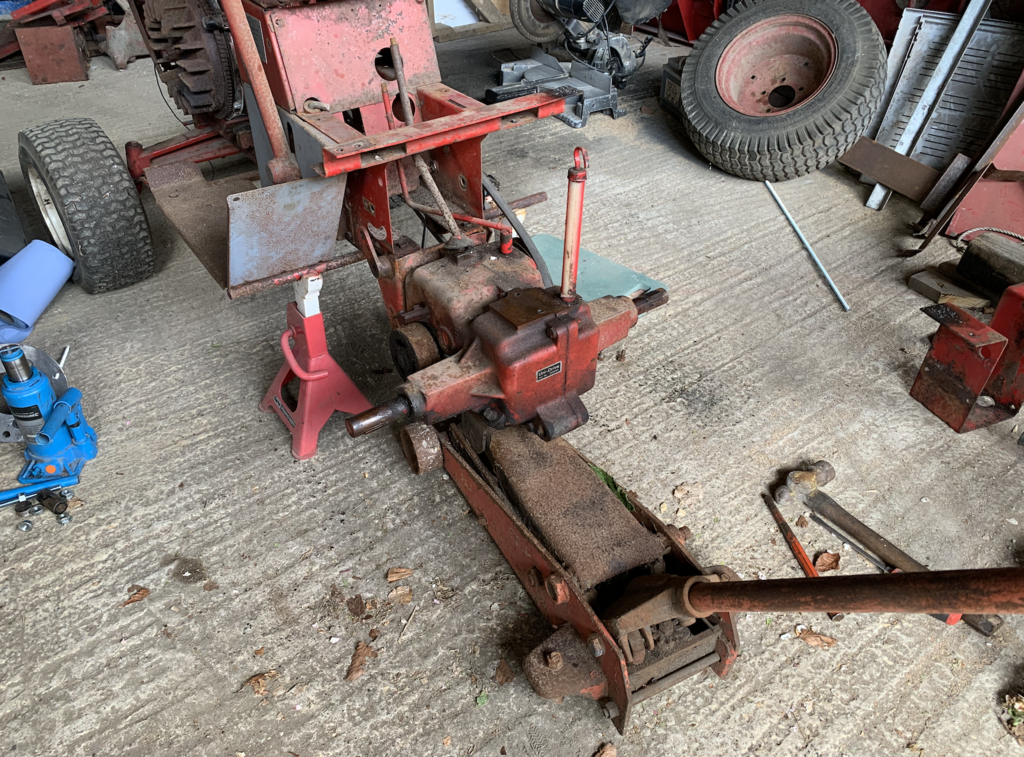

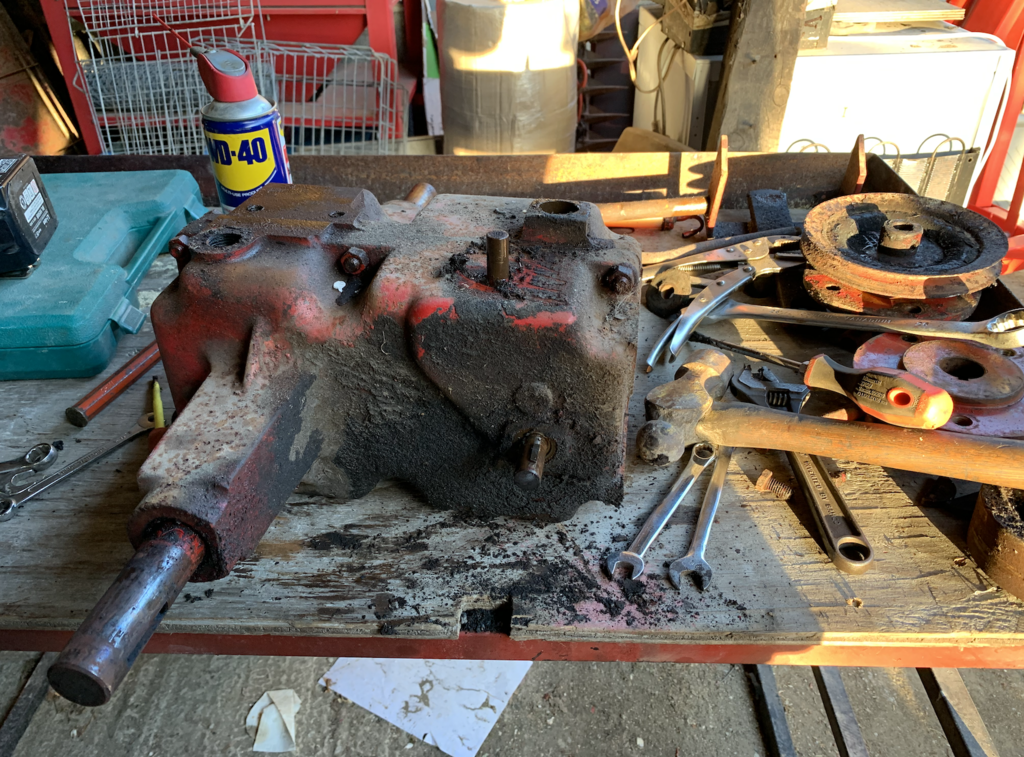

before dropping transmission.

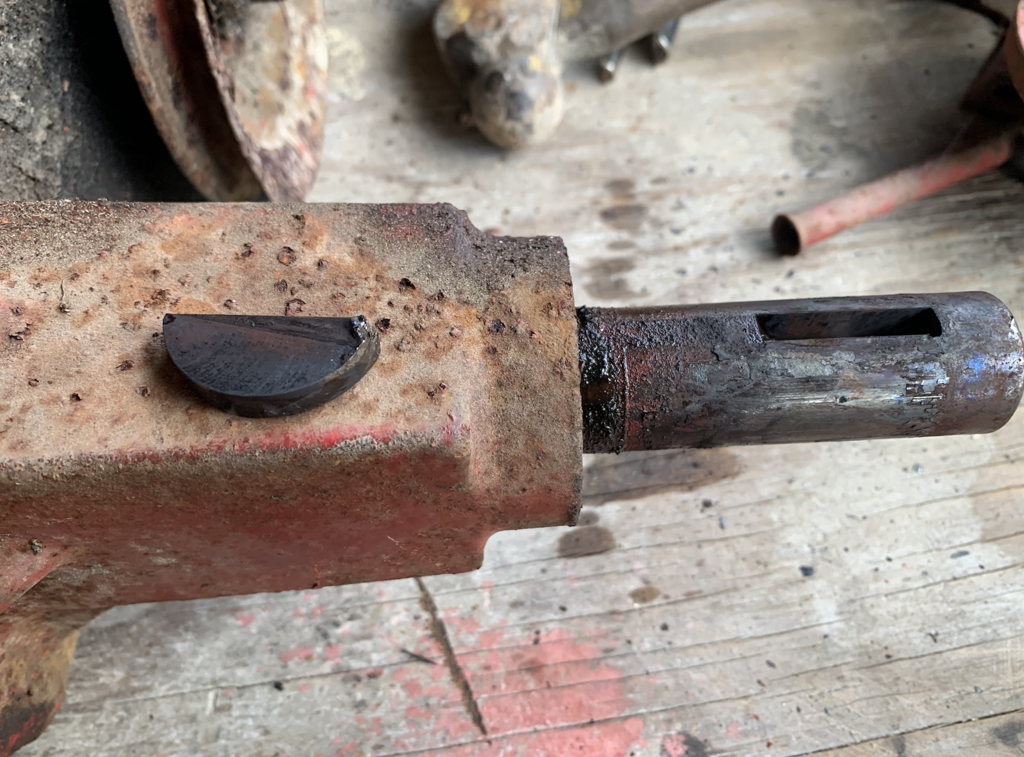

RH key was rusted solid - so more heat and a big punch, pieces shattered off!

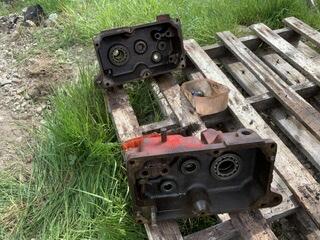

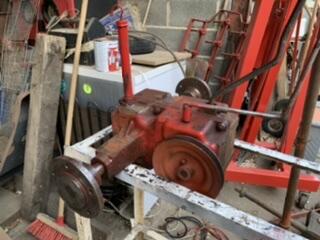

four oil seals ordered and ready to split...






tempted to put a diff lock in this one - but I think time is against me at the moment. Despite being on lock down for 8 weeks :o





  • Like 6
  • Excellent 2

Share this post


Link to post
Share on other sites

ebinmaine
22 minutes ago, meadowfield said:

diff lock

How would you go about that?



Share this post


Link to post
Share on other sites

meadowfield
9 minutes ago, ebinmaine said:

How would you go about that?



there.s a build thread somewhere from 2014








  • Excellent 4

Share this post


Link to post
Share on other sites

Pullstart

Woah woah woah!  That’s amazing!  What about the gear shift, or did this become just a differential case driven by the brake shaft?

  • Like 1

Share this post


Link to post
Share on other sites


meadowfield

todays exciting update :D



dropped the oil... well some of it.

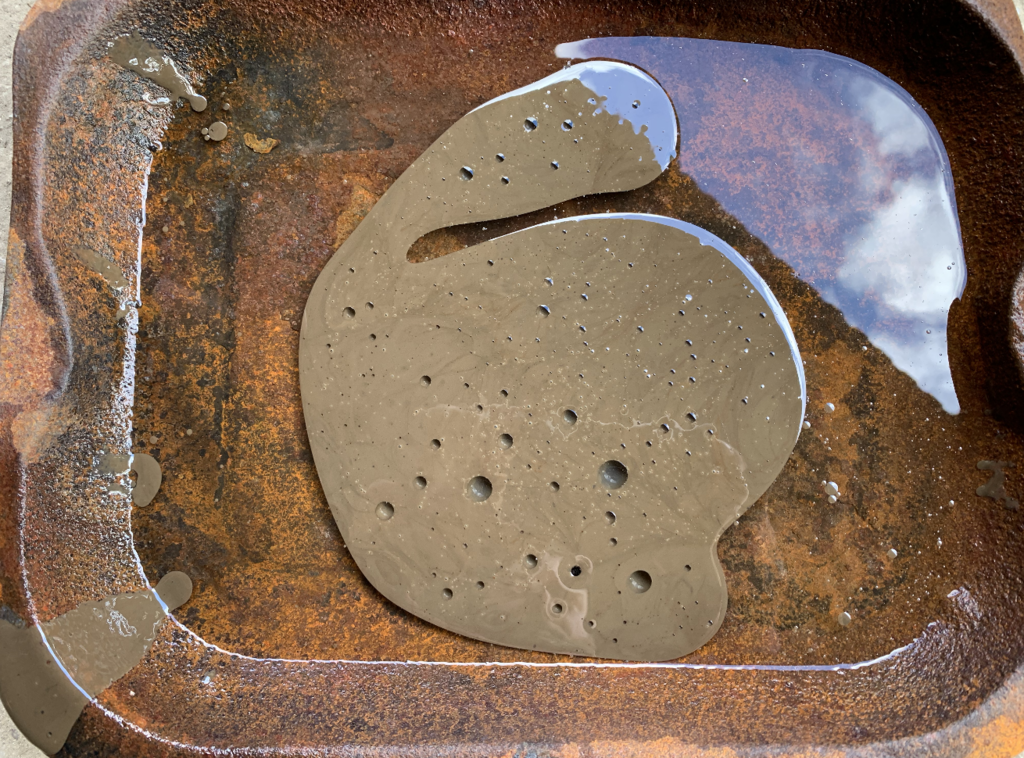

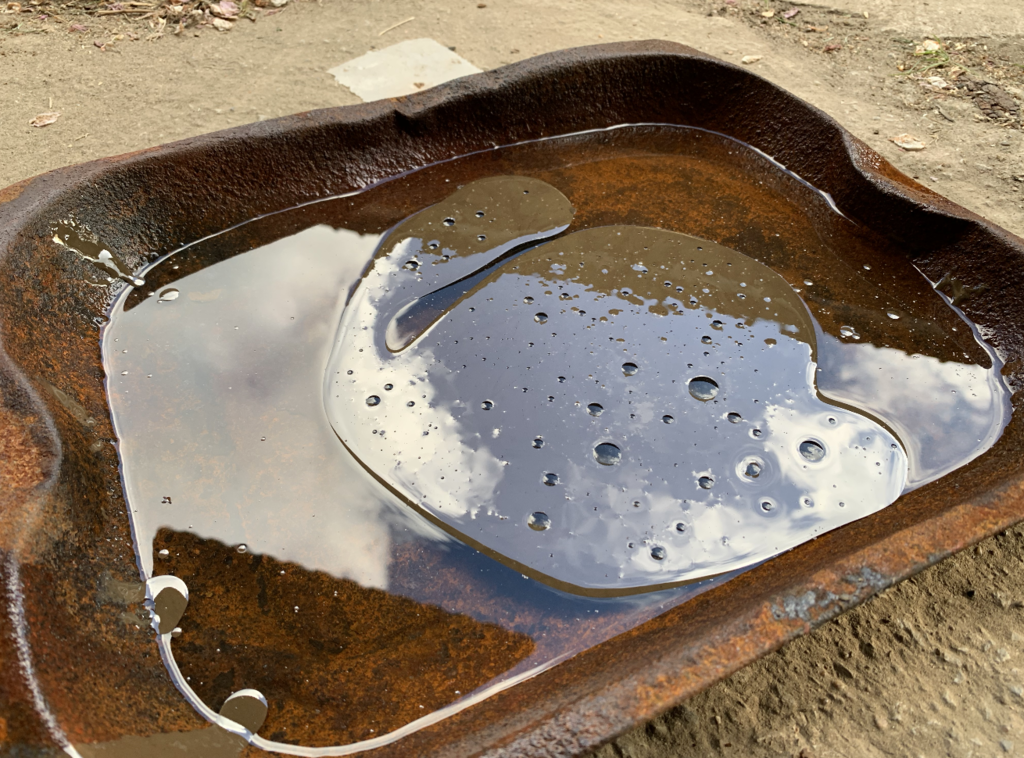

image.png.5311a53cbebfa1ee1ee2f701e32d121d.pngimage.png.2e53bef2fced69cbc8d524d653ac8322.png



turns out it was mainly water, makes sense knowing how rusty the axles are and how much oil has leaked. Probably each time there was a hard frost water was being pushed out.









I've seen worse though, just needs a good clean. Axle seals arrived today, waiting for brake and input seals. Bearings all good though!









  • Like 5
  • Excellent 2

Share this post


Link to post
Share on other sites

ebinmaine
8 minutes ago, meadowfield said:

clean

Will you do a diesel or k1 flush or do you have a different method?

Share this post


Link to post
Share on other sites

meadowfield
6 hours ago, ebinmaine said:

Will you do a diesel or k1 flush or do you have a different method?


full strip and clean with gasoline!




  • Like 4
  • Excellent 2

Share this post


Link to post
Share on other sites

meadowfield

Today’s update... all back together!

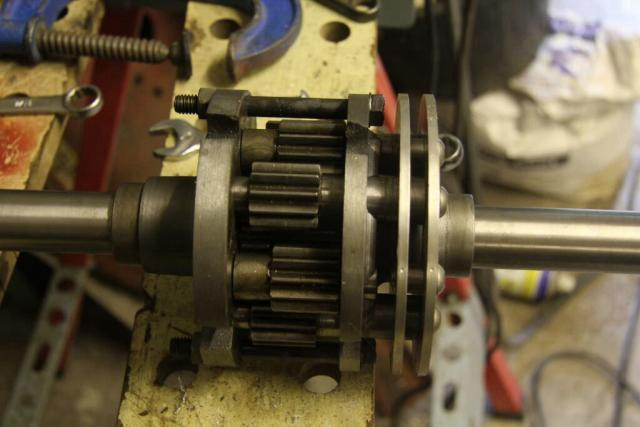

however having rebuilt a few and done extensive mods - even an 'expert' can get it wrong!



This this has been 'assembled' about seven times.



1. put main shaft in, both forks, forgot both sliding gears - so shift forks back out every time  (remember those fiddly bearings and the lock pin - yeah it falls into the bottom every time)

2. put main shaft and sliding gears in, couldn't get top sliding shaft in - couldn't see why

3. as above, but with shaft in - tried to put cluster gear shaft in - wouldn't go - pulled apart - shift forks out again.

4. put all gears in but then noticed 2/3 gear =s were swapped, no chance of cluster gear going in.

5. all gears in...  phew...  whats this washer?????

6. added small shim on input shaft - basically back to square one as after putting the high/low gears in, this should go next, before the main input shaft.

7. success :D



Maybe the manual might have helped - I did look at Steves videos yesterday, but I can see he suffers the same challenges - he does a good job of not cussing - I swore at those shift fork ball bearings a lot!!!





....tried all gears and made sure both housings slid together with a fresh gasket, axle seals and input shaft seal are done, waiting for brake shaft seal.








and more goodies arrived - new plug lead, air cleaner, fuel hose, rubber bung for fuel tank and the input shaft seal.




Edited by meadowfield
  • Like 7

Share this post


Link to post
Share on other sites

Stormin
12 hours ago, meadowfield said:

 even an 'expert' can get it wrong!



  Comes with age. :hide:

Share this post


Link to post
Share on other sites

meadowfield

Today’s update... a full day of sanding and wire wheeling...









hopefully get some paint on tomorrow :)

  • Like 4
  • Excellent 1
  • Thanks 1

Share this post


Link to post
Share on other sites
