powerrepair2016

Parts question

Recommended Posts

powerrepair2016

Hello, first off please forgive me if I have made an error in going about this on your forum.



I have several wheel horse parts that are brand new original oem replacement parts for a 1974 c120 (I think) I don't know anything about them. I was curious what there value is, i cant find them anywhere and when i do it just says discontinued.



Here are the parts I'm currently curious about

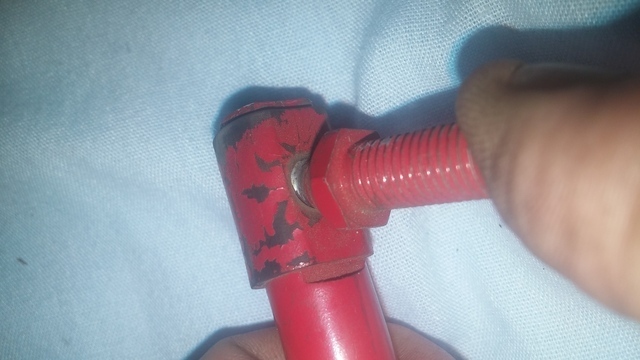

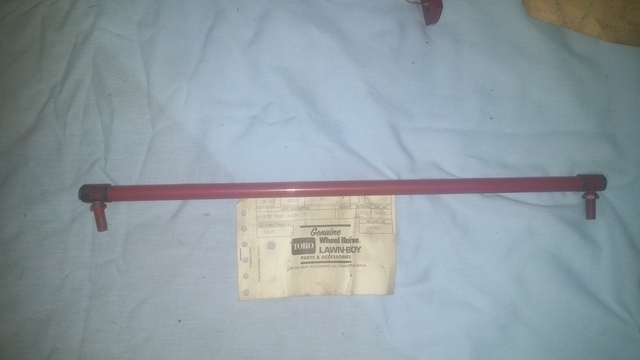

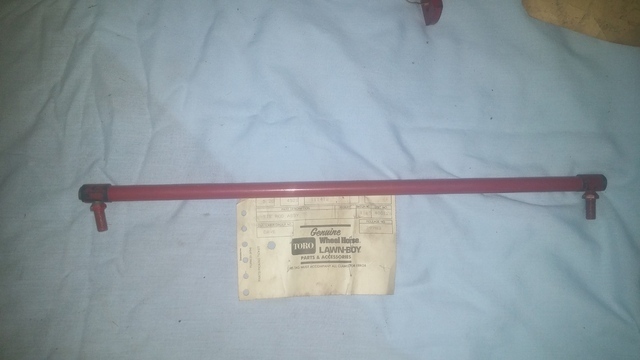

Tire rod assembly - part # 111412

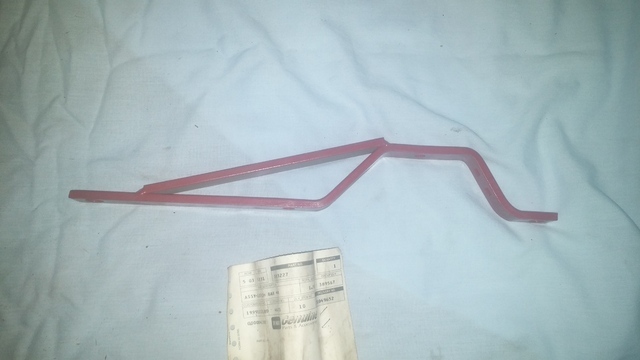

Assembly clutch bar part # 103227

Taillight base part # 105202

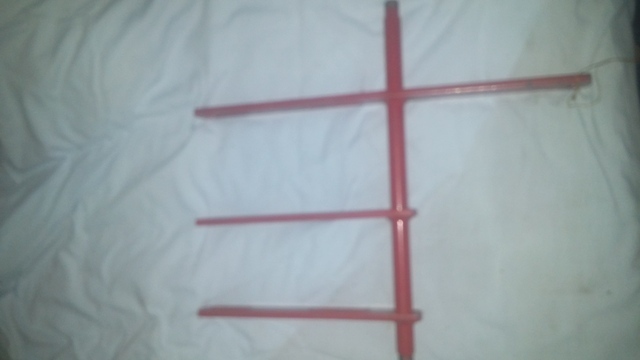

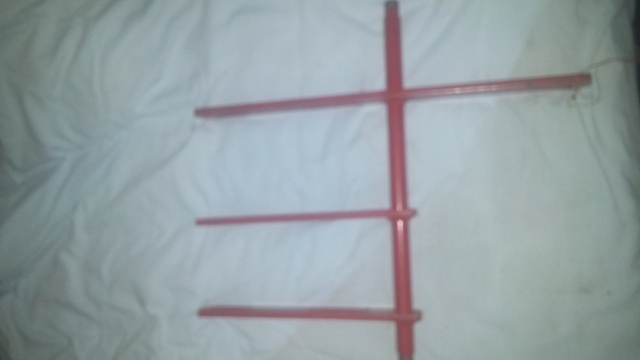

I also have a part that just has a hand written tag on it, says  "deck list for 48" 42" wheel horse" it appears to be a part that holds the blade deck up.



Any input is appreciated.






Edited by powerrepair2016
pics

Share this post


Link to post
Share on other sites


"D"- Man

The Assembly clutch bar part # 103227 is either for an 18 Automatic, a D-180 or a D-200.

Share this post


Link to post
Share on other sites
