Tractor 1971 Raider 10 & 12 OM IPLL Wiring.pdf 1.0.0


5 Screenshots

About This File

Operator manual #A-5274

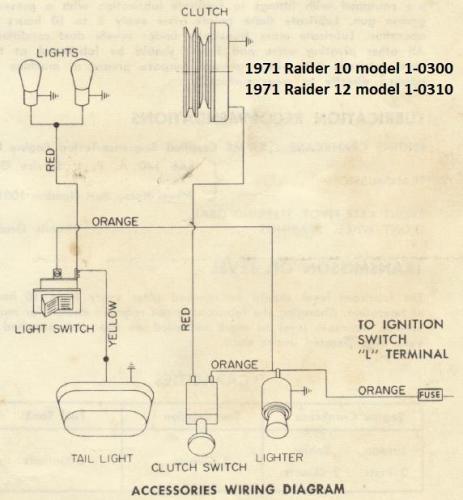

Wiring

6 pages 7.31MB



Illustrated parts list link

Use the 1970 parts list for the Raider 10 model 1-6051 and Raider 12 models 1-6251 and 1-6253 with the following exceptions

For 1970 electric clutch use Electro 12 model 1-7255

2 pages 282KB

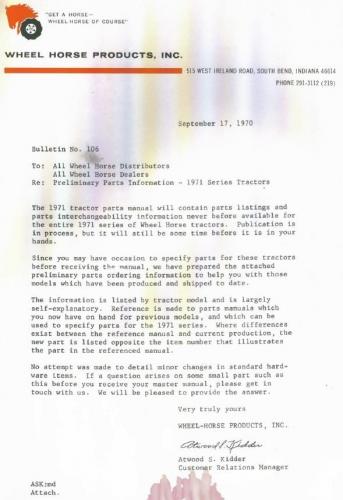

We also have the 1971 tractor parts manual that followed

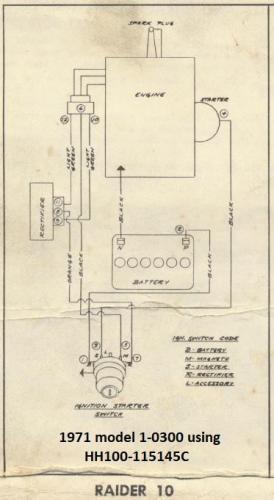

1971 Raider 10 model 1-0300 - (1-0300-6) - Uses HH100-115145C with magneto ignition

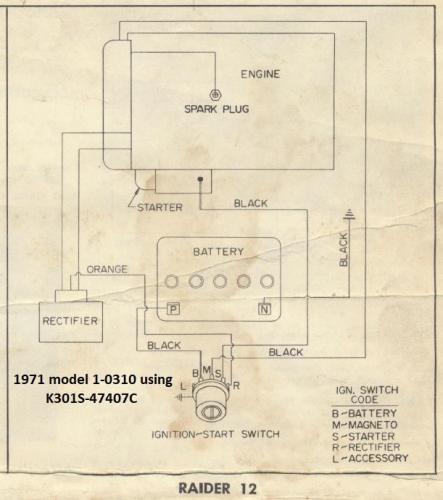

1971 Raider 12 model 1-0310 - (1-0310-6) - Uses K301S-47407C with breakerless magneto ignition (This model also made in Belgium)




×
×
