1985-1990

Sign in to follow this

No serial numbers published

312 files

  1. Free

    Tractor 1986 416-8 Wiring Detailed Revised.pdf

    Detailed wiring from the Demystification Guide #492-4509 Revised
    5 pages 1.3MB Color pdf
    p7-71 to p7-75

    Kohler K341S-71381 with battery ignition and 15 amp regulated charging system
    First year for low oil switch and relay

    1986 416-8 model 31-16K802

    68 downloads

    Updated

  2. Free

    Tractor 1985 416-8 Wiring Detailed Revised.pdf

    Detailed wiring from the Demystification Guide #492-4509 Color Revised pdf
    4 pages 1.2MB
    p7-77 to p7-80

    Kohler K341S-71371 with battery ignition and 3 amp unregulated charging system
    Lights work off AC current from a second flywheel stator only when the engine is running

    1985 416-8 model 31-16K801

    160 downloads

    Updated

  3. Free

    Tractor 1985 300-Series Wiring Detailed Revised.pdf

    Detailed wiring from the Demystification Guide #492-4509 Color Revised pdf
    4 pages 1.2MB
    p7-77 to p7-80

    Battery ignition and 3 amp unregulated charging system

    1985 310-8 model 21-10K801
    1985 312-8 model 21-12K801
    1985 314-8 model 21-14K801
    1985 314-A model 21-14KE01

    416 downloads

    Updated

  4. Free

    Tractor 1986 310-8 D&A LIPL SN.pdf

    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
    Tractor weight 634 lbs.
    Appears the early and late model numbers identify a change made to the differential side bearings

    Lube chart SS

    Details & Attachments
    3 pages 116.56KB
    1986 310-8 model 21-10K802
    1986 serial numbers that have shown up for the 21-10K802
    16586 - Build date 1985 5350 December 16 Monday
    16831
    17286
    18172
    18576

    -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

    Details & Attachments
    3 pages 116.56KB
    1986 310-8 model 21-10K803
    1986 serial numbers that have shown up for the 21-10K803
    95384

    Link to 300-Series Illustrated parts list, Service manual and Wiring


    120 downloads

    Updated

  5. Free

    Tractor 1989 312-8 Wiring Detailed Revised.pdf

    Detailed wiring from the Demystification Guide #492-4509 Color Revised April 30, 2020
    5 pages 1.4MB pdf
    pages p7-27 to p7-31

    15 amp stator and magneto ignition

    1989 312-8 model 21-12K806

    1989 312-8 model E1-12K802 - Export model - Suspect the wiring is the same as for the domestic model
    1989 312-8e model E1-12K802 - Export model - Suspect the wiring is the same as for the domestic model

    295 downloads

    Updated

  6. Free

    Tractor 1989 414-8 Wiring Detailed.pdf

    Detailed wiring from the Demystification Guide #492-4509
    5 pages 130.01KB
    p7-81 to p7-85

    Complete file not color yet - just first page.
    1 page 649KB jpg

    Has a 15 amp charging system

    Wiring from operator manual
    1 page 124.52KB
    1989 414-8 model 31-14K804

    154 downloads

    Updated

  7. Free

    Tractor 1988 414-8 D&A TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    50 pages 4.03MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
    Included the correct 110995 transmission IPL (Toro has the 110996 with 1" axles listed)

    Magneto ignition
    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

    Lube chart SS

    Details & Attachments
    3 pages 117.58KB

    1988 414-8 model 31-14K803

    1988 serial numbers that have shown up for the 31-14K803
    27364
    27488
    27764
    27881
    28077
    28195
    28994

    IPL from Toro Master Parts Viewer
    43 pages 2.40MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
    Kohler parts list for M14S-601540

    Original OM #810473R1
    Original IPL #810547R1

    Links
    For engine service manual see
    For transmission service manual see

    104 downloads

    Updated

  8. Free

    Tractor 1987 312-8 D&A TIPL Wiring SN.pdf

    IPL from Toro Master Parts Viewer
    43 pages 3.20MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Wiring only pdf
    1 page 288KB

    Original IPL #810480R1
    Uses Kohler M12S-471527 with magneto ignition and 15 amp stator
    On the Belgium list

    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
    Tractor weight 547 lbs.

    Lube chart SS

    Details & Attachments
    3 pages 116.98KB

    1987 312-8 model 21-12K804
    1987 serial numbers that have shown up for the 21-12K804
    12157 - Built in South Bend - Located in the UK - Serial a guess
    12689
    20059 - Build date 1986 6232 August 20 Wednesday
    20067
    20130
    21033
    21306
    21713
    21827
    21990 - Build date 1986 6323 November 19 Wednesday
    22337
    24135
    24156
    29269


    200 downloads

    Updated

  9. Free

    Tractor 1987 312-A D&A TIPL Wiring SN.pdf

    IPL from Toro Master Parts Viewer
    43 pages 3.35MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Wiring only pdf
    1 page 288KB

    Original IPL #810480R1
    On the Belgium list

    Tractor weight 584 lbs.

    Lube chart SS

    Details & Attachments
    3 pages 118.47KB

    Transmission drive belt 108501 - (HB/5L x 81.50" or 5/8" x 81.5")

    1987 312-A model 21-12KE03 with magneto ignition, low oil switch and 15 amp stator
    1987 serial numbers that have shown up for 21-12KE03
    20483
    20501
    20864



    75 downloads

    Updated

  10. Free

    Tractor 1990 416-8 & 416-H Wiring Detailed Revised.pdf

    Detailed wiring from the Demystification Guide #492-4509 Revised
    6 pages 1.5MB Black and White pdf
    p7-61 to p7-66

    Detailed wiring from the Demystification Guide #492-4509 Revised
    6 pages 1.84MB Color pdf
    p7-61 to p7-66

    1990 416-8 model 31-16O802

    1990 416-H model 41-16OE01

    180 downloads

    Updated

  11. Free

    Tractor 1987 418-A D&A TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    46 pages 3.49MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Original IPL #810480R1
    On the Belgium list

    Tractor weight 739 lbs.

    Lube chart SS

    Details & Attachments
    3 pages 119.06KB

    Transmission drive belt 108501 - (HB/5L x 81.50" or 5/8" x 81.5")

    1987 418-A model 31-18KE01 with magneto ignition and 15 amp stator

    1987 serial numbers that have shown up for the 31-18KE01
    20135 - Build date 1986 6225 August 13 Wednesday
    20273
    20503
    20549
    21006


    182 downloads

    Updated

  12. Free

    Tractor 1988 312-8 D&A TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    50 pages 3.36MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    On the Belgium list
    Includes Kohler parts list

    IPL from Toro Master Parts Viewer
    43 pages 2.40MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
    Kohler parts list for M12S-471527

    Original OM #810500R1
    Original IPL #810547R1

    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

    Lube chart SS

    Details & Attachments
    3 pages 117.73KB

    1988 312-8 model 21-12K805

    1988 serial numbers that have shown up for the 21-12K805
    27067 - Serial posted was 7067
    27666
    27990
    2821x - x could be 6 or 8
    28542 - Build date 1987 7252 September 09 Wednesday
    28601 - Build date 1987 7252 September 09 Wednesday
    29171
    29480
    29502 - Build date 1987 7337 December 03 Thursday
    29577
    29912
    30109
    30137
    30188
    30239
    30385
    30674
    30874
    30886
    30951
    31401
    31761
    32016
    32408 - Build date 1988 8099 April 08 Friday

    Links
    For engine operator manual see
    For engine service manual see
    For transmission service manual see

    177 downloads

    Updated

  13. Free

    Tractor 1989 310-8 Wiring Detailed Revised.pdf

    Wiring
    Early 1989 production
    1 page 272.69KB from 1987-1988 operator manual #810473R1
    3 amp unregulated charging system and magneto ignition
    Separate stator to power the lights. Engine must be running to power the lights
    ----------------------------------------------------------------------------------------------------------------------------------------
    Late 1989 production
    Wiring Detailed Late 1989 production - Lights will work off the battery without the engine running.
    5 pages 1.2MB
    p7-5 to p7-9

    Wiring Detailed Late 1989 production - Lights will work off the battery without the engine running. Color pdf
    5 pages 1.7MB
    p7-5 to p7-9
    Some diagrams show different wire colors for the low oil circuit.
    -----------------------------------------------------------------------------------------------------------------------------------------
    Kohler M10S-461521 up to engine S/N 1919902922 should have 3 amp charging system
    Kohler M10S-461521 engine S/N 1919902923 and up should have 15 amp charging system
    (Odd these spec numbers are not different?)

    1989 310-8 model 21-10K806 - Early
    1989 310-8 model 21-10K806 - Late

    285 downloads

    Updated

  14. Free

    Tractor 1989 310-8 D&A TIPL SN.pdf

    IPL Wiring from Toro Master Parts Viewer
    68 pages 4.87MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
    Includes Kohler M10S-461521 ipl
    Original operator manual #810569R1
    Original IPL #810607R1
    On the Belgium list

    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

    Lube chart SS

    Details & Attachments
    3 pages 118.04KB

    1989 310-8 model 21-10K806
    1989 serial numbers that have shown up for the 21-10K806
    0003654
    0003657 to 36803 used a substitute low oil relay. See PSB #447
    0035107 - Build date 1988 8x15
    0035513
    0035796
    0035962
    0036381
    0036528
    0036803 back to 3657 used a substitute low oil relay. See PSB #447
    0037501
    0037632
    0037701
    0037750
    0038368
    0038724
    0038933

    Links
    For tractor operator manual and wiring see
    For engine operator manual see
    - Not included but should work
    For engine service manual see
    For transmission service manual see

    89 downloads

    Updated

  15. Free

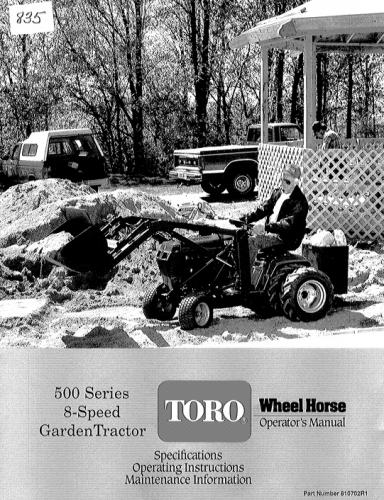

    Tractor 1989 300-Series 8-Speed OM Wiring.pdf

    Operator manual #810569R1
    Wiring
    33 pages 1.75MB

    Wiring Color pdf - White and green corrected at ignition switch
    Some diagrams show different wire colors for the low oil circuit.
    1 page 374KB

    15 amp regulated charging system on Kohler engines
    Low oil level switch in Kohler starter circuits
    Export models use Kohler M12S-471546

    Lube chart SS

    1989 310-8 model 21-10K806
    1989 312-8 model 21-12K806

    533 downloads

    Updated

  16. Free

    Tractor 1990 300-Series 8-speed OM Wiring.pdf

    Colored operator manual #810631R1
    Wiring
    31 pages 4.91MB
    This color scan prints a smaller image than the black and white scan

    B&W operator manual #810631R1
    Wiring
    32 pages 3.76MB
    This black and white scan will print larger image than color scan

    Wiring Color pdf - White and green corrected at ignition switch
    1 page 374KB

    Lube chart SS

    1990 310-8 model 31-10K801

    1990 312-8 model 31-12K801

    332 downloads

    Updated

  17. Free

    Tractor 1989 414-8 D&A TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    45 pages 3.82MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    On the Belgium list
    Includes correct transmission IPL

    Magneto ignition

    Lube chart SS

    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"  - Listed as a 314-8 in belt chart

    Details & Attachments
    3 pages 119.06KB

    1989 414-8 model 31-14K804

    1989 serial numbers that have shown up for the 31-14K804
    0035011
    0035054
    0035306
    0035323 - Build date 1989 9257 September 14 Thursday looks wrong and should be 8257 ?
    0035399 - Build date 1989 9258 September 15 Thursday looks wrong and should be 8258 ?
    0035673
    0035676 - Build date 1988 8292 October 18 Tuesday
    0035747 to 35782 used a substitute low oil relay. See PSB #447
    0036215
    0037181
    0037222 - Added 02-15-2019
    0037443 - Serial 9937443 posted - Model and year a guess

    Kohler IPL from Toro Master Parts Viewer for M14S-601540
    25 pages 1.88MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Original tractor OM #810569R1
    Original tractor IPL #810607R1

    Links
    For tractor operator manual see
    For engine service manual see
    For transmission service manual see

    136 downloads

    Updated

  18. Free

    Tractor 1990 416-H D&A OM Wiring SN.pdf

    Operator manual #810680R1
    Wiring
    28 pages 3.67MB
    Original IPL #810726R1

    Color operator manual #810631R1
    Wiring
    31 pages 4.91MB
    This color scan prints a smaller image than the black and white scan

    Wiring Color pdf
    1 page 463KB

    Lube chart SS

    Details & Attachments
    3 pages 121.39KB

    1990 416-H model 41-16OE01
    1990 serial numbers that have shown up for the 41-16OE01
    0010068
    0010180 - Build date not clear. Looks like 1989 9272 September 29 Friday
    0010688
    0011039
    0011251
    0011622 - Build date 1990 0094 April 04 Wednesday
    0011632 - Build date 1990 0094 April 04 Wednesday

    Links
    For Onan engine service manual see
    For Eaton hydro service manual see
    For hydraulic service manual see
    For hydraulic lift service manual see

    93 downloads

    Updated

  19. Free

    Tractor 1990 416-8 OM Wiring.pdf

    Color operator manual #810631R1
    Wiring
    31 pages 4.91MB
    This color scan prints a smaller image than the black and white scan

    B&W operator manual #810631R1
    Wiring
    32 pages 3.76MB
    This black and white scan will print larger image than color scan

    Wiring Color pdf
    1 page 463KB

    Note - The (+) and (-) on the voltmeter and hourmeter are reversed in the wiring diagrams

    Lube chart SS

    1990 416-8 model 31-16O802

    135 downloads

    Updated

  20. Free

    Tractor 1988 518-H Wiring Detailed.pdf

    Detailed wiring from IPL #810623R1
    3 pages 2.25MB

    Detailed wiring from #492-4509
    7 pages 205.59KB
    p7-119 to p7-125

    518-H Wiring Color pdf
    1 page 400KB

    1988 518-H model 31-18OE01

    125 downloads

    Updated

  21. Free

    Tractor 1988 516-H Wiring Detailed.pdf

    Wiring Detailed
    6 pages 651.81KB
    p7-127 to p7-132 from the 492-4509 Demystification Guide


    Wiring Detailed from IPL #810623R1
    2 pages 771.80KB

    516-H Wiring Colored pdf
    1 page 344KB

    Wiring from OM #810514R1
    1 page 119.79KB

    1988 516-H model 31-16OE01

    92 downloads

    Updated

  22. Free

    Tractor 1988 520-H & 520-HC D&A OM Wiring SN.pdf

    Operator manual #810514R1 or #810514 R1
    Wiring
    32 pages 1.95MB

    520-H Wiring Color pdf
    1 page 400KB

    520-HC Wiring Color pdf
    1 page 344KB

    Lube chart SS

    Details & Attachments
    3 pages 116.58KB
    1988 520-H model 31-20OE01
    1988 serial numbers that have shown up for the 31-20OE01
    01201
    08114
    10025
    10027
    10111
    10203
    10314
    10328
    10330
    10367
    10445 - Build date 1987 7351 December 17 Thursday
    10503
    10590
    10790
    10809
    1089x - x may be a 7
    11021
    11122
    11159
    11324
    11384
    11658
    11709
    12022 - Build date 1988 8116 April 25 Monday
    12082
    12433
    15021
    15130
    15426
    15514
    15571
    15587
    15683
    15765 - Build date 1988 8284 October 10 Monday
    15780
    15787 - Build date 1988 8286 October 12 Wednesday
    15817
    16016
    16079
    16157
    16336
    16504
    16564

    Details & Attachments
    3 pages 116.66KB
    1988 520-HC model C1-20OE01
    1988 serial numbers that have shown up for the C1-20OE01
    10001 through 10205 - Product service bulletin #418 (Pto clutch)
    10075
    10250
    10319
    10323
    15181
    15182
    15203
    15310
    15322

    Links
    For tractor illustrated parts list see
    For engine service manual see
    For transmission service manual see
    For Hydraulic service manual see
    For Hydraulic lift service manual #492-4208 see

    521 downloads

    Updated

  23. Free

    Tractor 1988 516-H & 518-H D&A OM Wiring SN.pdf

    Operator manual #810514R1
    Wiring
    32 pages 1.95MB
    Operator manuals for 1989 models 31-18OE02, E1-18OE02 and R1-18OE01 not found
    Not for the 1990 model R1-18OE02

    516-H Wiring Color pdf
    1 page 344KB

    518-H Wiring Color pdf
    1 page 400KB

    Lube chart SS

    Details & Attachments
    3 pages 117.25KB
    1988 516-H model 31-16OE01
    1988 serial numbers that have shown up for the 31-16OE01
    10127
    10134
    10256
    10407
    10919
    11142
    11188
    11418
    11911

    Details & Attachments
    3 pages 117.28KB
    1988 518-H model 31-18OE01 - manual not listed at Toro
    1988 serial numbers that have shown up for the 31-18OE01
    10039
    10043
    10112
    10113
    10142
    10544
    10633
    10701
    10717
    10862
    11282
    15376

    Links
    For tractor illustrated parts list see
    For tractor service manual see
    For engine service manual see
    For transmission service manual see

    252 downloads

    Updated

  24. Free

    Tractor 1990 312-8 D&A TIPL SN.pdf

    IPL Wiring from Toro Master Parts Viewer
    45 pages 3.90MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Kohler M12S-471527 ipl
    25 pages 1.92MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Original IPL #810726R1
    Original operator manual #810631R1
    On the Belgium list

    Lube chart SS

    Details & Attachments
    3 pages 122.45KB

    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

    1990 312-8 model 31-12K801
    1990 serial numbers that have shown up for the 31-12K801
    0010004 - Build date 1989 9205 July 24 Monday
    0010012
    0010977 - Build date 1989 9261 September 18 Monday [M]
    0011247 - Build date 1989 9284 October 11 Wednesday
    0011364 - Build date 1989 9284 October 11 Wednesday
    0011636 - Build date 1990 0015 January 15 Monday
    0011877
    0012180
    0012387
    0012788 - Build date 1990 0038 February 07 Wednesday
    0012858
    0012859
    0012860
    0012909
    0013180
    0013309
    0014217 - Build date 1990 0075 March 16 Friday
    0014353 - Build date 1990 0075 March 16 Friday
    0014550 - Build date 1990 0078 March 19 Monday
    0015037
    0015413
    0015680 - Build date 1990 0129 May 09 Wednesday
    0015939


    Links
    For tractor operator manual see
    For engine operator manual see
    For engine service manual see
    For transmission service manual see

    164 downloads

    Updated

  25. Free

    Tractor 1987 418-8 & 418-A Wiring only.pdf

    Wiring only from operator manual #810473R1 or #810473 R1
    1 page 300.65KB

    Wiring colored pdf
    1 page 345KB

    15 amp regulated charging system and magneto ignition

    1987 418-8 model 31-18K801
    1987 418-A model 31-18KE01

    174 downloads

    Updated

Sign in to follow this



×
×
  • Create New...
