Ground engaging

Sign in to follow this

Tillers, garden plows, harrows and such

110 files

  1. Free

    Tiller 36in 1994 79370 IPL.pdf

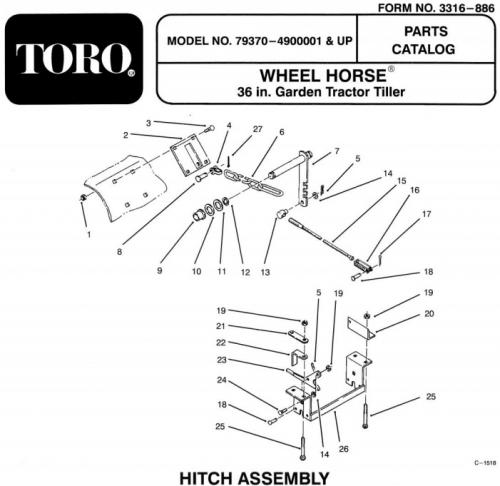

    IPL #3316-886
    4 pages 944.38KB

    Fits 300, 400 and 500-Series tractors

    Drive belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")

    Tiller 1994 36in model 79370 Serial 4900001-4999999

    79 downloads

    Updated

  2. Free

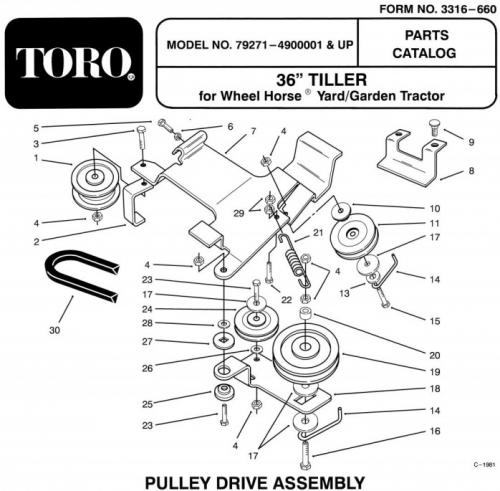

    Tiller 36in 1994 79271 260-Series IPL.pdf

    IPL #3316-660
    4 pages 1.00MB

    Fits 1994-1997 264-6, 264-H, 266-H Yard tractors

    Drive belt 92-7075 (A x 148.5" or 1/2" x 148.5")

    Tiller 1994 36in model 79271 Serial 4900001-4999999

    29 downloads

    Updated

  3. Free

    Tiller 36in 1993-1995 79370 OM SN.pdf

    Operator manual #3315-417RevA
    12 pages 2.09MB

    Fits 300, 400 and 500-Series tractors

    Tiller 1993 36in model 79370 Serial 3900001-3999999
    1993 serial numbers that have shown up for the 79370
    3900693

    Tiller 1994 36in model 79370 Serial 4900001-4999999
    1994 serial numbers that have shown up for the 79370
    4900202

    Tiller 1995 36in model 79370 Serial 5900001-5999999
    1995 serial numbers that have shown up for the 79370
    5900359
    5900632

    287 downloads

    Updated

  4. Free

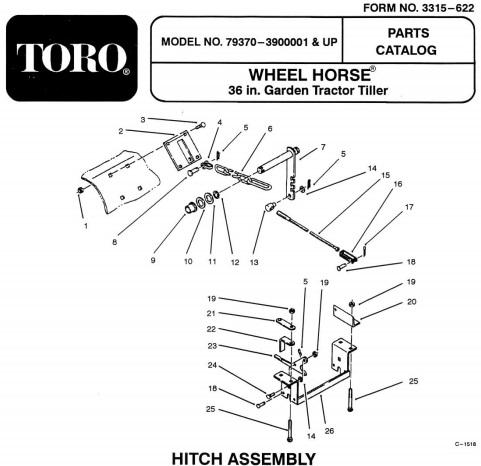

    Tiller 36in 1993 79370 IPL.pdf

    IPL #3315-622
    4 pages 978.79KB

    Fits 300, 400 and 500-Series tractors

    Drive belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")

    Tiller 1993 36in model 79370 Serial 3900001-3999999

    107 downloads

    Updated

  5. Free

    Tiller 36in 1983-1985 07-36TL02 TIPL sn.pdf

    IPL from Toro Master Parts Viewer
    4 pages 301.13KB

    Fits C-Series except C-195

    Drive belt # 1599 (HA x 139.00in 1/2" x 139")
    If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")

    Tiller 1983 36in model 07-36TL02

    Tiller 1984 36in model 07-36TL02

    Tiller 1985 36in model 07-36TL02

    182 downloads

    Updated

  6. Free

    Tiller 36in 1980-1982 07-36TL01 OM TIPL SN.pdf

    Operator manual #810191R1
    8 pages 851.60KB
    Dated 12/79

    IPL from Toro Master Parts Viewer
    4 pages 326.04KB

    Fits C-Series except C-195
    Fits 1978 and later C-Series single cylinder tractors
    Twin-cylinder models require 103635 drive belt
    1976 and 1977 B and C-Series tractors require Service Assembly 105162
    1975 and prior models require Service Assembly 105105

    Drive belt # 1599 (HA x 139.00in 1/2" x 139")
    If used on later twin-cylinder models use belt # 103635 which has been replaced by # 110265 (1/2" x 141.00")
    See service bulletin WH61-90 #271 36in Tiller C-Series Drive Belt.pdf for a belt change to some models

    Tiller 1979 36in model 97-36TL01 - no ipl available

    Tiller 1980 36in model 07-36TL01
    1980 serial numbers that have shown up for the 07-36TL01
    00001248
    00010899 - Build date 1980 0018 January 18 Friday
    00010962
    00011066
    00011132 - Build date 1980 0022 January 22 Tuesday
    00011356
    00011761 - Build date 1980 0030 January 30 Wednesday
    00012014 - Build date 1980 0035 February 04 Monday

    Tiller 1981 36in model 07-36TL01

    Tiller 1982 36in model 07-36TL01
    1982 serial numbers that have shown up for the 07-36TL01
    22740 - Build date 1981 1342 December 08 Tuesday
    22815
    23091

    768 downloads

    Updated

  7. Free

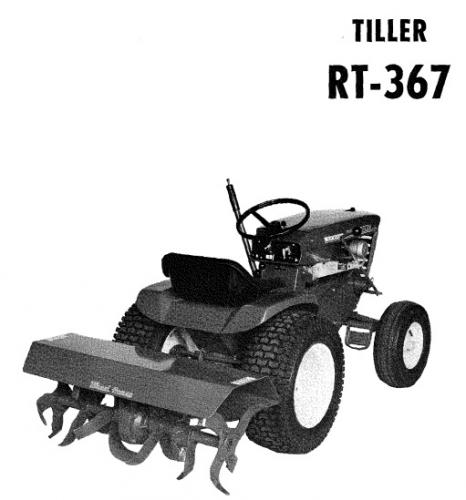

    Tiller 36in 1967 RT-367 OM IPL sn.pdf

    Operator manual #A-5251
    IPL
    8 pages 659.54KB

    Fits long and short frame tractors with 6-Speed and hydro transmissions
    Driven by engine pulley
    Includes PSB's #083 #085A

    Front drive belt 1586 replaced by 9714 (HA x 76" or 1/2" x 76")
    Rear drive belt 7358 (4L x 65.95" or 1/2" x 65.95")

    Tiller 1967 36in model RT-367

    185 downloads

    Updated

  8. Free

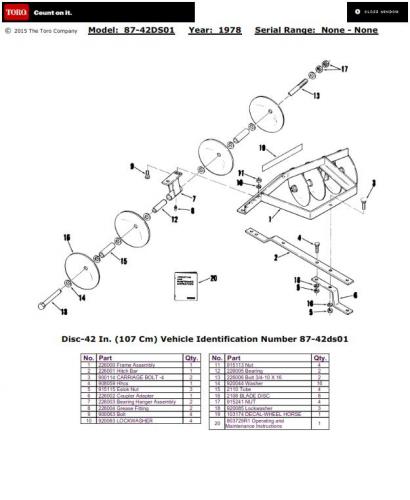

    Harrow Disc 42in 1978-1980 87-42DS01 TIPL SN.pdf

    TIPL
    1 page 125KB

    Harrow Disc 1978 42in model 87-42DS01
    1978 serial numbers that have shown up for the 87-42DS01
    005468 - Could be a 1967 67-42DS01 or 1977 77-42DS01

    Harrow Disc 1979 42in model 87-42DS01

    Harrow Disc 1980 42in model 87-42DS01

    27 downloads

    Submitted

  9. Free

    Aerator 32in 1968-1974 7-2411 OM IPL sn.pdf

    Operator manual Older #107-7 and newer #A-5156
    IPL

    Formerly SC-152

    Aerator 1968 32in model 7-2411
    Aerator 1969 32in model 7-2411
    Aerator 1970 32in model 7-2411
    Aerator 1971 32in model 7-2411
    Aerator 1972 32in model 7-2411
    Aerator 1973 32in model 7-2411
    Aerator 1974 32in model 7-2411

    55 downloads

    Updated

  10. Free

    1976 ATTACHMENT MATCH

    Match Attachments To Your Wheel Horse :eusa-think:

    454 downloads

    Updated
