Manuals for grass gutting

623 files

  1. Free

    Mower Sickle Front 32in 1955 - 1961 CBR-32 OM IPL sn.pdf

    Operator manual #A-7137
    IPL
    2 pages 565.98KB
    2 pages 784.23KB

    Drive belt 1563 (4L x 39" or 1/2" x 39") - Listed on belt sleeve as 1956-1960

    Mower Sickle 1955 32in Front model CBR-32 - Fits riding tractors

    Mower Sickle 1956 32in Front model CBR-32 - Fits riding tractors

    Mower Sickle 1957 32in Front model CBR-32

    Mower Sickle 1958 32in Front model CBR-32

    Mower Sickle 1959 32in Front model CBR-32

    Mower Sickle 1960 32in Front model CBR-32

    Mower Sickle 1961 32in Front model CBR-32

    132 downloads

    Updated

  2. Free

    Mower Reel Gang 60in 1963-67 SGM-603 OM IPL sn.pdf

    Operator manual
    IPL
    4 pages each
    Mfr by American Chain & Cable Includes 2621W OM IPL

    Mower Reel 1963 60in Gang model SGM-603
    Mower Reel 1964 60in Gang model SGM-603
    Mower Reel 1965 60in Gang model SGM-603
    Mower Reel 1966 60in Gang model SGM-603
    Mower Reel 1967 60in Gang model SGM-603

    From 1956 price list dated February 1, 1956
    Mower Reel 1956 57in Gang model GM-60 Used on Ride-Away Junior and Ride-Away Senior

    From 1958 price list dated October 1, 1957
    Mower Reel 1958 57in Gang model GM-60P supplied by Pennsylvania Reel
    Mower Reel 1958 57in Gang model GM-60Y supplied by Yard-Man

    From 1959 price list dated February 10, 1959
    Mower Reel 1959 57in Gang model GM-60P supplied by Pennsylvania Reel


    59 downloads

    Updated

  3. Free

    Mower Rotary 20in SD 1955-1956 Info.jpg

    Info only - No file
    Pictures of the Simplicity versions

    From price list dated October 1, 1954 for the 1955 model year
    Mower Rotary 20in 1955 model RM-20 for walking tractor
    Mower Rotary 20in 1956 model RM-20 for walking tractor
    Available for tractors with 12" wheels and 16" wheels

    Saw attachment 20in 1955 model RS-20 for walking tractor
    Available for tractors with 12" wheels and 16" wheels
    Saw attachment 20in 1956 model RS-24 for walking tractor (RS-24 may be a typo)
    Adjustable horizontal and vertical

    Simplicity version as a brush or tree saw with the 20" blade horizontal
    Simplicity version as a log saw with the 20" blade vertical
    Simplicity version as a cord wood saw with the 20" blade vertical and cradle




    1 download

    Updated

  4. Free

    Mower Reel Front 24in 1955 LM-24 Info.jpg

    Info only - No file
    Picture of the Simplicity mower at the time

    From price list dated October 1, 1954 for the 1955 model year
    Mower Reel Front mount 24in 1955 model LM-24 - Fits walking tractors

    From price list dated February 1, 1956
    Mower Reel Front mount 24in 1956 model LM-24 - Fits walking and riding tractors



    1 download

    Updated

  5. Free

    Mower Rotary 36in RD 1986-1990 05-36MR04 OM IPL SN.pdf

    Operator manuals
    8 pages 1.35MB - #810403R1 or 810403 R1
    8 pages 1.79MB - #810518R1 or 810518 R1

    IPL #810407R1 or 810407 R1
    7 pages 2.28MB
    Dated 4/85

    Fits 300-Series, 400-Series and some 500-Series tractors
    Fits B-Series and C-Series tractors

    Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
    1972 Commando 800 model 1-0110
    1973 8hp 4-Speed model 1-0120
    1974 B-80 4-Speed models 1-0140 and 1-0145
    1974 B-100 Auto model 1-0510
    1975 B-80 4-Speed model 1-0141
    1975 B-100 Auto model 1-0511

    Drive belt 102741 (1/2" x 96.6") for C-Series, 300, 400 and some 500 tractors (Gates replacement BladeRunner 6638BR 17/32" x 96.75")

    Spindle belt 8411 (1/2" x 76.94")

    Mower spindle assembly H

    107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)

    Mower Rotary 1986 36in RD model 05-36MR04

    Mower Rotary 1987 36in RD model 05-36MR04

    Mower Rotary 1988 36in RD model 05-36MR04
    1988 serial numbers that have shown up for the 05-36MR04
    71044 - Build date 1987 7288 October 15 Thursday
    71654 - Model year a guess

    Mower Rotary 1989 36in RD model 05-36MR04
    1989 serial numbers that have shown up for the 05-36MR04
    80871 - Build date 1988 8287 October 13 Thursday
    81226 - Model year a guess
    81297 - Model year a guess
    81392 - Model year a guess

    Mower Rotary 1990 36in RD model 05-36MR04
    1990 serial numbers that have shown up for the 05-36MR04
    0020661 - Build date 1990 0108 April 18 Wednesday

    272 downloads

    Updated

  6. Free

    Mower Rotary 36in RD 1977 75-36XR01 TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    2 pages 214.38KB

    Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
    1972 Commando 800 model 1-0110
    1973 8hp 4-Speed model 1-0120
    1974 B-80 4-Speed models 1-0140 and 1-0145
    1974 B-100 Auto model 1-0510
    1975 B-80 4-Speed model 1-0141
    1975 B-100 Auto model 1-0511

    Drive belt 102741 (1/2" x 96.6") for C-Series tractors (Gates replacement BladeRunner 6638BR 17/32" x 96.75")

    Spindle belt 8411 (1/2" x 76.94")

    Mower spindle assemblies could be D, A1, G2 or Z
    For A1 and G2 see service bulletin 292B

    9187 center blade and 9188 left and right blades replaced by 8969 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)

    Mower Rotary 1977 36in RD model 75-36XR01

    1977 serial numbers that have shown up for the 75-36XR01
    009804 - Build date 1976 6348 December 13, Monday

    87 downloads

    Updated

  7. Free

    Mower Rotary 36in SD 1977 75-36MS01 TIPL sn.pdf

    IPL from Toro Master Parts Viewer
    2 pages 214.38KB

    Fits B-Series and C-Series tractors

    Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
    1972 Commando 800 model 1-0110
    1973 8hp 4-Speed model 1-0120
    1974 B-80 4-Speed models 1-0140 and 1-0145
    1974 B-100 Auto model 1-0510
    1975 B-80 4-Speed model 1-0141
    1975 B-100 Auto model 1-0511

    Drive belt 102741 (1/2" x 96.6") for C-Series tractors (Gates replacement BladeRunner 6638BR 17/32" x 96.75")

    Spindle belt 8411 (1/2" x 76.94")

    Mower spindle assemblies could be D, A1, G1 or Z
    For A1 and G1 see service bulletin 292B

    100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
    2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.

    Mower Rotary 1977 36in SD model 75-36MS01

    39 downloads

    Updated

  8. Free

    Mower Rotary 36in RD 1967 RM-367 OM IPL SN.pdf

    Operator manual
    IPL
    5 pages 3.62MB

    Fits all except Lawn Ranger, 953 and 1054

    Drive belt 1577 replaced by 7430 (1/2" x 28")
    Spindle belts 1578 (3/8" x 37" matched pair)

    8014 2-blade set replaces 4116 and 7906 right blades, 4117 and 7907 left blades and 2-blade set 101522

    RM-367 replaces RM-366
    RM-367 replaced by 5-2361 and 5-2362

    Mower Rotary 1967 36in RD model RM-367

    1967 serial numbers that have shown up for the RM-367
    292766
    301485
    324222
    331407
    334870
    335147
    355622
    377559

    227 downloads

    Updated

  9. Free

    Mower Rotary 42in SD 1971-1972 5-1001 OM IPL SN.pdf

    Operator manual
    IPL
    10 pages 1.15MB
    Dated 7-69 and Rev3/71

    Includes Includes PSB's #120 #221B
    Fits Raider, Charger and Electro long frame models
    Listed as 1972 only at Toro

    Drive belt 9782 (1/2" x 69")
    Spindle belt 6738 (1/2" x 86")

    Mower spindle assemblies could be J, N, U, V, X or Z
    For N and U see service bulletin 221B
    For X and V see service bulletin 207B

    6693 blade replaced by 100200 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)

    Mower Rotary 1971 42in SD model 5-1001
    1971 serial numbers that have shown up for the 5-1001
    827110 - Model 5-1001-6

    Mower Rotary 1972 42in SD model 5-1001
    1972 serial numbers that have shown up for the 5-1001
    861057 - Model 5-1001-7
    876359

    145 downloads

    Updated

  10. Free

    Mower Rotary 48in SD 1977 75-48MS01 C TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    6 pages 333.47KB

    Fits C-Series tractors

    Drive belt 102742 (1/2" x 103")
    Spindle belt 1594 (1/2" x 107.21")

    Mower spindle assemblies could be K, V, Y or Z
    For V and Y see service bulletin 292B

    4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D) Last mower to use these blades

    Mower Rotary 1977 48in SD model 75-48MS01

    1977 serial numbers that have shown up for the 75-48MS01
    006285 - Build date 1976 6321 November 16 Tuesday
    006378 - Build date 1976 6327 November 22 Monday

    40 downloads

    Updated

  11. Free

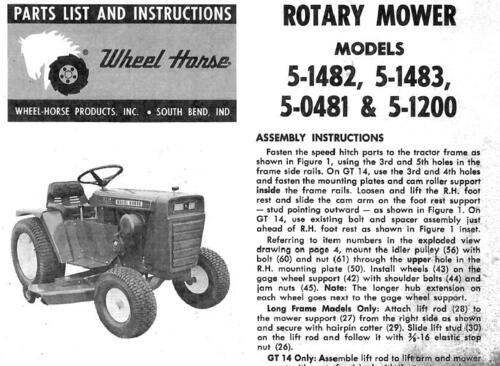

    Mower Rotary 48in SD 1969 5-1482 OM IPL SN.pdf

    Operator manual
    IPL
    6 pages

    Fits 10hp 12hp long frame tractors
    5-1482 fits 1969 GT-14 and followed by 1970 model 5-0481, 1971 model 5-1200, 1972 model 5-1201 and 1972-73 model 5-1202 These decks all use blades with 5/8" x 3/4" double-D center hole unless the spindles have been upgraded.

    Drive belt 6771 replaced by 9783 (1/2" x 71")
    Spindle belt 1594 (1/2" x 107.21")

    Mower spindle assemblies could be J, N, U, V, Y or Z
    For N and U see service bulletin 221B
    For V and Y see service bulletin 292B

    4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)

    Mower Rotary 1969 48in SD model 5-1482

    1969 serial numbers that have shown up for the 5-1482
    554519
    554637
    565589

    320 downloads

    Updated

  12. Free

    Mower Rotary 42in RD 1991-1997 1999-2000 2002 86001 Recycler kit Install IPL SN.pdf

    Recycler kit 86001 installation instructions #3319-157RevA or #3319-157 RevA
    4 pages 105.65KB

    Recycler kit 86001 IPL #3316-889
    1 page 168.20KB

    42" RD decks that include the 86001 kit are models R5-42RC01 and 78355

    Toro 3-blade kit 14-4879 replaces 116840, 79-2920 and 79-3070
    Napa 3 of # 7-06767
    Hole 3/4in. round
    14.500in. 14-1/2" long

    Mower Rotary 1991 42in RD model 86001 Recycler kit

    Mower Rotary 1992 42in RD model 86001 Recycler kit

    Mower Rotary 1993 42in RD model 86001 Recycler kit

    Mower Rotary 1994 42in RD model 86001 Recycler kit
    1994 serial numbers that have shown up for the 86001
    4900268
    4900279
    4900300

    Mower Rotary 1995 42in RD model 86001 Recycler kit

    Mower Rotary 1996 42in RD model 86001 Recycler kit

    Mower Rotary 1997 42in RD model 86001 Recycler kit

    Mower Rotary 1999 42in RD model 86001 Recycler kit

    Mower Rotary 2000 42in RD model 86001 Recycler kit

    Mower Rotary 2002 42in RD model 86001 Recycler kit

    74 downloads

    Updated

  13. Free

    Mower Rotary 36in RD 1980-1982 05-36XR01 TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    7 pages 421.40KB

    Fits B-Series and LT-Series tractors

    Drive belt 106533 (1/2" x 40.06")
    Spindle belt 106751 (1/2" x 80.5")

    Mower spindle assemblies could be A2, F or Z
    For A2 see service bulletin 221B

    107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)

    Mower Rotary 1980 36in RD model 05-36XR01
    1980 serial numbers that have shown up for the 05-36XR01
    00009556
    00011097 - Build date 1979 9290 October 17 Wednesday
    00017302 - Build date 1980 0053 February 22 Friday

    Mower Rotary 1981 36in RD model 05-36XR01
    1981 serial numbers that have shown up for the 05-36XR01
    033616 - Build date 1980 0285 October 11 Saturday
    037449
    038104

    Mower Rotary 1982 36in RD model 05-36XR01

    44 downloads

    Updated

  14. Free

    Mower Rotary 48in SD 1972 5-1201 C & GT-14 OM IPL SN.pdf

    Operator manual #A-5336
    IPL
    6 pages 1.11MB

    Fits 12hp, 14hp long frame tractors and GT-14
    See PSB #207b

    Drive belt 6771 replaced by 9783 (1/2" x 71")
    Spindle belt 1594 (1/2" x 107.21")

    Mower spindle assemblies could be T, K, V, Y or Z
    For K see service bulletin 211C
    For V and Y see service bulletin 292B

    4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)

    Mower Rotary 1972 48in SD model 5-1201

    1972 serial numbers that have shown up for the 5-1201
    121918 - Made in Belgium

    243 downloads

    Updated

  15. Free

    Mower Rotary 48in SD 1968 5-1481 OM TIPL sn.pdf

    Operator manual #A-5252
    IPL from Toro Master Parts Viewer
    11 pages 853.90KB

    Includes PSB's #094 #097 #221B
    Fits 12hp Raider, Charger and Electro tractors

    Drive belt 6771 replaced by 9783 (1/2" x 71")
    Spindle belt 1594 (1/2" x 107.21")

    Mower spindle assemblies could be J, N, U, V, Y or Z
    For N and U see service bulletin 221B
    For V and Y see service bulletin 292B

    4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)

    Mower Rotary 1968 48in SD model 5-1481

    168 downloads

    Updated

  16. Free

    Mower Rotary 48in SD 1970 5-0481 TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    2 pages 247.31KB

    Fits GT-14

    Drive belt 6771 replaced by 9783 (1/2" x 71")
    Spindle belt 1594 (1/2" x 107.21")

    Mower spindle assemblies could be J, N, U, V, Y or Z
    For N and U see service bulletin 221B
    For V and Y see service bulletin 292B

    4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
    (Suspect model 5-3481 in the belt chart should be 5-0481 or 5-1481)

    Mower Rotary 1970 48in SD model 5-0481

    1970 serial numbers that have shown up for the 5-0481
    705202

    106 downloads

    Updated

  17. Free

    Mower Rotary 48in SD 1970 5-1483 TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    2 pages 247.60KB

    Fits 12hp long frame tractors

    Drive belt 6771 replaced by 9783 (1/2" x 71")
    Spindle belt 1594 (1/2" x 107.21")

    Mower spindle assemblies could be J, N, U, V, Y or Z
    For N and U see service bulletin 221B
    For V and Y see service bulletin 292B

    4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)

    Mower Rotary 1970 48in SD model 5-1483

    1970 serial numbers that have shown up for the 5-1483
    705901 to 706400 - See PSB #120
    706901 to 707100 - See PSB #120


    44 downloads

    Updated

  18. Free

    Mower Rotary 48in SD 1971 5-1200 TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    2 pages 247.01KB

    Fits 12hp and 14hp long frame tractors

    Drive belt 6771 replaced by 9783 (1/2" x 71")
    Spindle belt 1594 (1/2" x 107.21")

    Mower spindle assemblies could be J, N, U, V, Y or Z
    For N and U see service bulletin 221B
    For V and Y see service bulletin 292B

    4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)

    Mower Rotary 1971 48in SD model 5-1200
    1971 serial numbers that have shown up for the 5-1200
    750790

    39 downloads

    Updated

  19. Free

    Mower Rotary 48in SD 1973 5-1202 GT-14 OM IPL sn.pdf

    Operator manual #A-5336
    IPL
    6 pages 1.11MB

    Fits GT-14 tractors
    See PSB #207b

    Drive belt 6771 replaced by 9783 (1/2" x 71")
    Spindle belt 1594 (1/2" x 107.21")

    Mower spindle assemblies could be T, K, V, Y or Z
    For K see service bulletin 211C
    For V and Y see service bulletin 292B

    4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)

    Mower Rotary 1973 48in SD model 5-1202
    Was still available in 1974 according to the price list

    Mower Rotary 1974 48in SD model 5-1203 - Found in 1976 price list

    116 downloads

    Updated

  20. Free

    Mower Rotary 37in SD 1987 07-06BC02 Bagger Twin rear 7 cu ft TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    2 pages 174.98KB

    Listed at Toro as 1986 but suspect this is a service replacement for the 1986-87 model 07-06BC01 and possibly replaced by 07-07BC01
    Fits 300-Series tractors
    Requires 05-37MS through 78315 more deck

    Mower Rotary 1987 37in SD model 07-06BC02 Bagger
    1987 serial numbers that have shown up for the 07-06BC02
    39025

    16 downloads

    Updated

  21. Free

    Mower Rotary 42in SD 1968 5-1421 OM IPL SN.pdf

    Operator manual #A-5252
    IPL
    10 pages 1.75MB
    Dated 5/1/67

    Includes PSB's #094 #097 #221B
    5-1421 42" Side discharge mower deck. Commonly used on mid-late 60s models using 10 or 12 Hp.
    Fits Raider, Charger and Electro long frame models

    Drive belt 7041 (1/2" x 72")
    Spindle belt 6738 (1/2" X 86")

    Mower spindle assemblies could be J, N, U, V, X or Z
    For N and U see service bulletin 221B
    For X and V see service bulletin 207B

    6693 blade replaced by 100200 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)

    Mower Rotary 1968 42in SD model 5-1421

    1968 serial numbers that have shown up for the 5-1421
    406134
    406214
    418777
    430023
    460100

    200 downloads

    Updated

  22. Free

    Chart Belts Mower Spindle & drive 20 pages #492-0392.pdf

    1956-1999 Chart belt
    20 pages 1.77MB

    Belt sizes on the last pages

    Mistakes in mower belt chart

    1967
    RL-367 drive belt lists 1587 Correct belt is 1563

    1968
    5-1361 drive belt lists 8975 Correct belt is 1563
    5-1362 drive belt lists 8975 Correct belt is 1563
    5-2321 drive belt lists 8975 Correct belt is 1577 replaced by 7430
    5-2322 drive belt lists 8975 Correct belt is 1577 replaced by 7430
    5-2361 drive belt lists 1587 Correct belt is 1577 replaced by 7430
    5-2362 drive belt lists 1587 Correct belt is 1577 replaced by 7430

    1969
    5-8321 drive belt 8975 (1/2" x 58") [1561 in the belt chart is wrong]

    1970
    5-8322 drive belt 8975 (1/2" x 58") [104865 in the belt chart is wrong]

    1971
    5-1000 drive belt 9782 (1/2" x 69") [9783 in the chart is wrong]

    1978
    85-42MR01 drive belt 108834 is correct as per PSB #272

    1979
    95-42MR01 drive belt 108834 is correct as per PSB #272
    95-42MR02 drive belt 108834 is correct as per PSB #272

    1980-1983
    05-42MR01 drive belt 108834 is correct as per PSB #272

    1983
    The 2nd A5-42MS02 in the chart should be A5-48MS02

    1984
    Model 23-11BP03 tractor shows belt 108491 (1/2" x 67"). Believe it should be 108503 (1/2" x 65.25") for 05-32XS02 mower on the A-111 5-Speed
    05-42MS02 should be 05-42MR02

    1985
    There is one model number missing for every style and size of deck listed. Do a search of the Files for a deck model number if it is not listed in the chart. The belts are listed there.

    1991
    Model C5-60SC02 not in the chart { (Drive belt 113072 (1/2" x 103") (Spindle belt 112449 (5/8" x 131.25") }

    1993
    8-32 Rear Engine Rider Recycler model 70042 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
    10-32 Rear Engine Rider Recycler model 70080 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
    12-32 Rear Engine Rider Recycler model 70120 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
    12-32 Rear Engine Rider model 70140 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]

    1994
    10-32 Rear Engine Rider Recycler model 70080 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
    12-32 Rear Engine Rider Recycler model 70120 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
    10-32e Rear Engine Rider Recycler model 70100 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]
    12-32e Rear Engine Rider Recycler model 70141 - Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]

    1996
    78345 42`side discharge lists drive belt 108834 and spindle belt 106125 - Correct drive belt is 102742 and spindle belt 6738
    78355 42`recycler lists drive belt 102742 and spindle belt 6738 - Correct drive belt is 108834 and spindle belt 106125

    1997
    78345 42`side discharge lists drive belt 108834 and spindle belt 106125 - Correct drive belt is 102742 and spindle belt 6738
    78355 42`recycler lists drive belt 102742 and spindle belt 6738 - Correct drive belt is 108834 and spindle belt 106125

    1998
    78345 42`side discharge lists drive belt 108834 and spindle belt 106125 - Correct drive belt is 102742 and spindle belt 6738
    78355 42`recycler lists drive belt 102742 and spindle belt 6738 - Correct drive belt is 108834 and spindle belt 106125

    1999
    78345 42`side discharge lists drive belt 108834 and spindle belt 106125 - Correct drive belt is 102742 and spindle belt 6738

    1999 and 2000
    79375 36" tiller for 5xi models
    Front belt 98-8707 or 94-7877 (1/2" x 113.75" found with Google search)
    Rear belt 98-8706 (1/2" x 92.66" found with Google search)

    1,038 downloads

    Updated

  23. Free

    Mower Rotary 42in RD 1986-1988 05-42MR04 OM IPL SN.pdf

    Operator manual #810403R1 or 810403 R1
    8 pages 1.35MB
    Dated 5/85

    Operator manual #810518R1 or 810518 R1
    8 pages 1.79MB
    Printed 3/87

    IPL #810407
    7 pages 2.41MB
    Dated 4/85

    Fits 300 and 400-Series tractors
    86001 recycler kit can be added

    Drive belt 108834 (1/2" x 98") [Replaces 102741 as per PSB #272 in this application]
    Spindle belt 106125 (1/2" x 89.03")

    Uses 106635 106079 and 106108 blades replaced by 106635 3-blade set (3/4" center hole)

    Mower Rotary 1986 42in RD model 05-42MR04
    1986 serial numbers that have shown up for the 05-42MR04
    61671 - Build date 1985 5339 December 05 Thursday

    Mower Rotary 1987 42in RD model 05-42MR04
    1987 serial numbers that have shown up for the 05-42MR04
    71282 - Build date 1987 7252 September 09 Wednesday
    7218x

    Mower Rotary 1988 42in RD model 05-42MR04
    1988 serial numbers that have shown up for the 05-42MR04
    81669 - Build date 1987 7336 December 02 Wednesday
    81751
    82018
    82760
    82861
    82891 - Build date 1988 8117 April 26 Tuesday

    294 downloads

    Updated

  24. Free

    Mower Rotary 42in SD 1980 05-42MS01 OM IPL SN.pdf

    Operator manual #810306R1 or 810306 R1
    7 pages 1.29MB

    IPL #810172R1 or 810172 R1
    7 pages 788.25KB

    Fits C-Series tractors and 1100 Special

    Drive belt 102742 replaced by 94-2501 (1/2" x 103")
    Drive belt with front mower carrier and single cylinder engine 109956 (1/2" x 102")
    Drive belt with front mower carrier and twin cylinder engine 102742 replaced by 94-2501 (1/2" x 103")

    Spindle belt 6738 (1/2" x 86")

    Mower spindle assemblies could be L, M, V or Z
    For V see service bulletin 207B

    106077 replaced by 106636 3-blade set (3/4" round hole)

    Mower Rotary 1980 42in SD model 05-42MS01

    1980 serial numbers that have shown up for the 05-42MS01
    00023122 - Build date 1980 0071 March 11 Tuesday
    00027405
    00027670 - Build date 1980 0142 May 21 Wednesday

    62 downloads

    Updated

  25. Free

    Mower Rotary 42in SD 1997-2001 78345 3-400 OM SN.pdf

    Operators Manual #3318-947RevA or 3318-947 RevA
    24 pages 1.41MB

    Fits 300 and 400-Series tractors
    Uses 106636 mower blade kit

    Mower Rotary 1997 42in SD model 78345 Serial 7900001-7999999
    1997 serial numbers that have shown up for the 78345
    7902038
    7902561

    Mower Rotary 1998 42in SD model 78345 Serial 8900001-8999999
    1998 serial numbers that have shown up for the 78345
    8900309
    8901401

    Mower Rotary 1999 42in SD model 78345 Serial 9900001-9999999
    1999 serial numbers that have shown up for the 78345
    9900925

    Mower Rotary 2000 42in SD model 78345 Serial 200000001-200999999
    2000 serial numbers that have shown up for the 78345
    200001263

    Mower Rotary 2001 42in SD model 78345 Serial 210000001-210999999
    2001 serial numbers that have shown up for the 78345
    210000104
    210001000

    1,379 downloads

    Updated

Sign in to follow this


×
