662 files
-
Free
Mower Rotary 37in SD 1991-1998 07-11BC02 Bagger Easy Twin OM IPL SN.pdf
By gwest_ca-(File Mod)
Operator manual #810736R1 or 810736 R1
Addendum for 1991 models #3319-932
9 pages 1.45MB
IPL #3314-895
3 pages 850KB
Fits 300-Series tractors
Two blade set 115084 - one regular left blade and right blade with tabs
Right blade only with tabs 115083
Mower Rotary 1991 37in SD model 07-11BC02 Bagger Serial 1000001-1099999
1991 serial numbers that have shown up for the 07-11BC02
1070271 - In Addendum
1070473 - In Addendum
1070491 - In Addendum
1070587 - In Addendum
1070604 - In Addendum
1070618 - In Addendum
1070625 - In Addendum
1070629 - In Addendum
1070696 - In Addendum
1070757 - In Addendum
1070779 - In Addendum
1070782 - In Addendum
1070793 - In Addendum
1070796 - In Addendum
1070829 - In Addendum
1070830 - In Addendum
1070831 - In Addendum
1070832 - In Addendum
1070836 - In Addendum
1070838 - In Addendum
1070905 - In Addendum
1070924 - In Addendum
1070934 - In Addendum
1070936 - In Addendum
1071129 - In Addendum
1071133 - In Addendum
1071182 - In Addendum
1071184 - In Addendum
1071185 - In Addendum
1071186 - In Addendum
1071206 - In Addendum
1071235 - In Addendum
1071237 - In Addendum
1071241 - In Addendum
1071635
Mower Rotary 1992 37in SD model 07-11BC02 Bagger Serial 2000001-2099999
Mower Rotary 1993 37in SD model 07-11BC02 Bagger Serial 3900001-3999999
Mower Rotary 1994 37in SD model 07-11BC02 Bagger Serial 4900001-4999999
Mower Rotary 1995 37in SD model 07-11BC02 Bagger Serial 5900001-5999999
Mower Rotary 1996 37in SD model 07-11BC02 Bagger Serial 6900001-6999999
Mower Rotary 1997 37in SD model 07-11BC02 Bagger Serial 7900001-7999999
Mower Rotary 1998 37in SD model 07-11BC02 Bagger Serial 8900001-8999999
191 downloads
Updated
-
Free
Mower Rotary 37in SD 1995-1996 78315 OM SN.pdf
By gwest_ca-(File Mod)
Operator manual #3316-955
8 pages 1.93MB
Fits 300-Series tractors
Mower Rotary 1995 37in SD model 78315 Serial 5900001-5999999
1995 serial numbers that have shown up for the 78315
5900001
5900245
5900307
5900341
Mower Rotary 1996 37in SD model 78315 Serial 6900001-6999999
60 downloads
Updated
-
Free
Mower Rotary 36in RD 1980-1982 05-36MR01 OM IPL SN.pdf
By admin-(Admin)
Operator manual #810306R1 or 810306 R1
7 pages 1.29MB
IPL #810172R1 or 810172 R1
7 pages 718.42KB
Fits B-Series, C-Series and 1100 Special tractors
Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511
Drive belt 102741 (1/2" x 96.6") for B-Series & C-Series tractors with 45-1/2" wheelbase (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 8411 (1/2" x 76.94")
Mower spindle assemblies could be A1, F or Z
For A1 see service bulletin 221B
107982 3-blade set replaces 107435 left and right blades (12-1/8") and 107436 center blade (14-1/8") (Hole 3/4" round)
Mower Rotary 1980 36in RD model 05-36MR01
1980 serial numbers that have shown up for the 05-36MR01
00005411 - Build date 1979 9253 September 10 Monday
00005859 - Build date 1979 9260 September 17 Monday
00013664
00017569
00020590 - Build date 1980 0091 March 31 Monday
00020941
00029024 - Build date 1980 0233 August 20 Wednesday - May be a 1981 model
00029656 - Build date 1980 0233 August 20 Wednesday - May be a 1981 model
Mower Rotary 1981 36in RD model 05-36MR01
1981 serial numbers that have shown up for the 05-36MR01
030511 - Build date 1980 0319 November 14 Friday
030773 - Build date 1981 1057 February 26 Thursday
031587 - Build date 1981 1058 February 27 Friday
033685
033699 - Build date 1981 1001 January 01 Thursday - Looks wrong
03212x - Build date 1981 1082 March 23 Monday (3212)
034014 - Build date 1981 1092 April 02 Thursday
034152 - Build date 1981 1195 July 14 Tuesday
Mower Rotary 1982 36in RD model 05-36MR01
1982 serial numbers that have shown up for the 05-36MR01
37471 - Build date 1981 1292 October 19 Monday - Located in UK
38028 - Build date 1982 2089 March 30 Tuesday
338 downloads
Updated
-
Free
Mower Rotary 32in RD 1956-1960 RMR-32 OM IPL sn.pdf
By admin-(Admin)
Includes RMR-3256
Operator manual #A-7137
IPL
4 pages 1.79MB
This contains 2 different versions of the RMR-32
Appears to be a difference in the mower drive belt clutch but deck model numbers the same.
1956-1960 Drive belt 1561 (1/2" x 30") - Listed on belt sleeve as 1956-1961
Jack shaft belt 1554 (1/2" x 24") - Listed on belt sleeve as 1960 only
Mower blade kit # 6005 - Still available from Toro July 5, 2016 April 7, 2020
1960 model RMR-32 @ Toro possibly should be RMR-3260
The RMR-3256 suggests it was a 32" deck introduced in 1956
LL-60 lift required for the RJ-58 and RJ-59
Mower Rotary 1955 32in RD model RMR-3255 - Found in sales broucher
Mower Rotary 1956 32in RD model RMR-32 - Found in belt chart and on February 1, 1956 price list - Used on riding tractors
Mower Rotary 1957 32in RD model RMR-3256 - Found in price list
Mower Rotary 1958 32in RD model RMR-3256 - Found in price list
Mower Rotary 1959 32in RD model RMR-32 - Found in price list
Mower Rotary 1959 32in RD model RMR-3256 - Found in price list
Mower Rotary 1960 32in RD model RMR-32 - Found in belt chart - Listed on belt sleeve as 1960 only
Mulcher kit for 1958 RMR-3256 deck model MU-35
Mulcher kit for 1959 RMR-3256 deck model MU-35
MU-35 parts and hardware listed in November 1959 manual
1 page 80KB
652 downloads
Updated
-
Free
Mower Rotary 32in RD 1966 RM-116 TIPL SN.pdf
By admin-(Admin)
IPL from Toro Master Parts Viewer
2 pages 211.59KB
Standard equipment on L-106 and L-156 Lawn Rangers
Mower belt 1555 replaced by 113912 (1/2" x 44")
8777 2-blade set replaces 3719, 7760 and 7909 left blades and 3718, 7761 and 7908 right blades
Mower Rotary 1966 32in RD model RM-116
1966 serial numbers that have shown up for the RM-116
172461
225728
233627
248507
259200
264164
151 downloads
Updated
-
Free
Mower Rotary 37in SD 1988-89 07-07BK01 & 07-07BK02 Bagger Twin rear 7 cu ft TIPL SN.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
2 pages 184.98KB
Fits 252-H and 257-H tractors
Requires 05-37SK mower deck
Suspect 07-07BK02 is a later kit for decks with 3/4" mower shafts. It includes bushings to adapt the older 5/8" x 3/4" double-D mower shafts to the newer blades with 3/4" center holes.
Mower Rotary 1988 37in SD model 07-07BK01 Bagger
1988 serial numbers that have shown up for the 07-07BK01
Mower Rotary 1989 37in SD model 07-07BK02 Bagger
1989 serial numbers that have shown up for the 07-07BK02
46411
88 downloads
Updated
-
Free
Mower Rotary 37in SD 1989 07-08BK01 Bagger Easy Twin TIPL SN.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
2 pages 200.58KB
Fits 252-H and 257-H tractors
Mower Rotary 1989 37in SD mower 07-08BK01 Bagger
1989 serial numbers that have shown up for the 07-08BK01
60727
58 downloads
Updated
-
Free
Mower Rotary 42in RD 1984 05-42MR02 OM TIPL SN.pdf
By gwest_ca-(File Mod)
Operator manual #810345R1 or 810345 R1
7 pages 450.87KB
Dated 10/83
IPL from Toro Master Parts Viewer may include more than one size of deck but fail to identify what fits what. Look for an item number used more than once.
6 pages 384.55KB
Fits C-Series tractors
Drive belt 108834 (1/2" x 98") [Replaces 102741 as per PSB #272 in this application]
Spindle belt 106125 (1/2" x 89.03")
Mower spindle assemblies could be L, M, V or Z
For V see service bulletin 207B
106079 and 106108 blades replaced by 106635 3-blade set (3/4" center hole)
1984 42in RD model 05-42MR02
1984 serial numbers that have shown up for the 05-42MR02
036879 - Build date 1983 3166 June 15 Wednesday (9166 posted which is incorrect so guessed 3166)
045041
045194
046317
285 downloads
Updated
-
Free
Mower Rotary 22in Walking
By gwest_ca-(File Mod)
Walking or push mowers
Recording models that we did not know about.
The 4 and 5 used to date model years like the riding tractors. (4+5=9=1969 & 5+5=10=1970)
Model 3-1641 22" Lawnmower - Suspect this is a 1969 model
Model 3-1651 22" Lawnmower - Suspect this model introduced in 1970 - Serial 805244
Model 3-1651 22" Lawnmower - Suspect this is a 1971 model
Model 3-1651 22" Lawnmower - Suspect this is a 1972 model
Model 3-1651 22" Lawnmower - Suspect this is a 1973 model
Model 3-1741 22" Lawnmower - Suspect this is a 1969 model
Model 3-1751 22" Lawnmower - Suspect this model introduced in 1970
Model 3-1751 22" Lawnmower - Suspect this is a 1971 model
Model 3-2641 22" Lawnmower - Suspect this is a 1969 model
Model 3-2651 22" Lawnmower - Suspect this model introduced in 1970
Model 3-2651 22" Lawnmower - Suspect this is a 1971 model
Model 3-2651 22" Lawnmower - Suspect this is a 1972 model
Model 3-2651 22" Lawnmower - Suspect this is a 1973 model
110 downloads
Updated
-
Free
Mower Sickle Side 42in 1965-1967 SMS-425 SN.pdf
By admin-(Admin)
Operator manual #A-5252
IPL
5 pages 832.91KB
Dated 2/25/65
Includes PSB WH61-90 #64
Includes speed hook supplement
Model number changed to 7-1321
Engine drive belt 1572 - 4L x 34" or 1/2" x 34"
Mower drive belt 1588 - A x 59" or 1/2" x 59"
Mower Sickle 1965 42in Side model SMS-425
Mower Sickle 1966 42in Side model SMS-425
1966 serial numbers that have shown up for the SMS-425
202616
247289
Mower Sickle 1967 42in Side model SMS-425
1967 serial numbers that have shown up for the SMS-425
311129
311182
311288
311308
308 downloads
Updated
-
Free
Mower Rotary 42in RD 1995-1996 78355 Recycler OM SN.pdf
By gwest_ca-(File Mod)
Operator manual #3316-952
12 pages 2.26MB
Setup
1 page 56.02KB
Fits 300, 400 and 500-Series tractors
Mower Rotary 1995 42in RD model 78355 Recycler Serial 5900001-5999999
1995 serial numbers that have shown up for the 78355
5900135 - May be a 78345 or 78350
5900359
Mower Rotary 1996 42in RD model 78355 Recycler Serial 6900001-6999999
1996 serial numbers that have shown up for the 78355
6900061
6900127
6900215
6900268
6900356
6900520
6900645
Patent #'s on VIN decal 4205512, 5133176
155 downloads
Updated
-
Free
Mower Rotary 60in SD 1979-1981 95-60XS01 D-10spd IPL SN.pdf
By admin-(Admin)
Illustrated parts list #810121R1 or 810121 R1
7 pages 1.45MB
Fits D-250 10-speed
Spindle belt 105621 (5/8" x 144.25")
105605 mower blades - 3 required
Mower Rotary 1979 60in SD model 95-60XS01
Mower Rotary 1980 60in SD model 95-60XS01
Mower Rotary 1981 60in SD model 95-60XS01
Complete model number unknown
x5-60XS01 serial number 14947 NOS for sale August 26, 2024
101 downloads
Updated
-
Free
Mower Rotary 48in SD 1966-1967 RL-486 TIPL DNA SN.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
2 pages 234.87KB
Fits 10hp and larger long frame tractors
Requires 8-5211 85211 speed hitch
Drive belt 6771 replaced by 9783 (1/2" x 71")
Spindle belt 1594 (1/2" x 107.21")
Mower spindle assemblies could be J, N, U, V, Y or Z
For N and U see service bulletin 221B
For V and Y see service bulletin 292B
4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Mower Rotary 1966 48in SD model RL-486
Mower Rotary 1967 48in SD model RL-486
1967 serial numbers that have shown up for the RL-486
354753
Mower DNA 48" side discharge
1966-1967 model RL-486 replaced by

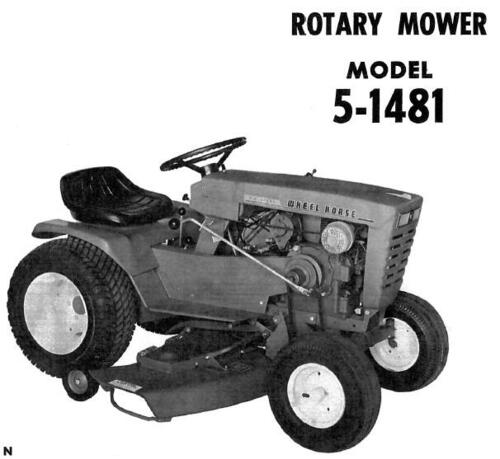

1968 model 5-1481
1969 model 5-1482
1970 model 5-1483
1971 model 5-1200
1972 model 5-1201
1973 model 5-1202

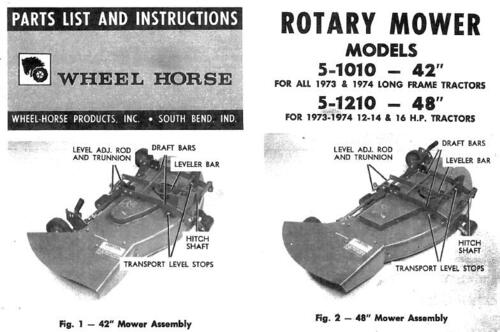

1973-1974 model 5-1210
1975 model 5-1211
1976 model 65-48MS01
1976 model 65-48MS02
1977 model 75-48MS01 - These all used blades with 5/8" x 3/4" double-D center hole unless the spindles have been upgraded.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Note - 3/4" or .750" is 19.05mm
1977 model 75-48MS02 - Uses 6203 bearings with 3/4" ID - (First deck to use blades with 3/4" center hole) - Originally had a nylon-insert nut holding spindle pulley on.
1978 model 85-48MS01 - Uses 6203 bearings with 3/4" ID - Originally had a nylon-insert nut holding spindle pulley on.
1979 model 95-48MS00 - Uses 6203 bearings with 3/4" ID - Originally had a nylon-insert nut holding spindle pulley on.
1979 model 95-48MS01 - Uses 6203 bearings with 3/4" ID - Originally had a nylon-insert nut holding spindle pulley on.
1980 model 05-48MS01 - Uses 6203 bearings with 3/4" ID - Originally had a nylon-insert nut holding spindle pulley on.
1981-1983 model 05-48MS02 - Uses 6203 bearings with 3/4" ID - Originally had a nylon-insert nut holding spindle pulley on.
1984 model 05-48MS03 - Uses 6203 bearings with 3/4" ID - Originally had a nylon-insert nut holding spindle pulley on.
Note - 17mm is .669"
1985 model 05-48MS04 - Uses 6203 bearings with 17mm ID - Originally had a standard nut and lockwasher holding spindle pulley on. Single rear shaft for 2 rollers
1986-1988 model 05-48MS05 - Uses 6203 bearings with 17mm ID - Originally had a standard nut and lockwasher holding spindle pulley on. Single rear shaft for 2 rollers
1987-1988 model 05-48SC01 - Uses 6203 bearings with 17mm ID - Originally had a standard nut and lockwasher holding spindle pulley on. Single rear shaft for 2 rollers
1989 model 15-48SC01 - Uses 6203 bearings with 17mm ID - Originally had a standard nut and lockwasher holding spindle pulley on. Two rear shafts for 2 rollers
1990 model 15-48SC02 - Uses 6203 bearings with 17mm ID - Originally had a standard nut and lockwasher holding spindle pulley on. Two rear shafts for 2 rollers
1991-1992 model 15-48SC03 - Uses 6203 bearings with 17mm ID - Originally had a standard nut and lockwasher holding spindle pulley on. Two rear shafts for 2 rollers
1993-1997 model 78360 - Uses 6203 bearings with 17mm ID - Originally had a standard nut and lockwasher holding spindle pulley on. Two rear shafts for 2 rollers
1998-2007 and 2009-12 model 78361 - Uses 6203 bearings with 17mm ID - (These all use blades with 3/4" center hole) - Originally had a standard nut and lockwasher holding spindle pulley on. Two rear shafts for 2 rollers
287 downloads
Updated
-
Free

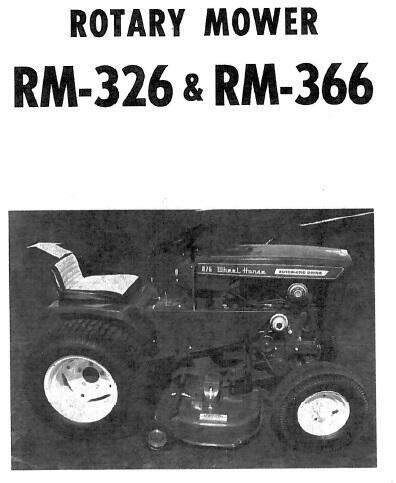

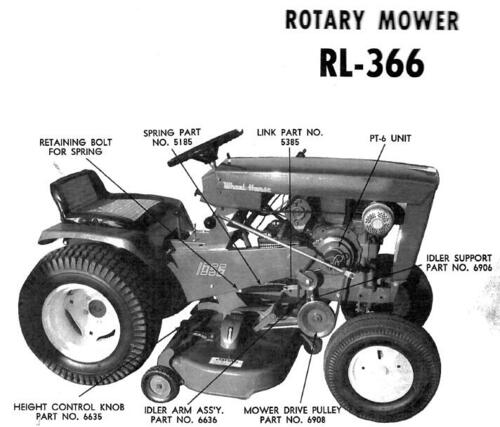

Mower Rotary 36in RD 1966 RM-366 OM IPL SN.pdf
By gwest_ca-(File Mod)
Operator manual #A-5252
IPL
3 pages 648.26KB
Dated 9/16/65 Form #283
Fits all except Lawn Ranger, 953 and 1054
Drive belt 1577 replaced by 7430 (1/2" x 28")
Spindle belts 1578 (3/8" x 37" matched pair)
8014 2-blade set replaces 4116 and 7906 right blades, 4117 and 7907 left blades and 2-blade set 101522
Mower Rotary 1966 36in RD model RM-366
1966 serial numbers that have shown up for the RM-366
200053
200390
222919
222967
226014
233383
239890
349 downloads
Updated
-
Free
Mower Rotary 42in RD 1976 65-42MR01 TIPL DNA SN.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
3 pages 215.51KB
Fits B-Series and C-Series tractors
Not in the attachment list
Not in the belt charts
Not in the blade charts
Drive belt 108834 (1/2" x 98")
Spindle belt 6738 (1/2" x 86") - This model uses a triangular idler arm. See PSB 209.
Mower spindle assemblies could be K, V, W or Z
For V and W see service bulletin 207B
106586 3-blade set replaces 105837 blade and no longer available (5/8" x 3/4" double-D center hole)
Mower Rotary 1976 42in RD model 65-42MR01
1976 serial numbers that have shown up for the 65-42MR01
09896 - Build date 1976 6059 February 28 Saturday [8059] - Looks wrong
Mower DNA 42" rear discharge
1976 model 65-42MR01 replaced by - (Has the flat spindle belt idler pulley mounted on a triangular plate.) - (Has multi-link hardware at the gauge wheel support)
1977 model 75-42MR01 - Both use blades with 5/8" x 3/4" double-D center hole unless the spindles have been upgraded. (Has the flat spindle belt idler pulley mounted on a triangular plate) - (Has multi-link hardware at the gauge wheel support)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
These all use blades with 3/4" center hole.
1977 model 75-42MR02 replaced by - (Has the flat spindle belt idler pulley mounted on a flat bar) (Has multi-link hardware at the gauge wheel support)
1978 model 85-42MR01 - (Has the flat spindle belt idler pulley mounted on a flat bar) (Has multi-link hardware at the gauge wheel support)
1979 model 95-42MR01 - No ipl available
1979 model 95-42MR02 - (Has no multi-link hardware at the gauge wheel support)
1980-1983 model 05-42MR01
1984 model 05-42MR02 - Last year for bearings with 3/4" ID
1985 model 05-42MR03 - First year for bearings with 17mm ID unless older spindles were updated.
1986-1988 model 05-42MR04
1989-1990 model 15-42RC01
1990-1992 model 15-42RC02
1993-2012 model 78350
Note - 17mm is .669"
170 downloads
Updated
-
Free
Mower Rotary 42in SD 1993 78345 OM IPL SN.pdf
By gwest_ca-(File Mod)
Operator manual #3315-399
12 pages 2.01MB
Setup #3315-697
1 page 56.02KB
IPL #3315-874
8 pages 1.30MB
Fits 300 and 400-Series tractors
Shipping weight 136 lbs.
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 6738 (1/2" x 86")
106077 replaced by 106636 3-blade set (3/4" round hole)
Mower Rotary 1993 42in SD model 78345 Serial 3900001-3999999
1993 serial numbers that have shown up for the 78345
3900581
3900689
3901203
3901631
3901775
390196x
3902834
340 downloads
Updated
-
Free
Mower Rotary 48in SD 1994 78360 3-4-500 OM IPL SN.pdf
By gwest_ca-(File Mod)
Operator manual #3316-439
12 pages 2.04MB
IPL #3316-618
8 pages 1.33MB
Fits 300, 400 and 500-Series tractors
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 1594 (1/2" x 107.21")
106078 blade replaced by 106637 3-blade set (3/4" round hole)
Mower Rotary 1994 48in SD model 78360 Serial 4900001-4999999
1994 serial numbers that have shown up for the 78360
4900123
4902270
4902587
4902817
See service bulletin
Toro91-presGT #GT28
Mower Leveler Rod on 42in 48in decks
Retrofit pre-1998 mowers Service Assembly 98-1741
344 downloads
Updated
-
Free

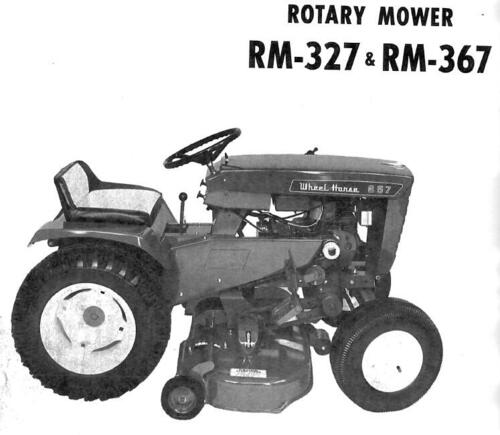

Mower Rotary 32in RD 1967 RM-327 OM IPL SN.pdf
By gwest_ca-(File Mod)
Operator manual
IPL
5 pages 3.62MB
Fits short frame tractors up to 8hp
Drive belt 1577 replaced by 7430 (1/2" x 28")
Spindle belts 1578 (3/8" x 37" matched pair)
8777 2-blade set replaces 3719, 7760 and 7909 left blades and 3718, 7761 and 7908 right blades
Mower Rotary 1967 32in RD model RM-327
1967 serial numbers that have shown up for the RM-327
340209
347393
352533
352906
455 downloads
Updated
-
Free
Mower Rotary 48in SD 1999-2001 78363 5xi IPL.pdf
By gwest_ca-(File Mod)
IPL #3323-110
12 pages 327.42KB
Fits 5xi tractors
Drive belt 95-4095 (HB x 97.54" or 5/8" x 97.54") - Used with adjustment knob on the front of the idler assembly
[2002-2005 78363 models
Drive belt 105-1490 (HB x 98.45" or 5/8" x 98.45") - Used with adjustment knob on the bottom of the idler assembly]
Spindle belt 95-3878 (HA x 102.44" or 1/2" x 102.44")
106078 blade replaced by 106637 3-blade set (3/4" round hole)
Mower Rotary 1999 48in SD model 78363 Serial 9900001-9999999
Mower Rotary 2000 48in SD model 78363 Serial 200000001-200999999
Mower Rotary 2001 48in SD model 78363 Serial 210000001-210999999
111 downloads
Updated
-
Free
Mower Rotary 32in RD 1969-1973 5-3322 TIPL SN.pdf
By gwest_ca-(File Mod)
IPL from Toro Master Parts Viewer
1 page 140.88KB
Fits 1968 and older Lawn Rangers
Suspect this was a replacement shaft driven deck for the horizontal shaft engine models
Listed in 1974 price list
5-3322 is listed as a 1968 model @ Toro
Mower belt 1555 replaced by 113912 (HAx44 or 1/2" x 44")
8777 2-blade set replaces 3719, 7760 and 7909 left blades and 3718, 7761 and 7908 right blades
Mower Rotary 1968 32in RD model 5-3322
Mower Rotary 1969 32in RD model 5-3322
1969 serial numbers that have shown up for the 5-3322
416528 - Model year a guess
424578 - Model year a guess
43857x - Model year a guess (x = 1 or 4)
453353 - Model year a guess
505037 - Model year a guess
Mower Rotary 1970 32in RD model 5-3322
Mower Rotary 1971 32in RD model 5-3322
Mower Rotary 1972 32in RD model 5-3322
Mower Rotary 1973 32in RD model 5-3322
Mower Rotary 1974 32in RD model 5-3322
103 downloads
Updated
-
Free
Mower Rotary 48in SD 1981-1983 05-48MS02 C OM IPL SN.pdf
By admin-(Admin)
Operator manual #810306R1 or 810306 R1
7 pages 1.29MB
Illustrated parts list removed from Work Horse tractor ipl #810286R1
7 pages 7.8MB
Illustrated parts list from Toro Master Parts Viewer
7 pages 388.11KB
Fits C-Series tractors
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 1594 (1/2" x 107.21")
Mower spindle assemblies could be L, M, V or Z
For V see service bulletin 292B
106078 blade replaced by 106637 3-blade set (3/4" round hole)
Mower Rotary 1981 48in SD model 05-48MS02
1981 serial numbers that have shown up for the 05-48MS02
033989 - Build date 1981 1173 June 22 Wednesday
039413 - Build date 076 looks wrong
041688
041789
Mower Rotary 1982 48in SD model 05-48MS02
Mower Rotary 1983 48in SD model 05-48MS02
[M]
320 downloads
Updated
-
Free
Mower Rotary 36in SD 1976 65-36MS01 OM IPL SN.pdf
By admin-(Admin)
Operator manual #803451R2 or 803451 R2
5 pages 3.08MB
Operator manual #803463
IPL
8 pages 2.61MB
Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511
Drive belt 102741 (1/2" x 96.6") for B-Series and C-Series long frame tractors (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 8411 (1/2" x 76.94")
Mower spindle assemblies could be D, A1, G1 or Z
For A1 and G1 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
101335 blade set available again from Toro June 4, 2019
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
Mower Rotary 1976 36in SD model 65-36MS01
1976 serial numbers that have shown up for the 65-36MS01
04398 - Build date 1975 5310 November 06 Thursday [6310 looks wrong]
15925 - Build date 1976 6107 April 16 Friday
23141 - Build date 1976 6138 May 17 Monday
25849
238 downloads
Updated
-
Free
Mower Rotary 42in SD 2003-2006 78292 XT OM IPL SN.pdf
By gwest_ca-(File Mod)
Operator manual 3328-108
20 pages 654Kb
Illustrated parts list 3329-310
8 pages 197Kb
Fits XT series of tractors
Mower Rotary 42in SD 2003 model 78292 Serial 23000001-230999999
2003 serial numbers that have shown up for the 78292
230000176
Mower Rotary 42in SD 2004 model 78292 Serial 24000001-240999999
Mower Rotary 42in SD 2005 model 78292 Serial 25000001-250999999
Mower Rotary 42in SD 2006 model 78292 Serial 26000001-260999999
30 downloads
Updated
-
Free
Mower Rotary 48in SD 1997-2001 78268 260 OM English SN.pdf
By gwest_ca-(File Mod)
Operator manual #3319-721
24 pages 541.33KB
Fits 260-Series export models
Available in French, German, Dutch, Italian
Mower Rotary 1997 48in SD model 78268 Serial 7900001-7900000
Mower Rotary 1998 48in SD model 78268 Serial 8900001-8900000
Mower Rotary 1999 48in SD model 78268 Serial 9900001-9900000
Mower Rotary 2000 48in SD model 78268 Serial 200000001-200000000
2000 serial numbers that have shown up for the 78268
200000627
Mower Rotary 2001 48in SD model 78268 Serial 210000001-210000000
87 downloads
Updated
-
Free
Mower Rotary 36in RD 1987-1989 35-36RL01 OM IPL SN.pdf
By gwest_ca-(File Mod)
Operator manual #810481R1 or 810481 R1
8 pages 885.01KB
Dated 12/86
IPL #810511R1 or 810511 R1
5 pages 1.54MB
Fits 1987
211-4 model 32-11B401
211-5 models 32-11B501, 32-11BX01 and B2-11B591
212-6 model 32-12K601
Fits 1988
208-4 model 32-08B402
211-4 model 32-11B402
211-5 model 32-11BX02
212-6 model 32-12K602
E5-36RL01 deck for 1988 210-4 is a good number but no info available. Suspect the 35-36RL01 is the same except for decals for Italy.
Fits 1989
208-4 model 42-08B401 (208-4SB)
211-4 model 32-11B403
212-5 models 32-12B501, E2-12K502 and R2-12K501
212-H models 32-12BE01, A2-12KE01, E2-12KE01 and R2-12KE01
Mower drive and spindle belt 113169 (1/2" x 116")
107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)
Mower Rotary 1987 36in RD model 35-36RL01
1987 serial numbers that have shown up for the 35-36RL01
10351
70143
71002
71058 - Build date 1987 705x February xx
71088 - Build date 1987 705x February xx
Mower Rotary 1988 36in RD model 35-36RL01
Mower Rotary 1989 36in RD model 35-36RL01
609 downloads
Updated
