RJ/Suburban and Others -Gas Tank Filler Tube Replacement

Recommended Posts

FYI

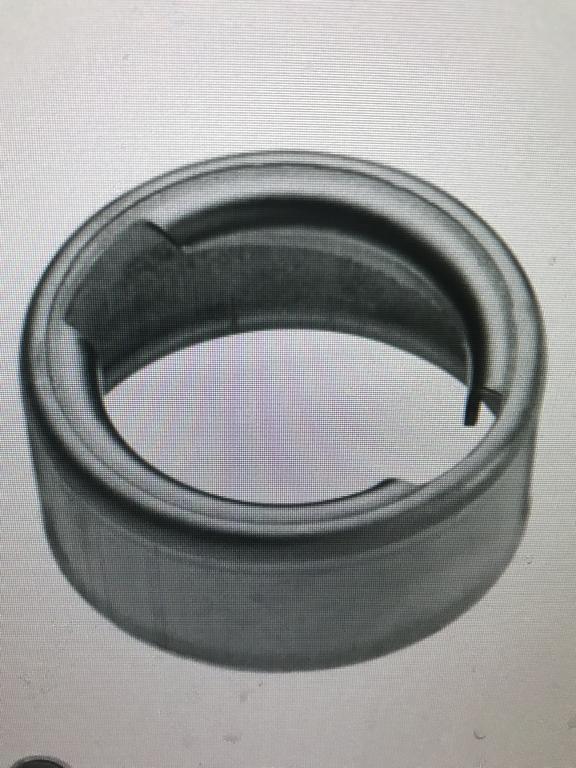

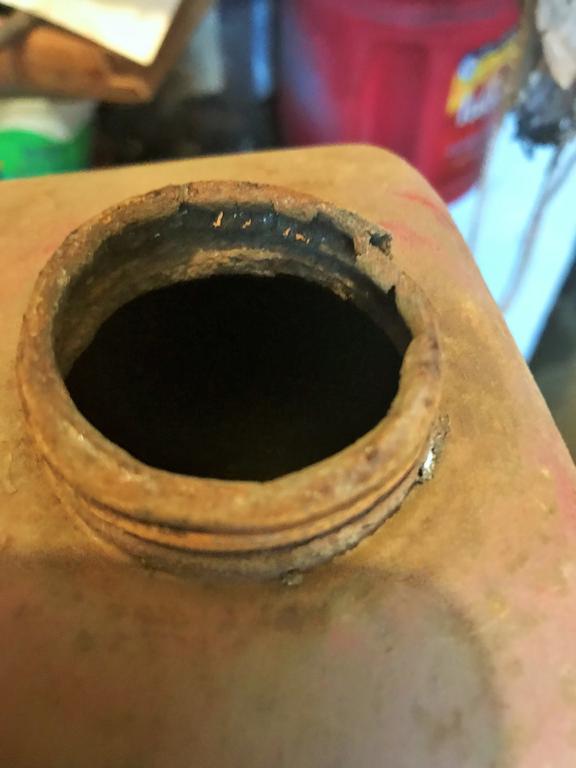

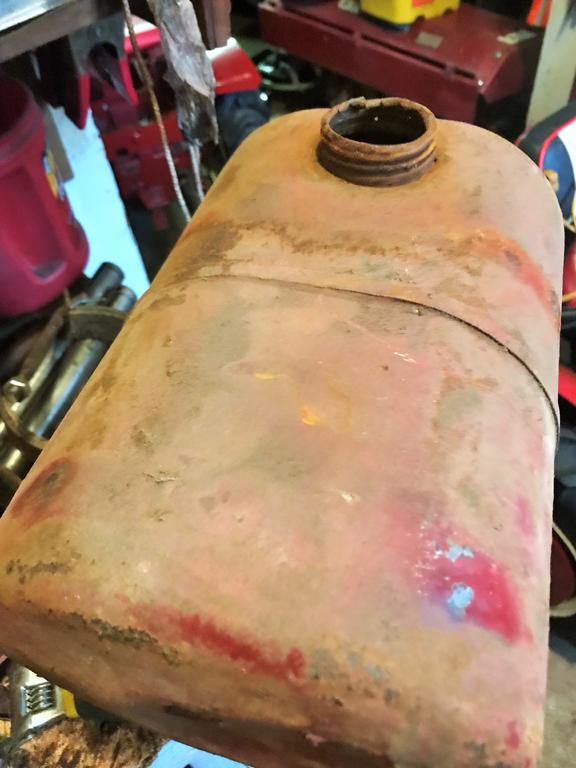

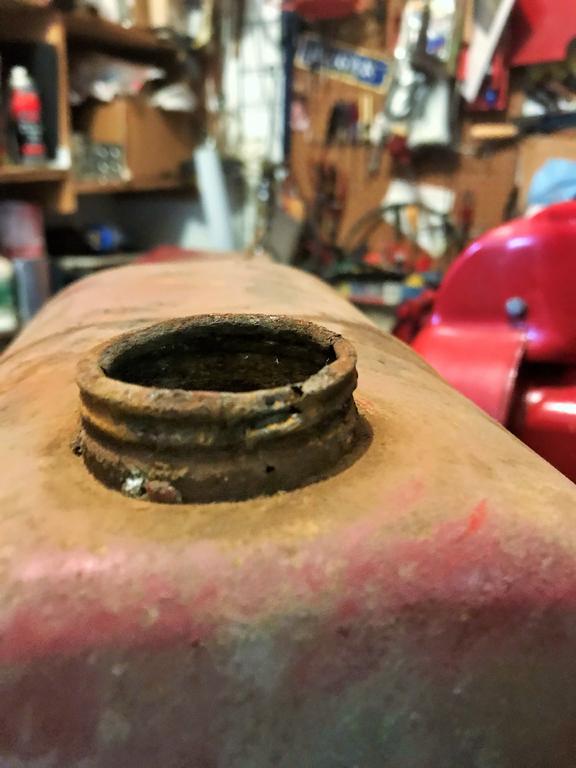

Several folks have asked about  replacement filler tubes for their damaged RJ  (and other 1 3/4 inch threaded filler tube necks.



Here is a source for them .   I have two that I ordered last summer but have not placed on the tanks yet.   I will be having an expert welder friend do this work for me.


I can;t say if welding, brazing or some other technique is best for replaement but these filler tubes are the right size.



NOTE:   The lenght of the tube is longer than the original RJ gas tank neck.  So it possibly could be raised higher or set to original depth.

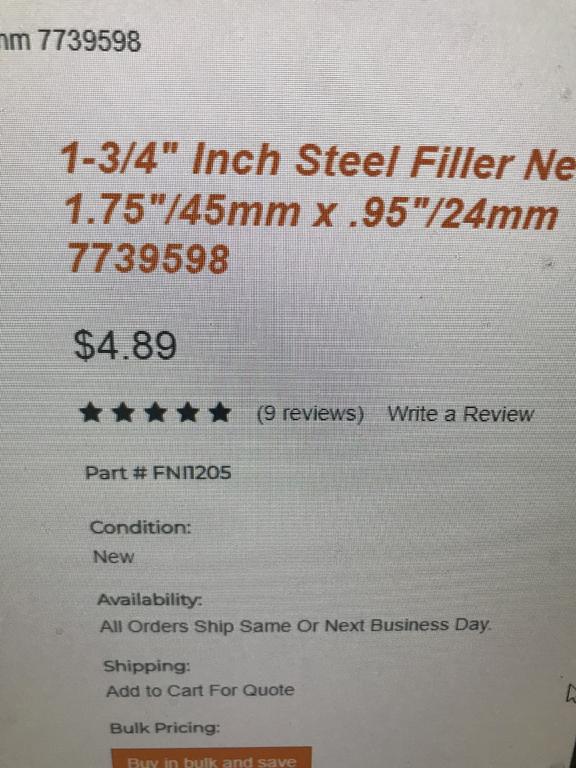

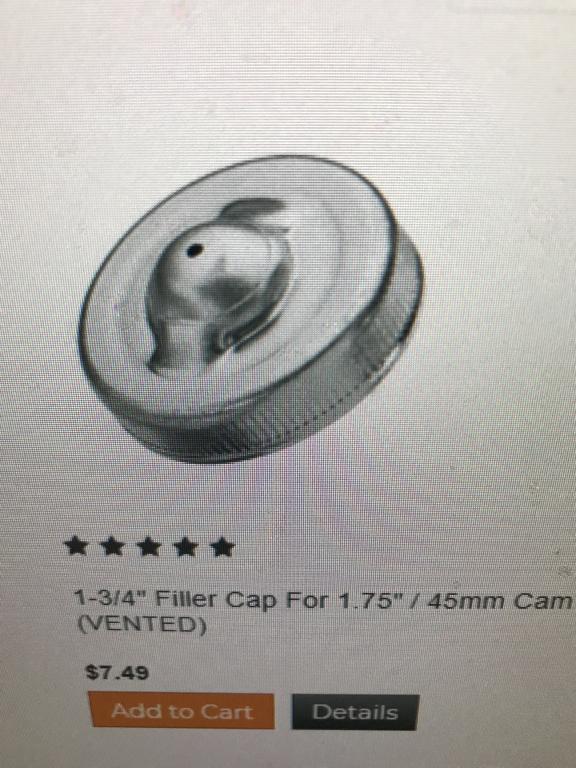

http://www.fillernecksupply.com/1-3-4-inch-steel-filler-neck-1-75-45mm-x-95-24mm-7739598/

















Edited by Lane Ranger
  • Like 8

Share this post


Link to post
Share on other sites
1 hour ago, Lane Ranger said:

I can;t say if welding, brazing or some other technique is best for replaement but these filler tubes are the right size.



I thought that some filler tubes were soldered in.?

  • Like 4
  • Excellent 1

Share this post


Link to post
Share on other sites

I contacted them last year about this. I suggested that there’s a market out there for the rolled threaded filler necks and caps used on many old lawnmower/garden tractor gas tanks. Maybe if they were to get more requests they’d start producing them.

  • Like 6

Share this post


Link to post
Share on other sites
4 hours ago, Achto said:



I thought that some filler tubes were soldered in.?

Thats the first thing I thought of Dan ... getting the right combo of flux, heat, solder and clean metal would be tricky but doable. 'specially with a tank that Lane piced.  A couple of the tanks that I messed with that's what appeared how the 1/8 npt bottom bung was attached?  Or brazed??? Bet a good welder could tig one in? Maybe overlay a good base sheet metal to get back into a good area of the tank



:text-goodpost: Lane:handgestures-thumbupright:

  • Like 4

Share this post


Link to post
Share on other sites
12 minutes ago, WHX14 said:

Thats the first thing I thought of Dan ... getting the right combo of flux, heat, solder and clean metal would be tricky but doable. 'specially with a tank that Lane piced.  A couple of the tanks that I messed with that's what appeared how the 1/8 npt bottom bung was attached?  Or brazed??? Bet a good welder could tig one in? Maybe overlay a good base sheet metal to get back into a good area of the tank



:text-goodpost: Lane:handgestures-thumbupright:

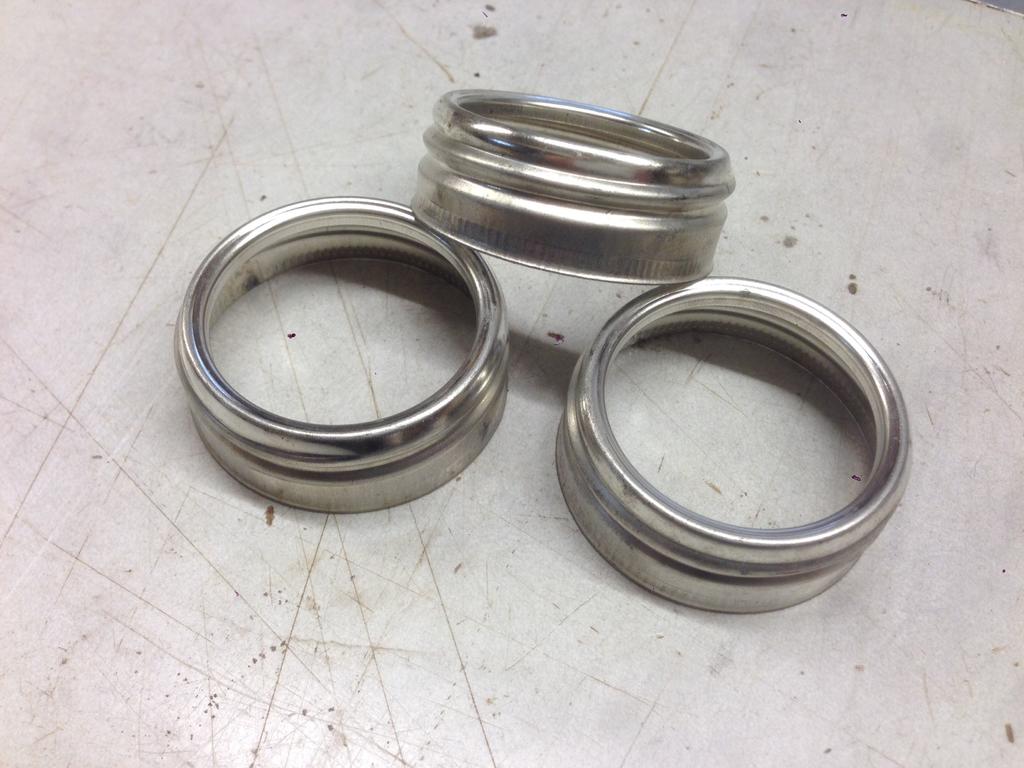

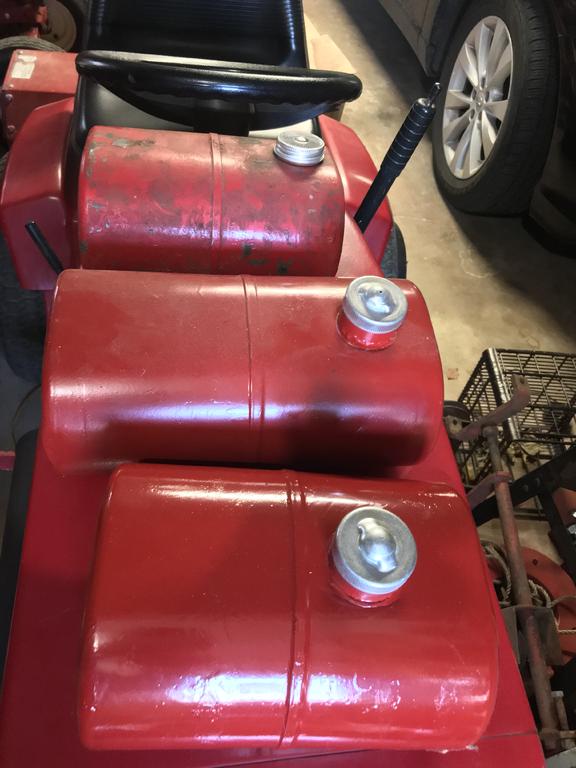

I have done 3 of them. They were soldered and that is how I did the replacements.It was relatively simple and all three wee successful on the first try with no leaks. The fact that the replacements I found were the exact size made it also easy.

Edited by formariz
  • Like 4
  • Excellent 2

Share this post


Link to post
Share on other sites

It may take me a while to find it. I kind of found it by accident a couple of years ago. It was basically a simple website with a PDF list on it. Seems run by a single guy. I called in the order and when received you send him the payment (Incredible now a days). With the order he sent me a small catalogue that I know it is here somewhere.

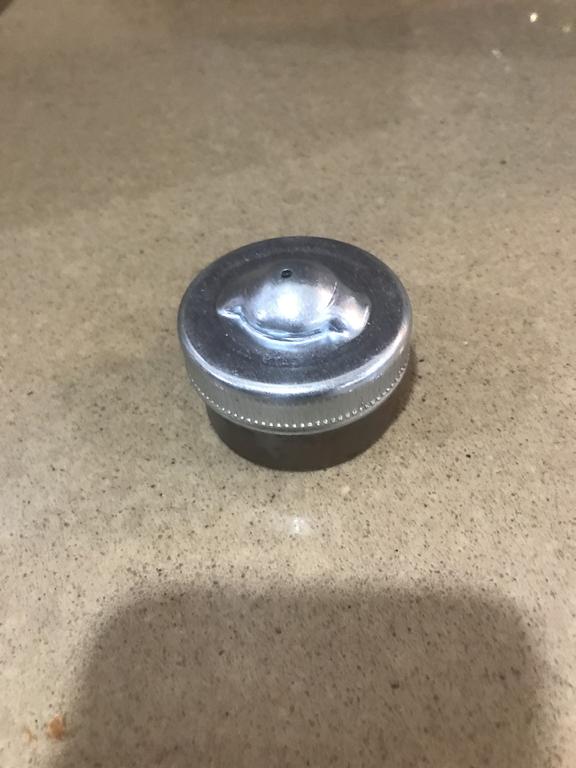

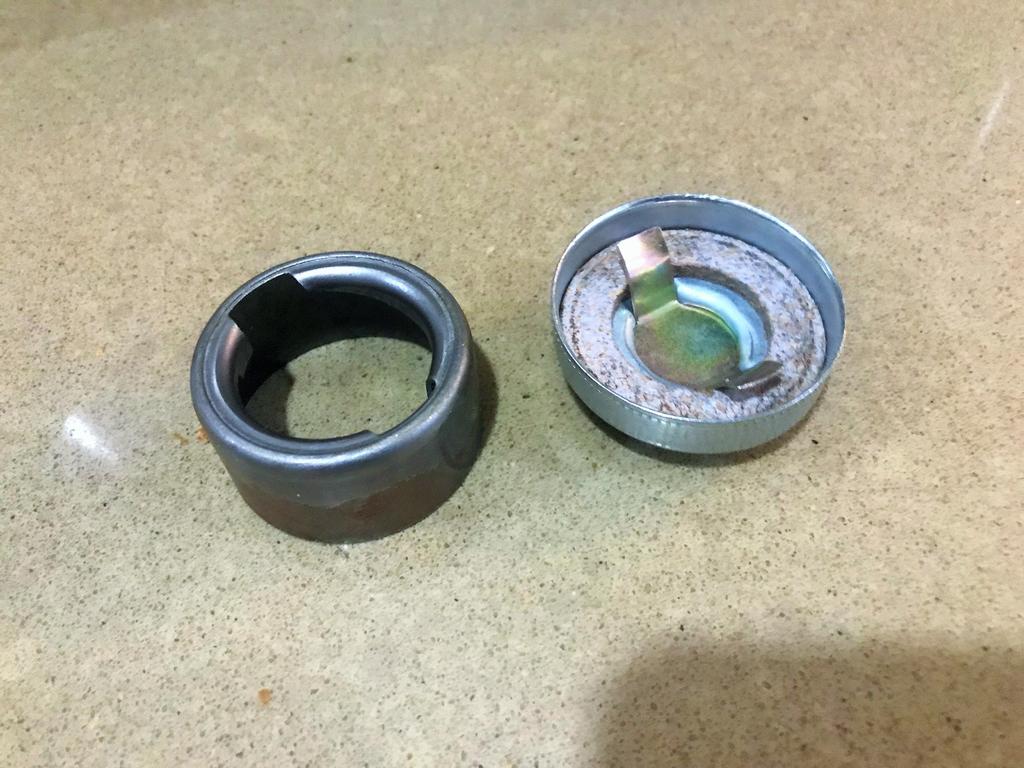

Having said all of that, I bought 6 necks and caps. I used 3 necks and all of the caps. I have 3 necks left. Haven't had a need for them since . I like to have these things around that is why I never get one of anything, however if any one is desperate for them (I know that when you need this there is nothing else that will fix it) I am willing to part with them. There will be no charge, they were ridiculously inexpensive. First come first serve basis of course.One per call so others can save their tanks.

Edited by formariz
  • Excellent 2

Share this post


Link to post
Share on other sites
8 minutes ago, formariz said:

It may take me a while to find it. I kind of found it by accident a couple of years ago. It was basically a simple website with a PDF list on it. Seems run by a single guy. I called in the order and when received you send him the payment (Incredible now a days). With the order he sent me a small catalogue that I know it is here somewhere.



Having said all of that, I bought 6 necks and caps. I used 3 necks and all of the caps. I have 3 necks left. Haven't had a need for them since . I like to have these things around that is why I never get one of anything, however if any one is desperate for them (I know that when you need this there is nothing else that will fix it) I am willing to part with them. There will be no charge, they were ridiculously inexpensive. First come first serve basis of course.

Is this the place your thinking of? http://www.hitnmiss.com/31.html  The filler necks are on the bottom of the page.

  • Excellent 2

Share this post


Link to post
Share on other sites

While looking now I came across this one too. However it is not this one.Site had only basically a PDF sheet and had photos on it so I immediately recognized I was looking at the right thing.

Share this post


Link to post
Share on other sites

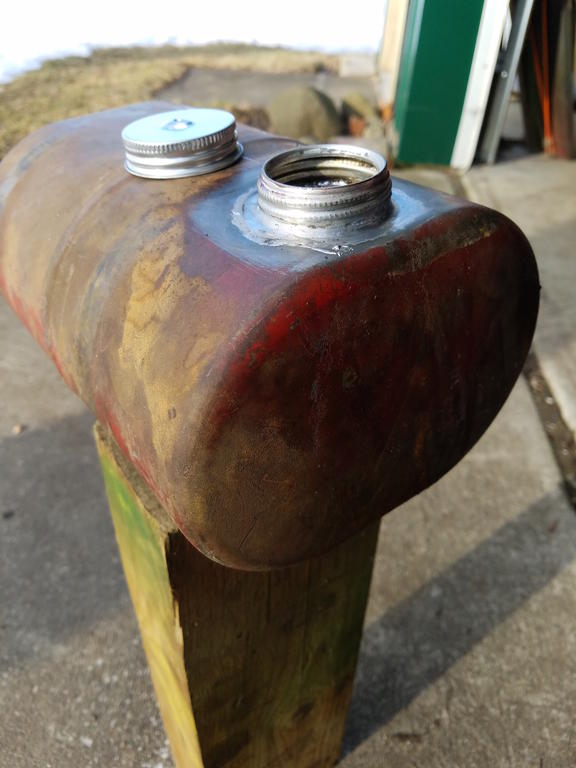

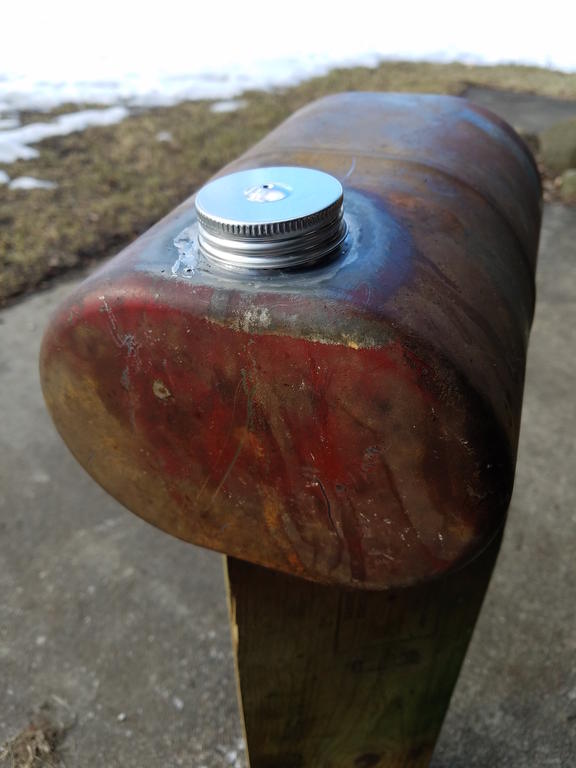

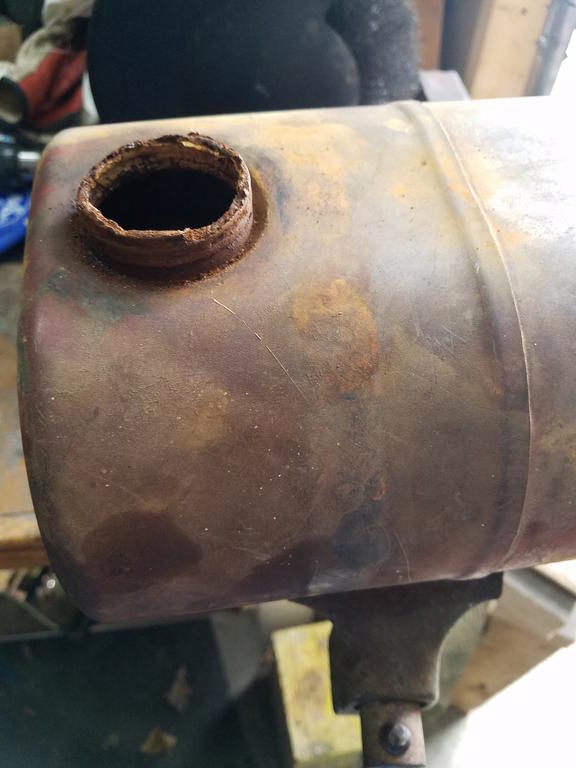

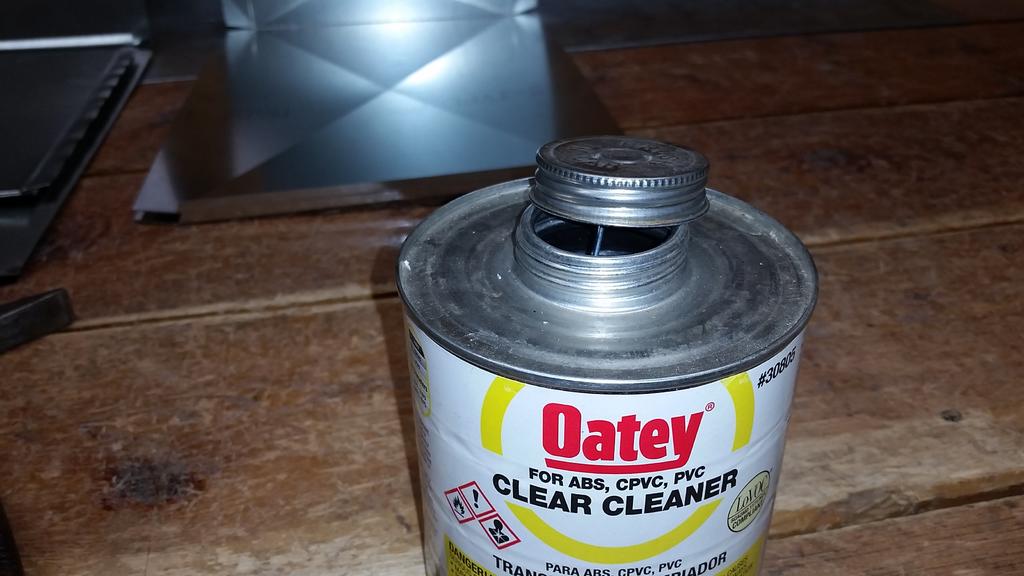

I ended up doing some investigation and found the lid of a PVC primer can is the identical opening that is on my RJ gas tank. I soldered it on and it works perfectly.




  • Excellent 3

Share this post


Link to post
Share on other sites

Yeah real good info there fellas. I go through a alot of these cans. They are a tad short tho.  Let me know if there's a need for them I will start hoarding empties!


  • Like 2
  • Haha 1

Share this post


Link to post
Share on other sites

There you go. Very clever. Like they say necessity is the mother of invention.

  • Like 3

Share this post


Link to post
Share on other sites

Did you trim the flange to fit in recess?

Share this post


Link to post
Share on other sites

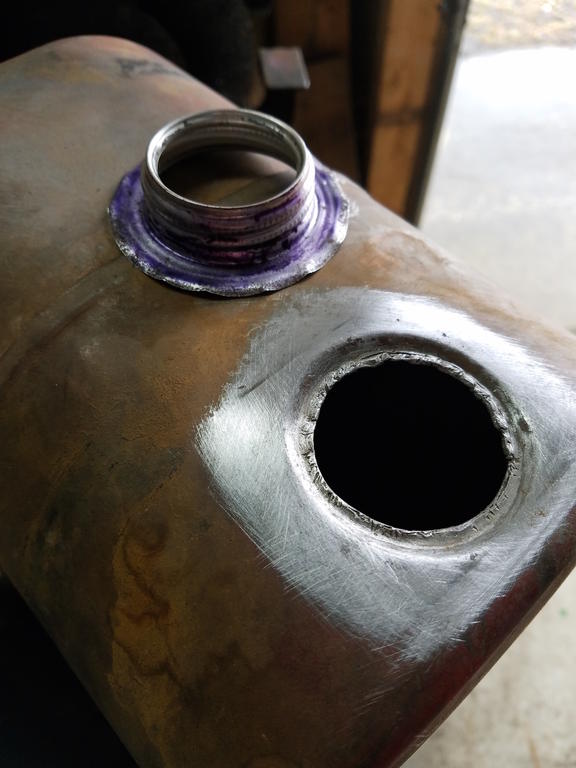

Yes, I left about an 1/8" flange at the bottom which kept it in shape. I then tinned both the top of the tank and the new neck. I used the typical acid plumbing flux and 50/50 solder with a good size soldering iron.

  • Like 1
  • Excellent 3

Share this post


Link to post
Share on other sites

Great find and idea for a not so easy to remedy common problem.



If Moderators are watching this thread should be moved to Instructional threads and videos or pinned here so everyone can see it and benefit from it.

  • Like 2
  • Excellent 2

Share this post


Link to post
Share on other sites
