Electrical

All electrical guides

161 files

  1. Free

    Switch Ignition Magneto Keyed 99-7429 .jpg

    By gwest_ca-(File Mod)

    Taken from #492-4761 Electrical Manual

    Used on Toro Workman 1100 Utility vehicle that has 3 key positions. Not aware of other applications but in the Demystification Guide.
    1 page 115KB

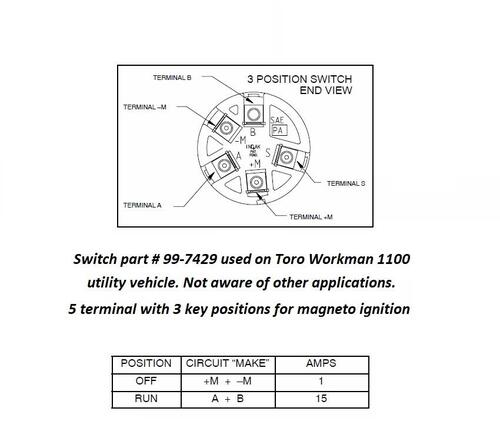

    99-7429 ignition switch for magneto ignition

    30 downloads

    Updated

  2. Free

    Switch Lights Rocker List.pdf

    By gwest_ca-(File Mod)

    56000-Series of switches drawings
    40 pages 1.5MB

    57000-Series of switches drawings
    15 pages 3.5MB

    82-12o502* - Correct
    82 -12o502 - Not correct
    82-12o502 - Suspicious and not checked or determined yet

    Wheel Horse rocker switch 7184 used for headlamps 1965-1970  ( SPST ) - Cole-Hersee 57000-01-BX
    7184 used on
    1965, 1966 and 1967 model LP-70* (Light kit)
    1967 models 867*, 1067*, 1267*
    1968 models 1-6231*, 1-6931*, 1-7231*, 1-7235*, 1-7931*, 1-7932*, 8-0811* light kit
    1969 models 1-6041*, 1-6241*, 1-7041*, 1-7241*, 1-7245*
    1970 models 1-6051*, 1-6251*, 1-6252*, 1-6253*, 1-7251*, 1-7252*, 1-7253*, 1-7255*, 1-7851*

    Wheel Horse rocker switch 8280 replaced by 100768 used for headlamps 1969-1973 ( SPST )
    8280 used on
    1969 model 1-7441*
    1970 model 1-7451*

    100768 used on
    1970 models 1-7452*, 1-7453*
    1971 models 1 -0100, 1 -0150, 1-0300*, 1-0310*, 1-0450*, 1-0500*, 1-0501*
    1972 models 1 -0451, 1-0502*, 1-0503*
    1973 model 1-0503-8*
      Tractor Switch IgnitionMagneto ignition with recoil star

    57 downloads

    Updated

  3. Free

    Switch Lights Push-Pull List.jpg

    By gwest_ca-(File Mod)

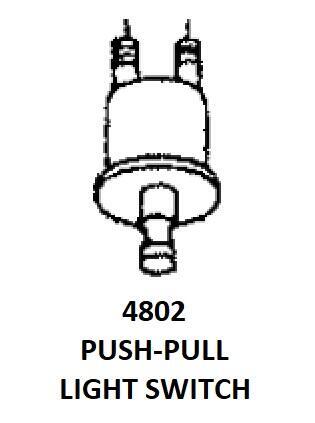

    Wheel Horse push-pull switch 4802 used for headlamps ( SPST )
    Screen shot of 4802 switch
    1 page 24KB

    82-12o502* - Correct
    82 -12o502 - Not correct
    82-12o502 - Suspicious and not checked or determined yet

    4802 Push-pull switch for lights used on
    1963 model 953*

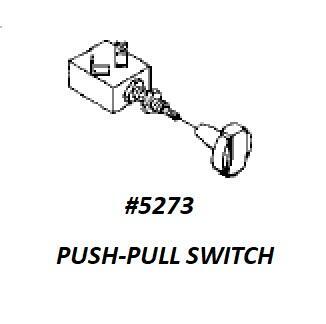

    Wheel Horse push-pull switch 5273 used for headlamps 1964-1967  ( SPST )
    Screen shot of 5273 switch
    1 page 16KB

    5273 Push-pull switch for lights used on
    1964 model 1054*
    1965 model 1054A*, HL5* light kit
    1966 model HL5* light kit
    1967 model HL6* light kit

      Tractor Switch IgnitionMagneto ignition with recoil star

    11 downloads

    Updated

  4. Free

    Switch Pto Electric clutch Push-pull 5273 List.jpg

    By gwest_ca-(File Mod)

    Wheel Horse push-pull switch 5273 used for headlamps 1964-1967  ( SPST )
    Screen shot of 5273 switch
    1 page 16KB

    82-12o502* - Correct
    82 -12o502 - Not correct
    82-12o502 - Suspicious and not checked or determined yet

    5273 Push-pull switch for electric pto clutch used on
    1968 model 1-7235*
    1969 model 1-7245*
    1970 model 1-7255*
    1971 model 1-0100*, 1-0150*, 1-0300*, 1-0310*, 1-0450*
    1972 model 1-0451*

      Tractor Switch IgnitionMagneto ignition with recoil star

    21 downloads

    Updated

  5. Free

    Switch Pto Electric clutch Rocker List.pdf

    By gwest_ca-(File Mod)

    Switch Rocker Cole-Hersee
    56000-Series of switches drawings
    40 pages 1.5MB

    57000-Series of switches drawings
    15 pages 3.5MB

    82-12o502* - Correct
    82 -12o502 - Not correct
    82-12o502 - Suspicious and not checked or determined yet


    Rocker switch 8565 replaced by 100769 used for pto clutch 1969-1973 ( DPDT )
    8565 used on
    1969 model 1-7441*
    1970 model 1-7451*

    100769 used on
    1970 models 1-7452*, 1-7453*
    1971 models 1 -0100, 1-0500*, 1-0501*
    1972 models 1-0502*, 1-0503*
    1973 model 1-0503-8*
      Tractor Switch IgnitionMagneto ignition with recoil star

    26 downloads

    Updated

  6. Free

    Switch Ignition Magneto Toggle List.jpg

    By gwest_ca-(File Mod)

    Magneto ignition with recoil start 3279
    3279 1-terminal toggle switch

    82-12o502* - Correct
    82 -12o502 - Not correct
    82-12o502 - Suspicious and not checked or determined yet

    3279 Stop button magneto ignition switch used on
    1955 1956 1957 model RJ-25*, RJ-35*

    Must have changed from stop button to toggle here

    3279 Toggle magneto ignition switch used on
    1958 1959 models RJ-58*, RJ-59*

    1961 models 401*, 5 51, 7 01

    1962 models 32 E, 32R*, 502*, 5 52, 7 02

    1963 models 33 E, 33R*, 603*, 633*, 6 53, 7 53

    1964 models 34 E, 34R*, 604*, 6 54, 704*

    1965 models L-105*, L -155

    1966 models L-106*, L -156

    1967 models L-107*, L -157

    1968 models 1-1631*, 1 -2631


    19 downloads

    Updated

  7. Free

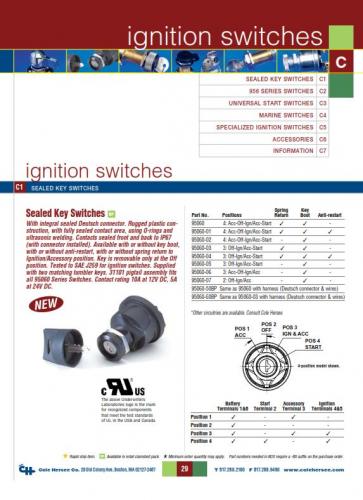

    Switch Ignition Cole Hersee.pdf

    By Martin

    Ignition switch section from Cole Hersee master catalog
    14 pages 1.70MB

    245 downloads

    Updated

  8. Free

    Solenoid Starter.pdf

    By gwest_ca-(File Mod)

    From the #492-4207 Electrical Service Manual
    1 page 96KB

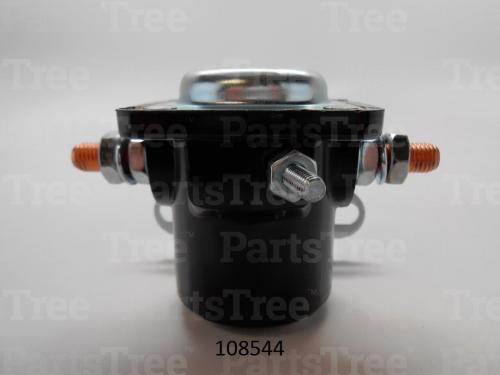

    108437 (1980-1982) four-terminal external ground heavy duty solenoid.
    Used on
    1980-1983 model A-81 (E)
    1980-1983 model A-111
    1982 model RR-832

    8658 (1969-1983) replaced by 108544 (1980-1986) three-terminal with case ground heavy duty solenoid
    Used on
    1969 GT-14 model 1-7441
    1980-1982 B-Series
    1978-1983 C-Series
    1982 LT-Series
    1982 GT-Series
    Common replacement - 1975 and later Ford car and truck solenoids didn't have the "I" terminal.
                                         - 1958 to 1974 Ford solenoids are four-terminal.

    109605 (1982-1987) replaced by 110979 three-terminal with case ground light duty solenoid
    Used on
    1983 A-Series
    1983 B-Series
    1983 LT-Series
    1983 GT-Series


    81 downloads

    Updated

  9. Free

    Lamp Generator warning.jpg

    By gwest_ca-(File Mod)

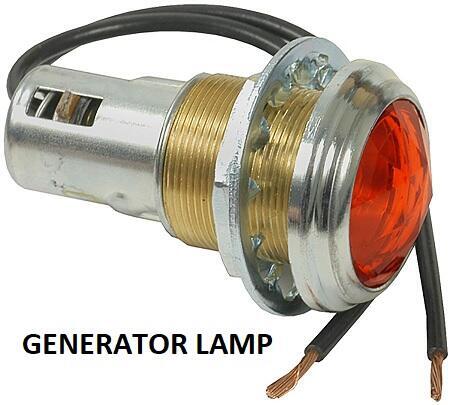

    Wheel Horse Generator warning lamp 2774
    Wheel Horse Generator warning lamp 5423

    Screen shot of lamp which has an insulated or isolated ground
    1 page 64KB

    2774 used on 1963 model 953
    2774 used on 1964 model 1054
    2774 used on 1965 model 1054A

    5423 used on 1964 model 1045

    5423 used on 1965 model 855
    5423 used on 1965 model 875
    5423 used on 1965 model 1055
    5423 used on 1965 model 1075

    5423 used on 1966 model 856
    5423 used on 1966 model 876
    5423 used on 1966 model 1056
    5423 used on 1966 model 1276

    5423 used on 1967 model 857
    5423 used on 1967 model 867
    5423 used on 1967 model 877
    5423 used on 1967 model 1067
    5423 used on 1967 model 1257
    5423 used on 1967 model 1267
    5423 used on 1967 model 1277


    33 downloads

    Updated

  10. Free

    Solenoid Starter 3657 3-terminal .jpg

    By gwest_ca-(File Mod)

    Photo only
    3657 starter solenoid

    3-terminal with insulated base. Notice the battery cable stud is identified. That is because the magnetic coil is powered by the battery stud internally. The 3656 3-terminal ignition switch for magneto ignition and electric start grounds the small terminal to activate the solenoid on the 551.

    A suitable replacement would be a 4-terminal solenoid with an insulated base with a jumper from the battery cable stud to one of the small coil terminals. The other small terminal is grounded be the ignition switch to activate the solenoid on the 551 and a push-button switch on the 701.

    Used on
    1961 model 551 solenoid grounded by the ignition switch to activate it.
    1961 model 701 solenoid grounded by 1746 push button to activate it.


    71 downloads

    Updated

  11. Free

    Demystification Guide 1985-2001 #492-4509.pdf

    By nylyon-(Admin)

    This is a GREAT Wheel Horse Electrical helper.
    523 pages

    260-Series electrical manual 492-4404 replaced by 492-4509 according to Toro and listed in the 5xi service manual

    There are mistakes in this manual. Will list what they are as I come across them.

    Diagrams that have been revised to correct mistakes.
    Do not use this complete manual for these models.
    Go to the files for the individual tractor model and look for "Wiring Detailed Revised"
    Let us know if you still find mistakes.

    1985-1993 310 models - Are a mess. Search the Files using your model number to get to the correct diagrams. (October 9, 2020)

    1986 416-8 model 31-16K802 Pages p7-71 to p7-75

    1987 312-8 model 21-12K804 Pages p7-33 to p7-37

    1988 312-8 model 21-12K805 Pages p7-33 to p7-37
    1988 312-8 model E1-12K801 Export model Pages p7-33 to p7-37
    1988 312-8e model E1-12K801 Export model Pages p7-33 to p7-37

    1989 310-8 model 21-10K806 - Early - Pages p7-5 to p7-9
    1989 310-8 model 21-10K806 - Late - Pages p7-5 to p7-9

    1990 310-8 model 31-10K801 Pages p7-5 to p7-9
    1990 312-8 model 31-12K801 Pages p7-39 to p7-43
    1990 312-8 model R1-12K801 Export model Pages p7-39 to p7-43
    1990 312-8e model R1-12K801 Export model Pages p7-39 to p7-43
    1990 312-8 model R1-12K802 Export model Pages p7-39 to p7-43
    1990 312-8e model R1-12K802 Export model
    1990 312-H model 31-12KE01 Pages p7-39 to p7-43
    1990 416-8 model 31-16O802 Pages p7-61 to p7-66
    1990 416-H model 41-16OE01 Pages p7-61 to p7-66

    1991 312-8 model 31-12K802 Pages p7-39 to p7-43
    1991 312-H model 51-12KE01 Pages p7-39 to p7-43
    1991 416-8 model 31-16O803 Pages p7-61 to p7-66
    1991 416-8 model R1-16O803 Pages p7-61 to p7-66 - No record at Toro Listed in PSB #GT14
    1991 416-8e model R1-16O803 Pages p7-61 to p7-66 - No record at Toro Listed in PSB #GT14
    1991 416-H model 51-16OE01 Pages p7-61 to p7-66
    1991 520-H model 41-20OE02 Pages p7-97 to p7-104


    1992 316-8e model R1-16O804 Pages p7-57 to p7-60 - Export model - This may be a 416-8e
    1992 416-8 model 31-16O804 Pages p7-57 to p7-60
    1992 416-H model 51-16OE02 Pages p7-57 to p7-60
    1992 520-H model 41-20OE03 Pages p7-97 to p7-104
    1992 520-H model R1-20OE02 Pages p7-97 to p7-104
    1992 520-He model R1-20OE02 Pages p7-97 to p7-104

    1993 416-8 model 73420 Pages p7-57 to p7-60
    1993 416-8 model 73440 Pages p7-57 to p7-60 - Export model
    1993 416-8e model 73440 Pages p7-57 to p7-60 - Export model
    1993 416-H model 73421 Pages p7-57 to p7-60
    1993 520-H model 73501 Pages p7-97 to p7-104
    1993 520-H model 73520 Pages p7-97 to p7-104 - Export model
    1993 520-He model 73520 Pages p7-97 to p7-104 - Export model

    1994 416-8 model 73420 Pages p7-57 to p7-60
    1994 416-8 model 73440 Pages p7-57 to p7-60 Export model
    1994 416-8e model 73440 Pages p7-57 to p7-60 Export model
    1994 416-H model 73421 p7-57 to p7-60
    1994 520-H model 73501 Pages p7-97 to p7-104
    1994 520-H model 73520 Pages p7-97 to p7-104 - Export model
    1994 520-He model 73520 Pages p7-97 to p7-104 - Export model

    1995 416-8 model 73420 Pages p7-57 to p7-60
    1995 416-8 model 73440 Pages p7-57 to p7-60 Export model
    1995 416-8e model 73440 Pages p7-57 to p7-60 Export model
    1995 416-H model 73421 p7-57 to p7-60
    1995 520-H model 73501 Pages p7-97 to p7-104

    1995 520-H model 73520 Pages p7-97 to p7-104 - Export model
    1995 520-He model 73520 Pages p7-97 to p7-104 - Export model

    1996 416-8 model 73420 Pages p7-57 to p7-60
    1996 416-8 model 73422 Serial Pages p7-57 to p7-60
    1996 416-8 model 73441 Pages p7-57 to p7-60 - Export model
    1996 416-8e model 73441 Pages p7-57 to p7-60
    1996 416-H model 73421 Pages p7-57 to p7-60
    1996 416-H model 73423 Pages p7-57 to p7-60
    1996 520-H model 73501 Pages p7-97 to p7-104
    1996 520-H model 73502 Pages p7-97 to p7-104
    1996 520-H model 73521 Pages p7-97 to p7-104 (Export model)
    1996 520-He model 73521 Pages p7-97 to p7-104 (Export model)

    1997 416-8 model 73422 Pages p7-57 to p7-60
    1997 416-8 model 73441 Pages p7-57 to p7-60 - Export model
    1997 416-8e model 73441 Pages p7-57 to p7-60 - Export model
    1997 416-H model 73423 Pages p7-57 to p7-60
    1997 520-H model 73502 Pages p7-97 to p7-104
    1997 520-H model 73521 Pages p7-97 to p7-104
    1997 520-He model 73521 Pages p7-97 to p7-104

    7,157 downloads

    Updated

  12. Free

    Demystification Guide with mistakes 2006-2007 #492-9173.pdf

    By gwest_ca-(File Mod)

    Note: September 16, 2020
    This huge file has many mistakes so do not recommend you download it. Currently working to correct them. Have much of it done but not converted back to pdf. Send me a PM of what you need and will get it to you.

    Wiring Detailed
    188 pages 6MB





    57 downloads

    Updated

  13. Free

    Demystification Guide with mistakes 2004-2005 #492-9137.pdf

    By gwest_ca-(File Mod)

    Note: September 16, 2020
    This huge file has many mistakes so do not recommend you download it. Currently working to correct them. Have much of it done but not converted back to pdf. Send me a PM of what you need and will get it to you.

    Table of Contents Page 1-1 to page 1-2
    Time Savers Page 2-1 to page 2-13
    Glossary Page 3-1 to page 3-28 - Component descriptions and method of testing
    200 pages total
    The rest are detailed wiring diagrams that will be posted with the tractor manuals.

    2004 315-8 model 73450 Serial 240000001-240999999

    2004 520xi model 73542 Serial 240000001-240999999
    2004 522xi model 73561 Serial 240000001-240999999

    2005 GT Classic model 73450 Serial 250000001-250999999
    2005 315-8 model 73450 Serial 250000001-250999999

    2005 550 Garden Tractor model 73561 Serial 250000001-250999999

    110 downloads

    Updated

  14. Free

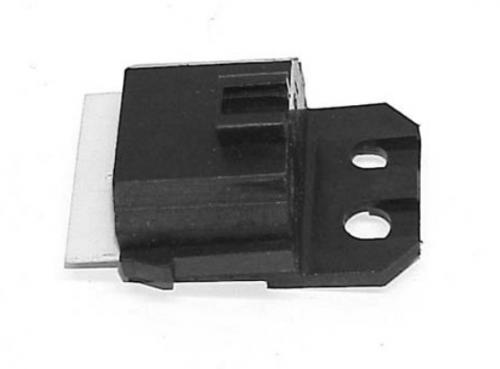

    Module Low voltage Description .jpg

    By gwest_ca-(File Mod)

    Taken from #492-4761 Electrical Manual

    99-1933 low voltage module used on

     104-4671, Sales Kit, 522xi Indy Special Edition Garden Tractor  72048, 265-H Lawn and Garden Tractor, 1999 (SN 9900001-9999999)  72050, 265-H Lawn and Garden Tractor, 2000 (SN 200000001-200999999)  72052, 266-H Lawn and Garden Tractor, 2001 (SN 210000001-210999999)  72052, 266-H Lawn and Garden Tractor, 2002 (SN 220000001-220999999)  72070, 265-H Lawn and Garden Tractor, 1999 (SN 9900001-9999999)  72071, 265-H Lawn and Garden Tractor, 2000 (SN 200000001-200999999)  72072, 266-HE Lawn and Garden Tractor, 2001 (SN 210000001-210999999)  72072, 266-HE Lawn and Garden Tractor, 2002 (SN 220000001-220999999)  72086, 268-H Lawn and Garden Tractor, 1999 (SN 9900001-9999999)  72087, 268-H Lawn and Garden Tractor, 2000 (SN 200000001-200999999)  72087, 268-H Lawn and Garden Tractor, 2001 (SN 210000001-210999999)  72087, 268-H Lawn and Garden Tractor, 2002 (SN 220000001-220999999)  72105, 268-H Lawn and Garden Tractor, 1999 (SN 9900001-9999999)  72106, 270-H Lawn and Garden Tractor, 1999 (SN 9900001-9999999)  72107, 268-HE Lawn and Garden Tractor, 2000 (SN 200000001-200999999)  72107, 268-HE Lawn and Garden Tractor, 2001 (SN 210000001-210999999)  72107, 268-HE Lawn and Garden Tractor, 2002 (SN 220000001-220999999)  72107, 268-HE Lawn and Garden Tractor, 2003 (SN 230000001-230999999)  72108, 270-H Lawn and Garden Tractor, 2000 (SN 200000001-200999999)  72108, 270-H Lawn and Garden Tractor, 2001 (SN 210000001-210999999)  72108, 270-H Lawn and Garden Tractor, 2002 (SN 220000001-220999999)  72115, 270-H Lawn and Garden Tractor, 1999 (SN 9900001-9999999)  72116, 270-HE Lawn and Garden Tractor, 2000 (SN 200000001-200999999)  72116, 270-HE Lawn and Garden Tractor, 2001 (SN 210000001-210999999)  72116, 270-HE Lawn and Garden Tractor, 2002 (SN 220000001-220999999)  72116, 270-HE Lawn and Garden Tractor, 2003 (SN 230000001-230999999)  73471, 518xi Garden Tractor, 1999 (SN 9900001-9999999)  73471, 518xi Garden Tractor, 2000 (SN 000000001-000999999)  73471, 518xi Garden Tractor, 2000 (SN 200000001-200999999)  73471, 518xi Garden Tractor, 2001 (SN 210000001-210999999)  73542, 520xi Garden Tractor, 1999 (SN 9900001-9999999)  73542, 520xi Garden Tractor, 2000 (SN 000000001-000999999)  73542, 520xi Garden Tractor, 2000 (SN 200000001-200999999)  73542, 520xi Garden Tractor, 2001 (SN 210000001-210999999)  73542, 520xi Garden Tractor, 2002 (SN 220000001-220999999)  73542, 520xi Garden Tractor, 2003 (SN 230000001-230999999)  73542, 520xi Garden Tractor, 2004 (SN 240000001-240999999)  73561, 522xi Garden Tractor, 1999 (SN 9900001-9999999)  73561, 522xi Garden Tractor, 2000 (SN 000000001-000999999)  73561, 522xi Garden Tractor, 2000 (SN 200000001-200000200)  73561, 522xi Garden Tractor, 2000 (SN 200000201-200999999)  73561, 522xi Garden Tractor, 2001 (SN 210000001-210999999)  73561, 522xi Garden Tractor, 2002 (SN 220000001-220999999)  73561, 522xi Garden Tractor, 2003 (SN 230000001-230999999)  73561, 522xi Garden Tractor, 2004 (SN 240000001-240999999)  73561, 550 Garden Tractor, 2005 (SN 250000001-250999999)  73561SEI, 522xi Indy Special Edition Garden Tractor, 2000 (SN 200000001-200999999)  73570, 520xi Garden Tractor, 1999 (SN 9900001-9999999)  73570, 520xi Garden Tractor, 2000 (SN 200000001-200999999)  73570, 520xi Garden Tractor, 2002 (SN 220000001-220999999)  73570, 520xi Garden Tractor, 2003 (SN 230000001-230999999)

    59 downloads

    Updated

  15. Free

    Switch Seat 38-1420 .jpg

    By gwest_ca-(File Mod)

    Taken from #492-4509 Electrical Manual

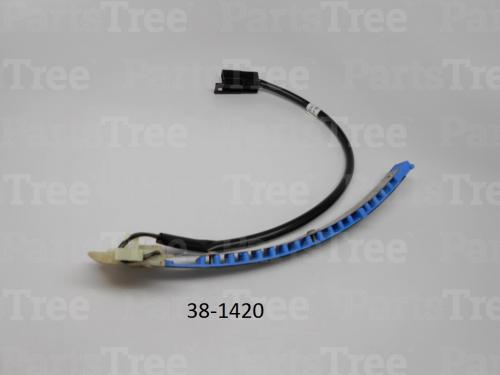

    38-1420 seat switch

    A cover can be removed to clean the switch contacts.

    244 Electrical manual 492-3203 incorrectly lists this switch as part number 114240

    46 downloads

    Updated

  16. Free

    Electrical Service Manual #492-4207.pdf

    By admin-(Admin)

    Electrical service manual
    50 pages 4.10MB
    Printed 03/85

    1980-1983 A-Series and B-Series tractors
    1978-1983 C-Series tractors
    Includes SB, LT and GT-Series
    Same manual as #810291R2

    1,133 downloads

    Updated

  17. Free

    Delco Regulators

    By pfrederi

    Delco regulator operation and adjustments

    20 pages 13.19MB

    76 downloads

    Updated

  18. Free

    Delco-Remy Motor Generator repair.pdf

    By pfrederi

    Delco called them motor generators not Starter generators

    8 pages 35.15MB

    181 downloads

    Updated

  19. Free

    Delco-Remy Regulator Service Bulletin.pdf

    By pfrederi

    Voltage regulators as used on Starter (Motor) generator units

    10 pages 59.03MB

    166 downloads

    Updated

  20. Free

    Switch Oil pressure Onan NN10824 .jpg

    By gwest_ca-(File Mod)

    Taken from #492-4509 Electrical Manual

    NN10824 oil pressure switch

    Controls hour meter and oil light

    A Wells #PS-122 has been successfully used as a replacement
    http://www.wellsve.com/showall_ds_oil.php

    This thread suggests an alternative
    Available from Napa Balkamp BK7011591 - Must add a ground wire to C terminal - Opens at 4 psi.

    42 downloads

    Updated

  21. Free

    Terminals and plastic holders.pdf

    By gwest_ca-(File Mod)

    Possible source for terminal holders from a Kohler accessories catalog
    Download this file for the part numbers
    1 page 1.1MB

    62 downloads

    Updated

  22. Free

    Switch Ignition by Standard Motor Products.pdf

    By admin-(Admin)

    From a Blue Streak catalog

    US-14 for battery ignition - 4-position Off, Run, Start + Accessory only (US14)
    US-123KA for battery ignition - 3-position Off, Run, Start
    US-124KA for battery ignition - 3-position Off, Run, Start
    US-125KA for magneto ignition - 3-position Off, Run, Start
    US-126KA for battery ignition - 4-position Off, Run, Start + Accessory only

    171 downloads

    Updated

  23. Free

    Bulb Indicator assembly 95-7652.jpg

    By gwest_ca-(File Mod)

    Indicator bulb assembly 95-7652
    Used 1999-2008
    1 picture only 32KB

    Used on 1999 314-8 model 73449


    32 downloads

    Updated

  24. Free

    Switch Seat 1978-1983 .jpg

    By gwest_ca-(File Mod)

    Seat switches taken from #492-4207 Electrical Service Manual

    107072 Ball switch NO=Normally open - Silver
    Used on
    1980-1981 A-Series with electric start
    1982 models A-81E and A-111
    1982 RR-832

    109330 Ball switch NC=Normally closed - Pink
    Used on
    1982 A-51 with recoil start
    1982 RR-532 with recoil start

    106268 Push button switch NO=Normally open - black knob
    Used on
    1978 B-81 4-Speed model 82-08BP01 [Have TIPL Wiring]
    1978 B-111 4-Speed model 82-11BP01 [Have TIPL Wiring]
    1980-1981 B-Series
    1978-1983 C-Series

    109328 Push button switch NC=Normally closed - red knob
    Used on
    1983 A-Series
    1982-1983 B-Series
    1982-1983 LT-Series and GT-Series

    43 downloads

    Updated

  25. Free

    Diode with leads Kohler KH10315 .jpg

    By gwest_ca-(File Mod)

    Taken from #492-4509 Electrical Manual

    KH10315 diode with leads
    1N4002
    Now available from Kohler 47 518 43-S

    For 1N4002 diode, the maximum current carrying capacity is 1A it withstand peaks up to 30A. Hence we can use this in circuits that are designed for less than 1A.  The reverse current is 5uA which is negligible. It can withstand reverse voltage peak up to 100V.

    46 downloads

    Updated



×
×
  • Create New...
