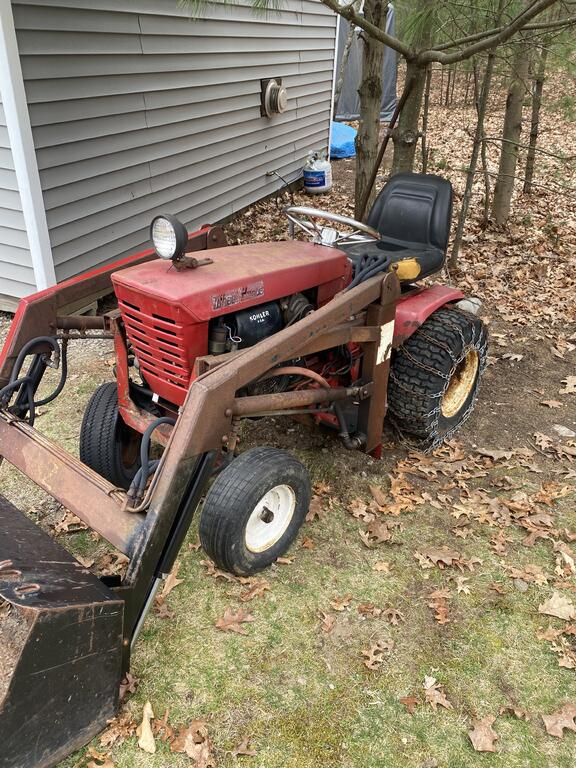

About a year ago I bought a C-121 auto with the intention of using it as my go-to mower. Shortly thereafter I got a great deal on a low hour 314-8. It ran perfect and had several attachments - it became my new go-to mower. So, I decided to repurpose the 121 to be a front end loader. After purchasing the build plans from P.F Engineering (which are excellent), I realized I couldn’t build it for less than $2k in material. I decided to look for a used one and found a Thompson TC10 local to me, mounted on an “end of life” 1077, for $1,000. The loader swap itself was pretty straight forward. The only modifications needed were drilling a couple of mounting holes in the tractor frame, grinding away a little of the loader top frame so the hood opened/closed and welding in a new hydraulic pump mount. I have a few things to button up still and the bucket itself needs attention but it’s fully functional. I also bought a pair of clamp-on pallet forks.
I also did a “refresh” of the 121. The total project cost is shown below. Roughly $2,300, with just the FEL itself being around $1,300.
C-121 Auto $500
Solid engine mounts $50
Front End Loader
Johnson 10TC $1,000
Hydraulic fluid $35
Spare hydraulic hose $40
Battery cables $20
Points & Condenser $20
Carb & Gasket $65
Electric fuel pump $60 (later removed)
Air filter $10
Fuel filter $15
Fuel line $10
Spark plug $5
Decals and Paint
Headlight Lens $45
LED Headlights $25
Rear lights $25
Kwikway loader that is currently on my 520H (Tractor not for Sale) with custom quick attach for switching between bucket and custom made pallet forks. The sub-frame allows it to fit some other models as well.
I designed and built the pallet forks and quick attach setup several years ago. Just remove 1 pin on each side to switch implements.
Forks are adjustable and removable. 2" box receiver built into fork rack

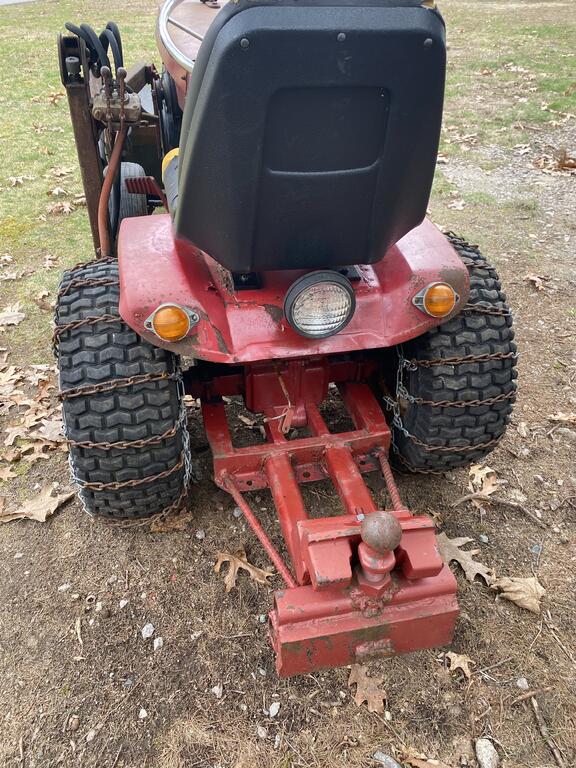

Also included is a custom rear axle suitcase weight bracket that holds up to 6 of the 43lb weights
You can bring a tractor and we can install it on your tractor here or bring a trailer and I can load onto a trailer for you.
Pictured TRACTOR and WEIGHTS NOT for Sale.
With a front end loader for these tractors how important is a ladder type subframe? Does the cross piece in the front have to connect where the towers are? Can the frame where the towers are just mount to the frame and go back to the transmission or is that cross piece critical where the towers mount? Could it be set further back with the same effect or would it not be the same? I know it is important to go back to the transmission so if you hit something you don't snap the frame, but how critical are the cross members?
By elliot ness
I picked this jewel up yesterday at a John Deere dealer, it's a 224 case ,but it has a 16hp Onan on it, and someone put Power steering on it. It has a few leaks, but runs great. even has a joy stick.
Didn’t get to swap the loader out for the 44” 2-stage snowblower and cab on the 520-H before the Christmas Day storm. I had the engine out to redo the top end (decarbon, clean and reseat valves, New gaskets, New fuel pump, tubing, filter, plugs and properly seat camshaft Welch plug) so no time to switch over before storm. It’s just another excuse to use the loader! Merry Christmas everyone🌲🎅🏻
