Onan B43M Stator Wire Routing

By mryanpilarski, in Engines

Recommended Posts

mryanpilarski    24

mryanpilarski
Posted

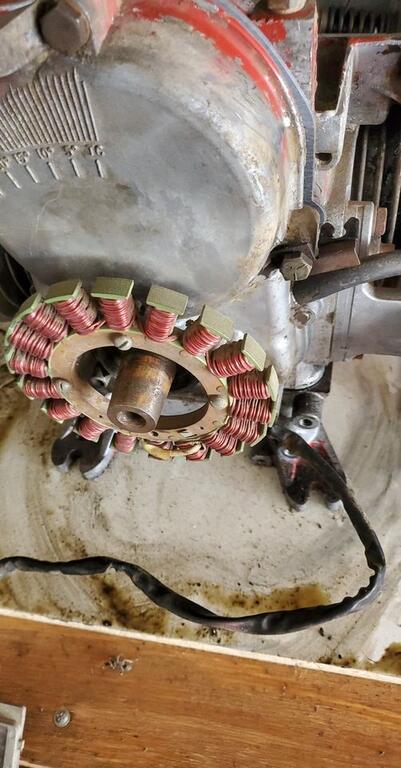

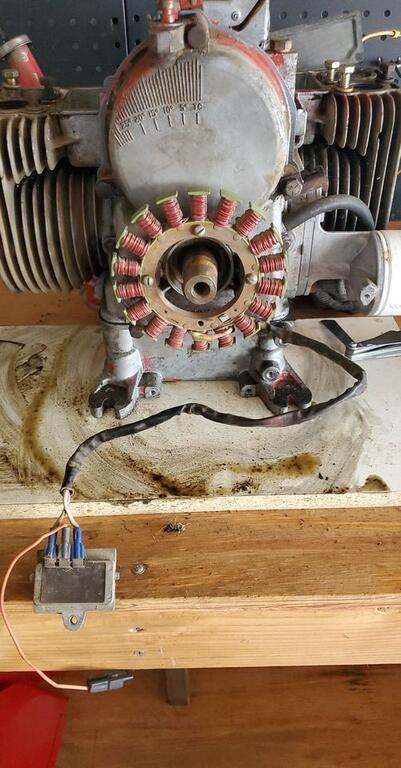

Is there anybody who would be able to draw out on these photos which way the stator wire runs? i have it coming out at the 4:00 position right now, then all the way around behind the stator counter-clockwise to where the voltage rectifier would be on the left hand side (8:00)



I put the wire holder bracket on the bolt where the breather tube is, these photos are before that.



The way i have it now, the wire comes awfully close to the flywheel and I just don't want it to rub on there and I am out a stator



Thanks!







Share this post

Link to post
Share on other sites


cafoose    3,135

cafoose
Posted

Some of the pics in this thread may help:







Share this post

Link to post
Share on other sites


Daddy Don    889

Daddy Don
Posted

:text-welcomeconfetti:

Share this post

Link to post
Share on other sites
