Lane Ranger

WW-93 Wheel Weights for 953,1054 and GT-14 15 inch wheels

Recommended Posts

Lane Ranger

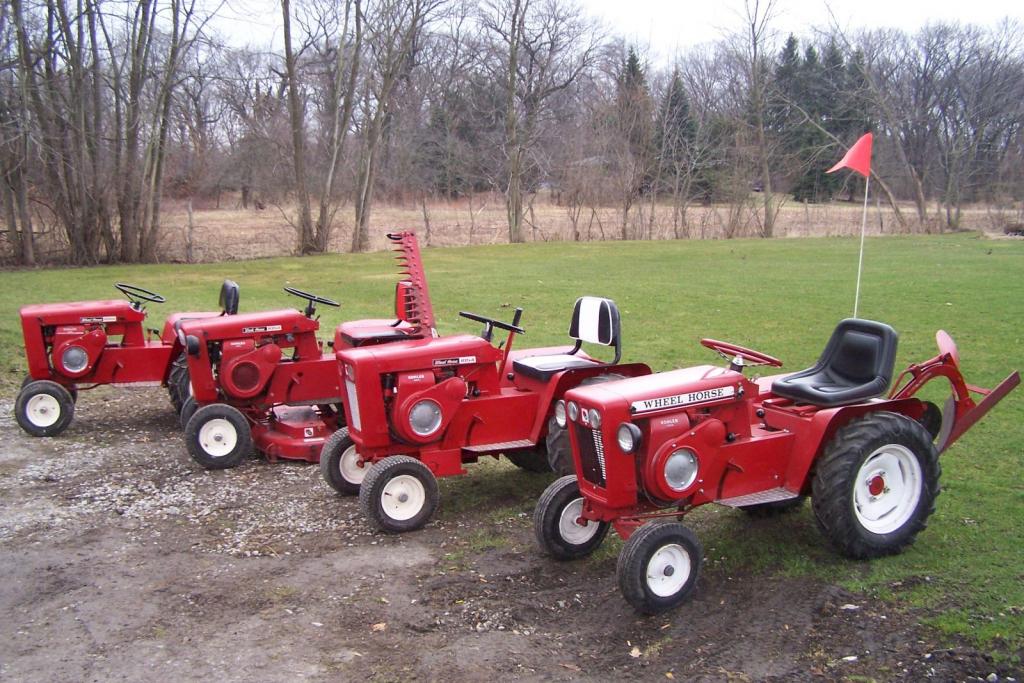

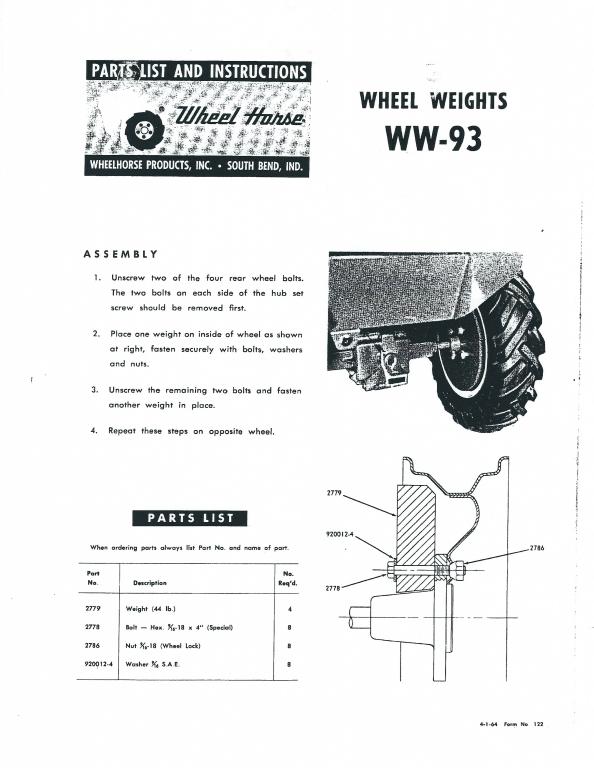

Posting for reference on the 953,1954 and GT-14 rear wheel weights.   These heavy weights went inside the rear wheels on these tractors.   They added quite a bit of weight to the rear end.  I beleive it we close to 75 lbs on each wheel when the two halves were added.  I have a couple sets on tractors and I am keeping this set for a project 1054 I have not been able to get started on yet.  Maybe this is the year!









gallery_339_37_648906 (1).jpg

  • Like 1
  • Excellent 7

Share this post


Link to post
Share on other sites

bottjernat1

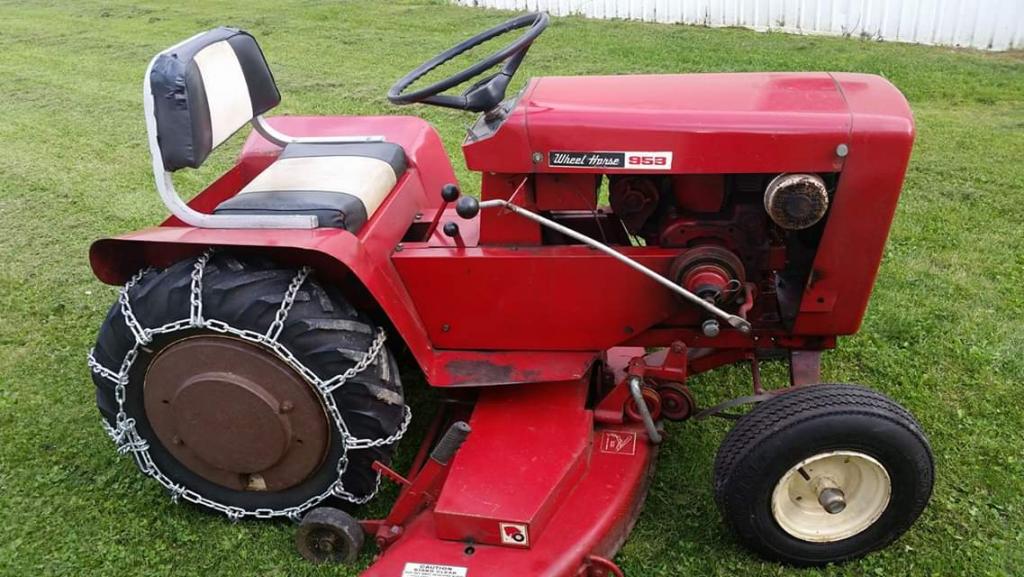

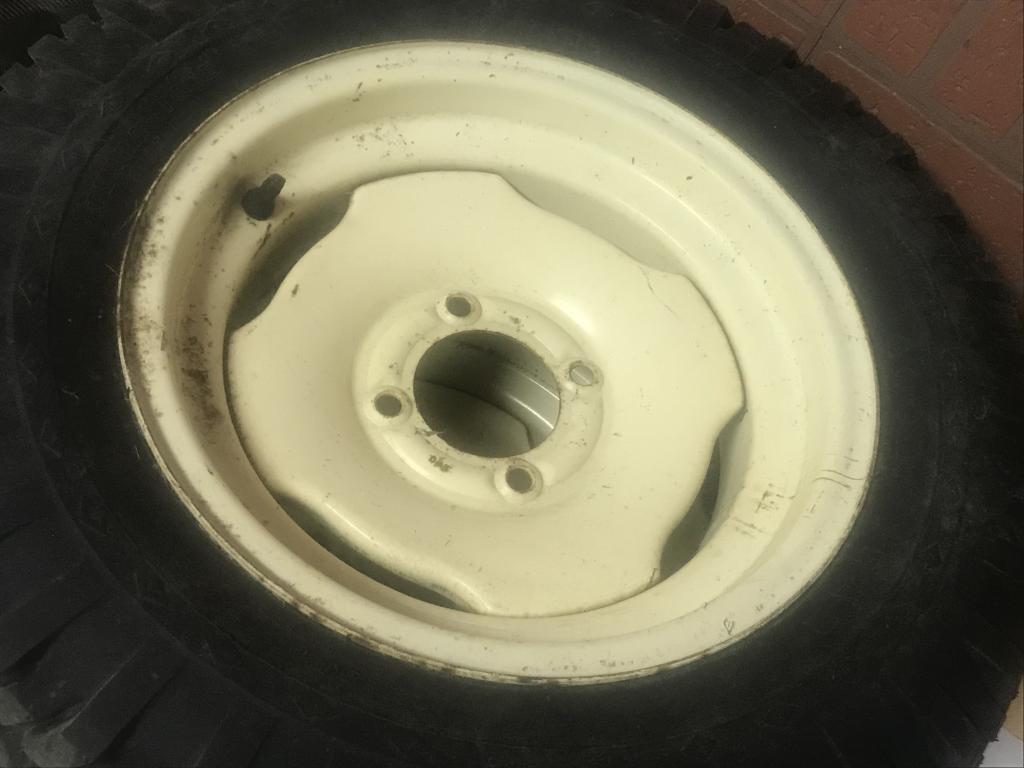

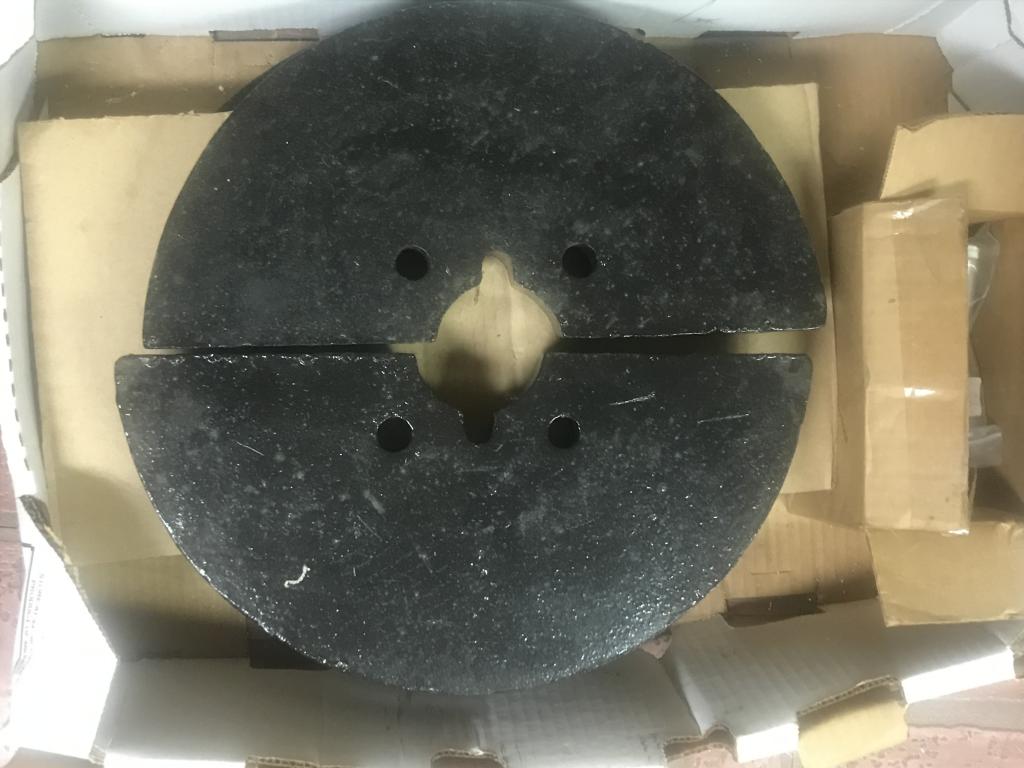

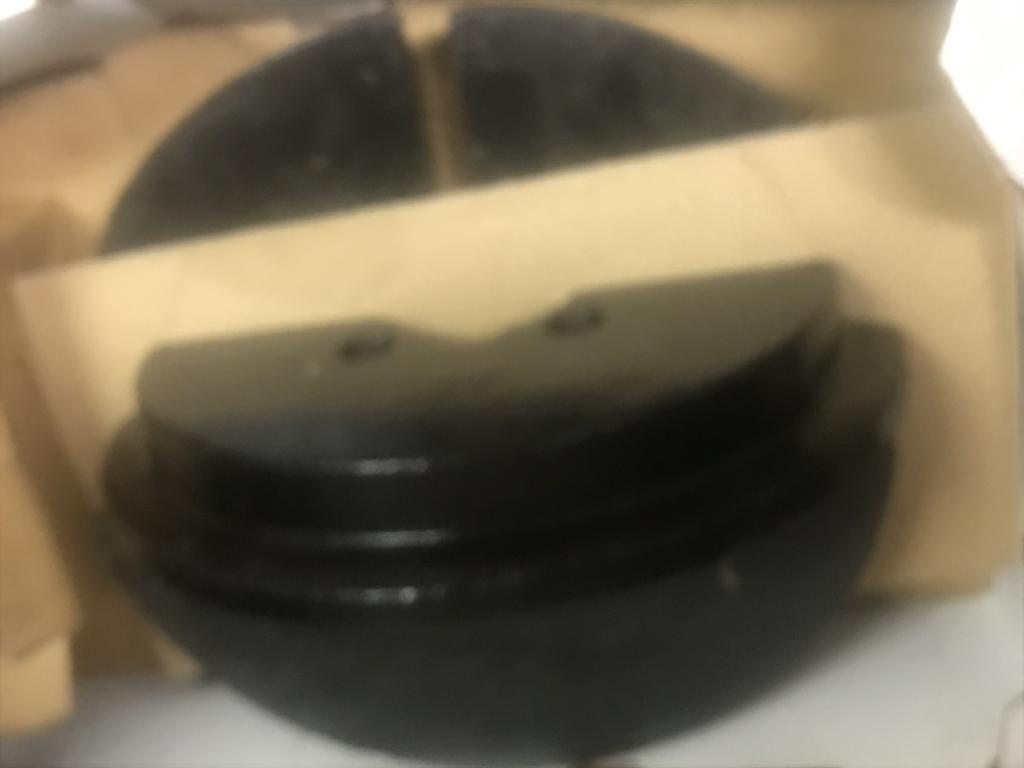

Here is my 3rd owner early 953 I bought it back in 2017 from the original owners son. Bought new and local in kendallville indiana. It has some funky weights they are real heavy to. The son couldn't tell me where his dad got them. I have did alot of digging nobody can tell me what they go to. They fit perfect in the wheels so whatever works i guess! The tractor is all original except paint he said his dad got bored many years ago and repainted it. The only thing done was an axle seal and they took it back to the dealer for that it was under warranty.


  • Like 1
  • Excellent 4

Share this post


Link to post
Share on other sites

pullstart

That!s interesting that they double as lug studs!  Thanks for sharing Lane!

  • Like 2

Share this post


Link to post
Share on other sites

953 nut
2 hours ago, bottjernat1 said:

some funky weights they are real heavy to. The son couldn't tell me where his dad got them. I have did alot of digging nobody can tell me what they go to. They fit perfect

I remember someone on here posting information about the one piece 15" wheel weights being sold by :wh: prior to the WW-93 being made. Those may well be correct for a very early 953.

  • Like 2
  • Thanks 1

Share this post


Link to post
Share on other sites

Super-C 4 me

I just bought a set of the ww-93’s.

still waiting delivery on those.

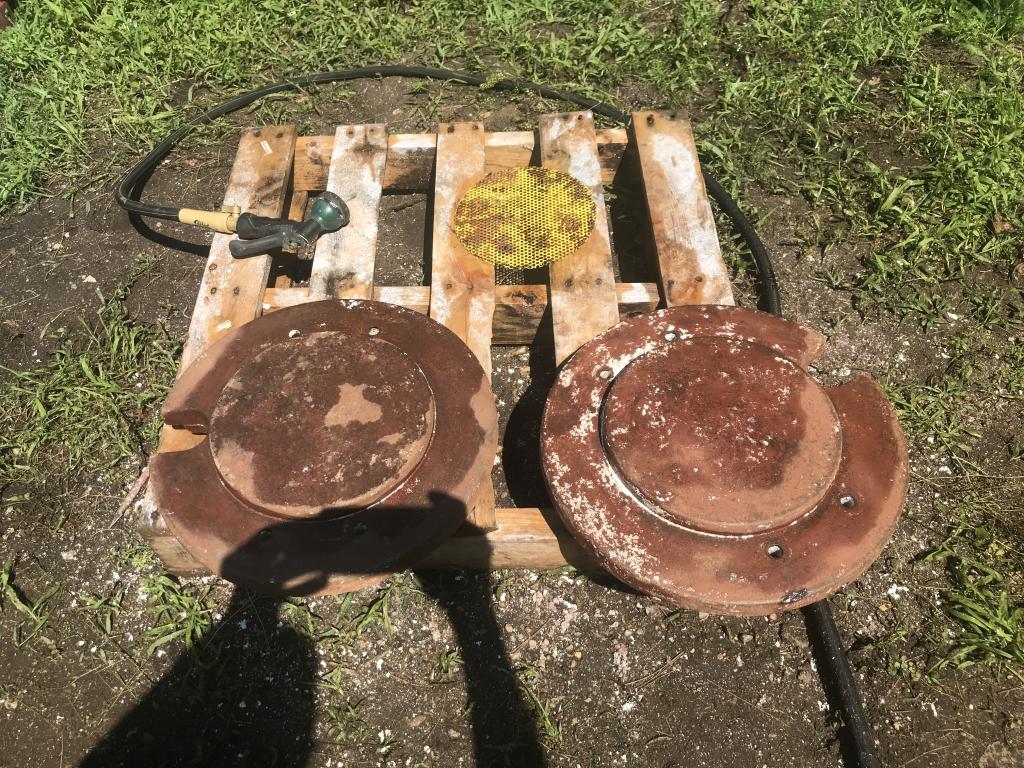

But I also got a set over the summer just like @bottjernat1 has.




100lbs each

shipping was $120

  • Like 2
  • Excellent 2

Share this post


Link to post
Share on other sites

bottjernat1

So these were meant for the 953?

  • Excellent 2

Share this post


Link to post
Share on other sites

squonk

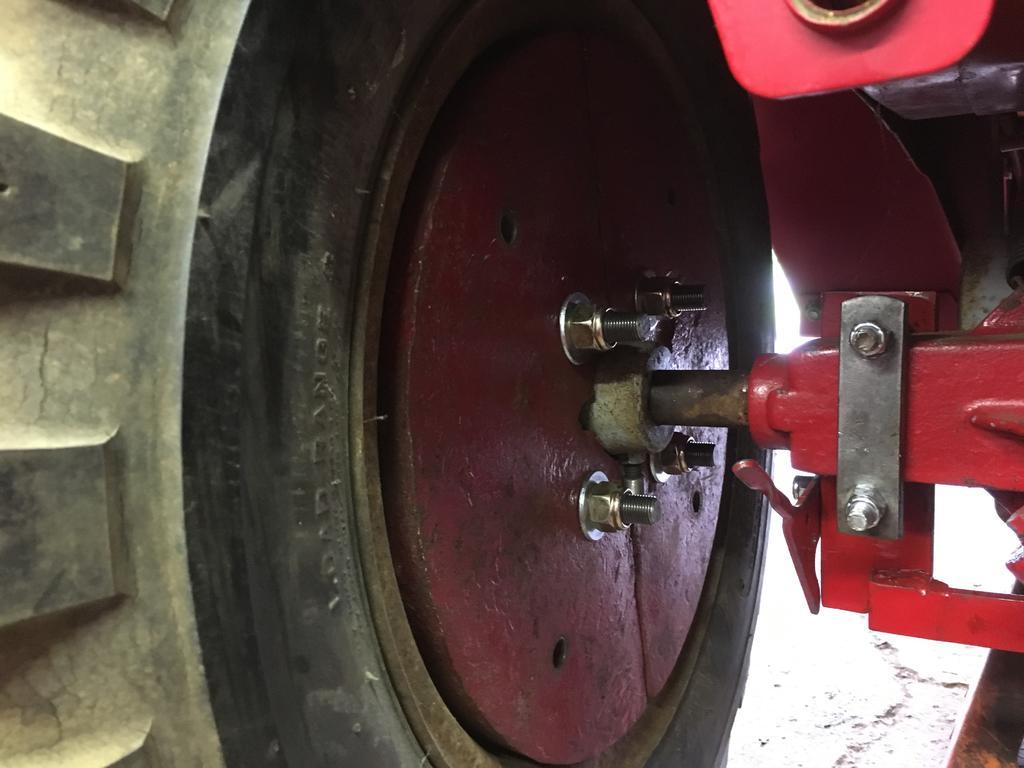

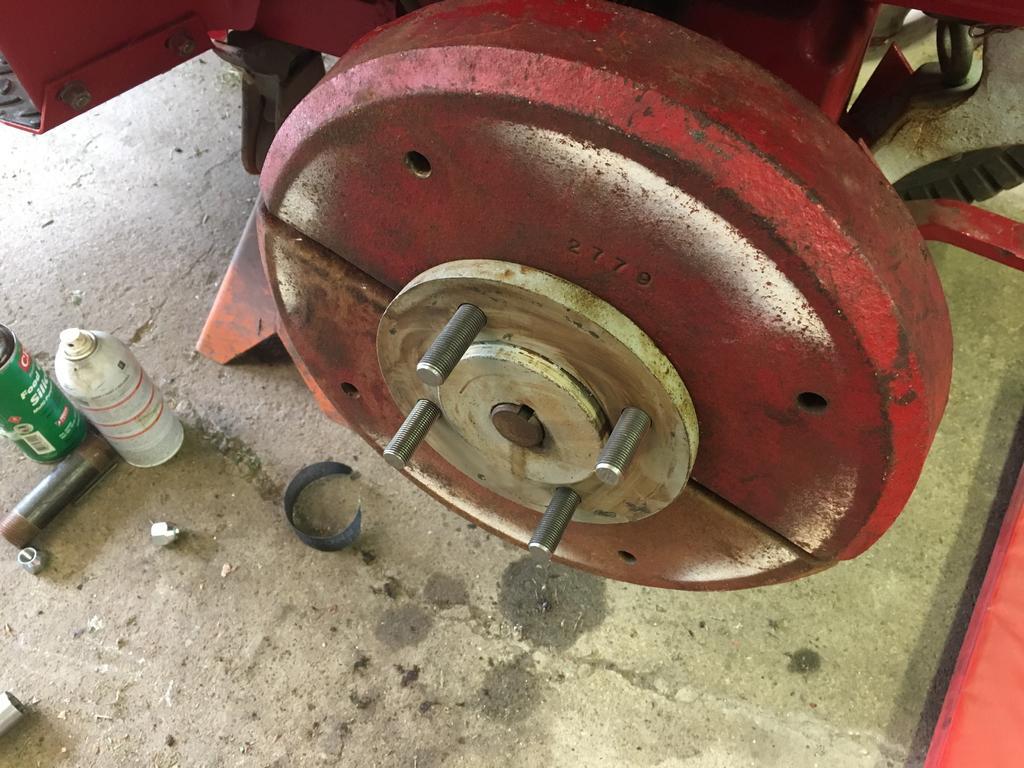

I picked up a set of those for my 953 at the show. :banana-linedance:

1109181445_gt006.JPG.185573d23612f0d4eeaba0098dcc04a5.jpg.5f7b6335fe9584474b1e8495ccff6058.jpg



1761534314_gt008.JPG.2bd399bf71d118700343360f48f07e3d.jpg.b9eb4518c213601239f162bc7f44ea24.jpg

  • Like 3
  • Excellent 1
  • Haha 1

Share this post


Link to post
Share on other sites
