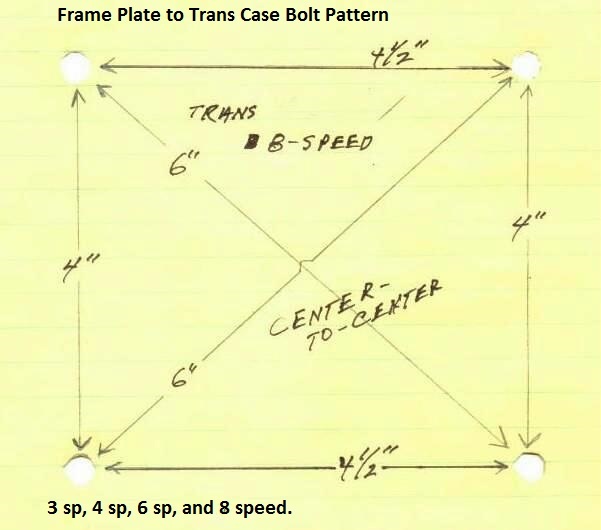

Transaxle fitment
By
Steiner430!, in Transmissions and transaxles
-
Similar Content
-
By rustyedge1
Need head for WH K181 S Kohler. Mine has spark plug hole stripped.
Reasonable priced, shipped.
-
By jmack
I’m looking for a transmission dipstick to a D-180. Let me know if you see one.
-
By Doug B
Hey guys,I have a dilemma I need some help with. I have a 1969 GT 14 that I replaced the transmission and pump on. For about 2 weeks afterward everything worked great, but while mowing at a pretty good pace I noticed a shudder and the tractor slowed a little but not bad. The more I rode it the slower it got until it barely moves. What stumps me is the hydraulics are still very strong,as in I can back the 3 point under the bumper of my truck and if you lift the arms all the way up the front wheels of the tractor will clear the ground. Have checked the tow valve and checked the internal filter,but no luck. I have also checked and replaced the forward and reverse bypass springs and the lever is moving the cam to full travel, forward and reverse. Any help would be appreciated.
-
By Evguy
I recently purchased a GT1800 with a blown engine with the intent of conversion to electric.
This is my first Wheel Horse and I have never seen it running. I need a little work on it but it looks sound.
I will not be hacking it up, If this project goes poorly, I would want to bring it back to stock operation with new engine.
I will be creating a blog at some point to show conversation.
Budget will be tight, I will be using parts from past projects, but motor will be new permanent magnet DC.
Voltage will be 48v, as many old lithium batteries that I can fit in. I plan to retain pto clutch.
-
By mattd860
I have developed a kit that allows a Wheel Horse / Toro hydrostatic tractor to be operated by a pedal on the right side of the tractor. The original forward/reverse lever can be retained or removed. The kit includes everything needed to install the pedal kit and installation is simple with the help of a downloadable installation manual. Additionally, only one (1) 1/4" hole will need to be drilled which can be done by a hand drill. No other drilling or cutting will be necessary. Any tractor with this kit can be converted back to stock without any visible evidence that kit was installed. However, you'll never want to do that
The kit operates very simply and similar to modern tractors. When the pedal is pushed forwards the tractor will move forwards. When the reverse pedal is pressed downwards, the tractor will moved in reverse. If the operator takes his foot of the pedal at any time, the pedal will automatically center itself and the hydrostatic transmission will return to neutral (stop). This enables the operator to use both hands on the steering wheel or one hand on the wheel and the other operating an attachment like a snow blower, plow, etc.
The foot pedal is custom cast in Aluminum, uses brass bushings to minimize wear, and it closely matches the OEM Wheel Horse BRAKE pedal commonly found on 8-speed manual transmission tractors. Modifications were done to the pedal to add the reverse pedal and adapt the pedal to the rest of the kit. For the most part, the pedal looks like it was designed and manufactured by Wheel Horse / Toro. Additionally, a grease fitting has been adapted to the pedal to further minimize wear and tear and if the brass bushings ever wear out they are fully replaceable without having to buy a whole new pedal.
The pedal kit fits the following series tractors with Eaton hydrostatic transmissions: C-1X5, 300, 400, 500.
My kit can be adapted to older hydrostatic tractors with the Sundstrand transmission, however, you will need to find an updated hydro cam commonly found on ebay. Message me for more information.
Here is a link where you can download the installation manual: CLICK HERE
I am selling these kits for $330 shipped to anywhere in the United States. I offer multi order discounts as well. I will also sell to other countries for additional shipping charges to be determined.
If anyone has any questions please feel free to PM me or post your question here and I will be glad to help. Or you can email me at mattdarling02@hotmail.com.
Thanks!
Below are pictures of the complete kit and the pedal installed on the tractor. Some modifications have been made since these pictures were taken. For example, the reverse pedal is now cast in aluminum instead of the steel pedal shown below.
-
