stevieb

Sourcing a suitable PTO Electric Clutch for a D200

Recommended Posts

stevieb

Hi

I have a 1978 D200 wheelhorse powered by a Kohler twin cylinder engine

It is used for grass cutting and has a 48inch cutting deck

The manual PTO clutch is shot and I would like to fit an electric one

Any ideas where to source a suitable one?

Thanks

Steve

Share this post


Link to post
Share on other sites


JackC

If you want an electric PTO the simplest thing to do is to add a D-160 to your collection. If you have more than one you can keep different attachments on them like a mower on the D-160 and a plow on the D-200.



You can also brag about having a pair of Ds.

Edited by JackC
  • Like 1

Share this post


Link to post
Share on other sites

Sarge

That clutch can be rebuilt , although it's not all that easy nor cheap . There are some thin rings that hold the bearings in there that need removed , press out the bearings and replace . The two clutch disks are about $30 each and i believe Toro still sells them .



Sarge

  • Like 1

Share this post


Link to post
Share on other sites

stevieb

Thanks for the info on the electric PTO option it seems to be the most feasible option (but expensive), maybe I can find a good used one.



On the original Manual PTO front, in 2011 the clutch bearing disintegrated, I sourced the parts and rebuilt it (I had to re-use the thin rings that Sarge mentions above)

It worked for a while but the pulley never really engaged properly and the clutch would slip with a heavy load.

Now it needs a new rebuild and parts are becoming scarcer. I agree that it would be more original to rebuild but, unless I get some parts made, I doubt it would be possible.

Share this post


Link to post
Share on other sites

stevieb

Hi

I managed to get the clutch re-built.

Someone local built some unavailable parts and managed to manufacture some clutch linings

I think the thin rings that Sarge mentions were part of the problem (what I would call thrust washers).

Anyway I think the mower will be in action again early next week

Thanks for all your suggestions


  • Like 1

Share this post


Link to post
Share on other sites

Pollack Pete

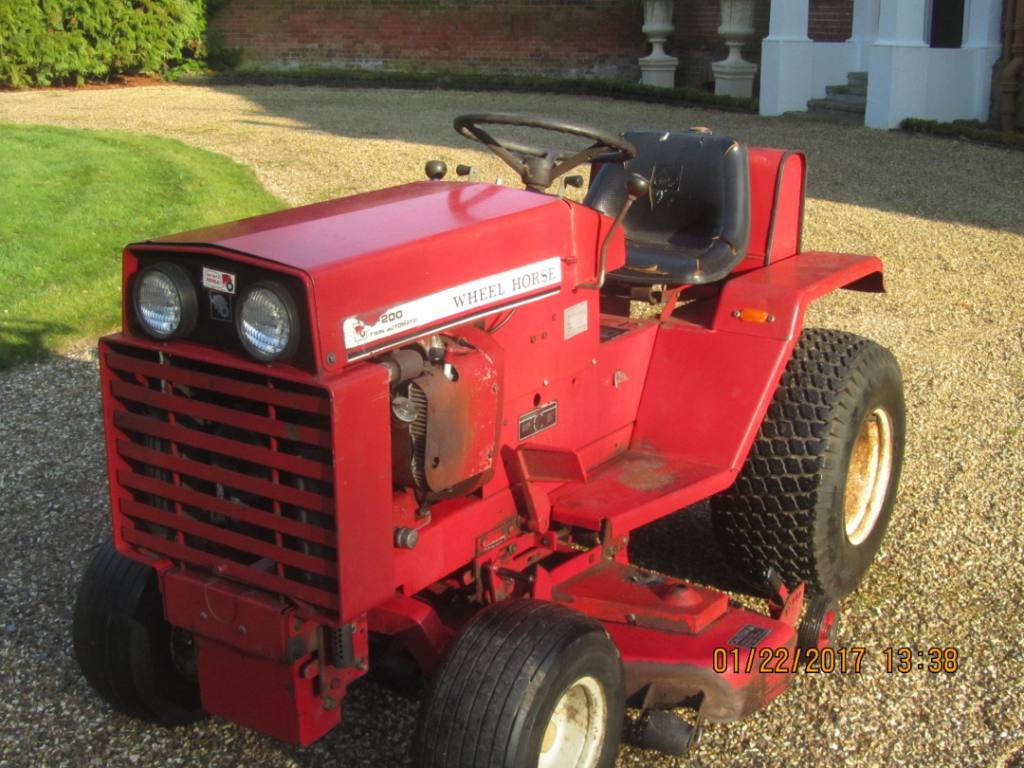

VERY nice looking D-200.Awesome looking tractors.

Share this post


Link to post
Share on other sites

Sarge

That was my point - the parts inside that clutch aren't that specific , nor that complicated and it shouldn't be too hard to make or adapt parts to rebuild it . The only thing that gets expensive is the clutch linings themselves and there are two of them ...but they are the same basically .



That's a great looking D 200 ,  btw...



Sarge

Share this post


Link to post
Share on other sites
