lynnmor 7,809 #51 Posted Monday at 05:19 PM 33 minutes ago, TonyToro Jr. said: More questions. What is the correct spark plug for this? So you still didn't download the owners manual? Owners Manual Champion RS14YC A better option to the RS14YC is the NGK and Champions below: NGK # TR4/3754 Champion # RS17YX/909 1 Share this post Link to post Share on other sites
TonyToro Jr. 1,937 #52 Posted Monday at 10:05 PM 4 hours ago, lynnmor said: So you still didn't download the owners manual? Owners Manual Champion RS14YC A better option to the RS14YC is the NGK and Champions below: NGK # TR4/3754 Champion # RS17YX/909 Haha not yet! Did just now and printed it out! 1 Share this post Link to post Share on other sites
TonyToro Jr. 1,937 #53 Posted Monday at 10:07 PM Got a few other things done today. Changed oil and filter, changed hydro oil and hydro filter. Blew out all the cooling fins and pretty much the rest of the tractor. Lubed pretty much everything that moves. Greased, and went through some connectors that were real dirty and cleaned and dielectric greased them. 2 Share this post Link to post Share on other sites
TonyToro Jr. 1,937 #54 Posted Tuesday at 01:14 AM @peter lena how’s this for non friction?? IMG_1678.mov 1 1 Share this post Link to post Share on other sites
Handy Don 14,021 #55 Posted Tuesday at 02:25 AM (edited) Ah, um, well...I have really bad news...you NEED friction! Better download and read the Eaton 11 manual about adjusting the linkage for the proper tension. Without friction, you’ll have to hold the lever in position by hand in order to keep moving--let go and it’ll change speed by itself! Edited Tuesday at 02:25 AM by Handy Don 1 Share this post Link to post Share on other sites
TonyToro Jr. 1,937 #56 Posted Tuesday at 11:26 AM 9 hours ago, Handy Don said: Ah, um, well...I have really bad news...you NEED friction! Better download and read the Eaton 11 manual about adjusting the linkage for the proper tension. Without friction, you’ll have to hold the lever in position by hand in order to keep moving--let go and it’ll change speed by itself! Thanks for telling me! I’ll look into that. Share this post Link to post Share on other sites
lynnmor 7,809 #57 Posted Tuesday at 01:03 PM 10 hours ago, Handy Don said: Ah, um, well...I have really bad news...you NEED friction! Better download and read the Eaton 11 manual about adjusting the linkage for the proper tension. Without friction, you’ll have to hold the lever in position by hand in order to keep moving--let go and it’ll change speed by itself! Yep, you can lube anything else but that cam follower needs to stay dry. Take the cam off and clean it properly and sand the friction washers flat. 1 Share this post Link to post Share on other sites
TonyToro Jr. 1,937 #58 Posted yesterday at 12:07 AM And today was the big day! Got it running! Way easier than we thought. So on the first day we did fuel lines and tank cleaning. And we didn’t have have fuel from the pump. Ordered one and a carb kit since we thought we had to do both and we put the fuel pump on. Let it prime itself with the line off before the carb and got fuel. Stuck the line on, about 2 seconds of cranking and it fired right up!! Put everything back on and took it for a ride. Hydro is nice and strong, hydraulics work. The only things that don’t work are the headlights and rpm gauge. But no big deal. Tommorow give it a nice degreasing and wash, Order up a WH parts and more hitch and a set of tires and the center cap of the steering wheel. IMG_0593.mov IMG_0594.mov 2 Share this post Link to post Share on other sites
TonyToro Jr. 1,937 #59 Posted yesterday at 12:27 AM 2 questions. Is there any way to make it go a bit faster in reverse? Which is the correct cal for the steering wheel. The toro one or the one with the Wheelhorse logo? Share this post Link to post Share on other sites
Handy Don 14,021 #60 Posted 20 hours ago (edited) 17 hours ago, TonyToro Jr. said: 2 questions. Is there any way to make it go a bit faster in reverse? Which is the correct cal for the steering wheel. The toro one or the one with the Wheelhorse logo? Nice going! The Eaton 11 manual has a detailed procedure for adjusting the motion linkage which you should look at carefully to be sure there nothing is bent or misaligned. The design of the cam keeps reverse a bit slower than forward but it should move smartly backward. The tachometer uses a specific wire (usually gray) from the engine, through the 9-pin, to the tach. Check it for solid connections. Headlights use grounding through the hood hinge--often inadequate as a conductor. Many of us have added a separate wire from the headlight housing direct to a ground on the engine. (Also, check your fuses!) Edited 19 hours ago by Handy Don 1 Share this post Link to post Share on other sites
lynnmor 7,809 #61 Posted 19 hours ago 17 hours ago, TonyToro Jr. said: Which is the correct cal for the steering wheel. The toro one or the one with the Wheelhorse logo? I guess you meant cap? Your tractor was pre-Toro so it is. 1 Share this post Link to post Share on other sites
TonyToro Jr. 1,937 #62 Posted 19 hours ago 27 minutes ago, lynnmor said: I guess you meant cap? Your tractor was pre-Toro so it is. Yep that’s went I ment. Thanks! Share this post Link to post Share on other sites

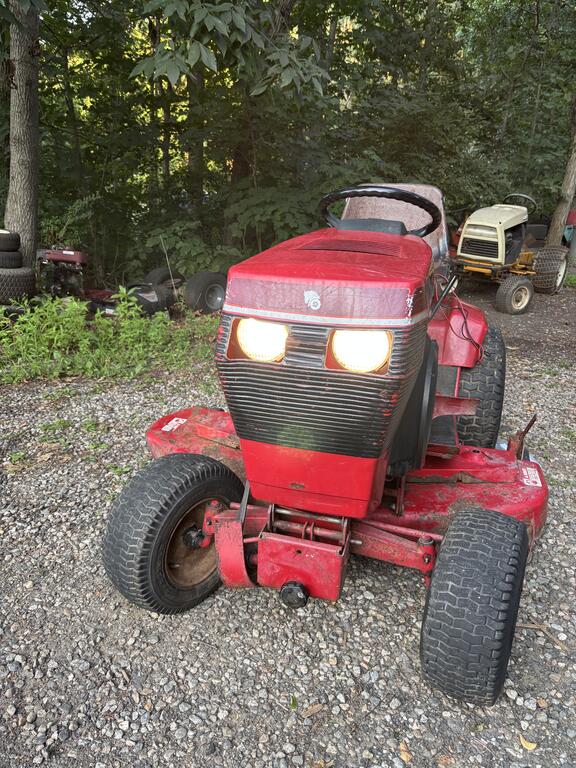

TonyToro Jr. 1,937 #63 Posted 12 hours ago Figured something out today! So first degreased and washed the 520. Then tonight decided to figure out why the headlights aren’t working. Quite simple. Got the voltmeter and got 12 volts to both lights. Decided the bulbs are shot. Had a set of LED some Brian and K&B horse parts. Put them in. And found out why the lights weren’t working! They were broken in half! So now we have headlights and put bulbs in the taillights and a set of covers I had laying around on and we got a full set of working lights! Tommorow I’m going to dig into why the engine dies when I engage the PTO. Thinking it’s since I don’t have the seat safety hooked up 🤣 But washed the mower deck too and sharpened the blades. And mounted it back up. But probably won’t stay on for long. 1 Share this post Link to post Share on other sites
kpinnc 14,601 #64 Posted 11 hours ago (edited) 55 minutes ago, TonyToro Jr. said: Figured something out today! Always great to figure out ANY electrical issue! Looks like your front wheels are way off from one another. Might better check to see if those tie rods are the same length... Looks like you'll get alot of service out of that machine. Well done! Edited 11 hours ago by kpinnc Share this post Link to post Share on other sites
TonyToro Jr. 1,937 #65 Posted 6 minutes ago 11 hours ago, kpinnc said: Always great to figure out ANY electrical issue! Looks like your front wheels are way off from one another. Might better check to see if those tie rods are the same length... Looks like you'll get alot of service out of that machine. Well done! Yep that’s next on my list. I have the pair just need to put them on. Share this post Link to post Share on other sites
