Easton Rich

This is my 653 I just acquired today, yep not much here but just wait. Why did I get it? I don’t really know, but it’s cool and I like round hoods. Follow along as it gets nut and bolt restoration, and I will finally have a trailer queen! Pictures when the rain passes

  • Like 2

Share this post


Link to post
Share on other sites

Easton Rich

The motor is a K181 which is going on. As you see it needs fenders and a gas tank, I have a wanted ad in the classifieds so pm me if you’ve got something. This will be a longer build so stick with me!






  • Like 6

Share this post


Link to post
Share on other sites

ML3
2 hours ago, Easton Rich said:

The motor is a K181 which is going on. As you see it needs fenders and a gas tank, I have a wanted ad in the classifieds so pm me if you’ve got something. This will be a longer build so stick with me!






Cool! Will enjoy watching the restoration process. I like the round hoods too! I have a 654 which is my "working" tractor. I mow & plow snow with it. Its cool when people drive by as Im out working it & I get horn blows w/thumbs up! Its not perfect but it really would be a great candidate for a proper restoration. My 753 is a show tractor. Got a couple RJs & a Suburban too.



I'll look cause I may have fenders. I'm starting to lose track of what all I have anymore.........🙄

  • Like 2

Share this post


Link to post
Share on other sites

Easton Rich

Yessir I’m excited! Thanks for checking!

  • Like 1

Share this post


Link to post
Share on other sites

Easton Rich

Weird question, why did my shifter COME OUT when I tried to shift into gear and it turned in a 360?


  • Like 1

Share this post


Link to post
Share on other sites

kpinnc
1 hour ago, Easton Rich said:

Weird question, why did my shifter COME OUT when I tried to shift into gear and it turned in a 360?



Might be missing this little guy. Part number 1239. Screws into the front of the tranny case and the pin goes in that hole in the shifter ball.




  • Like 3

Share this post


Link to post
Share on other sites

Easton Rich

I’ll check, I was just messing with it to see if it would go into gear because the rear end is LOCKED UP. Thanks

  • Like 1

Share this post


Link to post
Share on other sites

Easton Rich

If any of you have an old round hood with a fuel tank let me know! @Chris G might have me covered for fenders

  • Like 1

Share this post


Link to post
Share on other sites

953 nut
19 hours ago, Easton Rich said:

I’ll check, I was just messing with it to see if it would go into gear because the rear end is LOCKED UP. Thanks

Read this thread.



  • Like 1

Share this post


Link to post
Share on other sites

Easton Rich

Yeah, that’s what I’m missing. The stud with the jam nut. Thanks!

  • Like 1

Share this post


Link to post
Share on other sites

Easton Rich

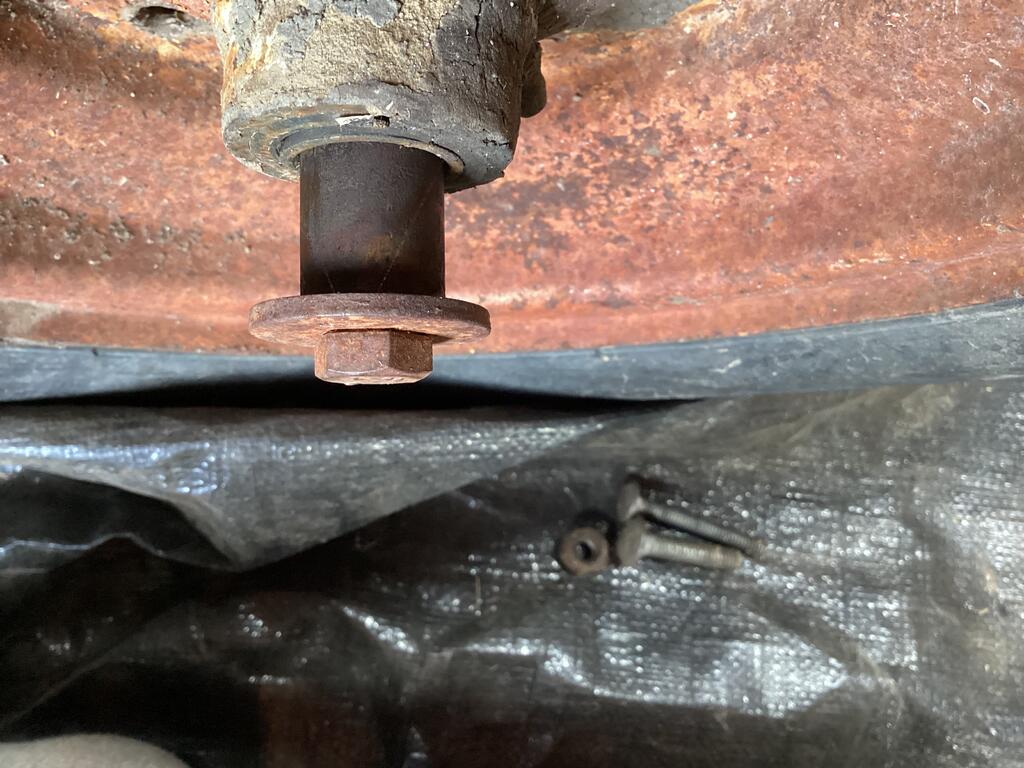

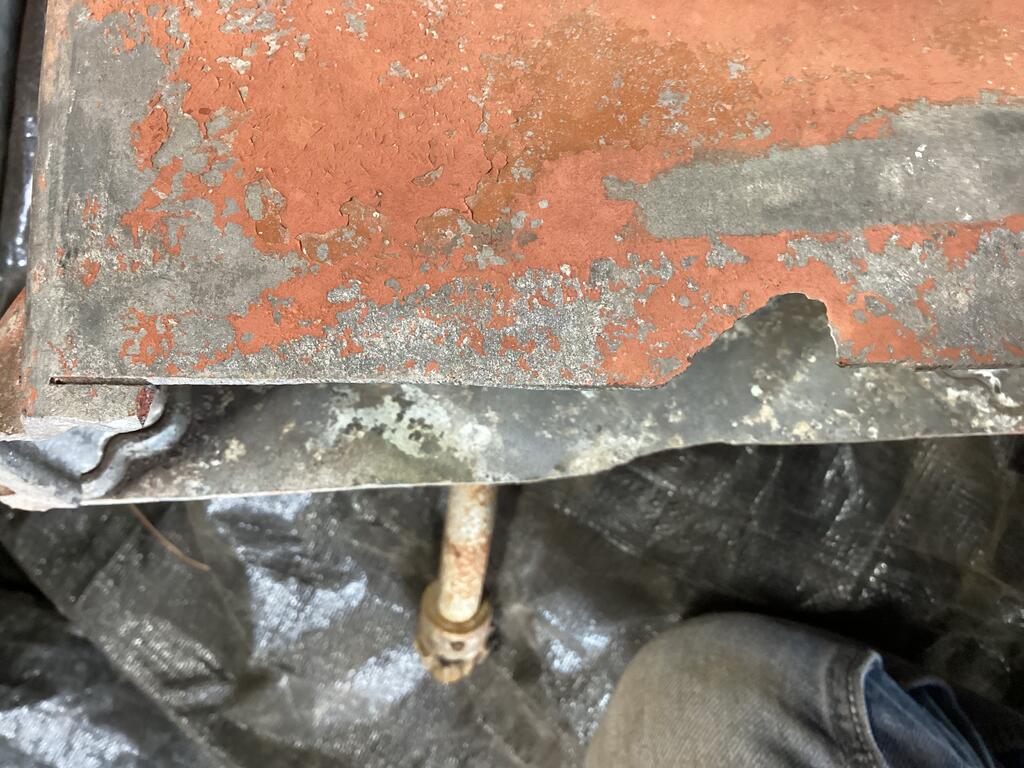

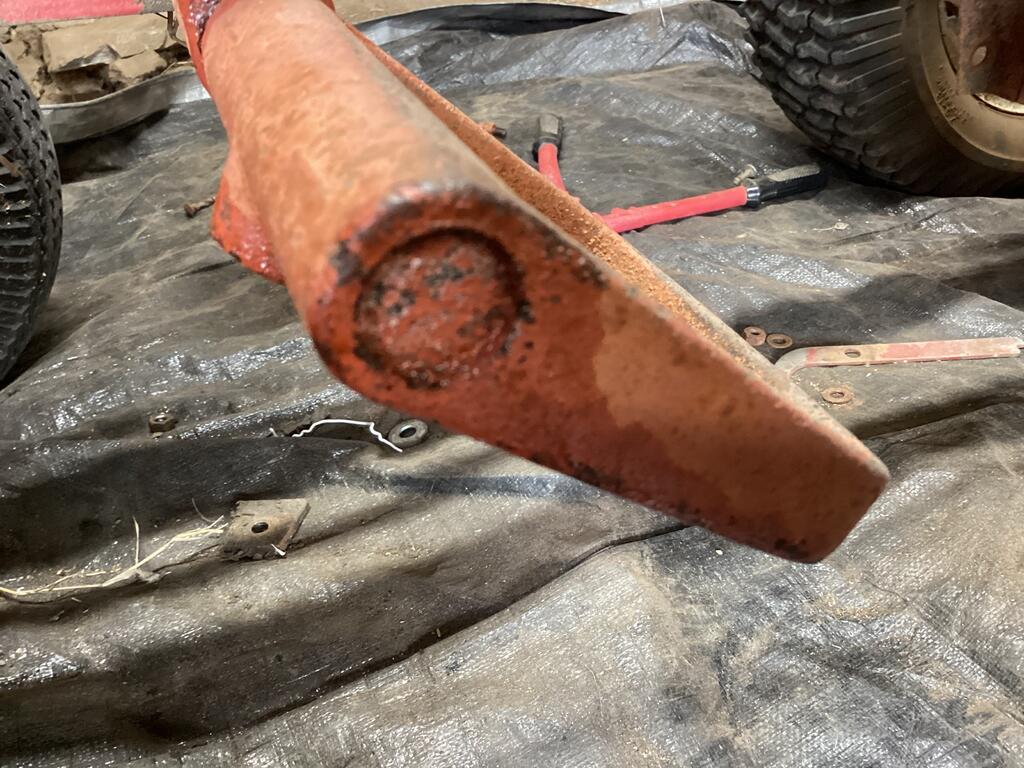

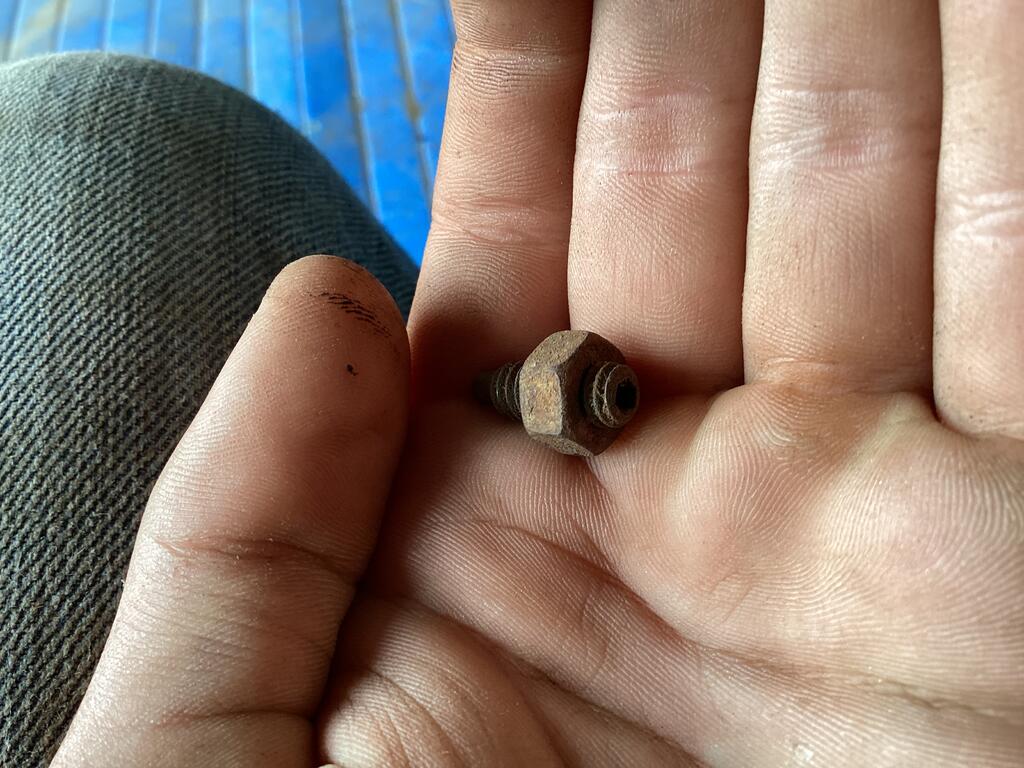

Well back on this turd now that I got everything running for this season (I hope). Guess what I found in the pile of parts I got with the tractor? That little jam nut! I’ve got that jank start 8hp Briggs off and my cut fuel tank along with my dash tower. Ive got three questions, 1 How long are these spindles supposed to be? 2. What’s the best way to get this steering wheel of the shaft? 3. How do you get these food board off? I know I know you want pictures




Share this post


Link to post
Share on other sites

Easton Rich

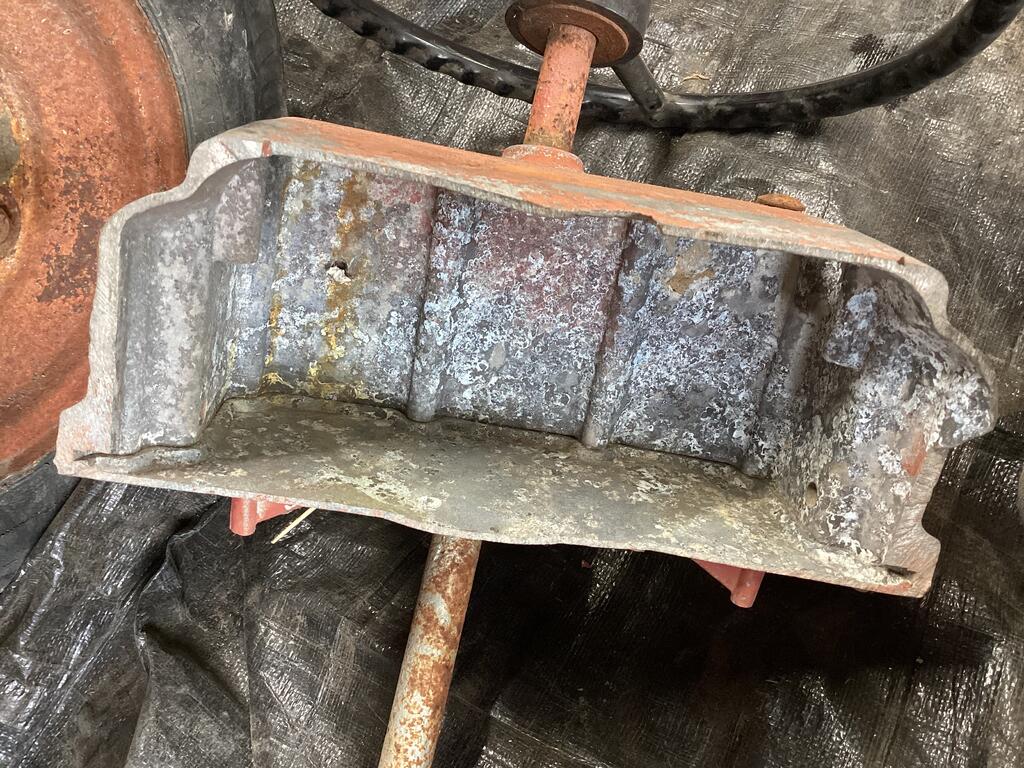

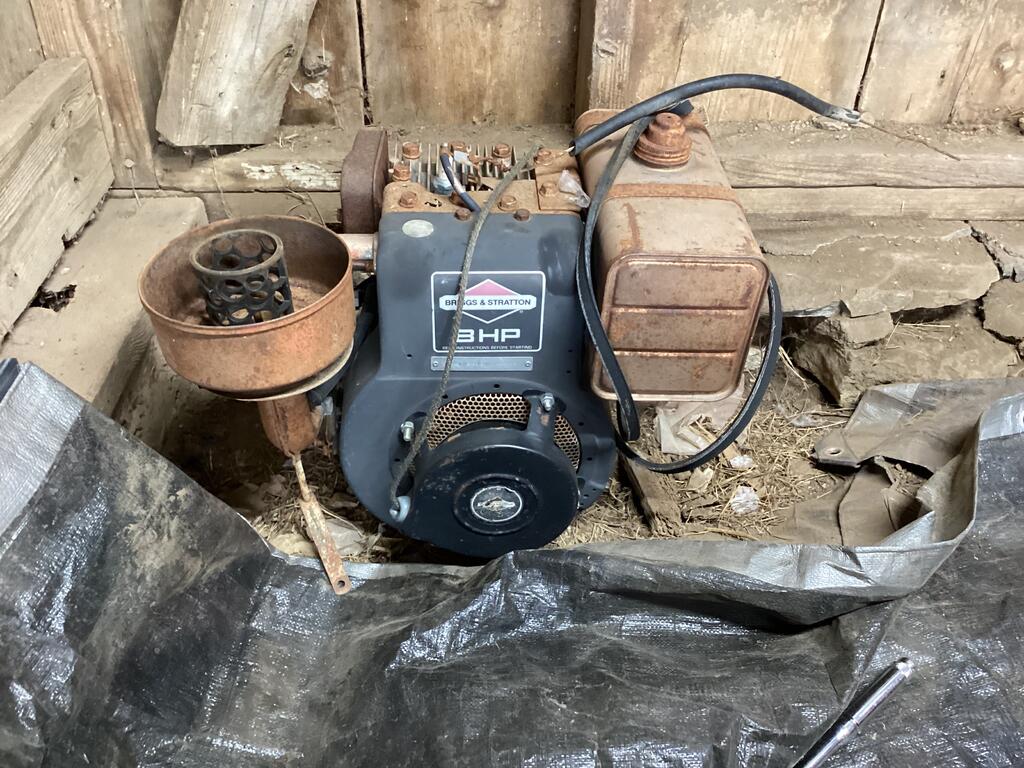

 For those who don’t believe me when I say they cut the fuel tank, I mean they literally chopped the other half. Is this Briggs that came off worthy of fixing? It’s not locked up and it’s complete. If any of you are interested let me know




Share this post


Link to post
Share on other sites

Easton Rich

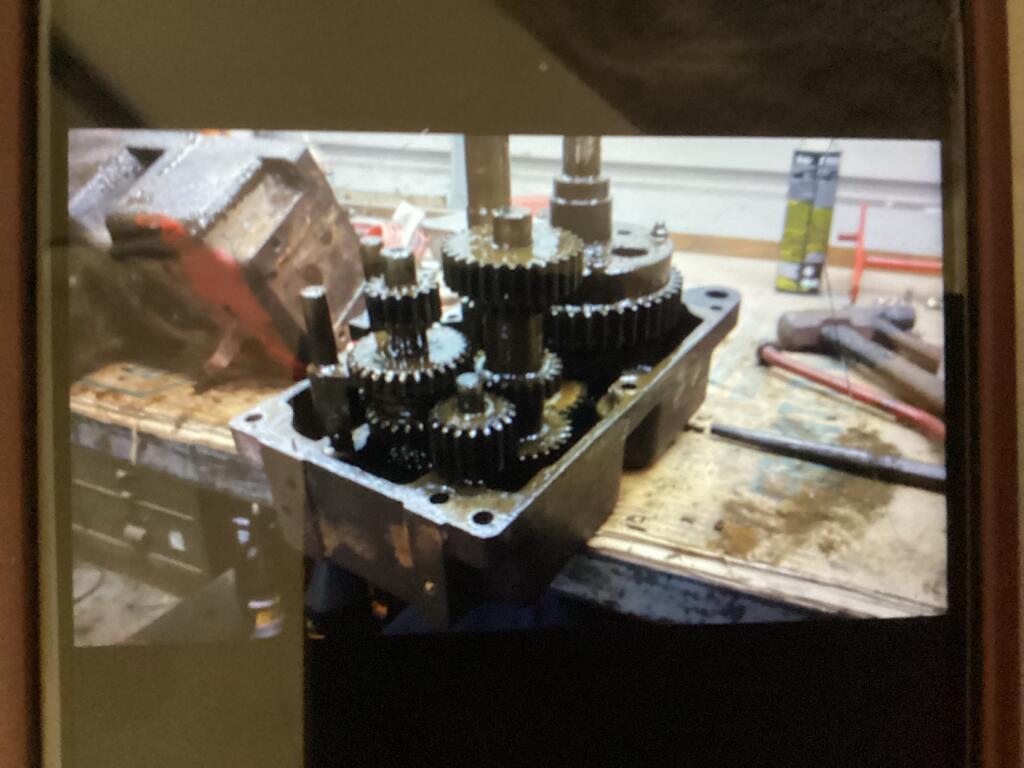

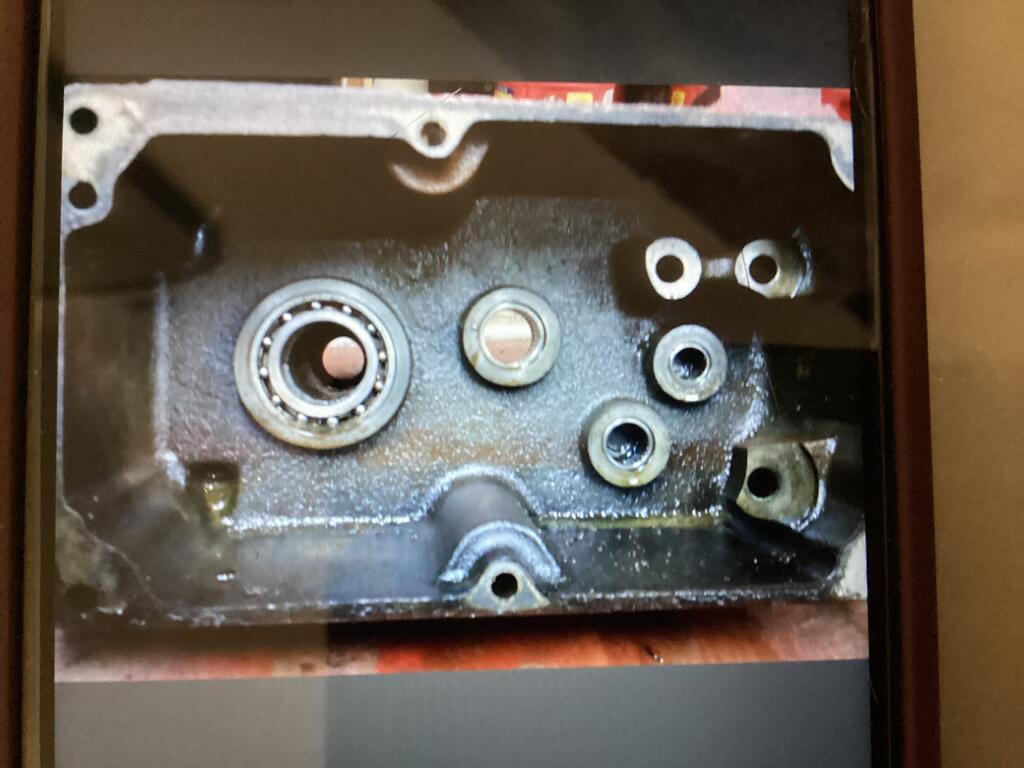

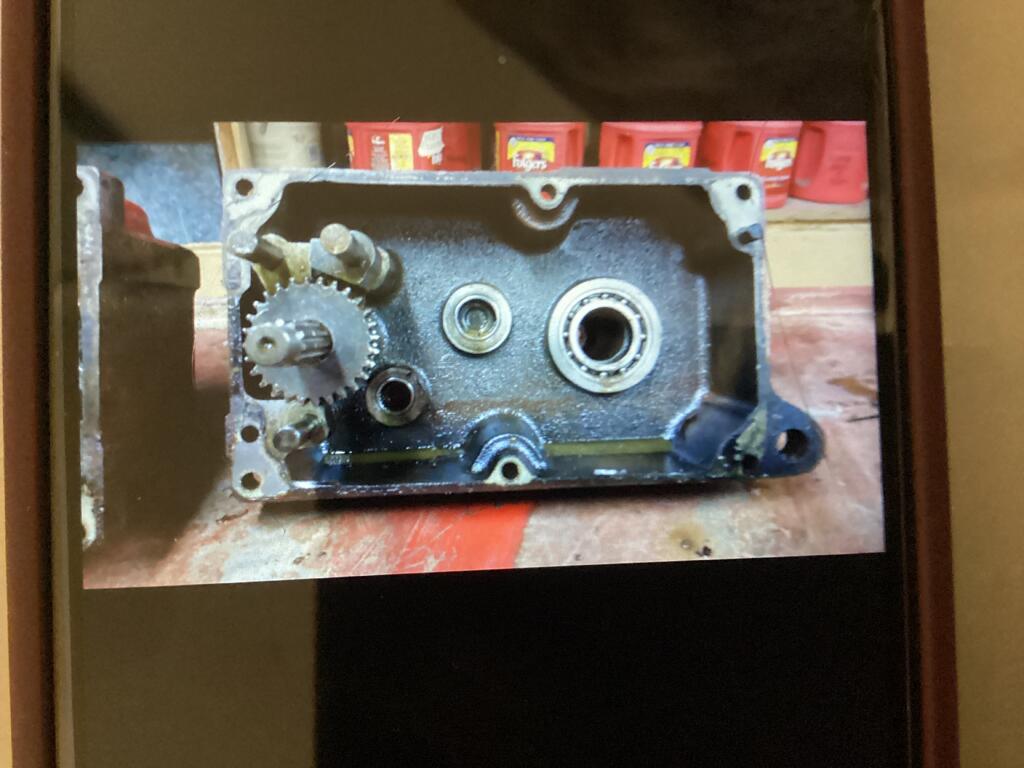

What is the stock model number for this tranny?

Share this post


Link to post
Share on other sites

Lee1977
12 hours ago, Easton Rich said:

What is the stock model number for this tranny?

Don't know the model number, but ithink all one inch axle model 8 speeds are the same.

Share this post


Link to post
Share on other sites

Easton Rich

I believe this is a 3 speed

Share this post


Link to post
Share on other sites

Easton Rich

But I didn’t know if there were any differences between them

Share this post


Link to post
Share on other sites

Handy Don

Interesting re-power to the B&S 8 and the sacrifice of the fuel tank!

That would have had a Lausen/Tecumseh 6hp electric start when new with the tank sticking out of the rearward part of the hood.

Share this post


Link to post
Share on other sites

Easton Rich

Yes. I still can’t seem to find a tank

Share this post


Link to post
Share on other sites

Handy Don
14 hours ago, Easton Rich said:

Yes. I still can’t seem to find a tank

There are two flavors of this tank. A one-piece from 61-62 and a two-piece (like the cut one in your picture) from 63-64. The early one needs a separate dashboard and the latter has the dash built in.

Clearly, the tank on your 653 was cut to accommodate the shape of that bulky B&S with the attached fuel tank.

They are not all that hard to find. Put a “want” in the classifieds and post your interest in the Big Show buy & sell thread.

Share this post


Link to post
Share on other sites

Easton Rich

Yessir, I’ve got a want in the classifieds, and I posted in the buy sell trade thread. Thanks!!!:handgestures-thumbupright:
