Looking for shaft part number

[Spottedeventer 1]

Hi! The shafts of my fathers old 314-8, deck number 73449 have worn to the point the blades don’t stay secured. I’ve struck out tonight trying to find a part number. If anyone can assist, I would greatly appreciate it.


thank you,





Patricia

[gwest_ca-(File Mod) 10,499]

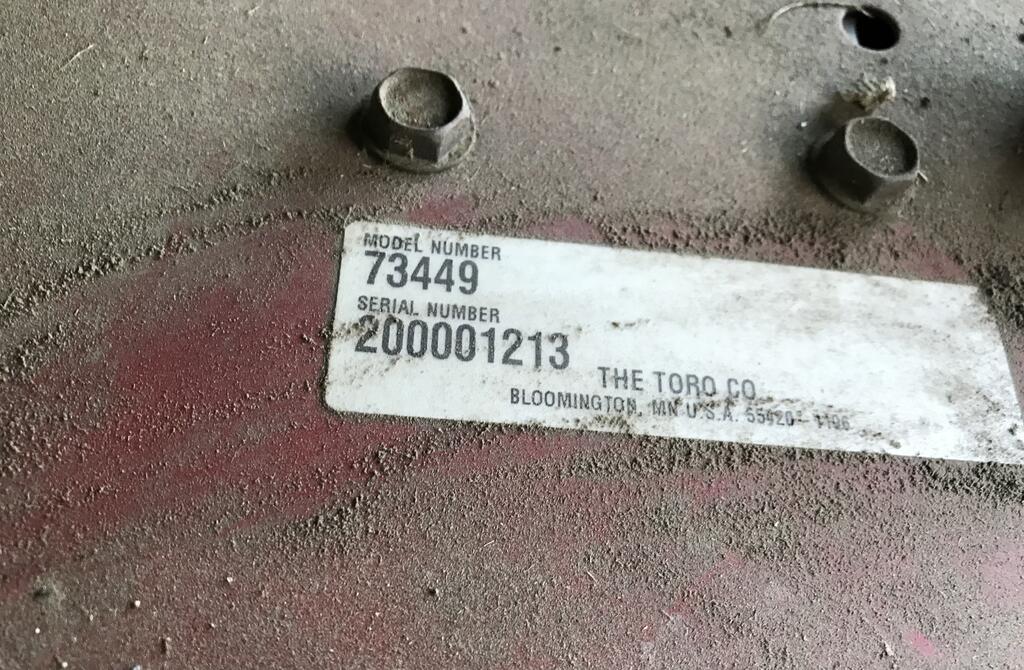

73449 is the model number of the 314-8. What is the model number of the mower deck?

[Spottedeventer 1]

Edited August 2, 2023 by Spottedeventer
That’s what is on the deck

[lynnmor 6,786]

That sticker is on the tractor, we need the sticker on the mower deck.





[Pullstart 59,733]

@Spottedeventer a picture of the overall right side of the machine might help us determine the deck model as well, or close enough to find the replacement spindles for you.

[953 nut 51,721]

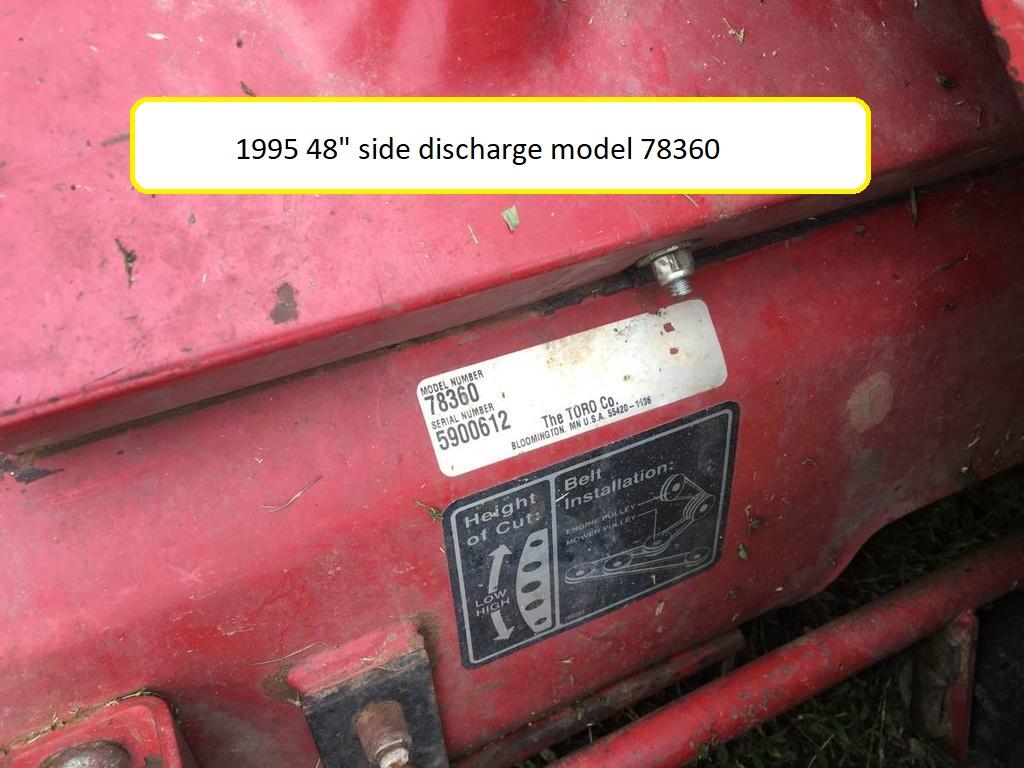

Most Wheel Horse mower decks of this vintage use the same spindles and other parts. Download this file and it will give you all the information you should need.





[Spottedeventer 1]

Thank you!!!!

[Spottedeventer 1]

Thank you!!!!

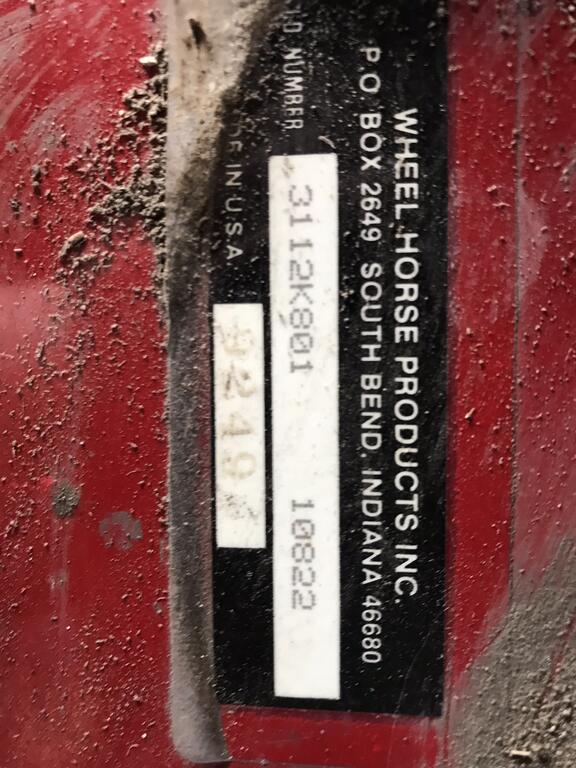

I will take a pic of the right side in the morning. These are the plates that are on the lower and the deck.

[gwest_ca-(File Mod) 10,499]

We are looking for the model number of the mower deck.

[Lee1977 6,217]

The spindles should be metric that is a model 2000 314-8 tractor.  2000 model deck for a 300 series tractor spindle shaft Toro 112674.

A metric spimdle is 5/8" at the top, 17 mm at the bearings, and 3/4" at the blade.

Edited August 3, 2023 by Lee1977
