Taillight Wire Routing

[TractorEd 516]

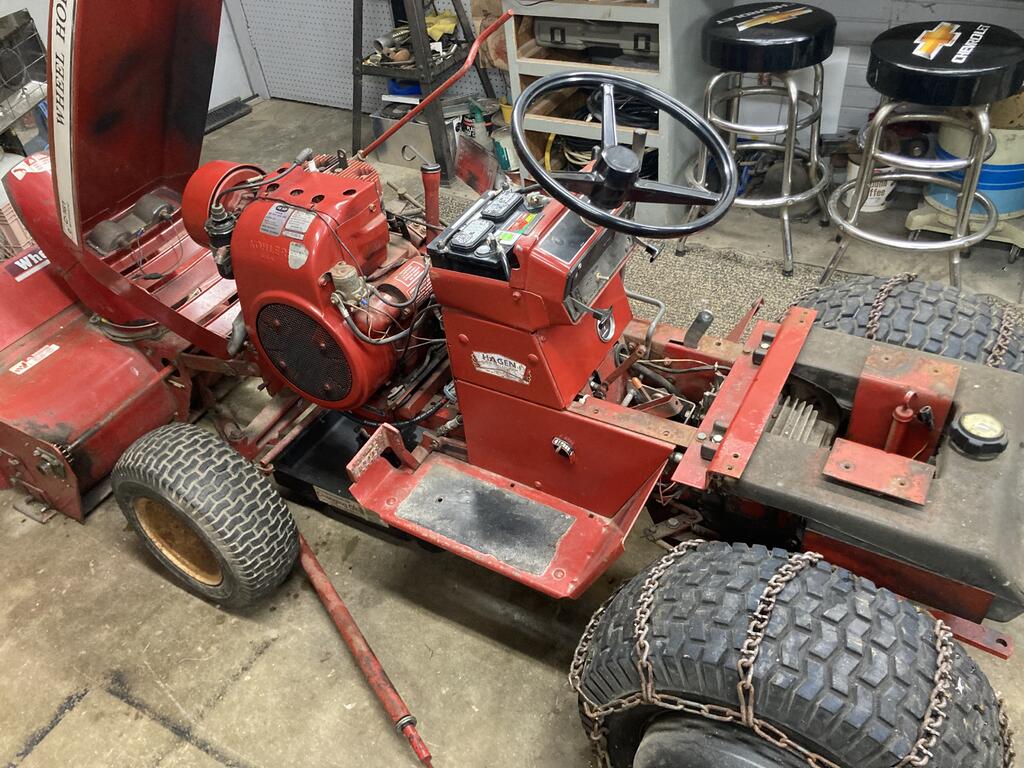

I’m trying to determine the routing that was originally used on the taillights of a rear gas tank mounted model with 2 taillights.  Or advice on how others have routed it from the taillights to the 3-way connector in the cavity below the fender/seat pan.

I’ve never seen this tractor put together.



The most obvious routes for the positive leads would lay against the plastic gas tank in the rear; either across the top of it or against the sides/corners.

Also, the parts diagram shows the ground wire going from one taillight to the other and then runs to a ring terminal, but not sure where that ran to either.



Pics?



I’m working on a ‘79 C-161 but it could be just about any model/year rear tank Horse with dual taillights.


Thanks, Ed



Edited January 22, 2023 by TractorEd

[Blasterdad 2,564]

Mine just lay on top of the tank & plug into the connector, you can see it next to the dipstick in the pic.

You can ground it pretty much anywhere...





[TractorEd 516]

1 minute ago, Blasterdad said:

Mine just lay on top of the tank & plug into the connector, you can see it next to the dipstick in the pic.

You can ground it pretty much anywhere...





Thank you for the info, Blasterdad.

[peter lena 8,068]

@TractorEd  used  TYE WRAP  STICK ON MOUNTS ,  and spiral wire wrap , also did a reroute  of original  wire set up . also enhance  engine grounding , for related   electrical connections . verify as you set it up for function , original ground area s typically  rust /  paint make for  trouble spots , pete



[TractorEd 516]

53 minutes ago, peter lena said:

@TractorEd  used  TYE WRAP  STICK ON MOUNTS ,  and spiral wire wrap , also did a reroute  of original  wire set up . also enhance  engine grounding , for related   electrical connections . verify as you set it up for function , original ground area s typically  rust /  paint make for  trouble spots , pete



Thanks for the info!  I’d like to see how you routed it.  I may do the same.

[peter lena 8,068]

 @TractorEd  ED  typically  when I  do over any wire set up , l eliminate  tight stressed wiring , chafed areas , set up a  out of the way  area. the wire wrap contains it / protects it , those tye wrap mounts like any clean paint . the added grounding is basically  an added ground cable from battery ground bolt point to frame / engine corner , that insures any related connections to engine are grounded , also on to head lights , a few other  improvements  I  have also added .  note 4 th picture down , yellow electrical lug from rectifier base to headlights . solid bright , because the block is grounded to frame , springs  assist choke and throttle cables , to close . use SUPER LUBE OIL in those cables , smooth / easy . ideas that work , lots of hours , and no failures , pete



[c-series don 7,815]

I believe from the factory there’s one wire that runs over the top of the gas tank and the lights are grounded through the fender pan.

[TractorEd 516]

15 hours ago, c-series don said:

I believe from the factory there’s one wire that runs over the top of the gas tank and the lights are grounded through the fender pan.

Thank you c-series don!





[peter lena 8,068]

@TractorEd  regularly  use  https://www.bing.com/images/search?q=mechanical+electrical+lugs&id=46B5B352C3AA85C1343D901346F975C312472B68&form=IQFRBA&first=1&disoverlay=1  only as a type of  connection for reference , but you can easily add to it . would be in the contractor section , especially  good  in a new grounding  layout . easy access  / addition . also regularly go after any , repetitive  issue areas .  example , linkage function areas , fuel issues , charging , starting ,TAKE ADVANTAGE OF A FAILURE  , can you make  it  act up anytime ?  thats how I  go after any issue . but then I  will also  detail it in for function / operation . every one of my chronic problems , is now a strong point , eliminate / improve every stage . this is only my view of  problem solving . make it reliable , pete

[TractorEd 516]

@Blasterdad @peter lena @c-series don



Appreciate all your help!

I don’t like running these wires on top of the fuel tank, but that’s the best route to take so I’m going to. 😀



But I’ve just ordered some of this fire retardant and abrasion resistant sleeve material that I’ll run the wire through.



PET Expandable Braided Sleeving 100Ft-1/8 inch Wire Loom, Aibole Braided Cable Sleeve Wire Wrap,Black&Red https://a.co/d/8N3rcF8



I really appreciate all the feedback!

Thanks again,

Ed

Edited January 26, 2023 by TractorEd
Spelling correction

[c-series don 7,815]

@TractorEdPlease keep us updated with your progress.

[TractorEd 516]

7 hours ago, c-series don said:

@TractorEdPlease keep us updated with your progress.

@c-series don

You prompted me to create a thread just for that purpose.

Your collection is awe inspiring!  Really incredible looking machines!





[c-series don 7,815]

@TractorEd Thanks Ed, I’ve added a few more to my collection since I last took a group photo! This summer I hope to take them all out for a new photo.
