Relay Low oil 106833 replaced by 99-5365 kit List 1.0.0

Sign in to follow this


2 Screenshots

About This File

Taken from #492-4207 and #492-4509 Electrical manuals and PSB's

1 page 64KB


Used as a kill relay on 1981 B-Series tractors with magneto ignition. The battery style ignition switch controls the relay to ground the magneto ignition.

Starting in 1986 used in the low-oil starter circuit for single-cylinder Kohler engines.


106833 3-terminal relay replaced by a 5 terminal substitute in production because of a parts shortage.

These were replaced by SA121378 service assembly which was replaced by 99-5365 kit.

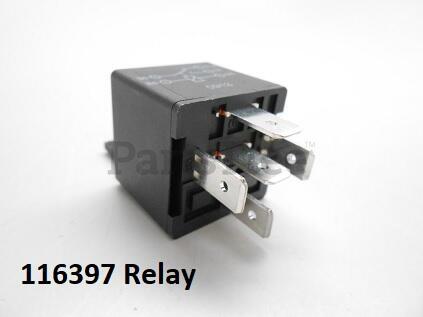

The 99-5365 kit contained a 48-4700 relay which has been replaced by 116397 relay.

116397 relay used on 1990 312-8 for the low oil starter circuit and 1990 200-Series and 500-Series as a starter relay.


82-12o502*C - Correct and Tractor Series

82 -12o502 - Not correct

82-12o502 - Suspicious and not checked or determined yet


106833 Low oil relay used on

1986 models 21 -08K801, 21 -08K802, 21-10K802*300, 21-10K803*300, 21-12K802*300, 21-12K803*300, 21-12KE01*300, 21-12KE02*300, 31-14K801*400, 31-16K802*400, 31 -17K802, 31 -17KE02, 31 -20KE01


1987 models 21 -08K803, 21-10K804*300, 21-12K804*300, 21-12KE03*300, 31-14K802*400, 31-16K803*400, 31 -18K801, 31 -18KE01, 41 -18KE01


1988 models 21 -08K804, 21-10K805*300, 21-12K805*300, 31-14K803*400, 31-16K804*400, B1 -16O801, E1-12K801


1989 models 21-10K806*300, 21-12K806*300, 31-14K804*400, 31 -16O801, B1 -16O802, E1-12K802


1990 models R1-12K801, R1 -16O801
