Relay Ignition kill 106833 replaced by 99-5365 kit List 1.0.0

Sign in to follow this

gwest_ca

8 Screenshots

About This File

Taken from #492-4207 and #492-4509 Electrical manuals and PSB's

1 page 64KB



Used as a kill relay on 1981 B-Series tractors with magneto ignition. The battery style ignition switch controls the relay to ground the magneto ignition.

Starting in 1986 used in the low-oil starter circuit for single-cylinder Kohler engines.

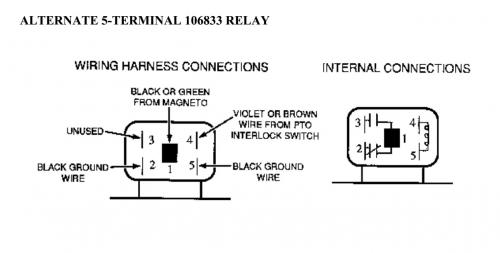

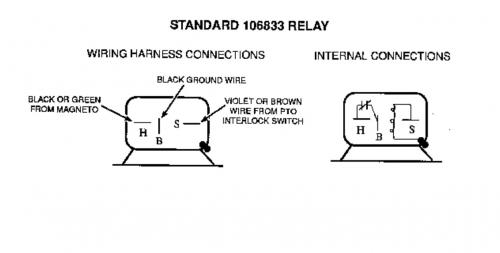

106833 3-terminal relay replaced by a 5 terminal substitute in production because of a parts shortage.

These were replaced by SA121378 service assembly which was replaced by 99-5365 kit.

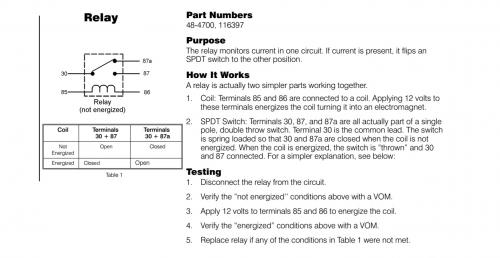

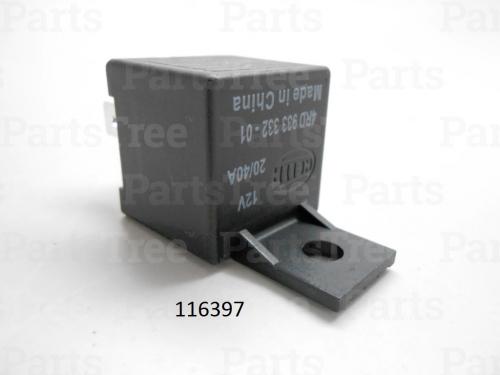

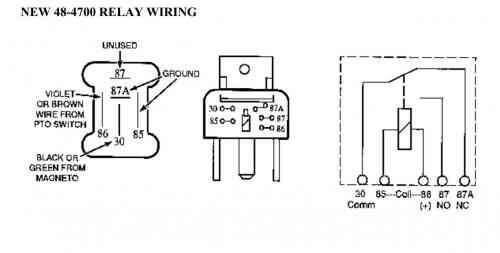

The 99-5365 kit contained a 48-4700 relay which has been replaced by 116397 relay.

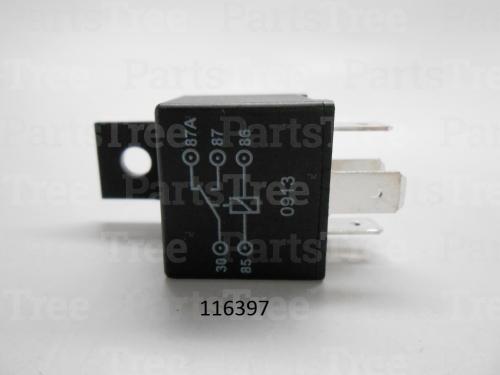

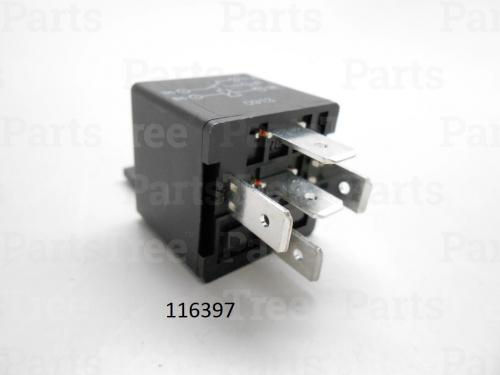

116397 relay used on 1990 312-8 for the low oil starter circuit and 1990 520-H as a starter relay.



82-12o502*C - Correct and Tractor Series

82 -12o502 - Not correct

82-12o502 - Suspicious and not checked or determined yet



106833 Ignition kill relay used on

1978 models 81 -08K801, 81 -10K801, 81 -12K801, 81 -12KS01, 81 -14K801, 81 -14KS01, 81-16B801*C, 81-16BS01*C, 81 -16K801, 81 -16KS01



1979 models 91 -08K801, 91 -08K802, 91 -10K801, 91 -10K802, 91-11B801*C, 91 -12K801, 91 -12K802, 91 -12KS01, 91 -14K801, 91 -14K802, 91 -14KS01, 91-16B801*C, 91-16B802*C, 91-16BS01*C, 91-16BS02*C, 91 -16K801, 91 -16KS01



1980 models 01-11B803*, 02-08BP01*B, 02-11BP02*B, 02-11BX01*B, 02-16BP01*B



1981 models 01-11B804*GT, 02-08BP02*B, 02-08BP03*B, 02-11BP03*B, 02-11BP04*B, 02-11BX02*B, 02-11BX03*B, 02-16BP02*B, 02-16BP03*B



1982 models 01-11BH01*SB, 01 -16KH01, 02-11BH01*SB



1986 and later models used 106833 as a low oil relay
