Tractor 1971 GT-14 D&A Wiring Rev SN.pdf

Sign in to follow this

gwest_ca

7 Screenshots

About This File

Wiring Color pdf
1 page 417KB

Terminals on 8362 magneto ignition switch may not be identified
1 page 126KB

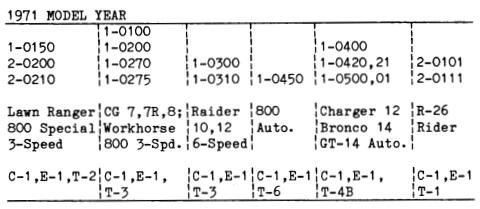

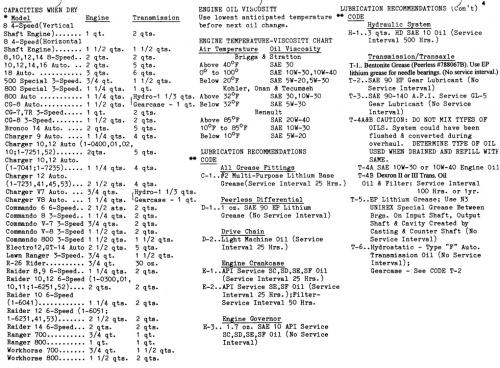

Lube chart SS

Details & Attachments
3 pages 115.45KB



Uses Kohler K321S-60125B with electric start, starter solenoid, 15 amp stator, electric clutch and breakerless ignition

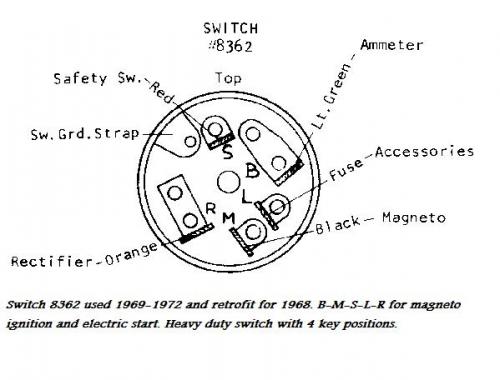

Uses 8362 (Threads 9/16"-24) 5-terminal 4-position (L-B-M-S-R) breakerless ignition switch



Transmission drive belt 8334 - (B x 84.8" or 5/8" x 84.8") Listed in belt chart



1971 GT-14 model 1-0500

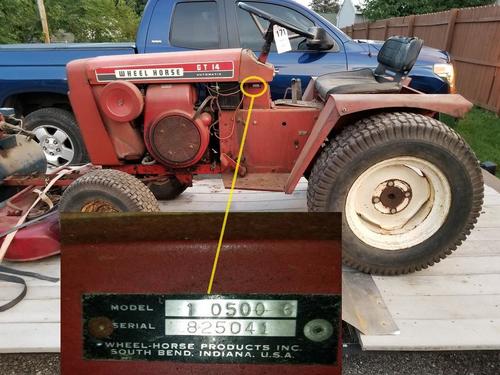

1971 serial numbers that have shown up for the 1-0500
751423
755860

755915 - Model 1-0500-6
755928
790510

790513 - Model 1-0500-6
790589
790618
790622 - Model 1-0500-6
790634
790676

790678 - Model 1-0500-6
790743
807214

825041 - Model 1-0500-6
825066

--------------------------------------------------------------------------------------



Details & Attachments

3 pages 115.25KB



Uses Kohler K321S-60125B with electric start, starter solenoid, 15 amp stator, electric clutch and breakerless ignition

Uses 8362 (Threads 9/16"-24) 5-terminal 4-position (L-B-M-S-R) breakerless ignition switch



Transmission drive belt 8334 - (B x 84.8" or 5/8" x 84.8") Not listed in belt chart



1971 GT-14 model 1-0501
1971 serial numbers that have shown up for the 1-0501




×
×
