1978-1984

Black Hoods

253 files

  1. Free

    Tractor 1978 C-161 Auto D&A TIPL Wiring SN.pdf

    IPL from Toro Master Parts Viewer
    47 pages 3.53MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

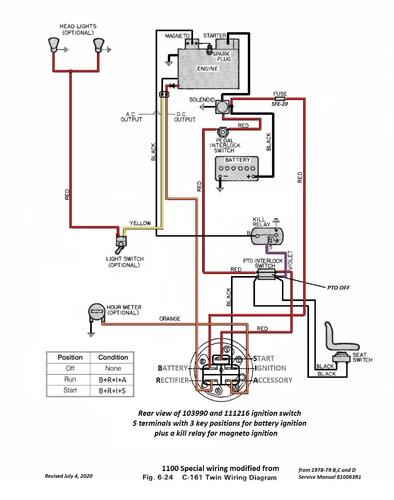

    1978 to 1981 Wheel Horse C-Series (with Kohler) Wiring Demystification.
    4 pages 150.01KB

    Tractor drive belt # 7478 replaces # 4535 (HB/5L x 84.22" or 5/8" x 84.22")
    Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379

    Lube chart SS

    Details & Attachments
    4 pages 123.57KB

    1978 C-161 Auto model 81-16KS01

    1978 serial numbers that have shown up for the 81-16KS01
    006345
    006398 - Build date 1978 8047 February 16 Thursday
    006476 - Build date 1978 8088 March 28 Monday
    006481 - Build date 1978 8088 March 28 Monday

    Links
    For tractor service manual see
    For electrical service manual see
    For Sundstrand service manual see
    For Hydraulic service manual see
    For Hydraulic lift service manual #492-4208 see

    84 downloads

    Updated

  2. Free

    Tractor 1978 C-161 8-Speed D&A TIPL Wiring SN.pdf

    IPL from Toro Master Parts Viewer
    43 pages 3.35MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    1978 to 1981 Wheel Horse C-Series (with Kohler) Wiring Demystification.
    4 pages 150.01KB

    Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379
    Transmission drive belt 78-7100 replaced by 7473 - (HB x 81.9" or 5/8" x 81.9")
    Lube chart SS

    Details & Attachments
    4 pages 122.26KB

    1978 C-161 8-Speed model 81-16K801

    1978 serial numbers that have shown up for the 81-16K801
    011574 - Build date 1978 8108 April 18 Tuesday
    011756 - Could be a 1979 model - Located in the UK - Does not look like a Belgium serial number
    013974 - Build date 1978 8122 May 02 Tuesday
    019859 - Build date 1978 8205 July 24 Monday
    162474 - Made in Belgium - Located in UK - Stamped 81-16K8-01

    Links
    For tractor service manual see
    For electrical service manual see
    For transmission service manual see low resolution
    For transmission service manual see high resolution

    65 downloads

    Updated

  3. Free

    Tractor 1978 C-141 Auto D&A TIPL Wiring SN.pdf

    IPL from Toro Master Parts Viewer
    47 pages 3.52MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    1978 to 1981 Wheel Horse C-Series (with Kohler) Wiring Demystification.
    4 pages 150.01KB

    Tractor drive belt # 7478 replaces # 4535 (HB/5L x 84.22" or 5/8" x 84.22")

    Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379

    Lube chart SS

    Details & Attachments
    4 pages 122.84KB

    1978 C-141 Auto model 81-14KS01
    1978 serial numbers that have shown up for the 81-14KS01
    004299 - Build date 1978 8025 January 25 Wednesday
    016920
    017000 - Build date 1978 8115 April 25 Tuesday
    020188 - Build date 1978 8116 April 26 Wednesday
    020265 - Build date 1978 8144 May 24 Wednesday

    Links
    For tractor service manual see
    For electrical service manual see
    For Sundstrand service manual see
    For Hydraulic service manual see
    For Hydraulic lift service manual #492-4208 see

    63 downloads

    Updated

  4. Free

    Tractor 1978 C-141 8-Speed D&A TIPL Wiring SN.pdf

    IPL from Toro Master Parts Viewer
    43 pages 3.35MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    1978 to 1981 Wheel Horse C-Series (with Kohler) Wiring Demystification.
    4 pages 150.01KB

    Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379
    Transmission drive belt 78-7100 replaced by 7473 - (HB x 81.9" or 5/8" x 81.9")

    Lube chart SS

    Details & Attachments
    4 pages 122.08KB

    1978 C-141 8-Speed model 81-14K801

    1978 serial numbers that have shown up for the 81-14K801
    000894
    003504 - Build date 1978 8017 January 17 Tuesday
    009030
    009073
    009133
    009210 - Build date 1978 8082 March 23 Thursday
    011217 - Build date 1978 8096 April 06 Thursday
    013780 - Build date 1978 8136 May 16 Tuesday
    164518 - Made in Belgium - Located in the UK
    165051 - Made in Belgium

    Links
    For tractor service manual see
    For electrical service manual see
    For transmission service manual see low resolution
    For transmission service manual see high resolution

    81 downloads

    Updated

  5. Free

    Tractor 1978 C-121 Auto D&A TIPL Wiring SN.pdf

    IPL from Toro Master Parts Viewer
    47 pages 3.53MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    1978 to 1981 Wheel Horse C-Series (with Kohler) Wiring Demystification.
    4 pages 150.01KB

    Tractor drive belt # 7478 replaces # 4535 (HB/5L x 84.22" or 5/8" x 84.22")

    Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379

    Lube chart SS

    Details & Attachments
    4 pages 122.75KB

    1978 C-121 Auto model 81-12KS01

    1978 serial numbers that have shown up for the 81-12KS01
    003879 - Build date 1977 7354 December 20 Tuesday
    005951
    008403 - Located in UK
    011672 - Build date 1978 8018 [3018] January 18 Wednesday
    020090
    020149 - Build date 1978 8166 June 15 Thursday

    Links
    For tractor service manual see
    For electrical service manual see
    For Sundstrand service manual see
    For Hydraulic service manual see
    For Hydraulic lift service manual #492-4208 see

    42 downloads

    Updated

  6. Free

    Tractor 1978 C-121 8-Speed D&A TIPL Wiring SN.pdf

    IPL from Toro Master Parts Viewer
    43 pages 3.35MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    1978 to 1981 Wheel Horse C-Series (with Kohler) Wiring Demystification.
    4 pages 150.01KB

    Tractor drive belt # 7478 replaces # 4535 (HB/5L x 84.22" or 5/8" x 84.22")

    Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379

    Lube chart SS

    Details & Attachments
    4 pages 122.00KB

    1978 C-121 8-Speed model 81-12K801

    1978 serial numbers that have shown up for the 81-12K801
    000343 - Build date 1978 8004 January 04 Wednesday [6004]
    015108 - Build date 1978 8156 June 05 Monday looks wrong
    016188 - Build date 1978 8103 April 13 Thursday
    020945 - Build date 1978 8191 July 10 Monday
    162413 - Made in Belgium - Located in Norway
    163675 - Made in Belgium - Located in UK

    Links
    For tractor service manual see
    For electrical service manual see
    For transmission service manual see low resolution
    For transmission service manual see high resolution

    82 downloads

    Updated

  7. Free

    Tractor 1978 C-101 8-Speed D&A TIPL Wiring SN.pdf

    IPL from Toro Master Parts Viewer
    43 pages 3.35MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    1978 to 1981 Wheel Horse C-Series (with Kohler) Wiring Demystification.
    4 pages 150.01KB

    Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379
    Transmission drive belt 78-7100 replaced by 7473 - (HB x 81.9" or 5/8" x 81.9")

    Lube chart SS

    Details & Attachments
    4 pages 120.13KB

    1978 C-101 8-Speed model 81-10K801

    1978 serial numbers that have shown up for the 81-10K801
    000251
    002484 - Build date 1977 7351 December 17 Saturday
    002705
    005321 - Build date 1978 8020 January 20 Friday
    005323
    010649 - Build date 1978 8100 April 10 Monday [100]
    010709 - Build date 1978 8101 April 11 Tuesday
    013414 - Build date 1978 8109 April 19 Wednesday - May be 8108 - Duplicate serial number
    014575
    014586
    014747
    9123426 - Looks wrong - Located in Wales - Made in USA

    Links
    For tractor service manual see
    For electrical service manual see
    For transmission service manual see low resolution
    For transmission service manual see high resolution

    91 downloads

    Updated

  8. Free

    Tractor 1978 C- 81 8-Speed D&A TIPL Wiring SN.pdf

    IPL from Toro Master Parts Viewer
    43 pages 3.35MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    1978 to 1981 Wheel Horse C-Series (with Kohler) Wiring Demystification.
    4 pages 150.01KB

    Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379
    Transmission drive belt 78-7100 replaced by 7473 - (HB x 81.9" or 5/8" x 81.9")

    Lube chart SS

    Details & Attachments
    3 pages 118.29KB

    1978 C-81 8-Speed model 81-08K801

    1978 serial numbers that have shown up for the 81-08K801
    001781 - Build date 1977 7348 December 14 Wednesday [8349 looks wrong]
    001808 - Build date 1977 7348 December 14 Wednesday [8348 looks wrong]
    005289 - Build date 1978 8019 January 19 Thursday
    006864
    006964 - Build date 1978 8052 February 21 Tuesday
    007037 - Build date 1978 8053 February 22 Wednesday
    007254 - Build date 1978 8076 March 17 Friday - [Model number, serial or date may be wrong]
    007776 - Build date 1978 8070 March 11 Saturday
    0077xx - Build date 1978 8079 March 20 Monday (077 posted)
    009282 - Could be a 1979 model
    010193 - Build date 1978 8093 April 3 Monday
    012697 - Made in Belgium with Mountfield plate so 12697 may be Mountfield number - Located in the UK

    Links
    For tractor service manual see
    For electrical service manual see
    For transmission service manual see low resolution
    For transmission service manual see high resolution

    98 downloads

    Updated

  9. Free

    Tractor 1978 B-111 4-Speed D&A TIPL Wiring SN.pdf

    IPL from Toro Master Parts Viewer
    24 pages 1.68MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Wiring only
    1 page 214.00KB

    Muffler for B-81 supplied by Briggs & Stratton
    Transmission drive belt 106518 - (HA/4L x 87.12" or 1/2" x 87-1/8")

    Lube chart SS

    Details & Attachments
    3 pages 113.61KB

    1978 B-111 4-Speed model 82-11BP01

    1978 serial numbers that have shown up for the 82-11BP01
    002259 - Build date 1978 8037 February 06 Monday
    003237 - Build date 1978 8046  February 15 Wednesday
    003657

    Links
    For engine operator manual and IPL see
    For tractor service manual and wiring see
    For 669 Peerless transmission IPL see

    51 downloads

    Updated

  10. Free

    Tractor 1978 B- 81 4-Speed D&A TIPL Wiring SN.pdf

    IPL from Toro Master Parts Viewer
    24 pages 1.68MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Wiring only
    1 page 214.00KB

    Muffler for B-81 supplied by Briggs & Stratton
    Transmission drive belt 106518 - (HA/4L x 87.12" or 1/2" x 87-1/8")
    Lube chat SS

    Details & Attachments
    2 pages 111.60KB

    1978 B-81 4-Speed model 82-08BP01

    1978 serial numbers that have shown up for the 82-08BP01
    001553 - Build date 1978 8039 February 08 Wednesday
    004543 - Build date 1978 8090 March 31 Friday
    004569
    004705 - Build date 1978 8103 April 13 Thursday

    Links
    For engine operator manual and IPL see
    For tractor service manual and wiring see
    For Peerless 669 transmission IPL see

    33 downloads

    Updated

  11. Free

    Electrical Service Manual #810291R2.pdf

    Electrical service manual
    1980-1983 A-Series and B-Series tractors
    1978-1983 C-Series tractors
    Same manual as 492-4207
    50 pages

    1978 C-81 8-Speed model 81-08K801 [Have TIPL Wiring]
    1978 C-101 8-Speed model 81-10K801 [Have TIPL Wiring]
    1978 C-121 8-Speed model 81-12K801 [Have TIPL Wiring](One found made in Belgium)
    1978 C-121 Automatic model 81-12KS01 [Have TIPL Wiring]
    1978 C-141 8-Speed model 81-14K801 [Have TIPL Wiring](Two found made in Belgium)
    1978 C-141 Automatic model 81-14KS01 [Have TIPL Wiring]
    1978 C-161 8-Speed model 81-16K801 [Have TIPL Wiring]
    1978 C-161 Automatic model 81-16KS01 [Have TIPL Wiring]
    1978 C-161 Twin 8-Speed model 81-16B801 [Have TIPL Wiring]
    1978 C-161 Twin Automatic model 81-16BS01 [Have TIPL Wiring]

    1979 C-81 8-Speed model 91-08K801 [Have D&A TIPL Wiring detailed]
    1979 C-81 8-Speed model 91-08K802 [Have D&A OM IPL Wiring detailed]
    1979 C-81 8-Speed model 91-08K891 (Made in Belgium with serial 163175)
    1979 C-101 8-Speed model 91-10K801 [Have D&A TIPL Wiring detailed]
    1979 C-101 8-Speed model 91-10K802 [Have D&A OM IPL Wiring detailed]
    1979 C-101 8-Speed model 91-10K892 (Made in Belgium with serial 183695)
    1979 C-111 8-Speed model 91-11B801 [Have D&A IPL Wiring detailed]
    1979 C-121 8-Speed model 91-12K801 [Have D&A TIPL Wiring detailed] (Two found made in Belgium)
    1979 C-121 8-Speed model 91-12K802 [Have D&A OM IPL Wiring detailed]
    1979 C-121 8-Speed model 91-12K891 (Made in Belgium with serials 167136 169593)
    1979 C-121 8-Speed model 91-12K892 [Have D&A OM IPL Wiring detailed] - Belgium built with serial 184568
    1979 C-121 Automatic model 91-12KS01 *+w
    1979 C-121 Automatic model 91-12KS91 (Made in Belgium with serial 16?329)
    1979 C-141 8-Speed model 91-14K801 *+w
    1979 C-141 8-Speed model 91-14K802 *+w
    1979 C-141 Automatic model 91-14KS01 *+w
    1979 C-161 8-Speed model 91-16K801 *+w
    1979 C-161 Automatic model 91-16KS01 *+w (One found in Holland Made in Belgium)
    1979 C-161 Automatic model 91-16KS91 Made in Belgium serial 167284
    1979 C-161 Twin 8-Speed model 91-16B801 *
    1979 C-161 Twin 8-Speed model 91-16B802 *
    1979 C-161 Twin Automatic model 91-16BS01 *
    1979 C-161 Twin Automatic model 91-16BS02 *
    1979 C-171 A model that was not built

    1980 1100 Special model 01-11B803 *
    1980 A-51 5-Speed Rear Engine Rider model 03-05BP01 *
    1980 A-81 (E) 5-Speed Rear Engine Rider model 03-08BP01 *
    1980 A-81 ® 5-Speed Rear Engine Rider model 03-08XP01 *
    1980 A-111 5-Speed Rear Engine Rider model 03-11BP01 *+w
    1980 B-82 3-Speed model 02-08BP01 *+w
    1980 B-112 3-Speed model 02-11BX01 *+w
    1980 B-115 5-Speed model 02-11BP02 *+w
    1980 B-165 Twin 5-Speed model 02-16BP01 *+w
    1980 C-85 8-Speed model 01-08K801 *+w Incorrectly named a C-81 @ Toro (One found made in Belgium)
    1980 C-85 8-Speed model 01-08K802 (Listed in PSB #276)
    1980 C-105 8-Speed model 01-10K801 *+w (One found made in Belgium)
    1980 C-125 8-Speed model 01-12K801 *+w
    1980 C-125 Automatic model 01-12KE01 *+w
    1980 C-125 Automatic model 01-12KS01 *+w
    1980 C-145 8-Speed model 01-14K801 *+w
    1980 C-145 8-Speed model 01-14K891 (Made in Belgium with serial 196489)
    1980 C-145 Automatic model 01-14KE01 *+w
    1980 C-145 Automatic model 01-14KS01 *+w
    1980 C-165 8-Speed model 01-16K801 *+w
    1980 C-165 Automatic model 01-16KE01 *+w
    1980 C-165 Automatic model 01-16KS01 *+w
    1980 C-165 Automatic model 01-16KS91 (Made in Belgium with serial 194044)
    1980 C-175 Twin 8-Speed model 01-17K801 *+w
    1980 C-175 Twin Automatic model 01-17KE01 *+w
    1980 C-175 Twin Automatic model 01-17KS02 *+w

    1981 A-51 5-Speed Rear Engine Rider model 03-05BP02 *+w
    1981 A-81 (E) 5-Speed Rear Engine Rider model 03-08BP02 *
    1981 A-81 ® 5-Speed Rear Engine Rider model 03-08XP01 *+w Not listed @ Toro
    1981 A-111 5-Speed Rear Engine Rider model 03-11BP02 *+w
    1981 B-82 3-Speed model 02-08BP02 *+w
    1981 B-82 3-Speed model 02-08BP03 *+w
    1981 B-112 3-Speed model 02-11BX02 *+w
    1981 B-112 3-Speed model 02-11BX03 *+w
    1981 B-115 5-Speed model 02-11BP03 *+w
    1981 B-115 5-Speed model 02-11BP04 *+w
    1981 B-165 Twin 5-Speed model 02-16BP02 *+w
    1981 B-165 Twin 5-Speed model 02-16BP03 *+w
    1981 C-85 8-Speed model 01-08K802 *+w Incorrectly named a C-81 @ Toro
    1981 C-105 8-Speed model 01-10K802 *+w
    1981 C-125 8-Speed model 01-12K802 *+w (One found made in Belgium)
    1981 C-125 Automatic model 01-12KE02 *+w
    1981 C-145 8-Speed model 01-14K802 *+w
    1981 C-145 Automatic model 01-14KE02 *
    1981 C-165 8-Speed model 01-16K802 *+w
    1981 C-165 Automatic model 01-16KE02 *+w
    1981 C-175 Twin 8-Speed model 01-17K802 *+w
    1981 C-175 Twin Automatic model 01-17KE01 *+w

    1982 A-51 5-Speed Rear Engine Rider model 23-05BP01 *+w
    1982 A-81 5-Speed Rear Engine Rider model 23-08BP01 *
    1982 A-111 5-Speed Rear Engine Rider model 23-11BP01 *+w
    1982 A-111 5-Speed Rear Engine Rider model 23-11BX01 *+w
    1982 B-85 5-Speed model 02-08BX01 *+wo
    1982 B-115 5-Speed model 02-11BP05 *+wo
    1982 B-115 Automatic model 02-11BE01 *+wo
    1982 B-165 Twin 5-Speed model 02-16BP04 *+wo
    1982 B-165 Twin Automatic model 02-16BE01 *wo
    1982 C-85 8-Speed model 01-08K803 *+w
    1982 C-105 8-Speed model 01-10K803 *+w
    1982 C-125 8-Speed model 01-12K803 *+w
    1982 C-145 Automatic model 01-14KE03 *+w
    1982 C-175 Twin 8-Speed model 01-17K803 *+wo
    1982 C-175 Twin Automatic model 01-17KE02 *+wo
    1982 C-195 Twin Automatic model 01-19KE01 *+wo
    1982 GT-1142 8-Speed model A1-114201 *+w
    1982 GT-1642 Twin 8-Speed model A1-164201 *+w
    1982 GT-1848 Twin Automatic model A1-184801 *+w
    1982 LT-832 3-Speed model A2-083201 *+w
    1982 LT-1032 3-Speed model A2-103201 *+w
    1982 LT-1137 5-Speed model A2-113701 *+w
    1982 LT-1637 Twin 5-Speed model A2-163701 *+w
    1982 LT-1642 Twin 5-Speed model A2-164201 *+w
    1982 SB-371 3-Speed model 02-11BH01 *
    1982 SB-421 8-Speed model 01-11BH01 *
    1982 SK-486 8-Speed model 01-16KH01 *

    1983 A- 81 5-Speed Rear Engine Rider model 03-08BP03
    1983 A- 81 5-Speed Rear Engine Rider model 23-08BP02
    1983 A- 81 5-Speed Rear Engine Rider model 23-08BX01
    1983 A- 81 5-Speed Rear Engine Rider model 23-08XP01
    1983 A-111 5-Speed Rear Engine Rider model 23-11BP02
    1983 B-85 5-Speed model 02-08BX01 - 1983 in PSB #301e - Listed as 1982 @ Toro
    1983 B-115 5-Speed model 12-11BP01
    1983 B-115 Automatic model 12-11BE01
    1983 B-165 Twin 5-Speed model 12-16BP01
    1983 B-165 Twin Automatic model 12-16BE01
    1983 C- 85 8-Speed model 11-08K801
    1983 C-105 8-Speed model 11-10K801
    1983 C-125 8-Speed model 11-12K801
    1983 C-145 Automatic model 01-14KE04
    1983 C-175 Twin 8-Speed model 11-17K801
    1983 C-175 Twin Automatic model 01-17KE03
    1983 C-195 Twin Auto model 01-19KE01 - Not listed @ Toro for 1983, 1982 only
    1983 GT-1142 8-Speed model A1-114202
    1983 GT-1642 Twin 8-Speed model A1-164202
    1983 GT-1848 Twin Automatic model D1-184801
    1983 LT-832 3-Speed model A2-083202
    1983 LT-1136 3-Speed model D2-113601
    1983 LT-1137 3-Speed model D2-113701 - Incorrectly named LT-1136 @ Toro
    1983 LT-1637 Twin 3-Speed model D2-163701

    306 downloads

    Updated

  12. Free

    Tractor 1979 Model list 31

    1979 Matches Found: 30 + 1 = 31

    1979 A-51 5-Speed Rear Engine Rider model 93-05BP01
    1979 A-51 5-Speed Rear Engine Rider model 93-05BP02

    1979 A-81 (E) 5-Speed Rear Engine Rider model 93-08BP01
    1979 A-81 (E) 5-Speed Rear Engine Rider model 93-08BP02
    1979 A-81 ® 5-Speed Rear Engine Rider model 93-08XP02

    1979 A-111 5-Speed Rear Engine Rider model 93-11BP01

    1979 B-81 model 92-08BP01 in 1978-79 service manual is likely a mistake
    1979 B-81 6-Speed model 92-08BF01 *

    1979 B-111 4-Speed model 92-11BP01 *
    1979 B-111 6-Speed model 92-11BF01 (Made in USA)
    1979 B-111 6-Speed model 91-11BF91 (Made in Belgium with serial 170049)
    1979 B-111 6-Speed model 92-11BF91 (Made in Belgium with serial 178838 & 182588)
    1979 B-111 6-Speed model 92-11BF92 (Made in Belgium with serial 175611)

    1979 C-81 8-Speed model 91-08K801 [Have D&A TIPL Wiring detailed]
    1979 C-81 8-Speed model 91-08K802 [Have D&A OM IPL Wiring detailed]
    1979 C-81 8-Speed model 91-08K891 (Made in Belgium with serial 163175)

    1979 C-101 8-Speed model 91-10K801 [Have D&A TIPL Wiring detailed]
    1979 C-101 8-Speed model 91-10K802 [Have D&A OM IPL Wiring detailed]
    1979 C-101 8-Speed model 91-10K892 (Made in Belgium with serial 183695)

    1979 C-111 8-Speed model 91-11B801 [Have D&A IPL Wiring detailed]

    1979 C-121 8-Speed model 91-12K801 [Have D&A TIPL Wiring detailed] (Two found made in Belgium)
    1979 C-121 8-Speed model 91-12K802 [Have D&A OM IPL Wiring detailed]
    1979 C-121 8-Speed model 91-12K891 (Made in Belgium with serials 167136 169593)
    1979 C-121 8-Speed model 91-12K892 [Have D&A OM IPL Wiring detailed] - Belgium built with serial 184568
    1979 C-121 Automatic model 91-12KS01 *+w
    1979 C-121 Automatic model 91-12KS91 (Made in Belgium with serial 16?329)

    1979 C-141 8-Speed model 91-14K801 *+w
    1979 C-141 8-Speed model 91-14K802 *+w
    1979 C-141 Automatic model 91-14KS01 *+w

    1979 C-161 8-Speed model 91-16K801 *+w
    1979 C-161 Automatic model 91-16KS01 *+w (One found in Holland Made in Belgium)
    1979 C-161 Automatic model 91-16KS91 Made in Belgium serial 167284
    1979 C-161 Twin 8-Speed model 91-16B801 *
    1979 C-161 Twin 8-Speed model 91-16B802 *
    1979 C-161 Twin Automatic model 91-16BS01 *
    1979 C-161 Twin Automatic model 91-16BS02 *

    1979 C-171 A model that was not built

    1979 D-160 Automatic model 91-16OS01 *
    1979 D-160 Automatic model 91-16OS02 - Not listed @ Toro and may be an invalid model number

    1979 D-200 Automatic model 91-20KS01 *
    1979 D-200 Automatic model 91-20KS02 *

    1979 D-250 10-Speed model 91-20RG01 *

    1979 E-141 8-Speed (PSB #226 lists the E-141 as being a 1978 model so possibly a 1979 model also)

    62 downloads

    Updated

  13. Free

    Tractor 1978 D-200 Auto D&A TIPL Wiring SN.pdf

    IPL from Toro Master Parts Viewer
    39 pages 3.42MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Wiring only from service manual
    2 pages 268.39KB

    Lube chart SS

    Details & Attachments
    4 pages 123.19KB

    1978 D-200 Auto model 81-20KS01

    1978 serial numbers that have shown up for the 81-20KS01
    004663 - Build date 1977 7340 Tuesday December 06 [8340 is wrong]
    004672
    004711 - Build date 1977 7342 Thursday December 08 [8342 is wrong]
    004736
    004758 - Build date  1977 7344 Saturday December 10 [8344 is wrong]
    00xxxx - Build date  1977 7347 Tuesday December 13 [8347 is wrong]

    For tractor service manual see
    For Sundstrand service manual see
    For Hydraulic service manual see
    For Hydraulic lift service manual #492-4208 see

    70 downloads

    Updated

  14. Free

    Tractor 1978 D-160 Auto D&A TIPL Wiring SN.pdf

    IPL from Toro Master Parts Viewer
    55 pages 4.77MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Wiring only from service manual
    2 pages 264.68KB

    Lube chart SS

    Details & Attachments
    4 pages 123.95KB
    1978 D-160 Auto model 81-16OS01
    1978 serial numbers that have shown up for the 81-16OS01
    004413
    004574
    008336
    017332 - Build date 1978 8143 May 23 Tuesday
    017338 - Build date 1978 8143 May 23 Tuesday
    017409 - Build date 1978 8145 May 25 Thursday
    For tractor service manual see
    For Onan BF service manual see
    For Sundstrand service manual see
    For Hydraulic service manual see
    For Hydraulic lift service manual #492-4208 see

    46 downloads

    Updated

  15. Free

    Tractor 1978 C-161 Twin Auto D&A TIPL Wiring SN.pdf

    IPL from Toro Master Parts Viewer
    49 pages 3.59MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Wiring from SM
    2 pages 82.81KB

    Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379
    Transmission drive belt 106496 - (HB x 85.60" or 5/8" x 85.6")

    Lube chart SS

    Details & Attachments
    4 pages 124.43KB

    1978 C-161 Twin Auto model 81-16BS01

    1978 serial numbers that have shown up for the 81-16BS01
    001823 - Build date 1978 8180 June 29 Thursday
    012119 - Build date 1978 8152 June 01 Thursday

    Links
    For tractor service manual see
    For electrical service manual see
    For Sundstrand service manual see
    For Hydraulic service manual see
    For Hydraulic lift service manual #492-4208 see

    28 downloads

    Updated

  16. Free

    Tractor 1978 C-161 Twin 8-Speed D&A TIPL Wiring sn.pdf

    IPL from Toro Master Parts Viewer
    45 pages 3.41MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Wiring from SM
    2 pages 82.81KB

    Oil drain on late models used 1/4" x 2-1/2" nipple # 943314 and pipe cap # 107379
    Tractor drive belt  107939 replaced by 93-9809 - (HB x 83.5" or 5/8" x 83-1/2")

    Lube chart SS

    Details & Attachments
    4 pages 122.80KB

    1978 C-161 Twin 8-Speed model 81-16B801
    1978 serial numbers that have shown up for the 81-16B801
    011342 - Build date 1978 8113 April 23 Sunday

    For tractor service manual see
    Engine service manual

    For electrical service manual see
    For transmission service manual see low resolution
    For transmission service manual see high resolution

    26 downloads

    Updated

  17. Free

    Tractor 1980 D-160 & D-200 Auto D&A OM Wiring SN.pdf

    Operator manual - This 1979 manual is listed for 1980 #810134R1 or #810134 R1
    31 pages 5.68MB

    Part 1 of 2
    14 of 31 pages 2.61MB

    Part 2 of 2 has wiring diagram
    17 of 31 pages 3.08MB

    Lube chart SS

    Details & Attachments
    3 pages 118.63KB
    Tractor 1980 D-160 Auto model 01-16OS01
    1980 serial numbers that have shown up for the 01-16OS01
    00002985 - Build date 1979 9254 September 11 Tuesday
    00002986 - Build date 1979 9254 September 11 Tuesday
    00002989 - Build date 1979 9254 September 11 Tuesday
    00003025 - Build date 1979 9255 September 12 Wednesday
    00003070 - Build date 1979 9256 September 13 Thursday
    00003102 - Build date 1979 9257 September 14 Friday
    00003157 - Build date 1979 9260 September 17 Monday
    00003192 - Build date 1979 9261 September 18 Tuesday

    Details & Attachments
    3 pages 119.25KB
    Tractor 1980 D-200 Auto model 01-20KS00
    1980 serial numbers that have shown up for the 01-20KS00
    00007815

    97 downloads

    Updated

  18. Free

    Tractor 1979 B, C & D-Series Auto SM Wiring #810063R1.pdf

    Service manual
    Wiring
    74 pages 15.69MB
    Dated 07/78

    Lube chart SS

    Rear wheel hub set screw torque 28-32 Ft. Lb. or 39-45 Nm

    Service manual 27 pages 4.71MB
    Section 1 - Specifications including spark plugs used and gaps - NOTE - Correct spark plug for Onan B43 - 48M is RH18Y
    Section 2 - Pre-delivery Service
    Section 3 - General Maintenance
    Section 4 - Engine

    Service manual 18 pages 4.87MB
    Section 5 - Clutch, Brakes, Transmission/Transaxle

    Service manual 13 pages 2.63MB
    Section 6 - Electrical

    Service manual 16 pages 3.48MB
    Section 7 - Attachment Lifts
    Section 8 - Chassis
    Section 9 - Power Take-off (PTO)

    1979 B-81 model 92-08BP01 in 1978-79 service manual is likely a mistake
    1979 B-81 6-Speed model 92-08BF01
    1979 B-111 4-Speed model 92-11BP01
    1979 B-111 6-Speed model 92-11BF01 (Made in USA)
    1979 B-111 6-Speed model 91-11BF91 (Made in Belgium with serial 170049)
    1979 B-111 6-Speed model 92-11BF91 (Made in Belgium with serial 178838 & 182588)
    1979 B-111 6-Speed model 92-11BF92 (Made in Belgium with serial 175611)

    1979 C-81 8-Speed model 91-08K801
    1979 C-81 8-Speed model 91-08K802
    1979 C-81 8-Speed model 91-08K891 (Made in Belgium with serial 163175)
    1979 C-101 8-Speed model 91-10K801
    1979 C-101 8-Speed model 91-10K802
    1979 C-101 8-Speed model 91-10K892 (Made in Belgium with serial 183695)
    1979 C-111 8-Speed model 91-11B801
    1979 C-121 8-Speed model 91-12K801 (Two found made in Belgium)
    1979 C-121 8-Speed model 91-12K802
    1979 C-121 8-Speed model 91-12K891 (Made in Belgium with serials 167136 169593)
    1979 C-121 8-Speed model 91-12K892 - Belgium built with serial 184568
    1979 C-121 Automatic model 91-12KS01
    1979 C-121 Automatic model 91-12KS91 (Made in Belgium with serial 16?329)
    1979 C-141 8-Speed model 91-14K801
    1979 C-141 8-Speed model 91-14K802
    1979 C-141 Automatic model 91-14KS01
    1979 C-161 8-Speed model 91-16K801
    1979 C-161 Automatic model 91-16KS01 (One found in Holland Made in Belgium)
    1979 C-161 Automatic model 91-16KS91 - Made in Belgium serial 167284
    1979 C-161 Twin 8-Speed model 91-16B801
    1979 C-161 Twin 8-Speed model 91-16B802
    1979 C-161 Twin Automatic model 91-16BS01
    1979 C-161 Twin Automatic model 91-16BS02
    1979 C-171 Automatic model - that was not built

    1979 D-160 Automatic model 91-16OS01
    1979 D-160 Automatic model 91-16OS02 - Not listed @ Toro and may be an invalid model number
    1979 D-200 Automatic model 91-20KS01
    1979 D-200 Automatic model 91-20KS02

    857 downloads

    Updated

  19. Free

    Tractor 1981 B, C & D-Series OM Wiring.pdf

    Operator manual #810233R1 or #810233 R1
    Wiring
    38 Pages 3.11MB

    Lube chart SS

    1981 B-82 3-speed model 02-08BP02
    1981 B-82 3-speed model 02-08BP03
    1981 B-112 3-speed model 02-11BX02
    1981 B-112 3-speed model 02-11BX03
    1981 B-115 5-speed model 02-11BP03
    1981 B-115 5-speed model 02-11BP04
    1981 B-165 Twin 5-speed model 02-16BP02
    1981 B-165 Twin 5-speed model 02-16BP03

    1981 C-85 8-speed model 01-08K802
    1981 C-105 8-speed model 01-10K802
    1981 C-125 8-speed model 01-12K802
    1981 C-125 Auto model 01-12KE02
    1981 C-145 8-speed moder 01-14K802
    1981 C-145 Auto model 01-14KE02
    1981 C-165 8-speed model 01-16K802
    1981 C-165 Auto model 01-16KE02
    1981 C-175 Twin 8-speed model 01-17K802
    1981 C-175 Twin Auto model 01-17KE01

    1981 D-160 Auto model 01-16OS01
    1981 D-200 Auto model 01-20KS00 (1981 last year for D-200 Auto)

    478 downloads

    Updated

  20. Free

    Tractor 1981 D-160 Auto & D-200 Auto OM Wiring.pdf

    Lube chart SS

    High resolution
    Operator manual #810233R1 or #810233 R1
    Wiring
    37 pages 23.17MB

    Part 1 of 5
    9 of 37 pages 4.97MB

    Part 2 of 5
    7 of 37 pages 4.45MB

    Part 3 of 5
    7 of 37 pages 4.65MB

    Part 4 of 5
    6 of 37 pages 4.63MB

    Part 5 of 5 has wiring diagrams
    8 of 37 pages 4.47MB

    Low resolution
    Operator manual
    Wiring
    38 pages 3.12MB

    1981 D-160 Auto model 01-16OS01 - Not listed @ Toro but in the lube chart
    1981 D-200 Auto model 01-20KS00 - Last year for D-200 Auto

    89 downloads

    Updated

  21. Free

    Tractor 1982 D-160 Auto D&A OM Wiring.pdf

    Operator manual - Toro lists 1979 manual #810134R1 for 1982 but the 1981 manual #810233R1 should be closer #810134R1 or #810134 R1
    Wiring
    37 pages 23.29MB
    1980 is the last year Toro has record of the D-160 Auto

    See 1980 for TIPL using the same model number

    Part 1 of 5
    9 of 37 pages 4.97MB

    Part 2 of 5
    7 of 37 pages 4.45MB

    Part 3 of 5
    7 of 37 pages 4.65MB

    Part 4 of 5
    6 of 37 pages 4.63MB

    Part 5 of 5 has wiring diagrams
    8 of 37 pages 4.47MB

    Lube chart SS

    Details & Attachments
    3 pages 118.63KB

    1982 D-160 Auto model 01-16OS01 - Last year for D-160 Auto

    88 downloads

    Updated

  22. Free

    Tractor 1981 B -Series OM Wiring.pdf

    Operator manual #810233R1 or #810233 R1
    Wiring
    37 pages 23.17MB

    Part 1 of 5
    9 of 37 pages 4.97MB

    Part 2 of 5
    7 of 37 pages 4.45MB

    Part 3 of 5
    7 of 37 pages 4.65MB

    Part 4 of 5
    6 of 37 pages 4.63MB

    Part 5 of 5 has wiring diagrams
    8 of 37 pages 4.47MB

    Lube chart SS

    1981 B-82 3-speed model 02-08BP02
    1981 B-82 3-speed model 02-08BP03

    1981 B-112 3-speed model 02-11BX02
    1981 B-112 3-speed model 02-11BX03

    1981 B-115 5-speed model 02-11BP03
    1981 B-115 5-speed model 02-11BP04

    1981 B-165 Twin 5-speed model 02-16BP02
    1981 B-165 Twin 5-speed model 02-16BP03

    103 downloads

    Updated

  23. Free

    Tractor 1981 C -Series OM Wiring.pdf

    High resolution
    Operator manual #810233R1 or #810233 R1
    Wiring
    37 pages 23.17MB

    Part 1 of 5
    9 of 37 pages 4.97MB

    Part 2 of 5
    7 of 37 pages 4.45MB

    Part 3 of 5
    7 of 37 pages 4.65MB

    Part 4 of 5
    6 of 37 pages 4.63MB

    Part 5 of 5 has wiring diagrams
    8 of 37 pages 4.47MB

    Lower resolution
    Operator manual
    Wiring
    38 pages 3.12MB

    Lube chart SS

    1981 C-85 8-speed model 01-08K802 - Incorrectly identified at Toro as C-81
    1981 C-105 8-speed model 01-10K802
    1981 C-125 8-speed model 01-12K802
    1981 C-125 Automatic model 01-12KE02
    1981 C-145 8-speed model 01-14K802
    1981 C-145 Automatic model 01-14KE02
    1981 C-165 8-speed model 01-16K802
    1981 C-165 Automatic model 01-16KE02
    1981 C-175 Twin 8-speed model 01-17K802
    1981 C-175 Twin Automatic model 01-17KE01

    482 downloads

    Updated

  24. Free

    Tractor 1984 GT-Series & LT-Series OM Wiring SN.pdf

    Operator manual #810342R1 or #810342 R1
    Wiring
    28 pages 58.23MB
    Dated 11/83

    Operator manual #810342R1 or #810342 R1
    Wiring
    (Original 28 pages  37 MB)
    28 pages  10.5 MB
    Dated 11/83

    Part 1 of 7
    4 of 28 pages 4.75MB
    Cover, i-iii

    Part 2a of 7
    Pages 1-6 13.3MB

    Part 3a of 7
    Pages 7-9 6.5MB

    Part 4a of 7
    Pages 10-12 7.4MB

    Part 5a of 7
    Pages 13-16 9.5MB

    Part 6a of 7
    Pages 17-21 12.9MB

    Part 7a of 7
    Pages 22-24 3.9MB

    Lube chart SS

    Tractor 1984 B-1136 model B2-11BX91 (On the Belgium list. Not in the manual but this is the manual listed @ Toro for this model)

    Tractor 1984 LT-1100 3-speed model A2-11BX01 Work Horse WorkHorse
    Tractor 1984 LT-1100 5-speed model A2-11BP01 Work Horse WorkHorse
    Tractor 1984 LT-1600 Twin 5-speed A2-16BP01 Work Horse WorkHorse

    Tractor 1984 GT-1100 8-speed model A1-11B801 Work Horse WorkHorse - Some used alternate inner axle bearing See PSB #369
    Engine-11HP-B&S Model 252417, Type 0664-01
    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
    Engine Thrust Bearing Toro 106499 is discontinued, available as 6007-2RSNR
    1984 serial numbers that have shown up for the A1-11B801
    14235

    Tractor 1984 GT-1600 Twin 8-speed model A1-16B801 Work Horse WorkHorse - Some used alternate inner axle bearing See PSB #369
    Engine-16HP-B&S Model 402437, Type 0694-01
    Tractor drive belt 107939 replaced by 93-9809 - (HB x 83.5" or 5/8" x 83-1/2")

    Tractor 1984 GT-1800 Twin Auto model A1-18BE01 Work Horse WorkHorse - Some used alternate inner axle bearing See PSB #369
    Engine-18HP-B&S Model 422437, Type 0663-01
    Transmission drive belt 108502 - (HB/5L x 83" or 5/8" x 83")
    1984 serial numbers that have shown up for the A1-18BE01
    14269

    1,162 downloads

    Updated

  25. Free

    Tractor 1980 C-125 8-Speed D&A TIPL SN.pdf

    IPL from Toro Master Parts Viewer
    50 pages 3.53MB
    This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

    Early production models used 107391 lift lever with welded construction.
    Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

    Lube chart SS

    Details & Attachments
    4 pages 120.19KB

    1980 C-125 8-Speed model 01-12K801
    1980 serial numbers that have shown up for the 01-12K801
    00004810 - Build date 1979 9288 October 15 Monday
    00011879
    00013414 - Build date 1980 0078 March 18 Tuesday
    00015568 - Build date 1980 0150 May 29 Thursday
    00015728
    00021130 - Build date 1980 0294 October 20 Monday
    00021151 - Build date 1980 0296 October 22 Wednesday

    Original OM #810146R1
    Original IPL # 810169R1

    Links
    For transmission service manual see
    For detailed wiring diagrams see

    72 downloads

    Updated



×
