About This File
IPL from Toro Master Parts Viewer
50 pages 3.38MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Early production models used 107391 lift lever with welded construction.
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
Lube chart SS
Details & Attachments
4 pages 120.07KB

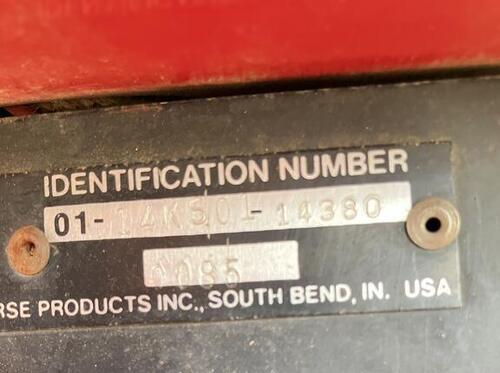

1980 C-145 8-Speed model 01-14K801
1980 serial numbed=bers that have shown up for the 01-14K801
00009288
00009843
1980 C-145 8-Speed model 01-14K891
1980 serial numbers that have shown up for the 01-14K891
00196431 - Made in USA - Sold by Mountfield and located in the UK - Not made in Belgium
00196489 - Likely made in USA - Located in France - Not made in Belgium
Original OM #810146R1
Original IPL # 810169R1
Links
For transmission service manual see
For detailed wiring diagrams see
