RT WH520

Chain for Single stage Snow Thrower tall chute

Recommended Posts

Need some help with the chain on this. The old one let go today and bent in a few places

Any help with part numbers, where to by, after market options, etc. are much appreciated....

Share this post


Link to post
Share on other sites

#40 roller chain. Tractor Supply will have it or order online

  • Like 2

Share this post


Link to post
Share on other sites

you will need links,i buy all types to have on hand,that way what ever way the chain ends you can join it,you will also need either a chain breaker or a grinder and punches,at least a good file and punches to drive the pin out to attach new link

Share this post


Link to post
Share on other sites

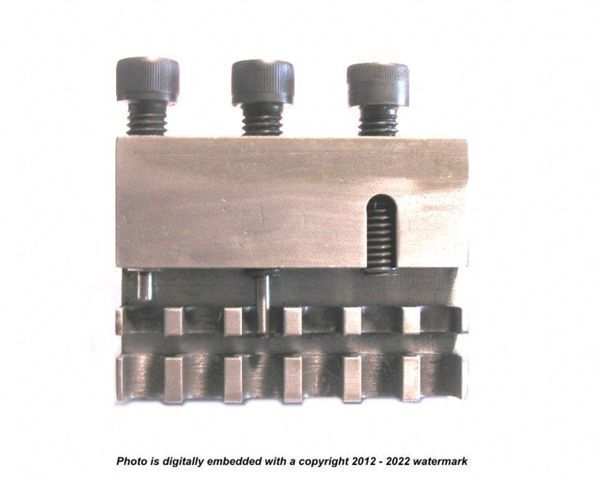

I bought this type of chain breaker last year for my snowthrower on a popular auction site. It is sold for use on Go-Karts and Mini-Bikes. Solidly built, and it is steady to use.



56bc8a8ea3a8b_ChainBreaker.jpg.b38281985

Edited by shallowwatersailor

Share this post


Link to post
Share on other sites

Hey John,  I like that chain breaker!  I bought a more elaborate one for $14, works OK, but I was looking for something simpler, kind of like my bicycle chain breaker but more robust.  BTW, the bicycle chain breaker cost $29-but cyclists are willing to pay more usually :-)



  • Like 1

Share this post


Link to post
Share on other sites

Thanks Everyone. I got the one from Tractor Supply. I used a dremel to get the link off...fast and no problem.

Now I need the two sprockets as the bearings went. Any suggestions, recommendations for this? Rob

Share this post


Link to post
Share on other sites

Try The Big Bearing Store or MSC Direct.  I have bought from both.  Both on line.  Search under "roller chain"

Share this post


Link to post
Share on other sites
2 hours ago, RT WH520 said:

Now I need the two sprockets as the bearings went. Any suggestions, recommendations for this? Rob



TSC carries them, but are they often out of stock.  Worth a try.  USA Bearings and Belts should have them if you want to order online.





Share this post


Link to post
Share on other sites

I have bought bearings for the end of the drive shaft on a 79369 single stage thrower and the #40 roller chain sprockets at the big bearing store . Delivery within 3 days.  The sprockets at TSC are $20 each if I recall and this link is for the same sprockets made in China of course but well built.  Running for 4 years so far . Cheapest price I could find. BTW these have 17 teath while original riveted sprockets had 18 but as long as it is for a #40 roller chain not an issue.Get the correct diameter hole too. Mine as most are 1/2 inch bolt hole.



http://www.thebigbearingstore.com/40-idler-sprockets-1/

Sorry for the clumsy typing.  Blower w High Shoot # 79360 NOT 79369!  Also TSC sprockets have 17 teeth too.

Wyatt

Share this post


Link to post
Share on other sites
