wiring diagram for a wheelhorse R26

Recommended Posts

Claire Smith

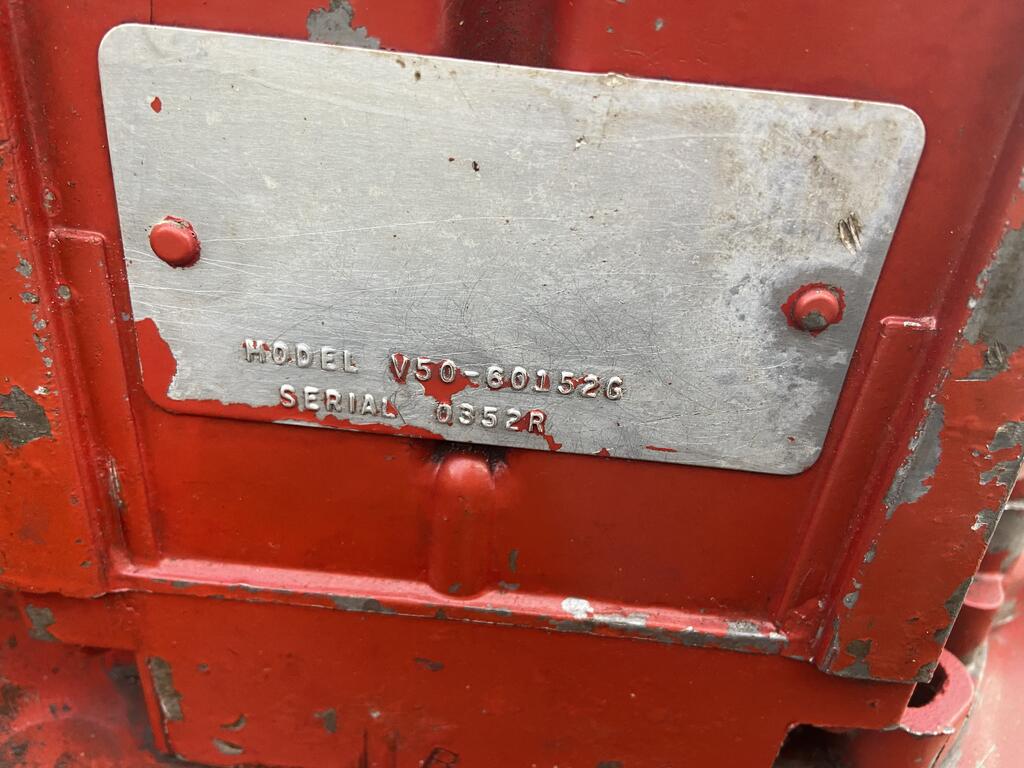

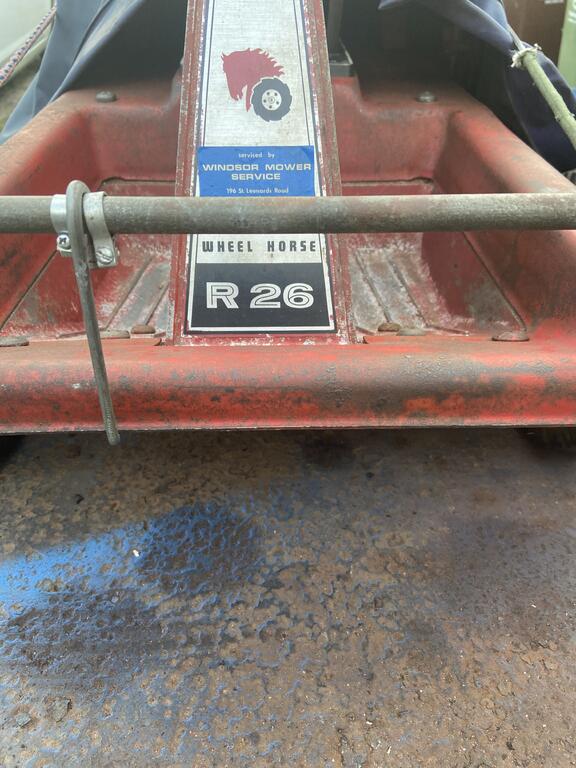

Is there a wiring diagram for a¬†wheelhorse R26 Tecumseh engine 5.5hp - changed points and condenser, engine turns on key but no spark. !! Any ideas?? ūüėä




Edited by Claire Smith
Added photos

Share this post

Link to post
Share on other sites
17 minutes ago, 953 nut said:

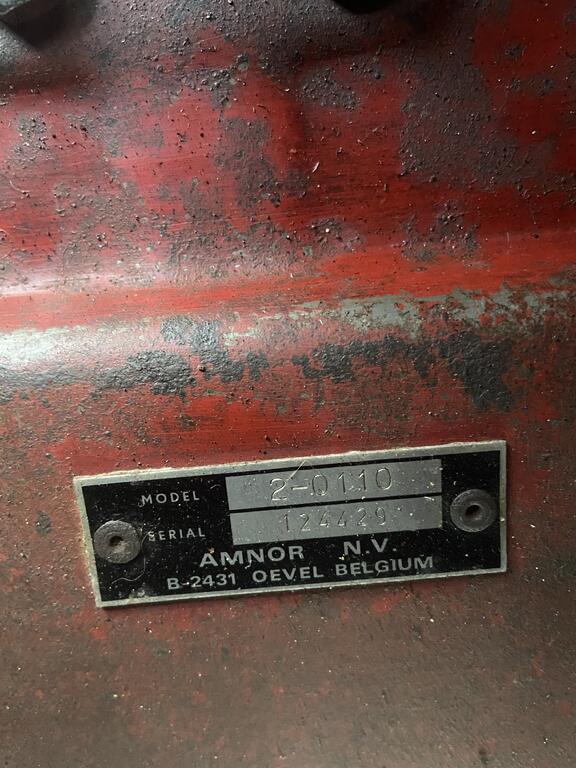

You might want to start your own post rather than tagging an existing one, you'll get more attention. I searched your model number but didn't find a wiring diagram, here is what I found. https://www.wheelhorseforum.com/search/?q=2-0110&quick=1.

This service manual should help out.


@Claire Smith



Share this post

Link to post
Share on other sites

Original engine would have been a 7hp V70-125093A


See if you can disconnect the ignition wire coming from the engine and isolate it. That should allow the coil to spark. If that fails file and clean the ignition points.

To stop the spark ground the ignition wire.

  • Like 1

Share this post

Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
