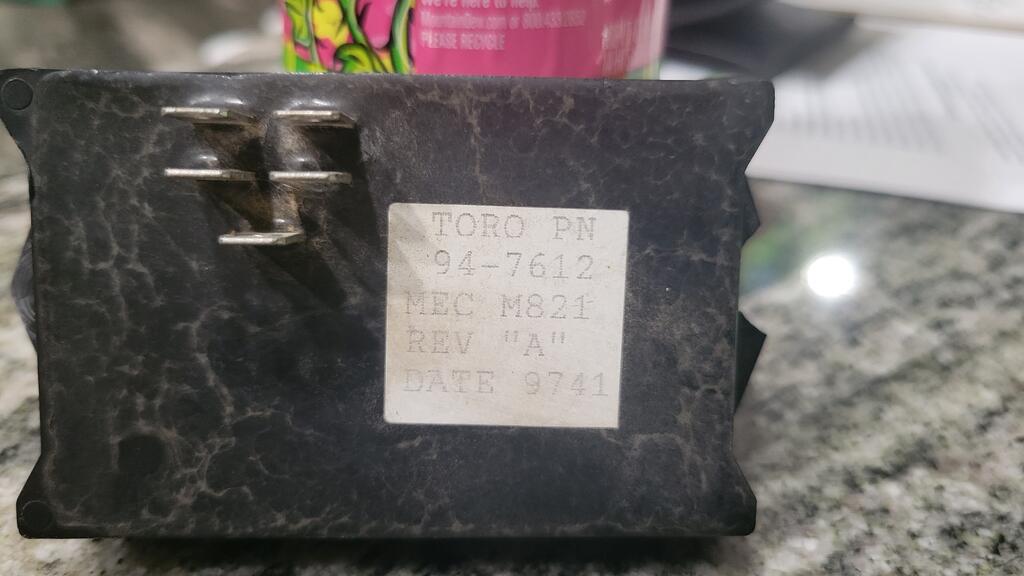

71Chevelle 5 #1 Posted July 10, 2022 (edited) Can anyone send me a picture of the wiring location on the plug that goes onto the 94-7612 module? There is an orange, pink, grey, black and tan. The mower I picked up has the wires removed from the plastic plug and I want to ensure they get plugged into the correct blade on the midule. Also what exactly is the modules purpose? Edited July 10, 2022 by 71Chevelle 1 Share this post Link to post Share on other sites
Jeff-C175 7,195 #3 Posted July 10, 2022 (edited) 1 hour ago, 71Chevelle said: The mower I picked up... ...is what model exactly? 520xi ? Have you found the 'Manuals' section of the forum yet? You can download operator, parts lists, wiring diagrams, etc... https://www.wheelhorseforum.com/files/ I think this is the manual you need, but only if it is a 520xi; It has a wiring diagram. And to Edited July 10, 2022 by Jeff-C175 1 Share this post Link to post Share on other sites
71Chevelle 5 #6 Posted July 11, 2022 18 hours ago, Jeff-C175 said: ...is what model exactly? 520xi ? Have you found the 'Manuals' section of the forum yet? You can download operator, parts lists, wiring diagrams, etc... https://www.wheelhorseforum.com/files/ I think this is the manual you need, but only if it is a 520xi; It has a wiring diagram. And to I believe it is a 520xi. I would like to put the wires back into the plastic plug housing, but knowing three of the four are hot when the key is on causing me concern. If I could get a picture of how the wires are laid out on the plug connector I would be in business. Share this post Link to post Share on other sites

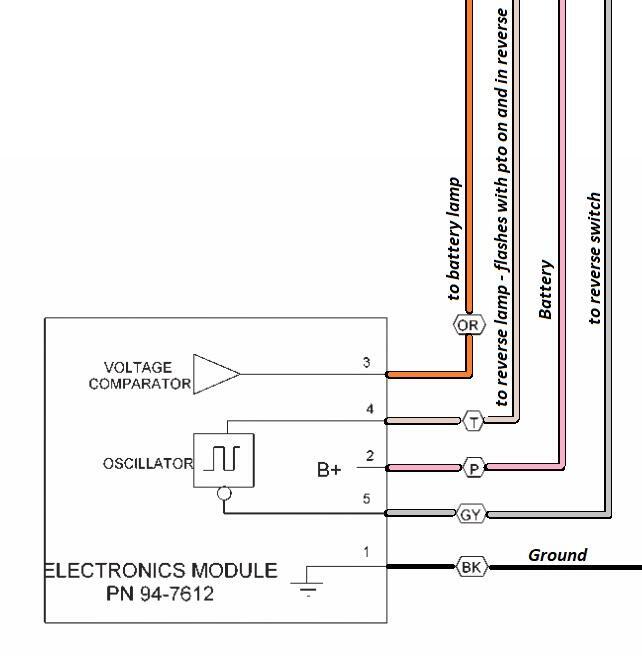

gwest_ca-(File Mod) 10,539 #7 Posted July 11, 2022 The ports on the connector or module are not numbered 1-5 like the schematic? Share this post Link to post Share on other sites
71Chevelle 5 #8 Posted July 11, 2022 Unfortunately, they are not. Any ideas? Share this post Link to post Share on other sites
Jeff-C175 7,195 #9 Posted July 11, 2022 (edited) 18 minutes ago, 71Chevelle said: Unfortunately, they are not. Any ideas? Bright light, big magnifying glass. The numbers could be on the front or the back. Look VERY closely! Hopefully someone with the same machine can take a photo for you. Edited July 11, 2022 by Jeff-C175 1 Share this post Link to post Share on other sites
71Chevelle 5 #10 Posted July 11, 2022 Thank you again I will look again. I am hoping someone reaches out. 1 Share this post Link to post Share on other sites

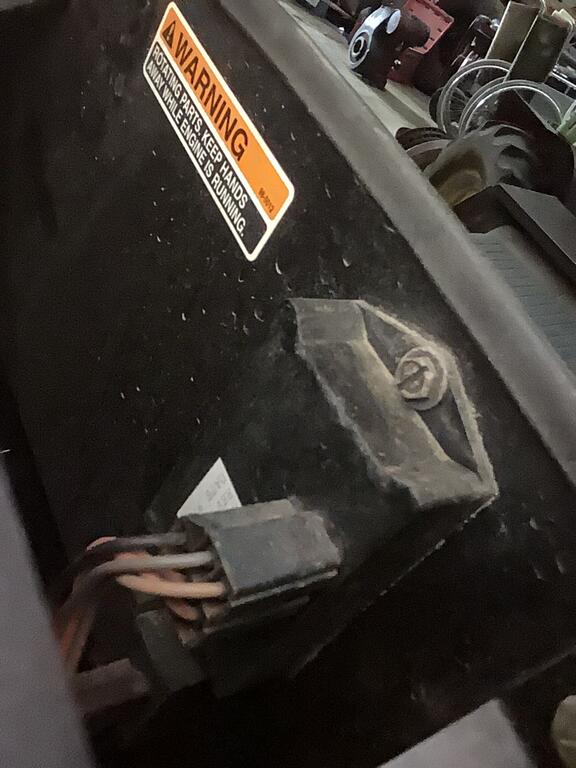

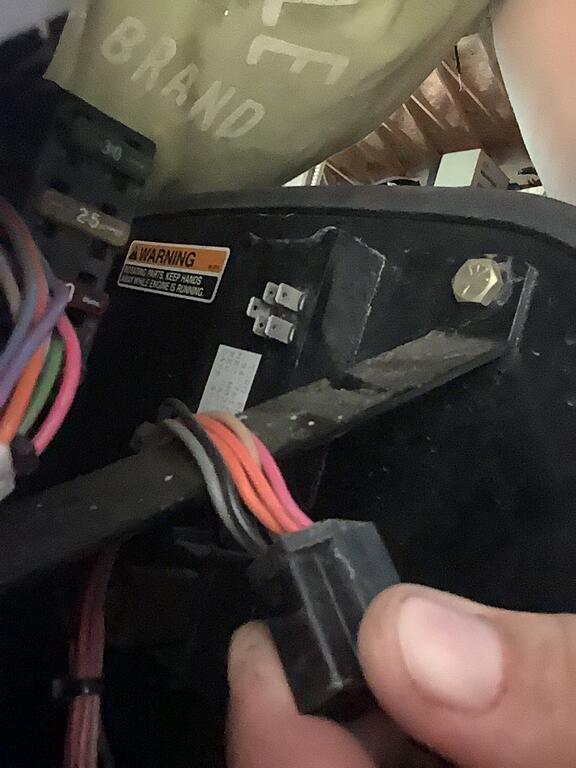

71Chevelle 5 #11 Posted July 19, 2022 (edited) Definitely no markings on the module or plastic connector indicating which wire goes to which blade on the module. Edited July 19, 2022 by 71Chevelle Share this post Link to post Share on other sites
Jeff-C175 7,195 #12 Posted July 19, 2022 (edited) 12 minutes ago, 71Chevelle said: Definitely no markings on the module or plastic connector indicating which wire goes to which blade on the module. Hmmmm... that's not good! I can't believe that nobody on here has an xi and is willing to photo that connector so you can figure the wire colors out! Try starting a new topic and put something in the title with " 520xi " and anything else you think might catch their attention. I wonder if @Pullstart still has his? Edited July 19, 2022 by Jeff-C175 1 1 Share this post Link to post Share on other sites

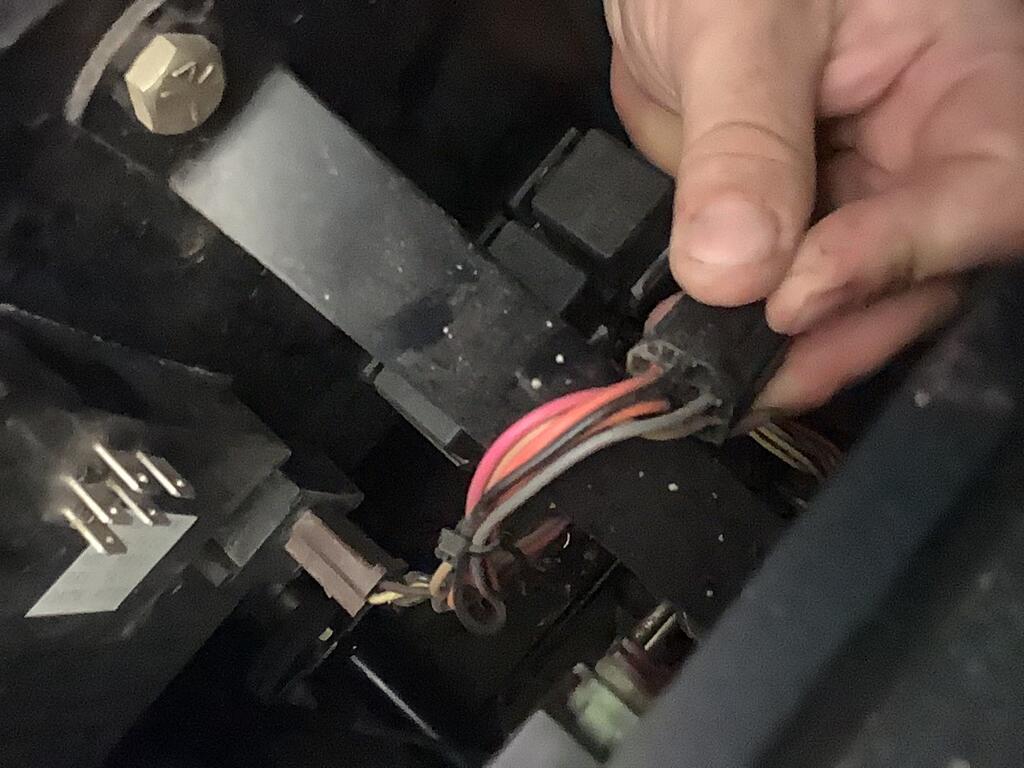

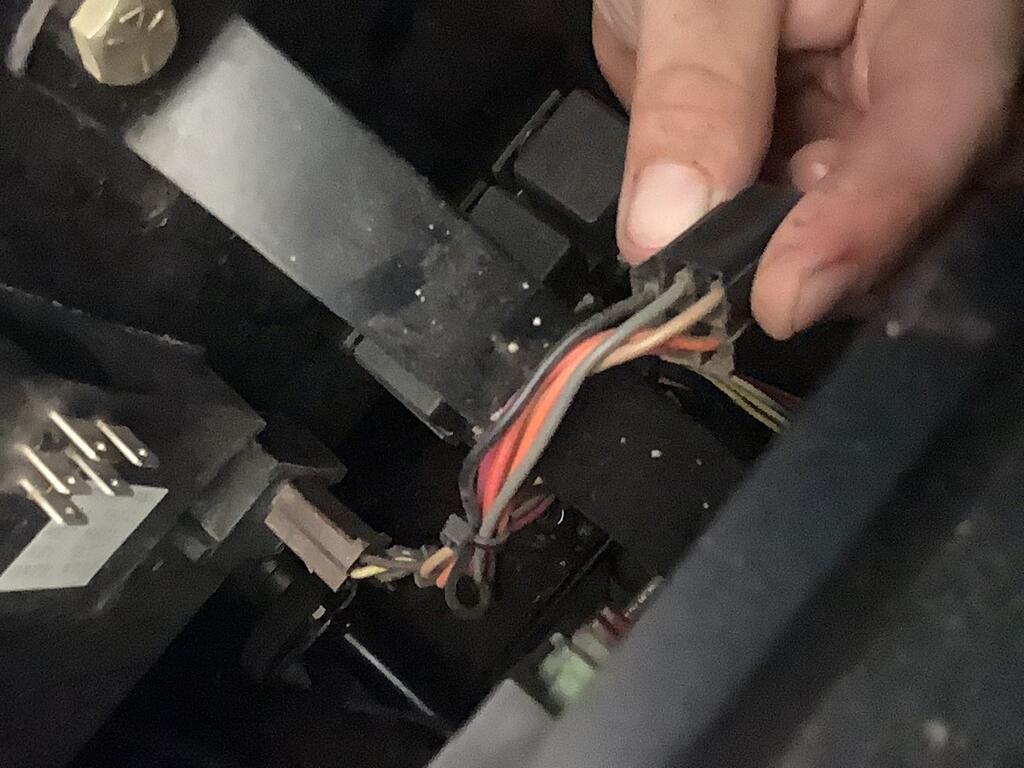

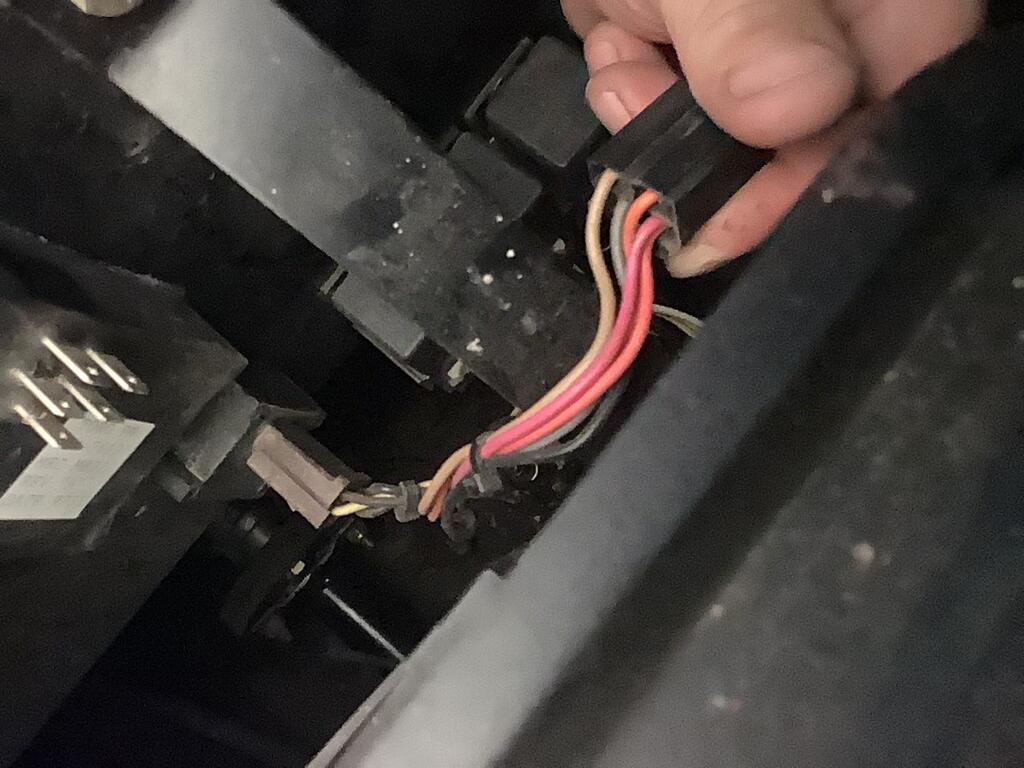

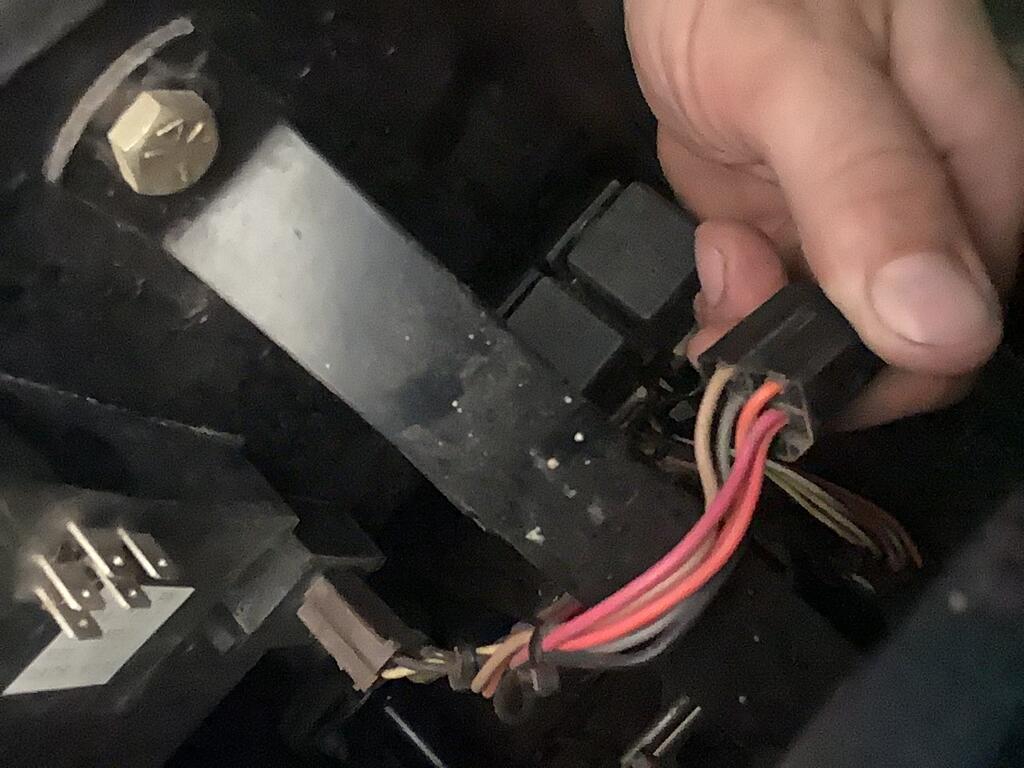

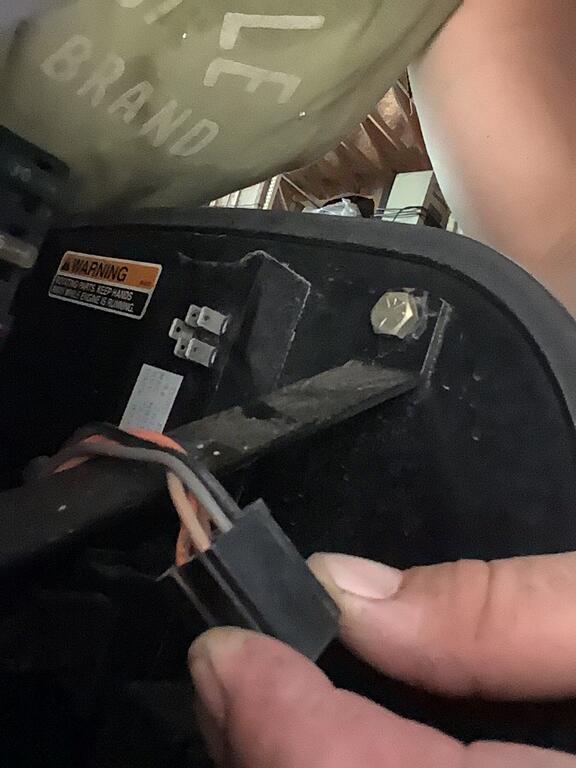

Pullstart 60,112 #13 Posted July 19, 2022 @71Chevelle sorry I didn’t see this, thanks @Jeff-C175 for calling me into it! it looks like there are 6 wires, an orange and pink share one slot. I hope these help, the lighting isn’t the best! Yellow, Grey, Black (in the center) on one side… Orange, Pink/Orange, Black on the other… 1 1 Share this post Link to post Share on other sites
71Chevelle 5 #14 Posted July 19, 2022 Thank you sooooo much. I only have 5 but I think your pics will work. 1 Share this post Link to post Share on other sites
Jeff-C175 7,195 #15 Posted July 19, 2022 5 hours ago, 71Chevelle said: Thank you sooooo much. I only have 5 but I think your pics will work. Do you get the same thing I get? Share this post Link to post Share on other sites
71Chevelle 5 #16 Posted July 20, 2022 Looking at the first picture above I agree with you. Thks 😉 1 Share this post Link to post Share on other sites
71Chevelle 5 #17 Posted July 20, 2022 Put it back together this morning. That was it. Thank You 1 Share this post Link to post Share on other sites
