shipo

520-h motion controls

Recommended Posts

shipo

hello i am looking for help my 520 will not atay going forward and reverse is very very slow. is there a way to adjust and fix. if so how?

  • Sad 1

Share this post


Link to post
Share on other sites

kpinnc

Unfortunately there were too many different motion control versions for any of us to help you without either model numbers or pictures.

  • Like 1

Share this post


Link to post
Share on other sites

lynnmor

:text-welcomeconfetti:

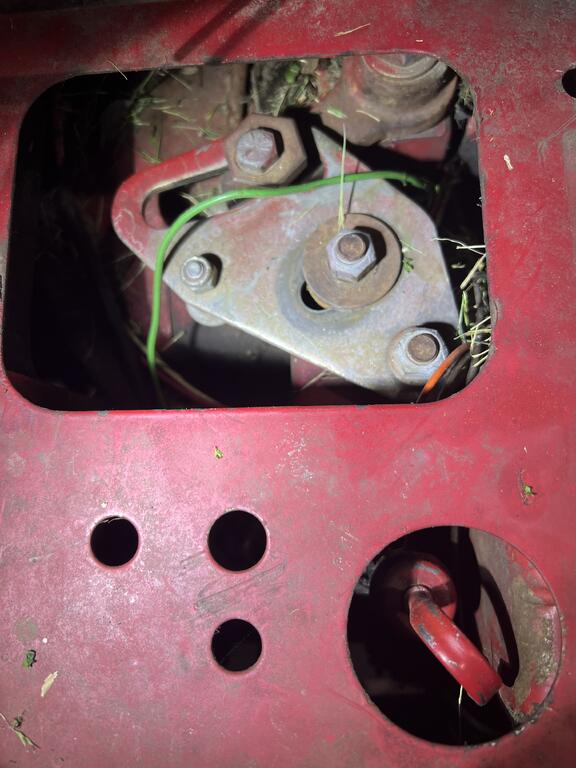

Under the seat there is an access hole where you will find the cam plate.  There is a friction adjustment nut that you will turn down a bit till the motion lever has some resistance to movement, adjust till it stays in place while operating.  The cam follower that rides in that groove may be worn or out of adjustment causing the slow reverse, keep in mind that reverse is a bit slower than forward.  Also, that friction area has washers that are not to be lubricated.



Get things cleaned up and adjusted, then report back with results.





  • Like 2

Share this post


Link to post
Share on other sites

rmaynard

:WRS:

Generally, if it's moving too slow, and motion control won't stay put, it's a problem in the linkage and/or cam plate (depending on model).

As was said earlier, a little more info on year and the ID number would be helpful.

  • Like 1

Share this post


Link to post
Share on other sites

Ed Kennell

                                                                                              :text-welcomeconfetti:to the :rs:



Go to our manuals section and download your tractors manual.    It will contain the info you need to adjust the motion control.



If you have trouble finding the manual, post your tractors model number and we can post a link to your manual.





  • Like 1

Share this post


Link to post
Share on other sites

shipo

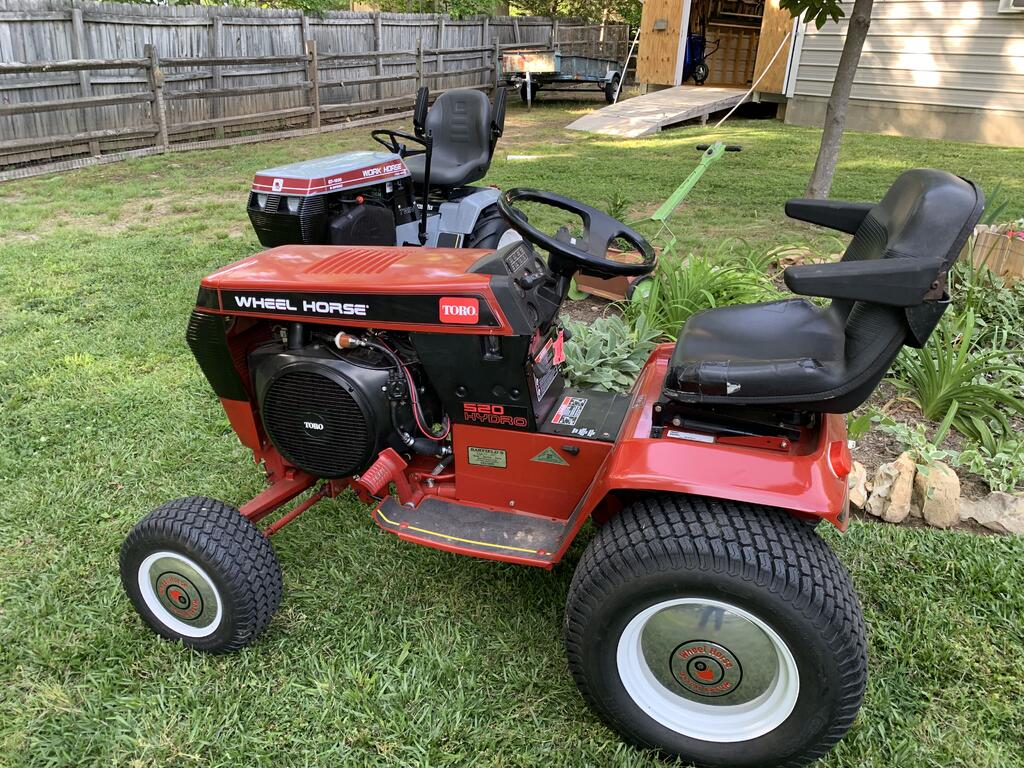

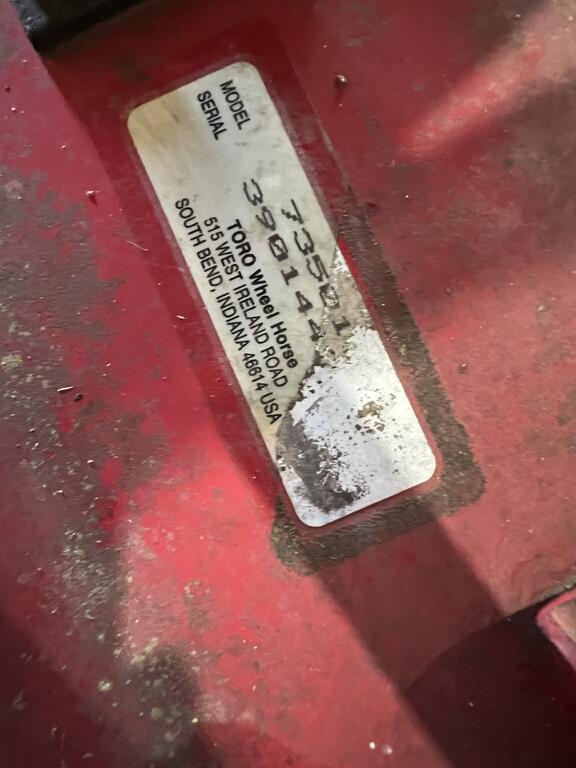

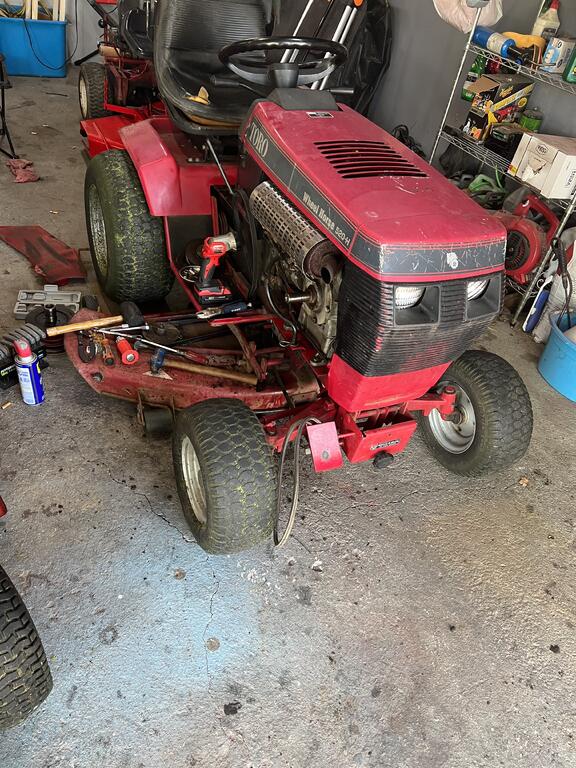

ok yall sorry for the late reply just got outside. dont mind the pto pully off had a leak from crank seal waiting for replacement to arrive




  • Like 3

Share this post


Link to post
Share on other sites

Ed Kennell



  • Like 3

Share this post


Link to post
Share on other sites

rmaynard

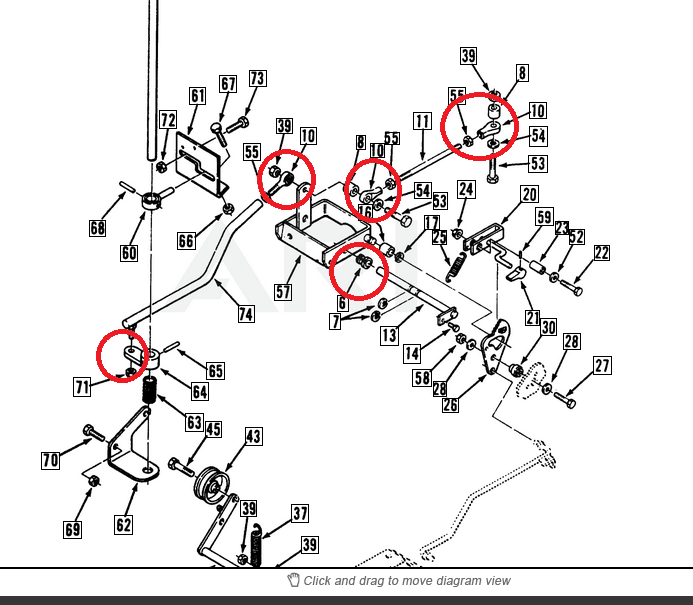

Look at the image below. Areas in red circles are places where slop can occur. These areas need to be tight and not producing a lot of unnecessary movement. This is an important step in making the motion control work correctly.

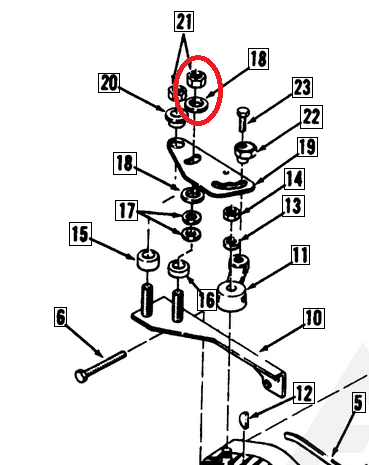

The next image is of what you see under the seat. Again, make sure all connections are tight and not producing slop in the movement. The nut and washer circled control the "drag" on the motion control cam. They should not be lubricated, and tightened just enough to prevent the whole motion control linkage from moving on it's own. Adjustments to this cam is covered in the owners manual.




  • Like 2

Share this post


Link to post
Share on other sites

shipo

you guys are awesome i will try some adjustments once i get the seal in today

  • Like 2

Share this post


Link to post
Share on other sites

lynnmor
11 minutes ago, rmaynard said:

Look at the image below. Areas in red circles are places where slop can occur. These areas need to be tight and not producing a lot of unnecessary movement. This is an important step in making the motion control work correctly.










I have had the pin #65 work loose or fall out, just another place to look.

  • Like 2

Share this post


Link to post
Share on other sites

peter lena

@shipo  , even though not called for ,  https://www.amazon.com/Super-Lube-51004-Synthetic-Viscosity/dp/B000UKUHXK/ref=asc_df_B000UKUHXK?tag=bingshoppinga-  makes those dry worn areas , work easier . while not trying to start a war , don't hesitate to  add to a rusty , dragging spot , also a very good , throttle and choke cable lubricant . just an idea , pete

  • Like 1

Share this post


Link to post
Share on other sites

roadapples

:WRS: slow reverse, are you pushing the handle down before pulling it back?

  • Like 1

Share this post


Link to post
Share on other sites

953 nut

:WRS:

If your hydro isn't moving well forward or back take a look under the tunnel cover between your legs, Squirrels, mice or chipmunks will drag all sorts of stuff in there to build a nest and make it their winter home. That can prevent the linkage from moving as far as it should.

  • Like 4

Share this post


Link to post
Share on other sites

shipo

ok sorry for late responses. i got it adjusted up under the seat and foward stays up and reverse works great!. but its a bit jumpy now.

  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites

rmaynard
8 minutes ago, shipo said:

ok sorry for late responses. i got it adjusted up under the seat and foward stays up and reverse works great!. but its a bit jumpy now.

My 416-H was jumpy. I fixed it by installing a "Matt's Foot Pedal" option. Not sure if he still makes them, but since installing, the whole motion control thing is 100% better.

  • Like 2

Share this post


Link to post
Share on other sites

lynnmor
3 hours ago, shipo said:

its a bit jumpy now.



Sounds like you have a good strong hydro, they can be "jumpy" if the motion lever isn't moved smoothly.  You might want to revisit the adjustment nut under the seat, if some small adjustments still result in jerky movement, then take it apart, sand the surfaces, clean well and reassemble.  I use a bit of grease or oil on all of the moving parts except the friction washers.

  • Like 3

Share this post


Link to post
Share on other sites

shipo

i believe i will  waiting on filters deck bearings and blades to get here. then get it out on the 1st mow and see if anymore adjustment needs to be made

  • Like 1

Share this post


Link to post
Share on other sites

Horse Newbie
Posted (edited)

:text-welcomeconfetti:TO :rs:!!!!



You will find all the help you need here !



You have discovered the Worlds Best Wheel Horse Forum !

I like the way you dig into a tractor !



I have a 1994 520H too !



Edited by Horse Newbie
  • Like 2
  • Excellent 1

Share this post


Link to post
Share on other sites

peter lena

@lynnmor  like your emphasis on the detailing and small adjustments  on that unit. there is typically nothing that I  have encountered  on a horse related issue that could not use help . linkages are staring at you in a neglected / rusty  state . do you have to go to a book to be instructed on obvious issues ?  that super lube oil , that I  refer to is terrific in those areas .  also on neglected throttle and choke cables . pete

Share this post


Link to post
Share on other sites

lynnmor
1 minute ago, peter lena said:

@lynnmor linkages are staring at you in a neglected / rusty  state . do you have to go to a book to be instructed on obvious issues ?



The "book" has little to say about maintaining the linkage.  It comes down to common sense that metal to metal contact points should have some kind of lubrication.  Once a year I pull the seat, fender, console covers and fuel tank to clean it out and lube all moving joints.  The amount of debris that collects in there is unbelievable and rust will start if it stays moist.

  • Like 2

Share this post


Link to post
