Engine mount for 6.5 hp predator engine on a 657

Recommended Posts

Schmendrickthemagnificent

Thoughts and opinions on how to mount a Predator engine on a wheel horse 657, was kinda hoping the mounting bracket would work from the previous engine which apparently looks like a Tecumseh h50 with a Craftsman part number so who knows where it came from... so do I just buy a universal plate from amazon or ebay and drill some holes, find some metal and make one, dunno if anyone has bothered to go thru this already and had a good suggestion or anything I should know about... Thx

Share this post


Link to post
Share on other sites

Maxwell-8

I just bolt the engine directly to the frame.

That is if the shaft height matches to the previous engine.

Should be a very easy swap

  • Like 1

Share this post


Link to post
Share on other sites

cschannuth

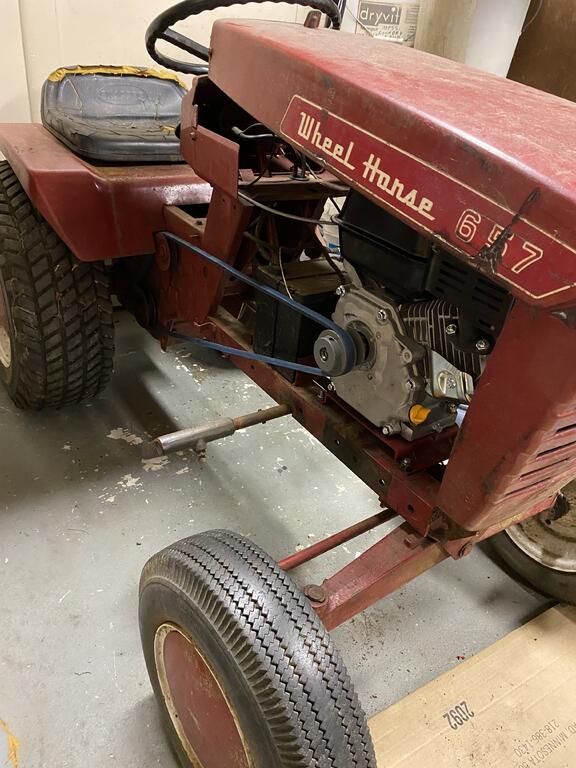

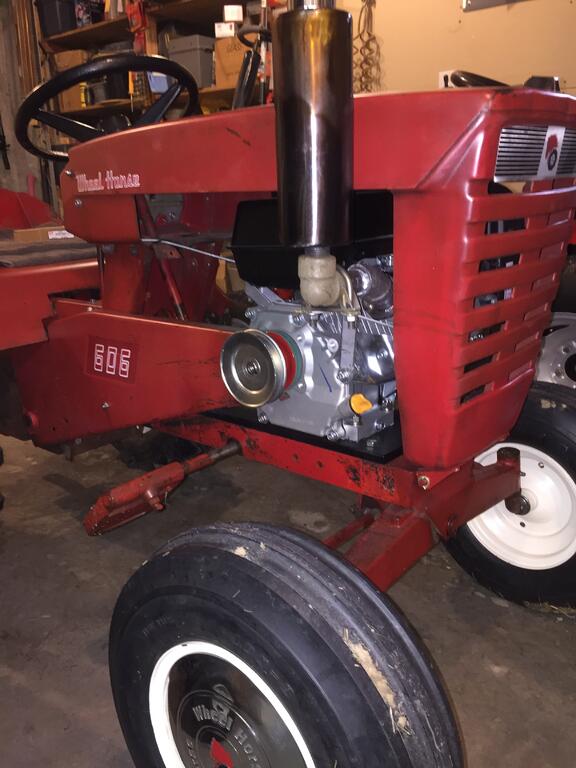

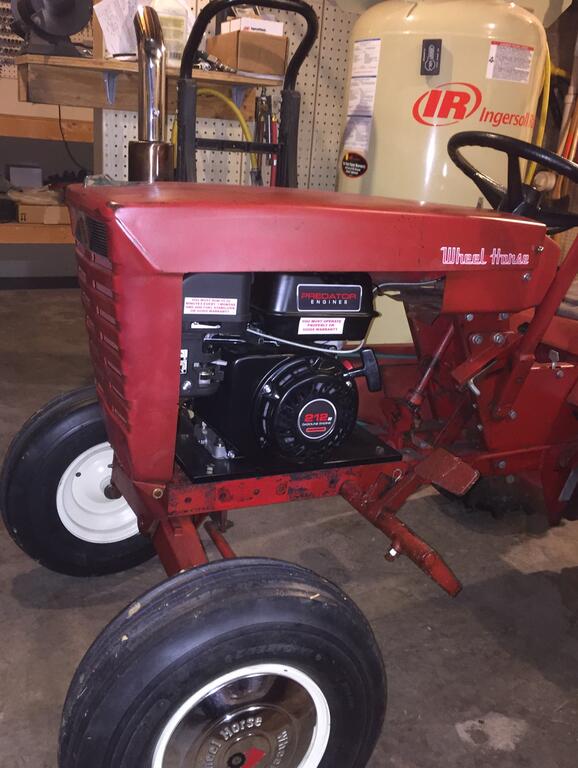

I just bolted it  to the frame with a spacer plate to get the engine pulley as close to the original position as possible.  I upsized the engine pulley for a little bit more speed so I had to modify an old belt cover that I had laying around just a little bit to make the opening near the engine pulley fit properly.  This was a roller when I got the tractor so I actually used the original belt guard to help dictate placement of the engine.C6261C03-CE6E-449C-AF1E-8F97AAD3369C.jpeg.b71a2896f74c205a6e23535882554dfd.jpegBE291D77-BFB2-426E-88B5-C9E4CD1B87BB.jpeg.f7f82902ddca2e49ce8add35ef657724.jpeg

  • Like 6
  • Excellent 2

Share this post


Link to post
Share on other sites

SylvanLakeWH

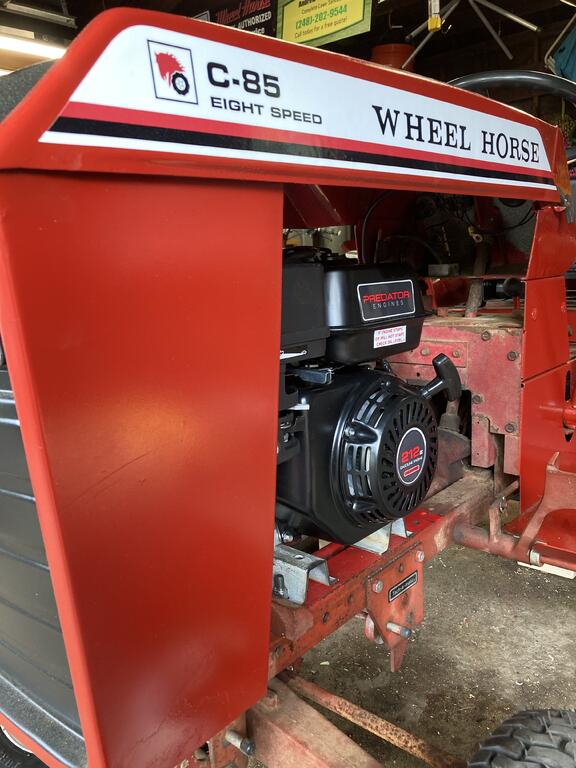

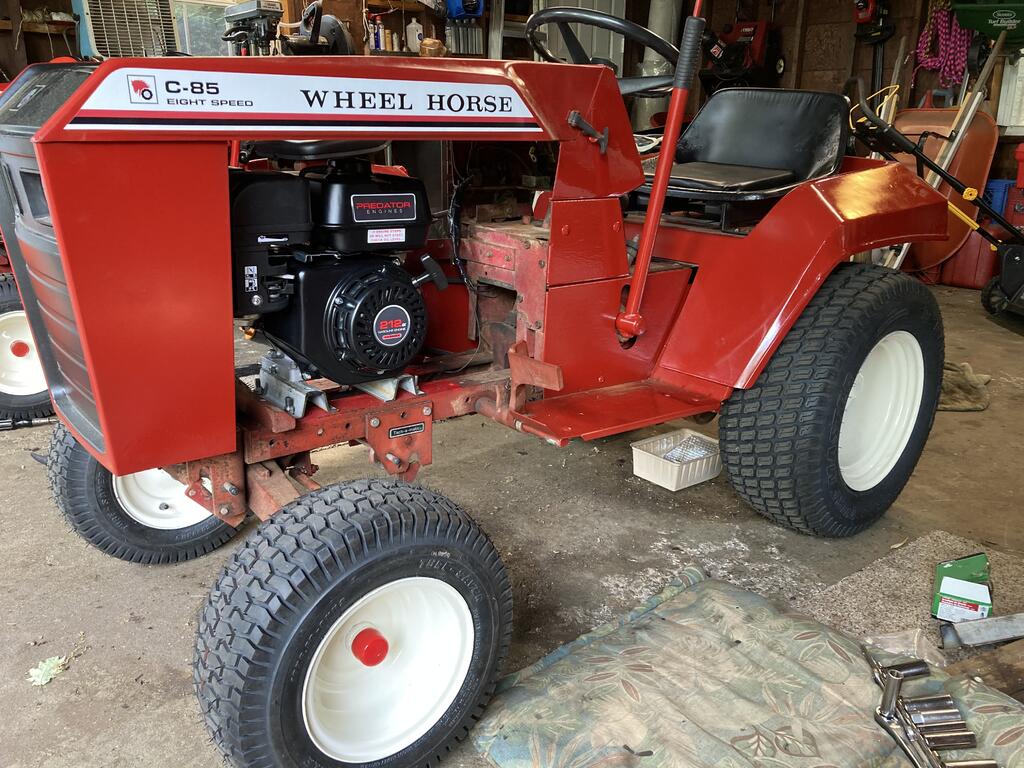

Here’s how I mounted two of my predator repowers… used the w section sign post to get pulley at same elevation as original. Bolted right on after that.







  • Like 5
  • Excellent 2

Share this post


Link to post
Share on other sites

Maxwell-8

I have never seen one of those predator engines in person. Didn't know they where that small.

Share this post


Link to post
Share on other sites

D_Mac

Never used one on a Wheel Horse but I put one in my 655 Lambert project. I just positioned it to where I got the best fit. Drilled new holes and bolted it down.


  • Like 4

Share this post


Link to post
Share on other sites

Schmendrickthemagnificent

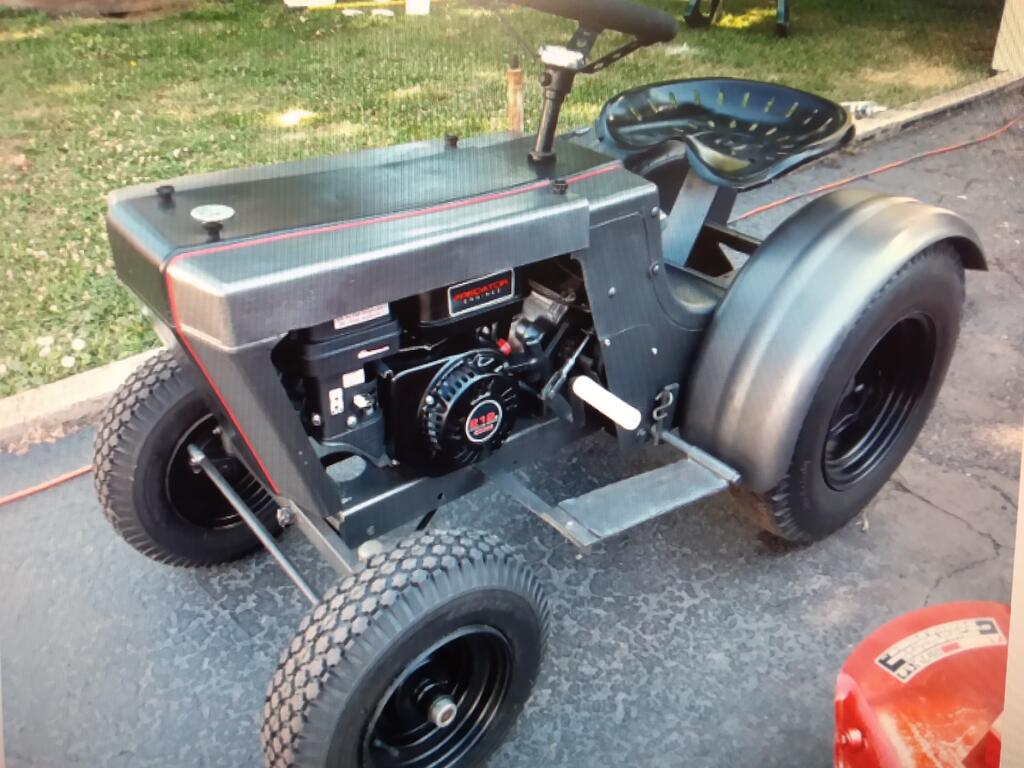

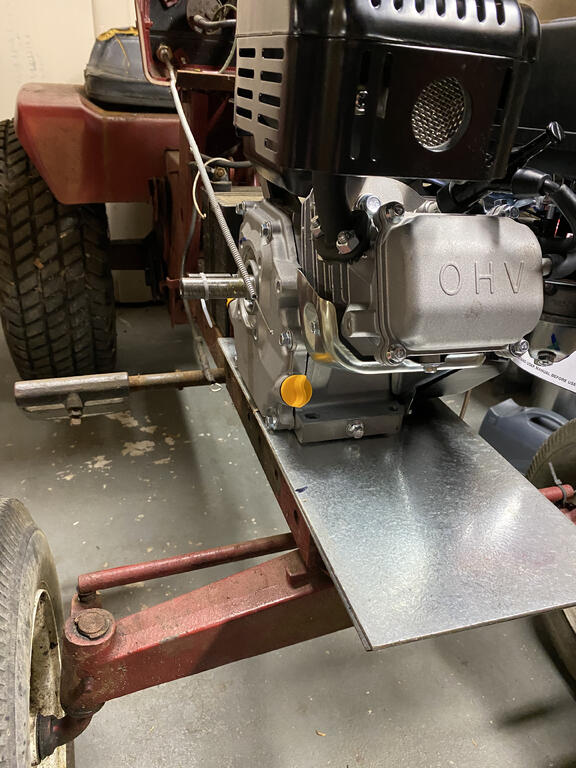

Welp, I guess i'm gonna make one out of this then


  • Like 1
  • Excellent 1

Share this post


Link to post
Share on other sites

Schmendrickthemagnificent

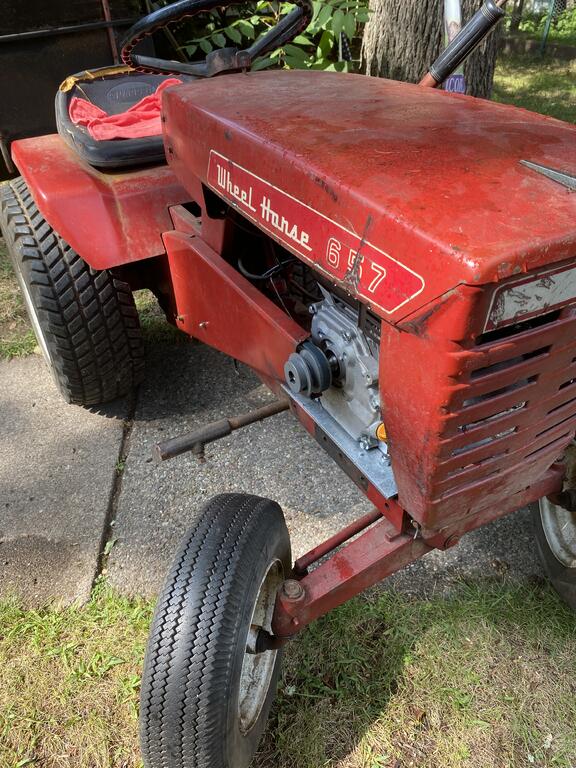

Failed attempt # 1 engine belt guard doesn't line up...


Share this post


Link to post
Share on other sites

Snoopy11
On 4/27/2022 at 6:20 AM, Maxwell-8 said:

I just bolt the engine directly to the frame

PRECISELY what I have done in the past.



Trying this with a big HOZZ of a 457 makes it difficult.



On 4/27/2022 at 12:18 PM, Maxwell-8 said:

Didn't know they where that small

Well, any 212 base is small. Then when you remove all the air filter crap, muffler, etc... it makes it THAT much smaller.

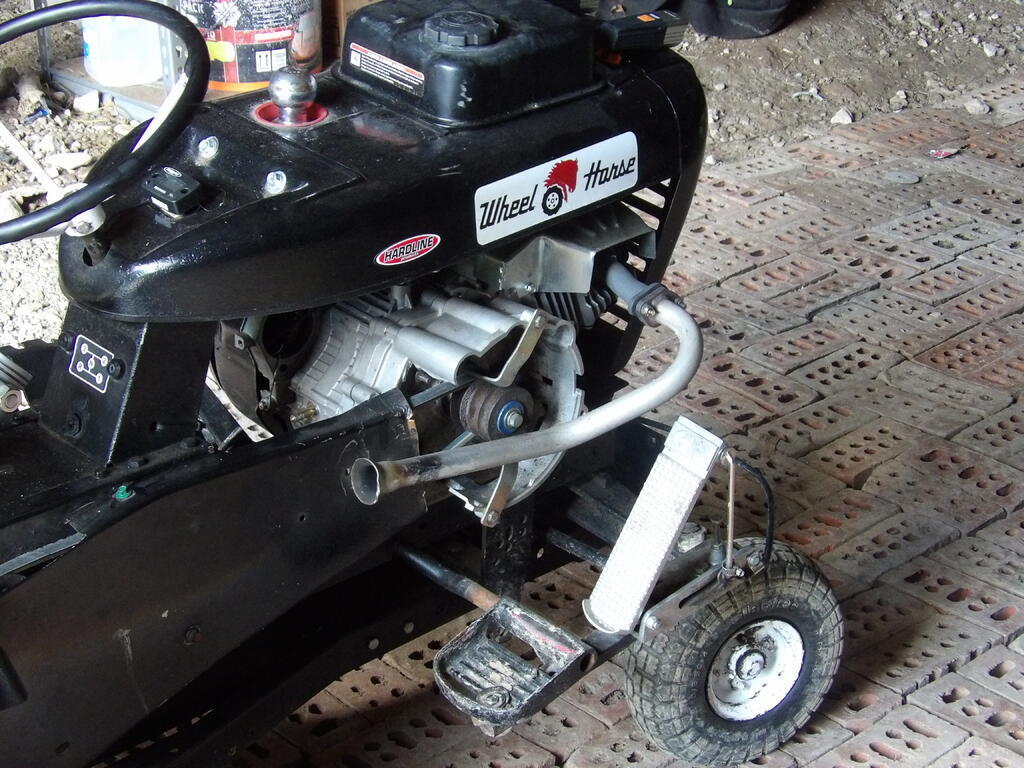

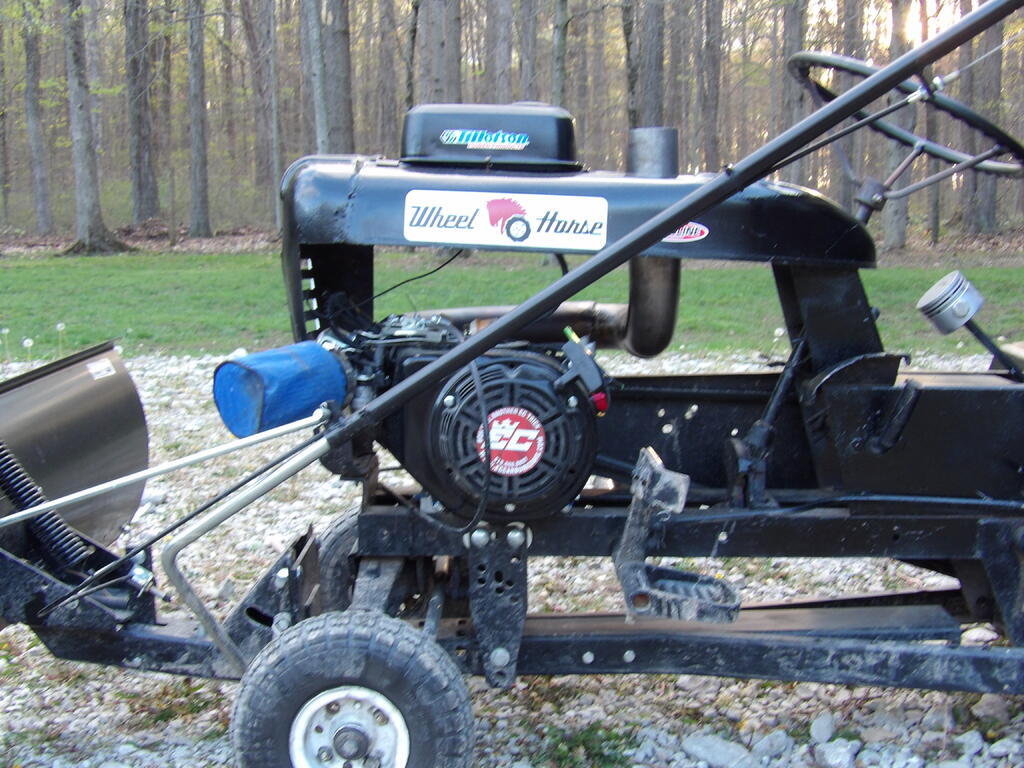

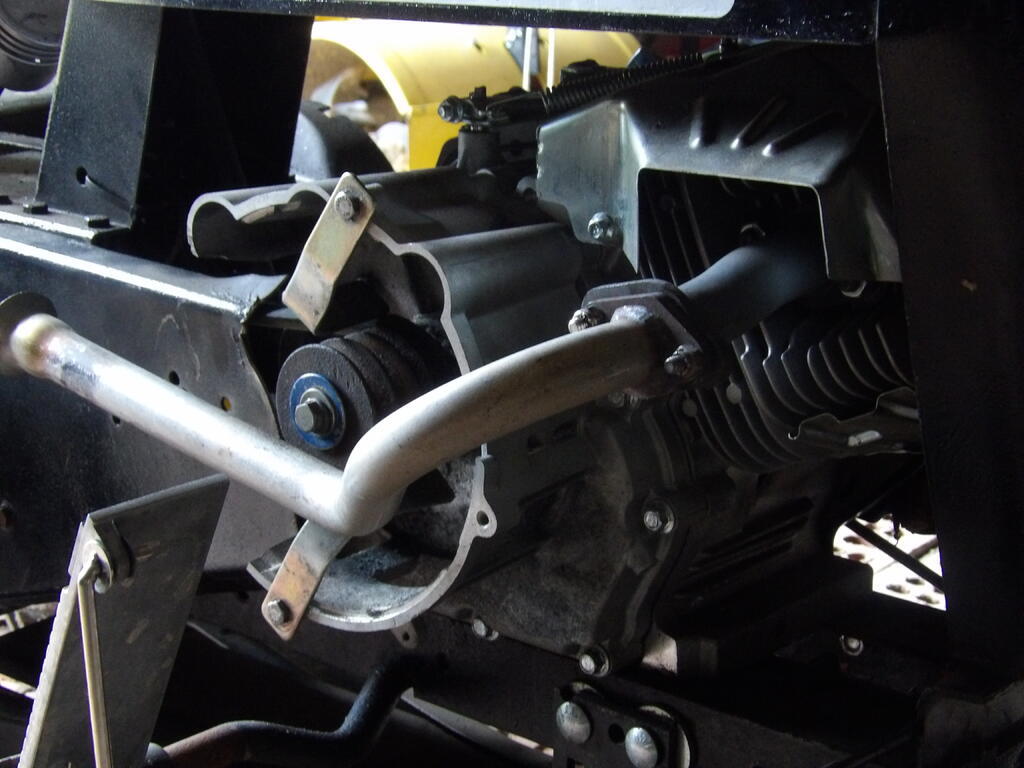

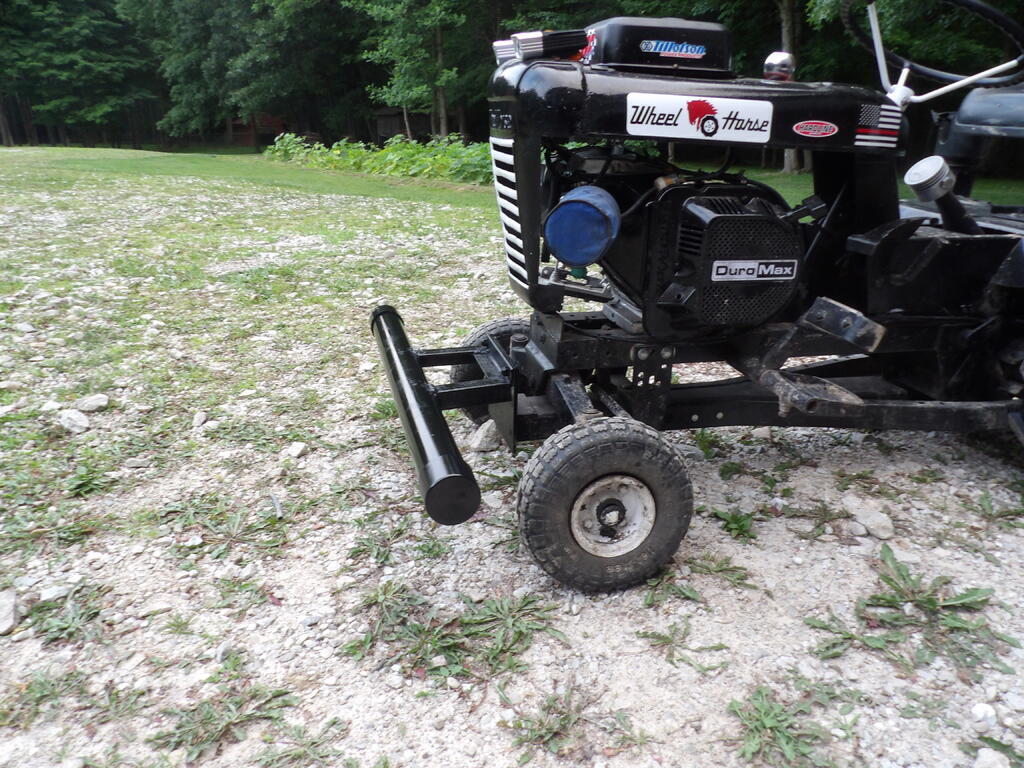

Here is a 212R that was originally on my L-157:






Compared to the 457:












All of those are really old pictures, but you can tell there is a MAJOR DIFFERENCE!!!



Don

  • Like 2

Share this post


Link to post
Share on other sites

Schmendrickthemagnificent

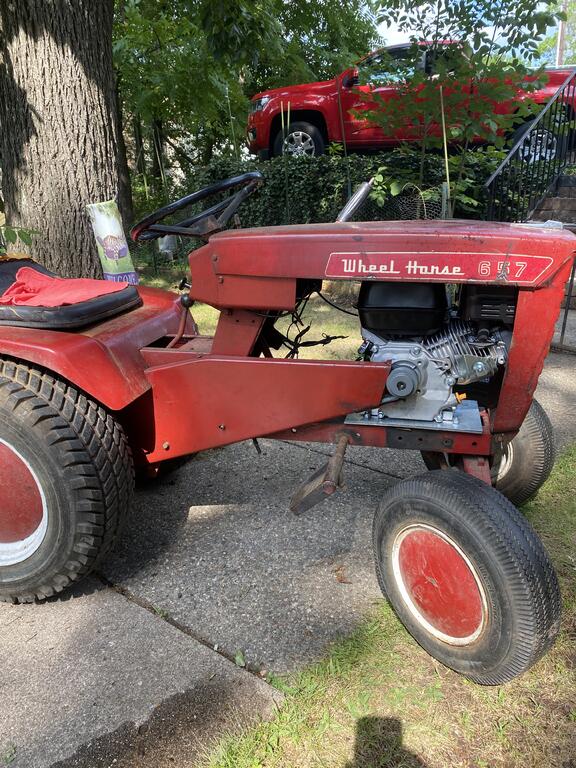

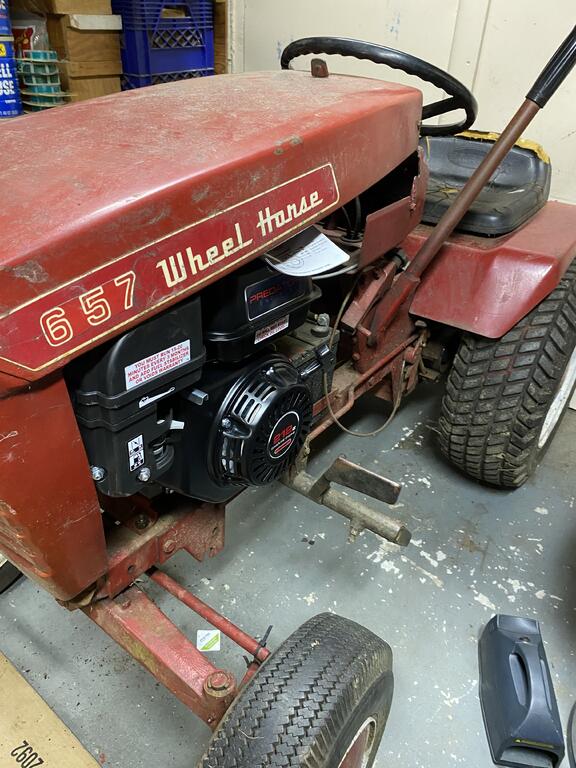

Attempt # 2 now it’s the hood… Hopefully third time is the charm lol



  • Like 2

Share this post


Link to post
Share on other sites

cschannuth
8 hours ago, Schmendrickthemagnificent said:

Attempt # 2 now it’s the hood… Hopefully third time is the charm lol

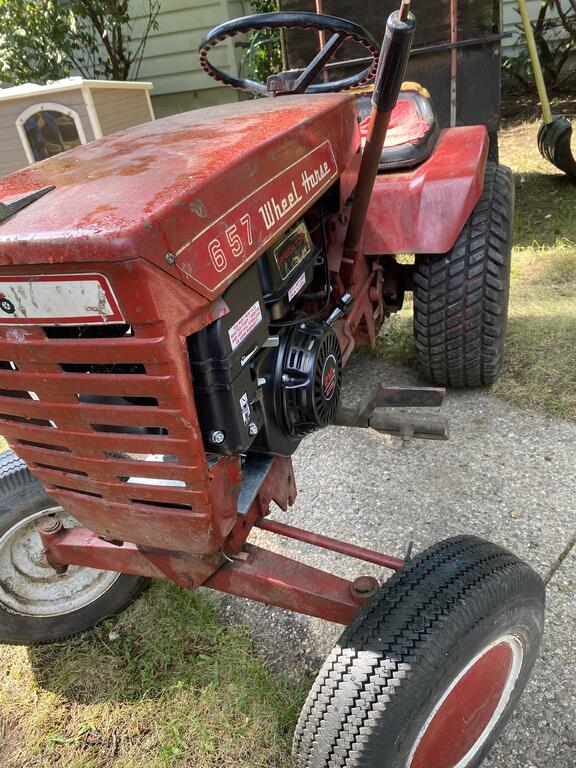

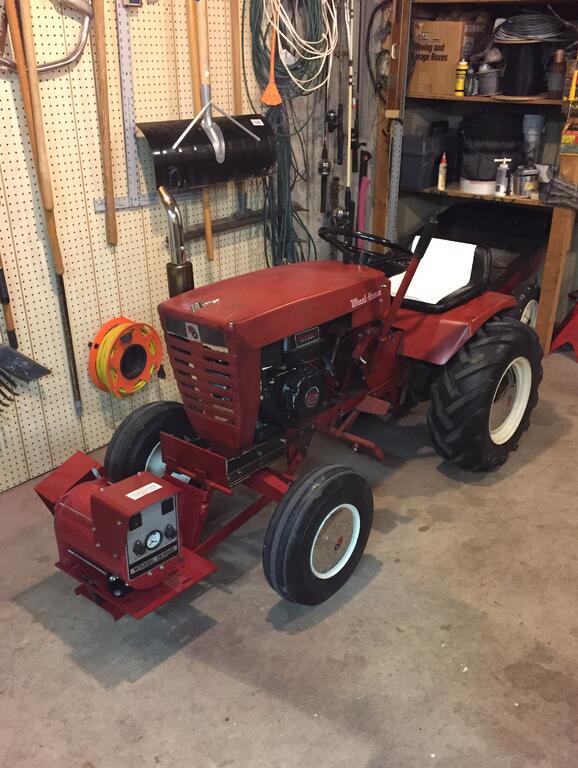

When I did mine the hood was a bit of a problem as well. I was able to spread the inside of the front of the hood/grill enough that everything fit without having to do any cutting or major modifications. It’s tight but it’s not really even noticeable that I had to spread the hood unless you’re really looking close. E3D51F89-6B3F-4EA0-B725-23E905216781.jpeg.229e8a2f489a4c4425158ba1c8b967e5.jpegF49E60FC-25A7-47F2-B8A9-3C2BB7986FED.jpeg.e447834c75633d3e3303d4bc234ef405.jpeg

  • Like 1
  • Excellent 1

Share this post


Link to post
Share on other sites

Snoopy11

If you so choose, you can remove that airbox and go with an aftermarket filter... which helps the hood fit...



Also, if you remove the top of the filter housing, it should clear the hood. (You can leave the filter housing top removed indefinitely).



Don

  • Like 1

Share this post


Link to post
Share on other sites

Snoopy11
6 hours ago, cschannuth said:

I was able to spread the inside of the front of the hood/grill enough that everything fit without having to do any cutting or major modifications.

I never thought about spreading the hood! What an idea!  :banana-dance:



Don

  • Thanks 1

Share this post


Link to post
Share on other sites

cschannuth
8 hours ago, Snoopy11 said:

I never thought about spreading the hood! What an idea!  :banana-dance:



Don

It didn’t take much and I figured I could always put it back like it was originally if I ever went back to an original engine.

Share this post


Link to post
Share on other sites

Schmendrickthemagnificent

Thoughts about moving engine back to fit into hood, but then I’ll have to cut down belt guard and put a smaller sized belt…. I tried pushing/spreading hood but would have to do too much and would look silly or crack more




Share this post


Link to post
Share on other sites

Schmendrickthemagnificent

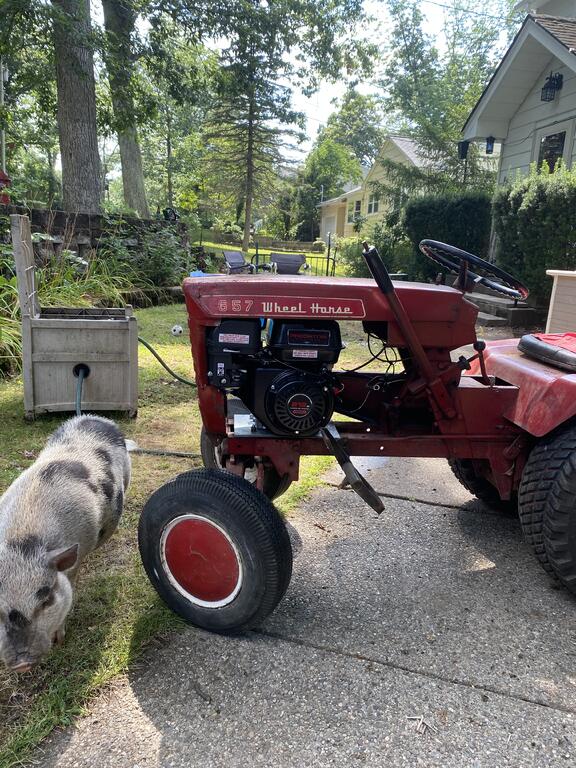

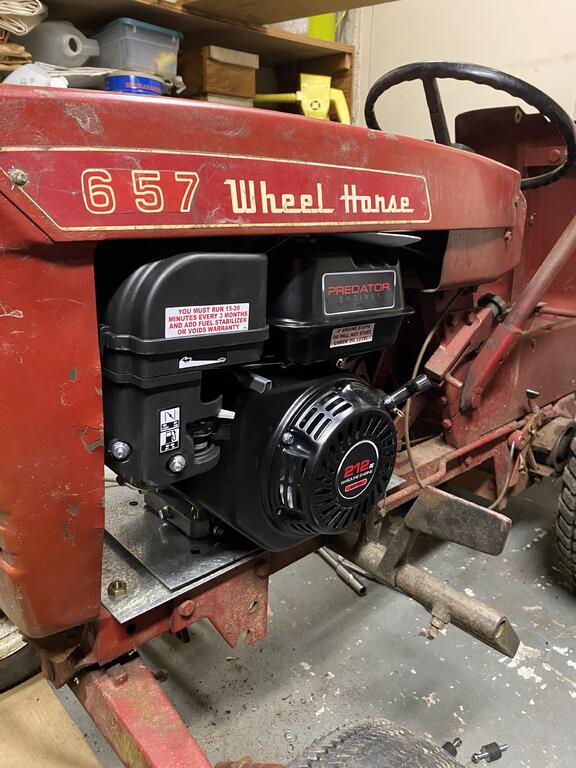

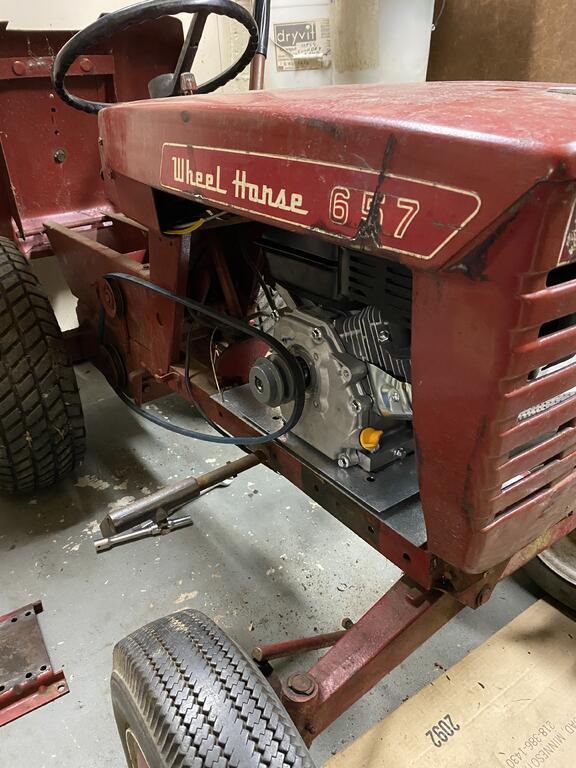

Welp here’s the finished ugly project but it works so whatever, fml


  • Like 1

Share this post


Link to post
Share on other sites

Schmendrickthemagnificent

That is a pig fyi


Edited by Schmendrickthemagnificent
  • Like 1

Share this post


Link to post
Share on other sites

Schmendrickthemagnificent


Share this post


Link to post
Share on other sites

Schmendrickthemagnificent


Share this post


Link to post
Share on other sites

Schmendrickthemagnificent

Once again, that is a pig, this is NJ btw lol, thank you all for your input 👍


Edited by Schmendrickthemagnificent
  • Haha 1

Share this post


Link to post
Share on other sites

wallfish

I realize it's too late now but maybe it can help the next guy.

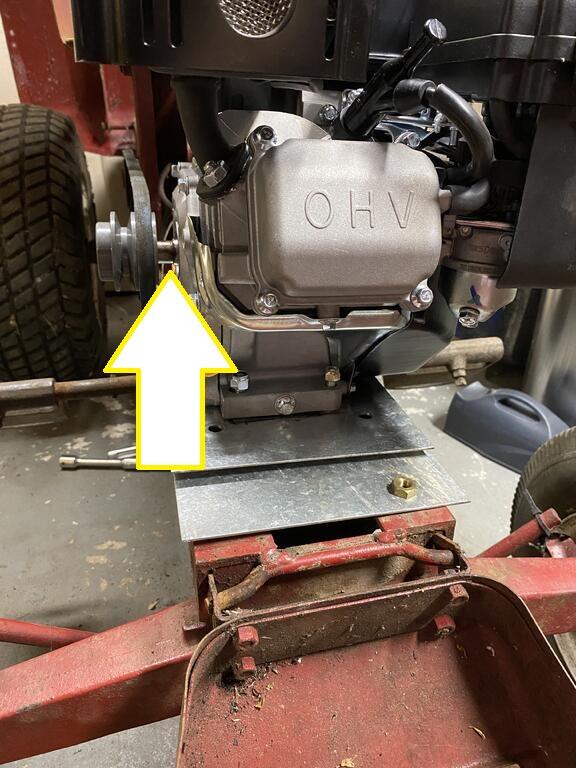

The engine needs to be set on the right side edge of the frame rail, yous is positioned way to far to the left. The problem was the drive pulley spacing from the engine block on the shaft. That pulley needs to be deeper on to the shaft and positioned right next to the engine block. Maybe 1/16-1/8" of space. And then the engine block slid over to the edge of the frame on that same pulley side. That's how every Wheel Horse HZ engine tractor is set up no matter what kind of engine it is.

Look at the 606 pics above. A 606 and 657 are basically the same tractor so that engine should've fit without cutting the hood.

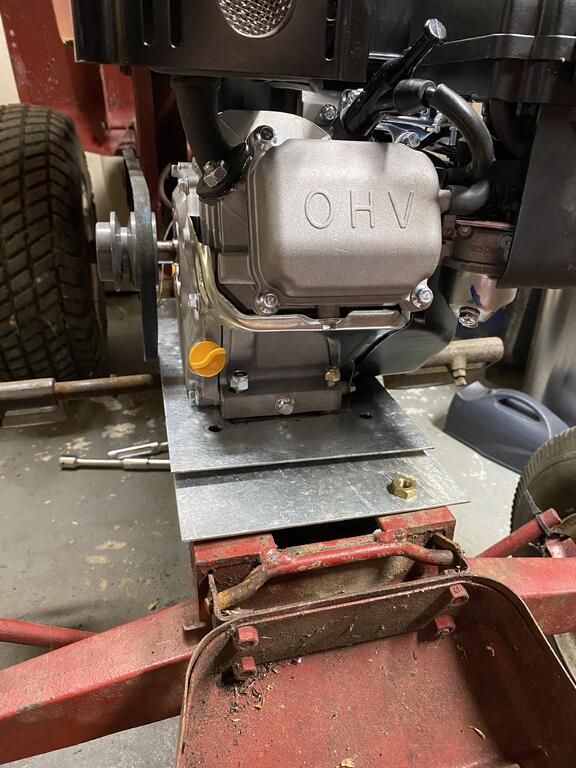

3FD1B728-D252-48A5-BBDD-97BA9FCCD45F.jpeg.5bd1c7a1654a77e48232f99e7e10e823.jpeg.5a7bf4d4e3ee7599ee3865e64d3ebdd5.jpeg

  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites
