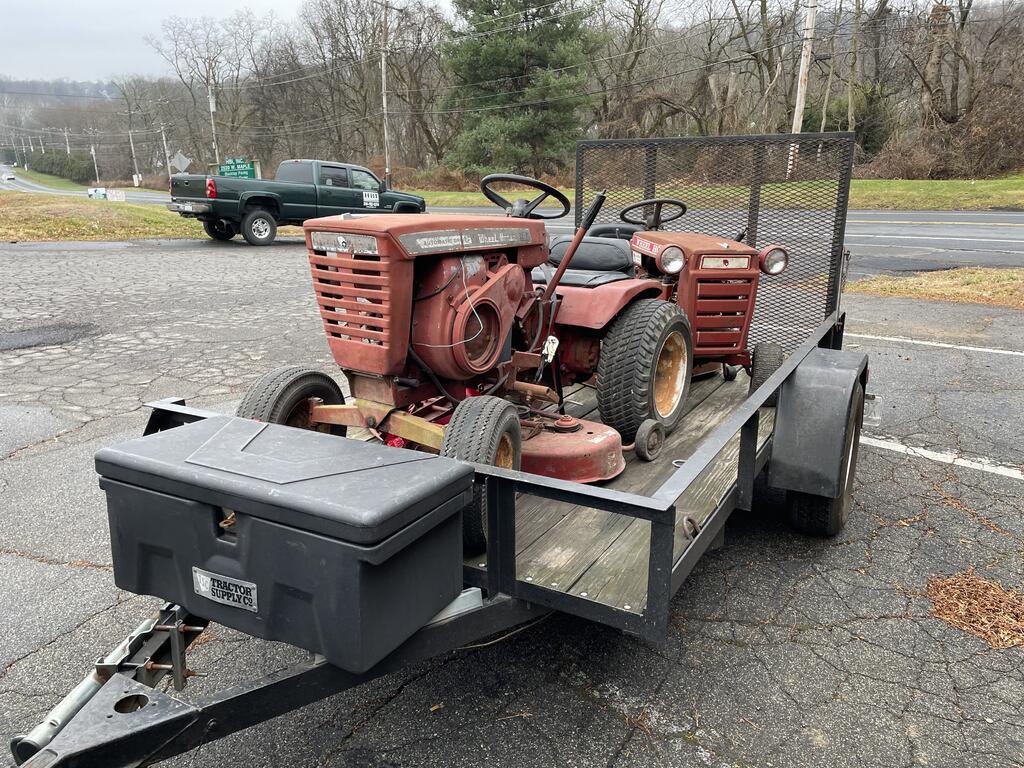

BHunter 1,651 #1 Posted January 3, 2022 Hey guys. I just picked up a 1077. The PO says it ran great before he parked it last year. I got it home and can’t get spark. tried cleaning the points and ignition terminals. This tractor has a 1969 k301 with starter/generator. I’ve never seen an ignition like this one. It has an internal coil and has points / condenser. I ordered new points and condenser for it. I’m hoping it works. should I get an external coil for it if the new points don’t work? Thanks in advance for your advice. 2 Share this post Link to post Share on other sites
WHX?? 46,967 #2 Posted January 3, 2022 Hello Bob how ya been?!?! Something rotten in Denmark here . 1077 should have a 241 with a S/G and battery fired points. Standard 12v ignition coil hanging off the shroud for all the world to see. Not sure what you mean about internal coil you mean one under the flywheel? If so that not gonna work at all. Repoed by a later motor but hard to believe if the S/G was retained. Sounds like some PO cobblements going on here. Now you know I gotta admonish you here as '67s are my forte and you know dang well we like . 1 Share this post Link to post Share on other sites
953 nut 52,062 #3 Posted January 3, 2022 Is there a "SPEC #" on your engine? Share this post Link to post Share on other sites

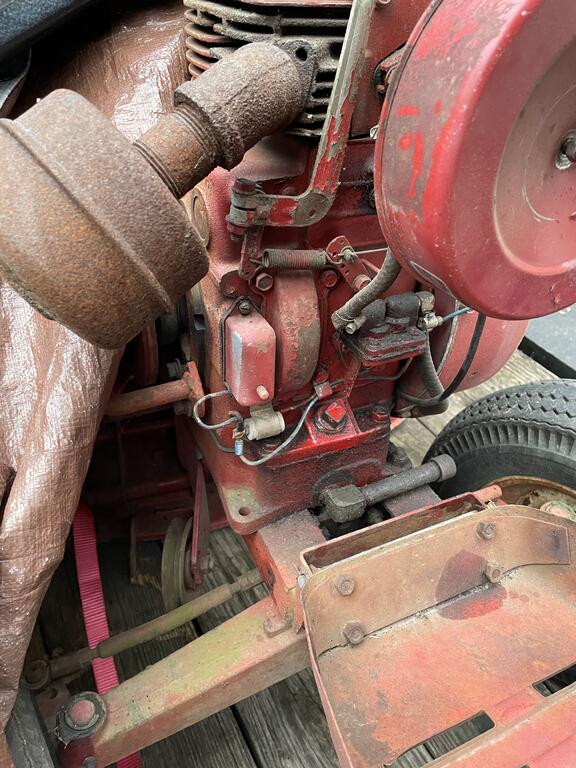

BHunter 1,651 #4 Posted January 3, 2022 9 minutes ago, WHX?? said: Hello Bob how ya been?!?! Something rotten in Denmark here . 1077 should have a 241 with a S/G and battery fired points. Standard 12v ignition coil hanging off the shroud for all the world to see. Not sure what you mean about internal coil you mean one under the flywheel? If so that not gonna work at all. Repoed by a later motor but hard to believe if the S/G was retained. Sounds like some PO cobblements going on here. Now you know I gotta admonish you here as '67s are my forte and you know dang well we like . Hi Jim, thanks for responding. I know you are the 67 expert. I love them too. Especially the wood grain decals the 67s have. The spark plug wire goes behind the flywheel shroud on this one . the cobblements really have me confused. The 1969 k301s don’t have S/G do they? I don’t have a motor pic but can post one tomorrow. Share this post Link to post Share on other sites

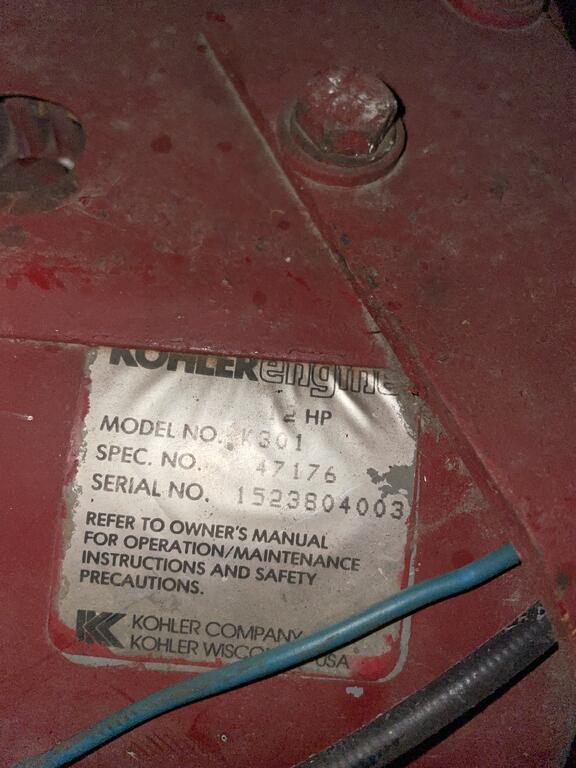

BHunter 1,651 #5 Posted January 3, 2022 2 minutes ago, 953 nut said: Is there a "SPEC #" on your engine? Hi Dick the spec # is 47176 Bob Share this post Link to post Share on other sites
pfrederi 17,178 #6 Posted January 3, 2022 Magneto Points ignition one of 3 types Kohler used back then. Make sure your ignition switch has an "M" terminal. You do not want voltage applied to it. If i was wired to a battery ignition switch it may have cooked teh magneto. Try disconnecting the wire and crank any spark then?? 1 1 Share this post Link to post Share on other sites

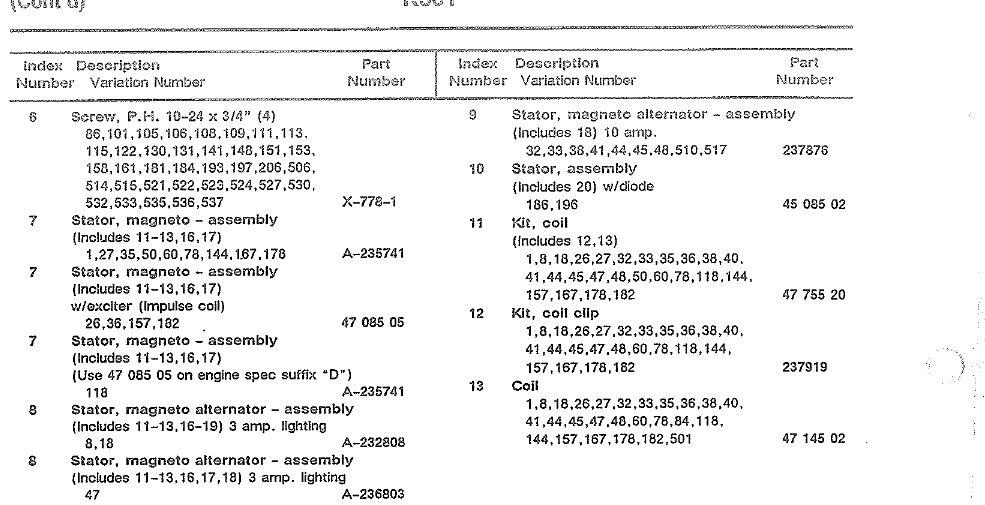

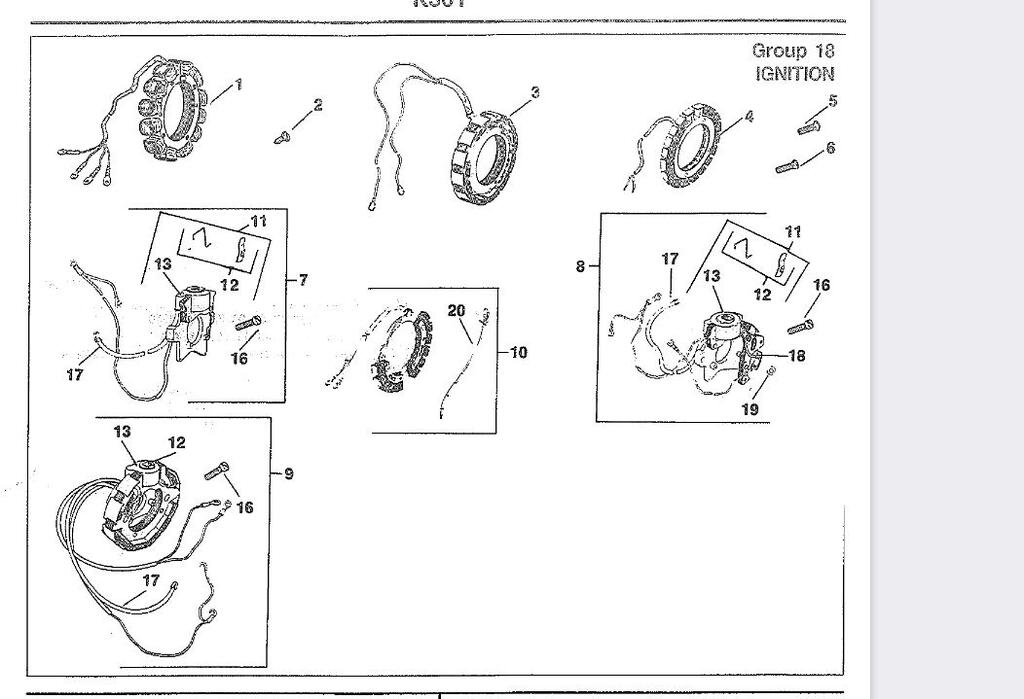

pfrederi 17,178 #7 Posted January 3, 2022 (edited) Spec 47176 (Ignition Variation 178) Used Magneto Points but no charge coil on the stator..it has S/G See mag #7 no charge stator coils Edited January 3, 2022 by pfrederi 2 1 Share this post Link to post Share on other sites
BHunter 1,651 #8 Posted January 3, 2022 16 minutes ago, pfrederi said: Magneto Points ignition one of 3 types Kohler used back then. Make sure your ignition switch has an "M" terminal. You do not want voltage applied to it. If i was wired to a battery ignition switch it may have cooked teh magneto. Try disconnecting the wire and crank any spark then?? Thanks for the info. I never owned a Kohler that is set up like this Spec. It didn’t seem right. Someone Changed the ignition switch too. Im hoping the magneto is ok. I will look for the M terminal tomorrow. I want to buy a new ignition switch but im not sure which one I should get for this combination. Share this post Link to post Share on other sites

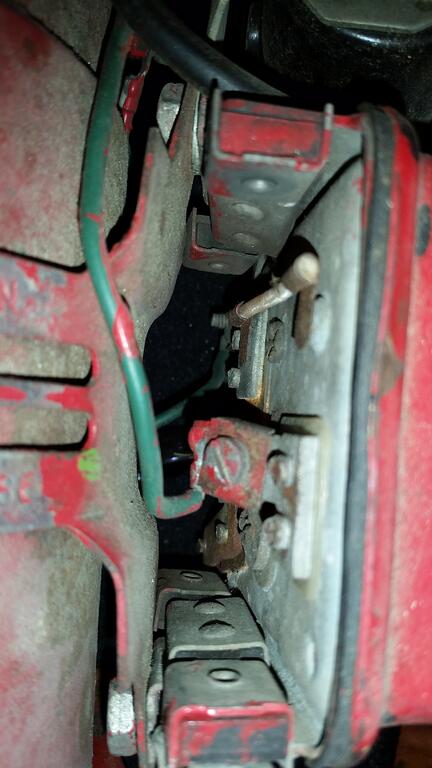

gwest_ca-(File Mod) 10,533 #9 Posted January 3, 2022 Let us know what switch you have. This is the original 1077 switch for battery ignition. Does the switch have 3 or 4 key positions? Share this post Link to post Share on other sites
Gregor 4,838 #10 Posted January 3, 2022 Wheelhorsepartsandmore Red Square site supporter and vendor. https://wheelhorsepartsandmore.com/product/4988-7263-starter-generator-key-switch/ 1 Share this post Link to post Share on other sites
953 nut 52,062 #11 Posted January 3, 2022 9 hours ago, BHunter said: I never owned a Kohler that is set up like this Spec. It didn’t seem right. Someone Changed the ignition switch too. Im hoping the magneto is ok. I will look for the M terminal tomorrow. I want to buy a new ignition switch but im not sure which one I should get for this combination. Since this engine started and run for the previous owner with the present configuration my thought would be leave well-enough alone and use the same ignition switch number. My presumption is that the S/G start function is using a solenoid and a regular "M" ignition switch. If you want to use the factory type ignition switch you could do that by adding a "KILL RELAY" from the "I" terminal to the magneto. 1 Share this post Link to post Share on other sites

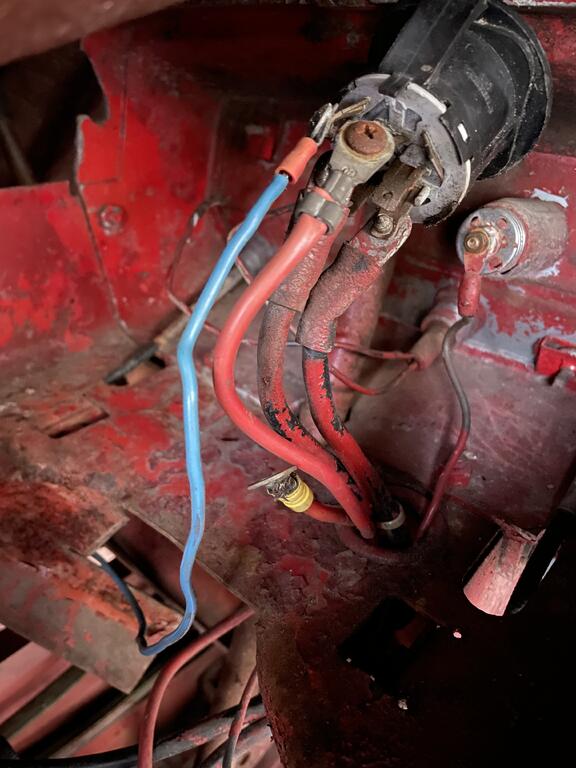

BHunter 1,651 #12 Posted January 3, 2022 9 hours ago, 953 nut said: Since this engine started and run for the previous owner with the present configuration my thought would be leave well-enough alone and use the same ignition switch number. My presumption is that the S/G start function is using a solenoid and a regular "M" ignition switch. If you want to use the factory type ignition switch you could do that by adding a "KILL RELAY" from the "I" terminal to the magneto. Thanks for the info. I am going to put new points and condenser in it when they arrive. Hopefully the PO was being truthful and it will work. I really want to change the ignition switch because it doesn’t even attach to the dashboard. It is a giant Troy built switch. There is also a toggle kill switch mounted to the console. The blue wire in photo is attached to the toggle switch. I’d like to get rid of that too. Im not very knowledgeable about electrical systems and I’m grateful for your input. Share this post Link to post Share on other sites
BHunter 1,651 #13 Posted January 3, 2022 17 hours ago, gwest_ca said: Let us know what switch you have. This is the original 1077 switch for battery ignition. Does the switch have 3 or 4 key positions? Thanks for the info! I’m not sure how many positions it has Share this post Link to post Share on other sites
953 nut 52,062 #14 Posted January 4, 2022 1 hour ago, BHunter said: I really want to change the ignition switch because it doesn’t even attach to the dashboard. It is a giant Troy built switch. There is also a toggle kill switch mounted to the console. The blue wire in photo is attached to the toggle switch. I’d like to get rid of that too. Perhaps it is was functional but I'm with you, scrap the whole electrical system and start from scratch. Here is a wiring system that I hope will be helpful. 1 Share this post Link to post Share on other sites
BHunter 1,651 #15 Posted January 8, 2022 Today I pulled the flywheel to see if cleaning the magneto magnets would help. Still no spark. I’m waiting for the ignition switch to get here. Hopefully that will help. Share this post Link to post Share on other sites
953 nut 52,062 #16 Posted January 9, 2022 Your high tension lead should be attached to the coil like the one in this picture from ISOT. https://isavetractors.com/ignition-coil-for-magneto-ignition-system-for-kohler-k141-k161-k181-k241-k301-engine/ 1 Share this post Link to post Share on other sites
WHX?? 46,967 #17 Posted January 9, 2022 (edited) I'm gonna tell you right here and now Bob stop all engines to stop till we get this thing fingered out. First off this is obviously a repo and a true PO cobblement. While it might be entirety possible to up fit a 12 hp with magneto madness with a SG I wouldn't have a go at it in a million. They both worked good as designed so let's stay with one or the other. Why mess with success. Yah SG fan so I would run it as a 67 motor with the SG. Gut the inner flywheel mess and wire it as a strait '67 setup with SG. With one of 'Nuts fine wiring diagrams and original style 70 amp switch or the diagram off the IPL/manual. If you want to use a five term switch fine but will require a start solenoid and possible some extra screwing around with wiring. Richard has got both diagrams. The with going to original wiring would be running heavy guage cables up to the switch. You now will have a 1277 incognito. Thinkin here a PO mixed a 69 or so Raider 12 but swapped stuff of the original motor. Or somthing like that. Thing that baffles me for now is why no stator charge coils ??? Quick edit her Bob is a guy has gotta wonder if PO doings may have messed up the S/G and or regulator. Just food for thought that we can get sorted out later. Edited January 9, 2022 by WHX?? Share this post Link to post Share on other sites
WHX?? 46,967 #18 Posted January 9, 2022 (edited) Clear double edit Edited January 10, 2022 by WHX?? Share this post Link to post Share on other sites

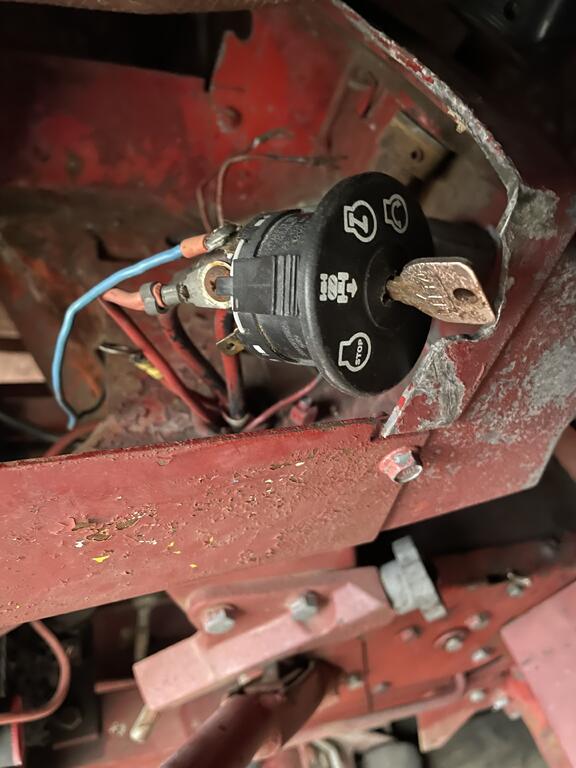

BHunter 1,651 #19 Posted January 9, 2022 17 hours ago, WHX?? said: Hi Jim. This is the most unusual set up on this 12hp. @pfrederi stated there were 3 different ignition set ups for kohler back then. This Spec # has the Magneto and points . Maybe this motor was never used in a wheel horse but the patina really matches the tractor. It’s been installed for a long time in this horse based on the amount of crud. All the 67s I’ve seen have the external coil and points. Or Maybe someone changed the shroud and it is a 10hp. I don’t know how to identify the block. I ordered the correct ‘67 ignition switch for it. I will put and external coil on it and scrap the Magneto if it doesn’t spark. Im hoping the S/G still works. 1 Share this post Link to post Share on other sites
WHX?? 46,967 #20 Posted January 9, 2022 Quick easy check of the SG is take a set of jumper cables from a battery. Hit the A terminal with the positive and see if she spins. Share this post Link to post Share on other sites
BHunter 1,651 #21 Posted January 9, 2022 16 minutes ago, WHX?? said: Quick easy check of the SG is take a set of jumper cables from a battery. Hit the A terminal with the positive and see if she spins. It spins. Hope it charges now 2 Share this post Link to post Share on other sites
pfrederi 17,178 #22 Posted January 9, 2022 2 minutes ago, BHunter said: It spins. Hope it charges now Hit it again then remove the power it will coast down for a long time While ii is coasting ground the F terminal should quickly stop the spinning.... That means she tried to charge... 1 Share this post Link to post Share on other sites
WHX?? 46,967 #23 Posted January 9, 2022 It will then if the reg is ok. If the reg is shot those are a dime a dozen. Just check to make sure the term on the bottom goes to field term and the ground jumper around the rubber mount is good. Forgot about that trick Paul. Good time to listen to the bearings too. 1 Share this post Link to post Share on other sites
BHunter 1,651 #24 Posted January 9, 2022 It’s alive!! I cleaned the new points and put a new plug in and it sparked. It energized me to do a carb rebuild and now it runs. Not well but it runs. Can’t rev it up or it dies. Thanks for all of your advice! Next step is to keep it running and check charging system. IMG_1448.MOV 1 Share this post Link to post Share on other sites
JPWH 5,314 #25 Posted January 9, 2022 58 minutes ago, BHunter said: . Can’t rev it up or it dies. I would look at the grounding on the magneto. I just had this happen to me. Jay 1 Share this post Link to post Share on other sites
