Cylinder of Ark 508 loader

By bo dawg, in Implements and Attachments

Recommended Posts

bo dawg    477

bo dawg
Posted

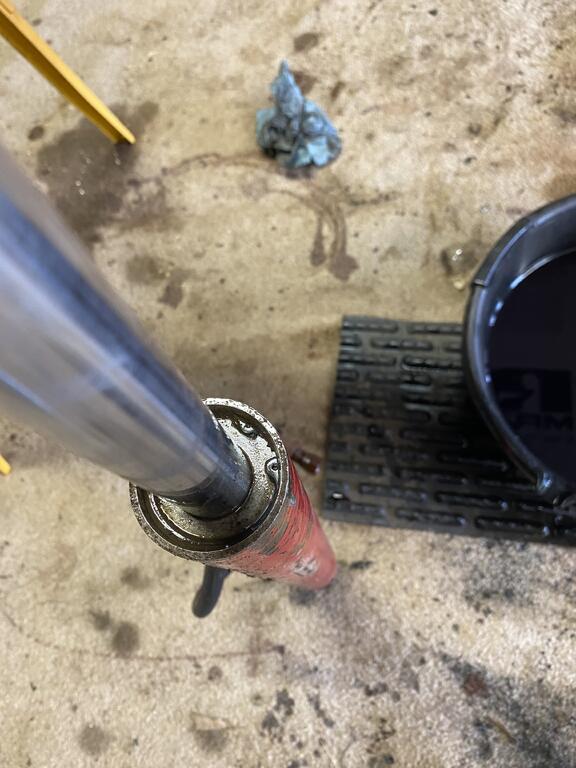

Is it hard to pull apart to replace seals? Any tricks? Or things to watch for?


Share this post

Link to post
Share on other sites


gwest_ca-(File Mod)    10,500

gwest_ca
Posted

I was told to never tighten a cylinder in a vise because it can bend the tube.

If you anchor the far end and take the retaining ring out you should be able to use the rod like a slide hammer to pull it apart. Have the ports open when you do it.

That retaining ring appears to be backwards. You want the sharp side facing out.



Garry

  • Like 4
  • Thanks 1

Share this post

Link to post
Share on other sites


953 nut    51,736

953 nut
Posted
22 minutes ago, gwest_ca said:

never tighten a cylinder in a vise because it can bend the tube.

:text-yeahthat:                   Leave the cylinder attached to the loader and have a BIG drip pan under the ram. Tie lots of rags over the ports where the hoses were connected because as you move the ram you will be pressurizing the oil in the cylinder.

  • Like 4

Share this post

Link to post
Share on other sites


bo dawg    477

bo dawg
Posted
3 hours ago, 953 nut said:

:text-yeahthat:                   Leave the cylinder attached to the loader and have a BIG drip pan under the ram. Tie lots of rags over the ports where the hoses were connected because as you move the ram you will be pressurizing the oil in the cylinder.

I have the loader all tore down piece by piece to do some fixing and welding. I’ll have to pull it by hand. Thinking of doing it outside and not worry about the oil

Share this post

Link to post
Share on other sites


Pullstart    59,735

Pullstart
Posted
9 hours ago, bo dawg said:

Thinking of doing it outside and not worry about the oil


:confusion-confused:

  • Like 1

Share this post

Link to post
Share on other sites


bo dawg    477

bo dawg
Posted (edited)
5 hours ago, pullstart said:


:confusion-confused:



yea I know, not the smartest thing to do, but I guess im not a big environmentalist. Lol. I'll try to catch most of it. Just dont want to have to clean up the garage floor.

Edited by bo dawg

Share this post

Link to post
Share on other sites


Lee1977    6,219

Lee1977
Posted
2 hours ago, bo dawg said:



yea I know, not the smartest thing to do, but I guess im not a big environmentalist. Lol. I'll try to catch most of it. Just dont want to have to clean up the garage floor.

That small amount of oil is just going home.

  • Like 2

Share this post

Link to post
Share on other sites


bo dawg    477

bo dawg
Posted

I got the snap ring out but still cant get the end piece to budge for shaft to come out. tried to get snap ring off other end and it is stuck. Whats the best way to break free?

Share this post

Link to post
Share on other sites
