Kohler no spark

[gcole 36]

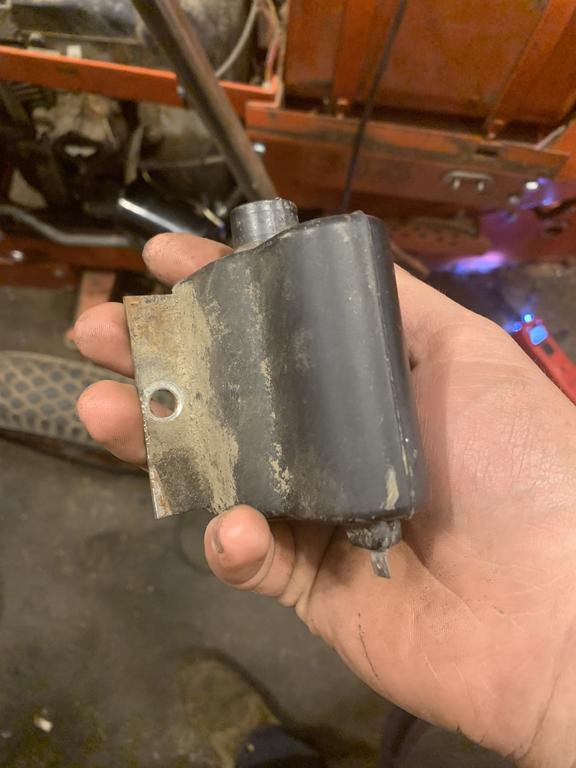

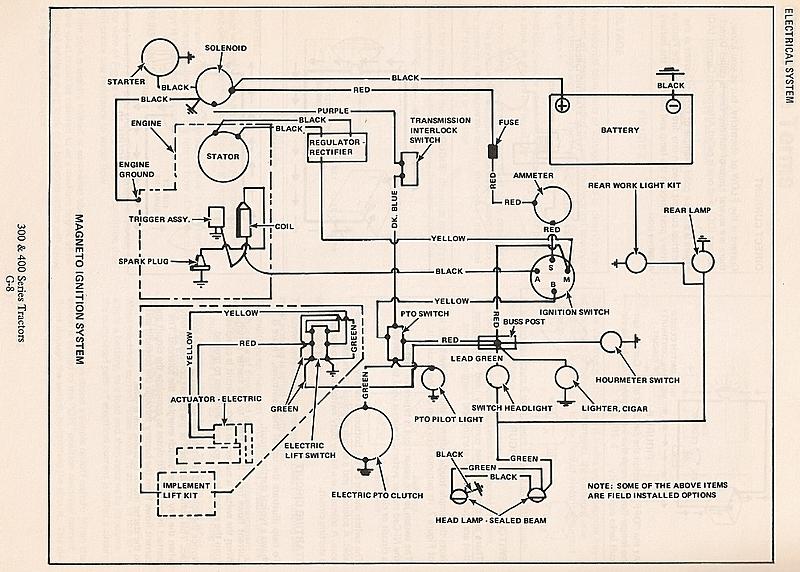

Hey guys, I know I’m gonna catch trouble for not working on a wheel horse but a co worker has a Allis 310 with a kohler engine with no spark. Here’s the troubling part. It’s not a points system. It has a system I’ve never seen in any small engines. Here’s a picture of the coil and the wiring diagram. On the wire coming from the flywheel I have a trigger wire coming out that pulses ground and the other wire from the key switch had the power it’s supposed to. The wiring diagram shows those 2 together but there’s no spark. Any help is greatly appreciated! Thanks guys

[prondzy 3,867]

Thats called a CDI system, sorry to say either the black box or the trigger is dead. now its time to change it to a points style system.

[gcole 36]

Just now, prondzy said:

Thats called a CDI system, sorry to say either the black box or the trigger is dead. now its time to change it to a points style system.

I looked at that but the block isn’t tapped to add the points in. There’s the start of the hole for the plunger but no mounting bracket holes

[953 nut 51,536]

@Aldon has documented the steps you need to take.



[gwest_ca-(File Mod) 10,488]

The wiring diagram you posted appears to have some serious mistakes in it.

The ignition switch terminal locations can't be correct or I'm loosing my marbles.

A -M and S-B should be switched.

That may be what cooked the ignition.



Garry

[pfrederi 17,129]

[gwest_ca-(File Mod) 10,488]

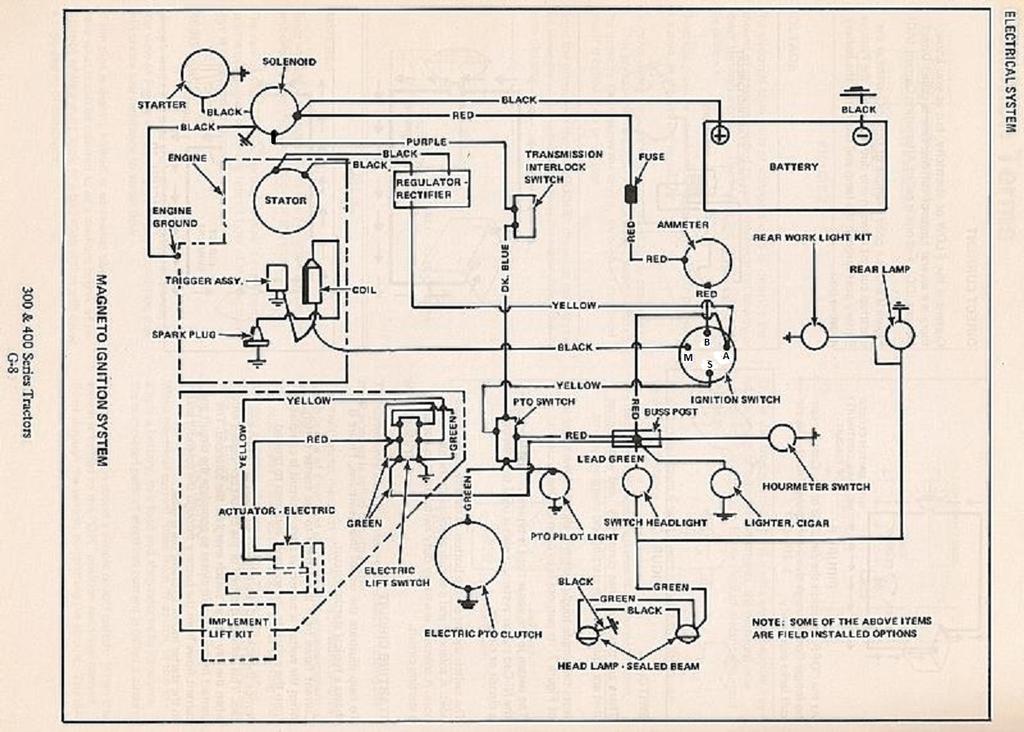

An attempt to correct it. Comments?

[953 nut 51,536]

23 hours ago, gcole said:

Allis 310



23 hours ago, gcole said:

wiring diagram

I presume this is an Allis Chalmers drawing. They may have their own ignition switches.
