WH 1277 Question

Recommended Posts

GaryRat

Hello,

New guy here and have a question about hydro axle on my newly acquired Wheel Horse 1277.  When I tilt the seat mount sheet metal back, there is a sticker that states to turn the needle valve to push the tractor.  It's not obvious to me where this needle valve is located and I do not want to push the tractor until I do.  It does not run at the moment and I need to get it closer to my shop so that I am near my tools.  I have had a Wheel Horse Charger 12 for about 30 years now and that has a small lever on the transmission that can be turned 180 for driving or pushing, the 1277 has nothing like it.  Can anybody tell me where that needle valve is?



A bit of back story here on the tractors.  The Charger 12 has served me well over the years but is getting tired.  The front wheel bearings are quite sloppy as is the tie rod ends and I messed up the mower deck last year by not tightening the nut enough on one blade after sharpening. The nut backed off and spun on the shaft destroying the threads and now nothing will tighten there.   The deck is quite rusted through as well but the 12hp Kohler ran well and that will be going on the 1277.  I got the 1277 last week from the scrap yard while I was there scrounging for useful metal stock.  A guy had brought it in to scrap while I was there and I talked to him a bit about it.  He said he had recently had the mower deck bearings replaced but then the motor started to smoke badly which he said was to much in his face for him while mowing. I debated then and there about buying it directly from the guy but decided I didn't need another project and I began to strip it for parts - the carb, the starter generator and belt guard, fuel pump and gas tank.  Then I was going to take the deck off but it was so different then what is on the Charger I changed my mind.  So I weighed out and paid for my parts which was $10 but asked the woman who ran the scale if they could load the rest of the tractor for me.  She said no problem so another $90 later I had the whole tractor home.  According to her, it weighs 600 pounds.  So now I need to swap engines or at least run the one on the 1277 to see how bad the smoke is.  A timely acquisition as well as the electric clutch on my Husqvarna YTH 180 just smoked in the middle of doing the front lawn.  This just after replacing the belts so a bit bummed.



I'm looking forward to getting the 1277 operational!

Share this post


Link to post
Share on other sites

ebinmaine

Well Gary we don't have any hydros around our property and I don't even use a wheel horse to mow so I can't really help you with your questions but I just wanted to say WELCOME TO RED SQUARE.

Not sure where you are in New Hampshire but I'm just over the border, in Maine.

Share this post


Link to post
Share on other sites

rmaynard

You can look in the manuals section of the forum and download an owners manual for free.



However, the valve should be between the rear of the transmission and the top of the tool box on the left side (left side while seated).

  • Like 2

Share this post


Link to post
Share on other sites

GaryRat

Thanks for the welcome eb!  I'm on the MA border by Amesbury.



Thanks for that tip rmaynard.  I did try looking for the valve in the manuals part of this forum and was not successful.  I will look again though.

  • Like 1

Share this post


Link to post
Share on other sites

pfrederi

Click pcture for link to manual


  • Like 2

Share this post


Link to post
Share on other sites

Ed Kennell
Posted (edited)

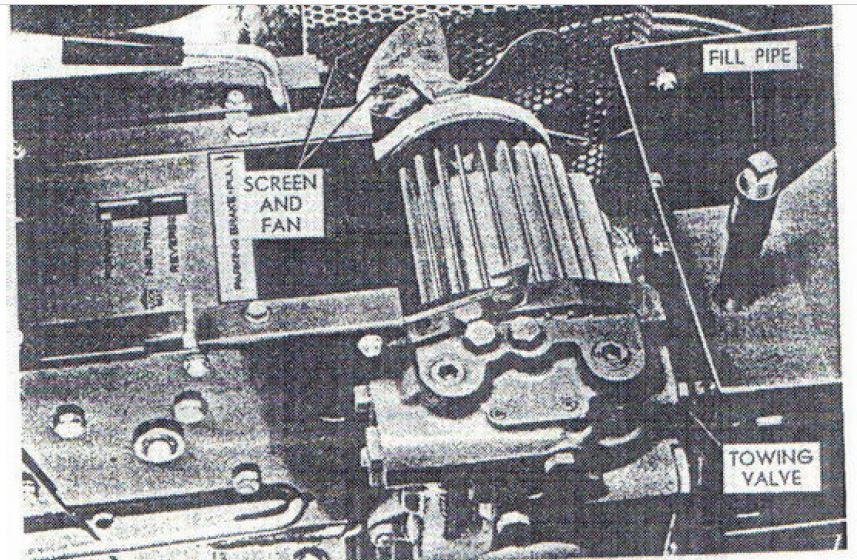

@pfrederi 's picture shows the tow valve.  I believe it is a  9/16 hex head that requires an open end wrench due to the tight clearance with the tool box.



BTW,   It is possible to convert the older deck to work on your Charger 12.



:WRS:

Edited by Ed Kennell

Share this post


Link to post
Share on other sites

GaryRat

Excellent!  Thanks very much for that picture!  I did see the hex there but didn't think it was a valve of any kind, just a bolt that held something together.



I figured the deck could fit my Charger but decided changing motors would be easier.  The more I think about, I will probably put  all the parts I took off back on the 1277 and see how bad it smokes.

Share this post


Link to post
Share on other sites

WHX24
Posted (edited)

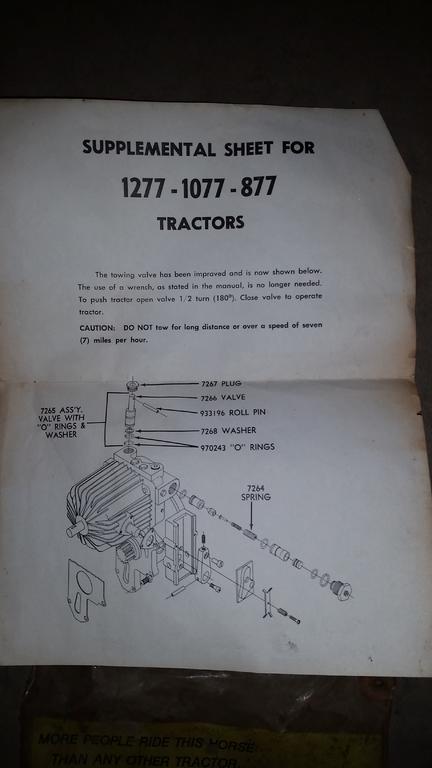

Also some tow valves were converted to a top style valve. Both my 1077's and 1277 were converted like this. Some came from the factory (later '77's ???) like this. Sorry for the lousy pic you may have to zoom in on it for a better look see. I'll check if I have some better pics. This sheet may be in our files as well.
