Jrblanke

1995 520H - Which wires change color going through the 9 pin connector?

Recommended Posts

Jrblanke
Posted (edited)

Hey guys,

OK, 4 years ago I had a problem with my 520 not starting, so I replaced the 9 pin connector, wired it wrong, got angry, cut it off, and then let it sit in the yard (with a tarp) until yesterday when I figured out that the reason I couldn't tow it was because i had left the parking brake on. I know, I'm terrible, impulsive, and have made stupid decisions. So lets focus on fixing the problem :D



I am using the wire guide on page 2 of the attached 8 page document. I have a couple questions. The engine harness colors are not on the wire diagram, so I was trying to match the colors and use a volt meter to confirm which one the red starter wire is. There are a few wires that I don't know where they go and would like some help figuring out where they go.



Here is what I have so far (In order of the wire diagram from top to bottom):

Engine Harness  to Tractor Harness

Grey to Grey

Red ? to white

Yellow to Yellow

Red ? to Red

? to Purple

Dark Blue to dark blue

? to black

lt green to lt green

lt blue to lt blue (starter)

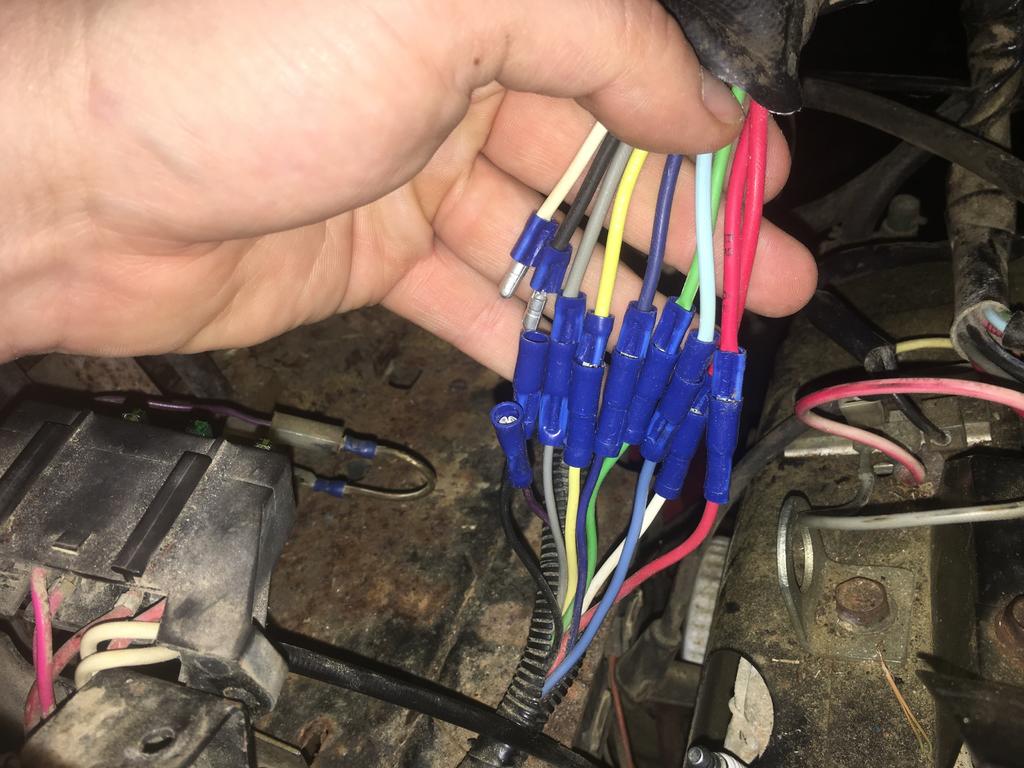

I have attached a picture of my wires so far.










Edited by Jrblanke

Share this post


Link to post
Share on other sites


Jrblanke
Posted (edited)

Thanks @lynnmor, what year is your machine?

Edited by Jrblanke

Share this post


Link to post
Share on other sites

lynnmor
8 hours ago, Jrblanke said:

Thanks @lynnmor, what year is your machine?

1991, 1996 & 1997.

Share this post


Link to post
Share on other sites
