Tombstone weight bracket

[WHGuy413 2,527]

Does anyone have any pictures of a tombstone weight bracket? I've been searching here for 20 minutes and cant find any close up pictures of the brackets. I have a weight but no bracket. Someone at a local show got me all the measurements off of his and my dad cut all the pieces but now they need to be welded and I'm not sure exactly how they go. Thanks in advance!

[stevebo-(Moderator) 8,055]

What he said.... Maybe someone can also post some measurements as well. I need to fab one up myself. Thanks in advance.

[squonk 39,006]

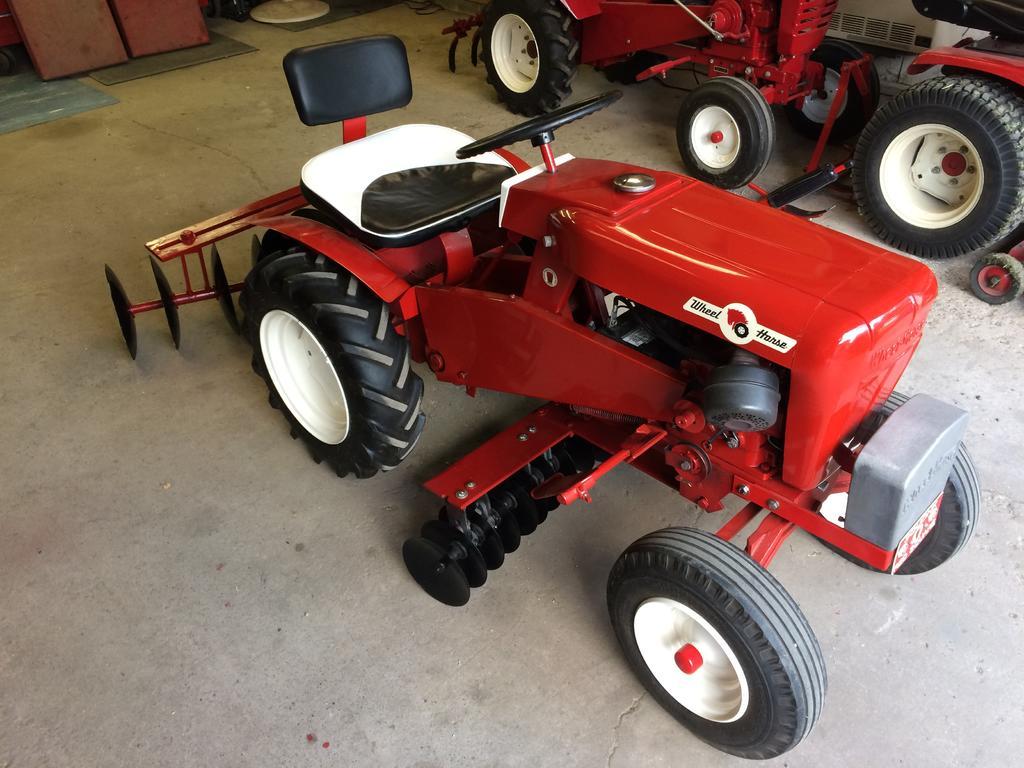

I got the pieces for this one from Mike Biser when I won this weight in a raffle years ago. It may be different than the actual OEM bracket. I can get pics and measurements tonight if needed. Let me know if you want them.

[WHGuy413 2,527]

4 hours ago, squonk said:

I got the pieces for this one from Mike Biser when I won this weight in a raffle years ago. It may be different than the actual OEM bracket. I can get pics and measurements tonight if needed. Let me know if you want them.

Thank you! It looks a little different than mine but I might be able to see what I need if you can get some close up pics of it.

[squonk 39,006]

Here are some pics and measurements:



This bracket as shown bolt to the bolt holes on the frame. Rear most hole goes in the frt. quick hitch bolt. look close. There is another piece of metal welded on the inside as thick as the hitch plate so bracket sits flat on the frame.

Overall length of the bracket is 11"





Width of bracket is 7"





Inside edge to edge across is 6 3/4



Inside of Boxed area Weight sets in is approx 2 3/4"



ts



[WHGuy413 2,527]

Thank you @squonk those pics should help. Now to find time to get in then garage and assemble it.
