My 1970 GT14 rebuild

[gt14rider 693]

Here we go, starting a post on my rebuild,  lost all pics of teardown, (phone died) trying to retrieve them,

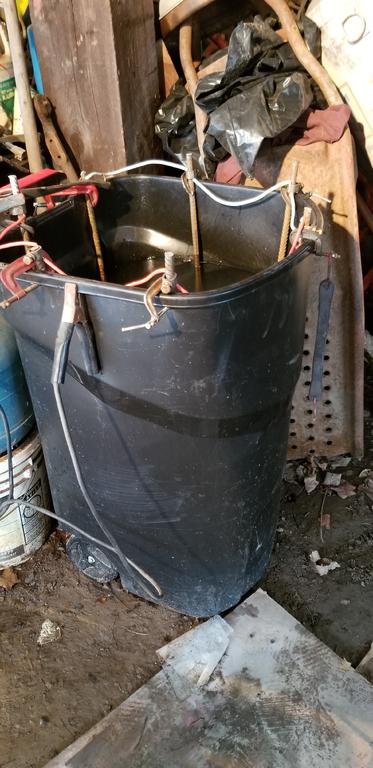

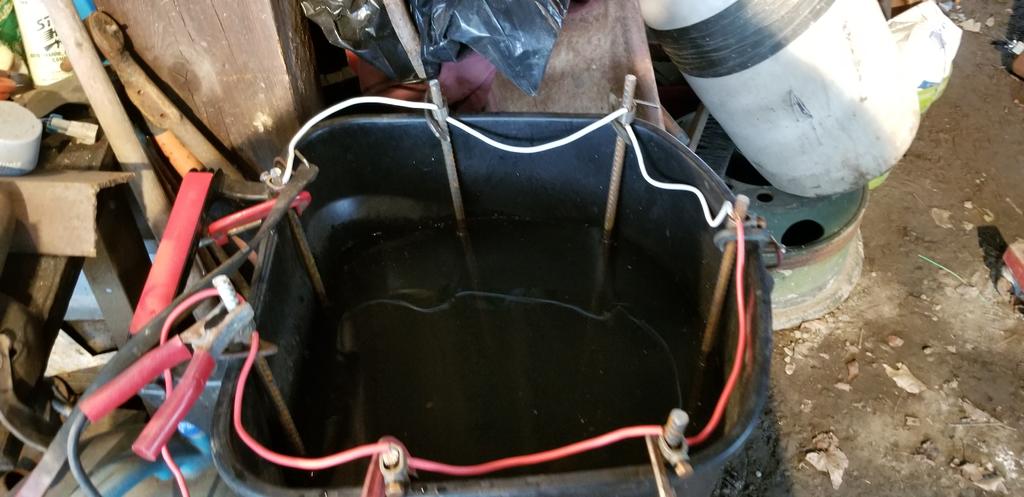

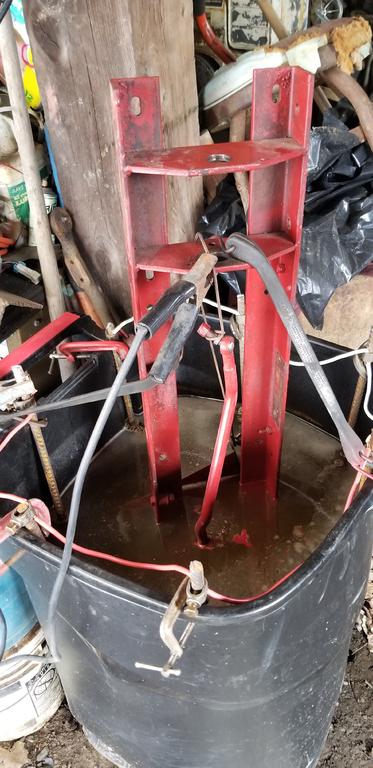

Started electrolysis tank for frame and misc parts other will be sandblasted, using washing soda, rebar and battery charger, my ad a 12v car battery, will see how it works like this.  Also have post in transmission and transaxles, gt14  90-2062

[Aldon 4,826]

I’ll tag in for the adventure. Love to follow the GT14 builds. I’m a glutton for punishment as these are my favored beasts.



i think I have enough spare parts to almost do a complete build:-)

[19richie66 16,880]

8 hours ago, Aldon said:





i think I have enough spare parts to almost do a complete build:-)

If not, I do

[PeacemakerJack 10,670]

Definitely want to watch this one come together as my youngest son owns one and at some point in the future we will restore his.  I too really like these hydro “Big Wheels” and can’t wait to see how yours will look when you get it finished.

[Pullstart 59,570]

Some day... some day...

[gt14rider 693]

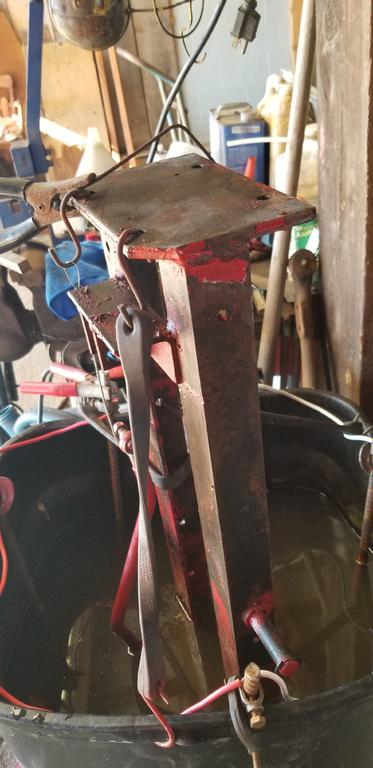

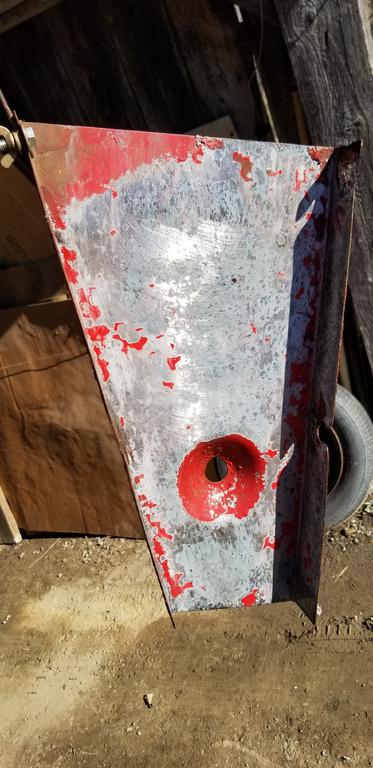

Flipped frame, and parts, steering link and fan gear must not of had good contact with negative wire so used some safety wire, see if that works. That is about 8 or 9 hrs

Edited April 16, 2019 by gt14rider

[Herder 2,354]

Interesting, I see it dissolves rust, does work on neighbors?

[gt14rider 693]

Neighbor repellant

[Aldon 4,826]

So that’s why @stevebo smokes those things. He’s trying to get rid of the hanger ons. Hahahahh

[gt14rider 693]

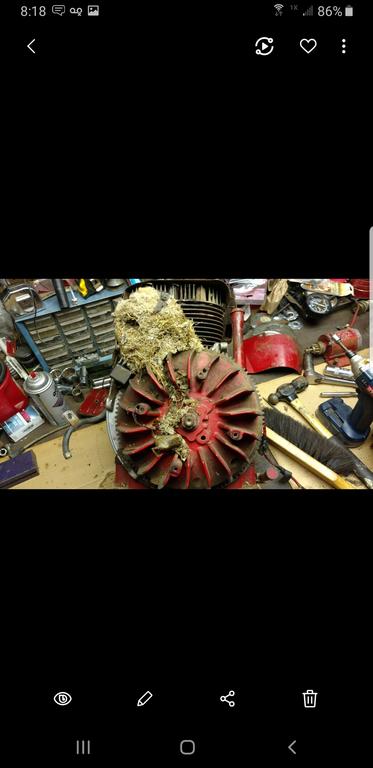

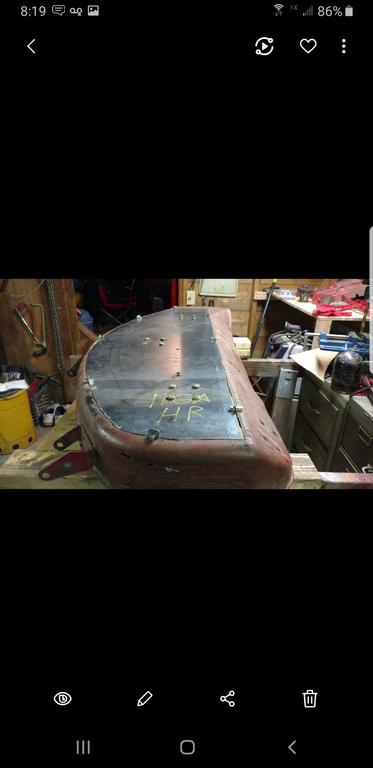

So I've been working on this for a while, phone died and I lost some pics.

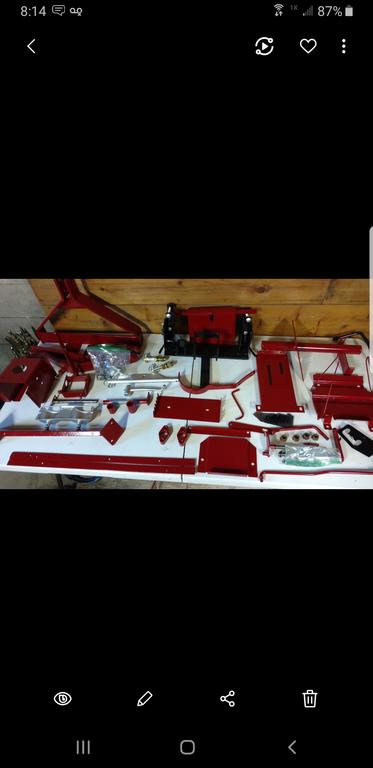

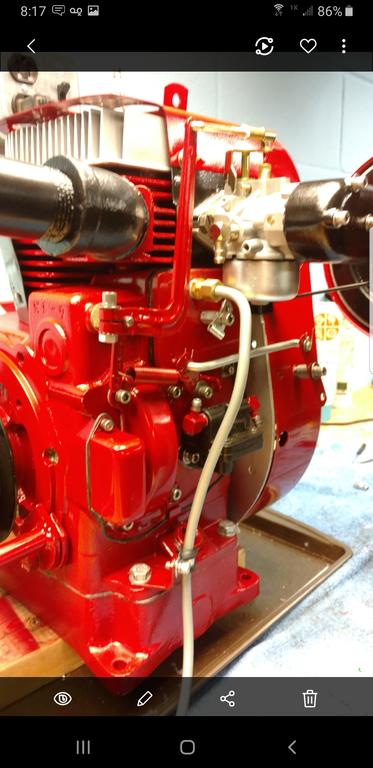

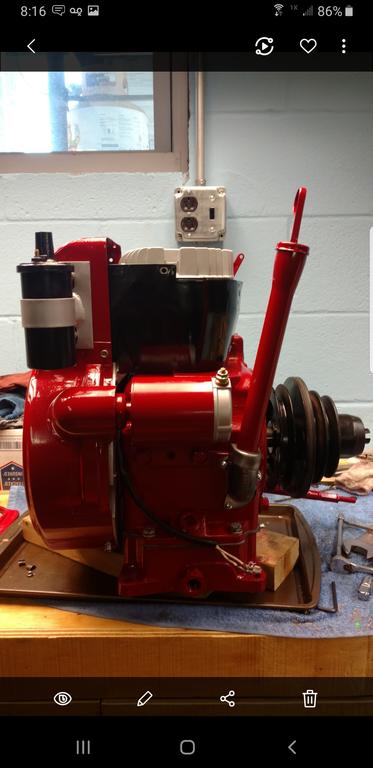

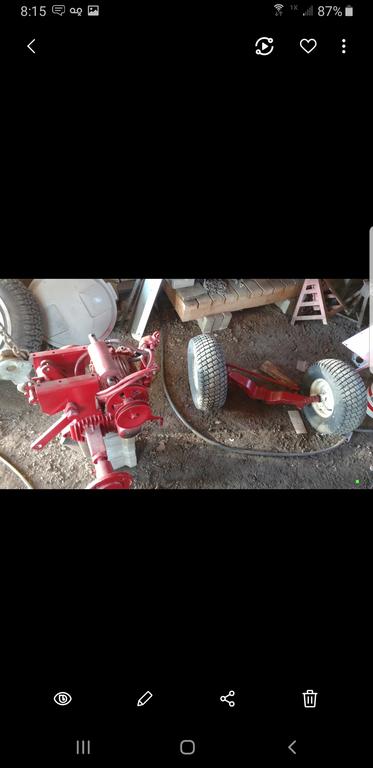

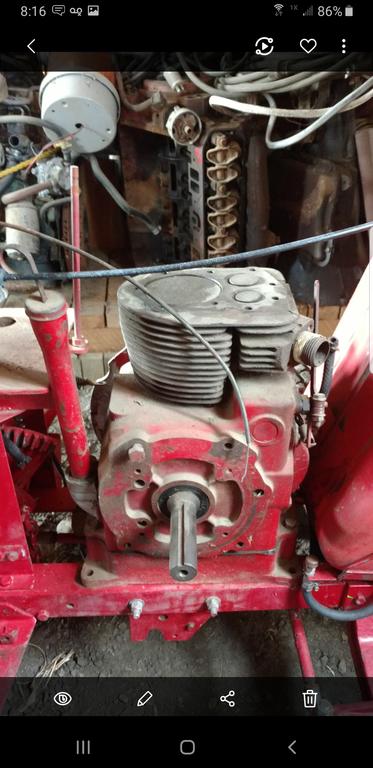

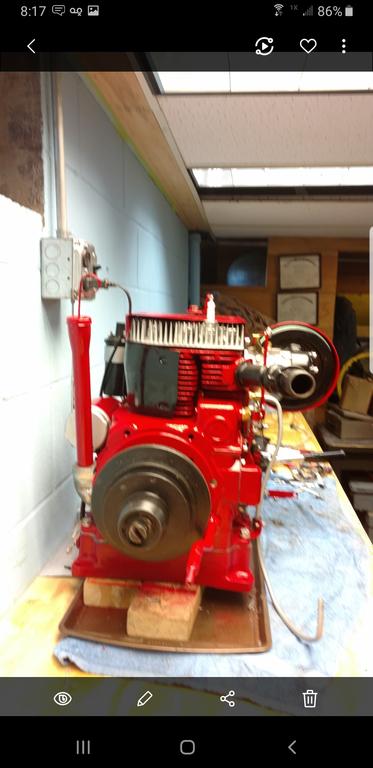

Engine is rebuilt, 020 over piston, 020 under crank, rebuilt starter, other parts sandblasted, primed and painted.

Mower deck in progress may make a post on rebuild.

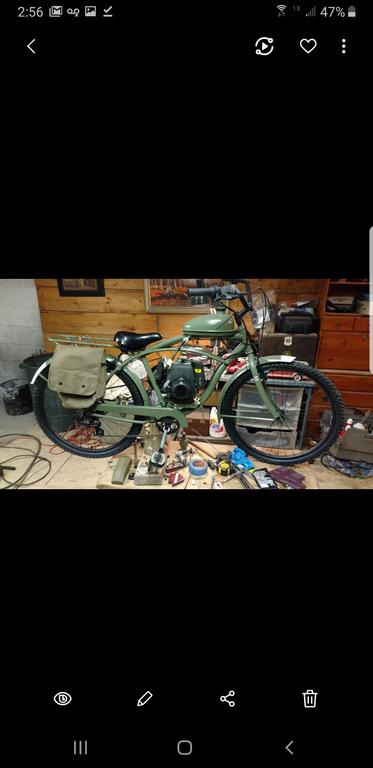

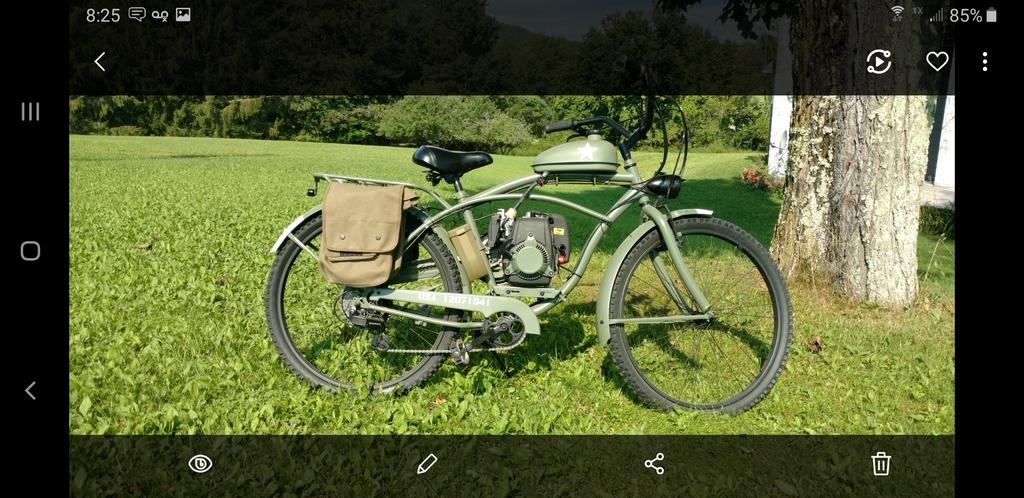

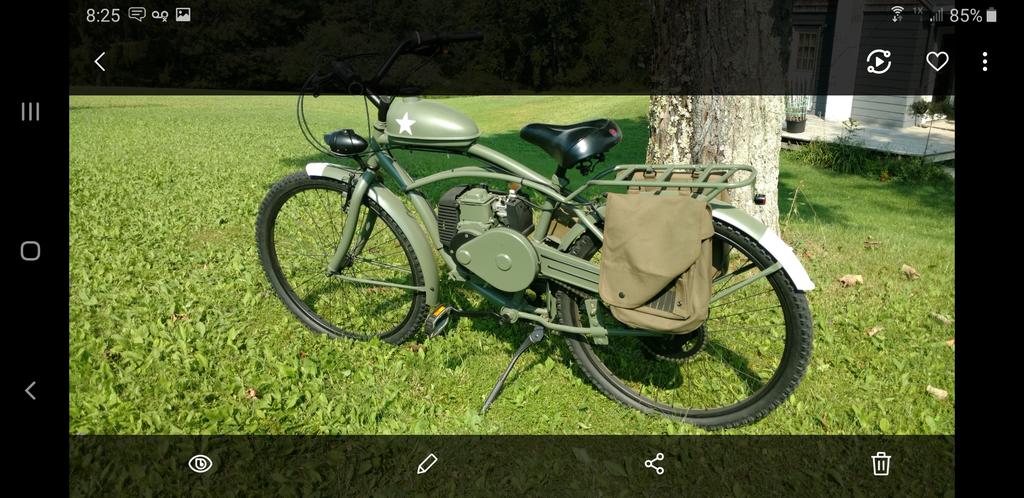

Built the bike for a friend, may auction off for wounded vet program

[19richie66 16,880]

Very Nice!

[Pullstart 59,570]

That’s quite the mouse house!  I love the engine transformation and do you have any before pictures of the bike?

[gt14rider 693]

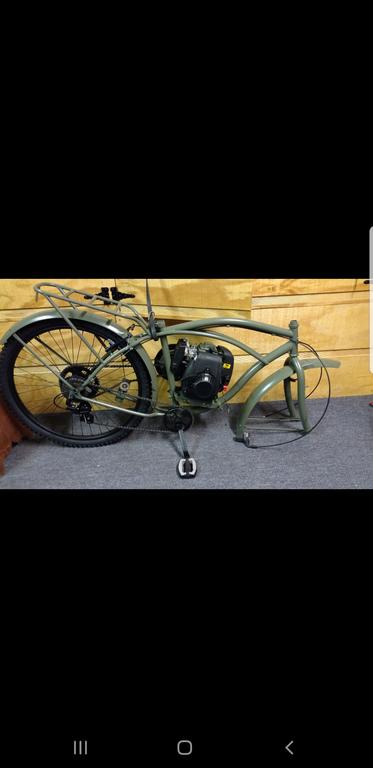

I do not  It was a new Walmart beach cruiser,  was rootbeer brown, disassembled everything, painted and replaced tires, added motor and lights reassembled

[gt14rider 693]

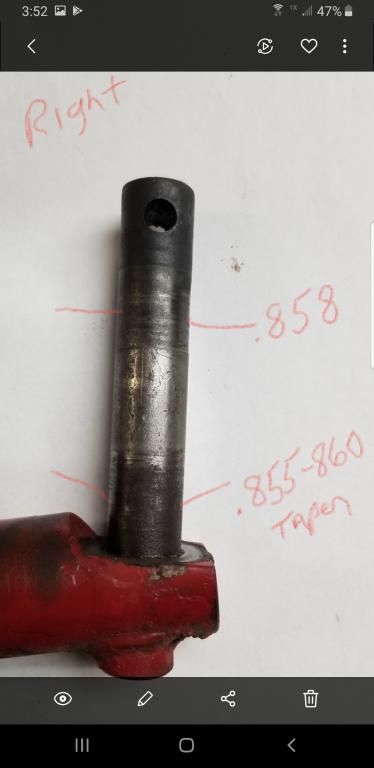

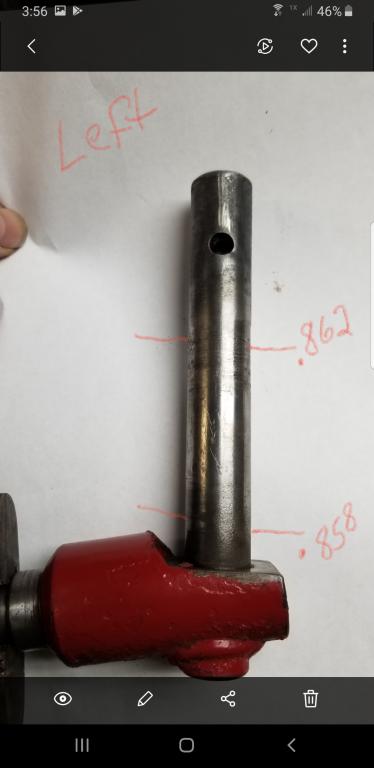

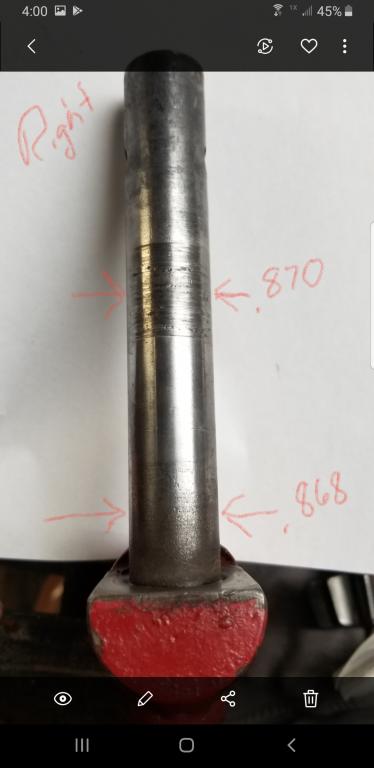

Started working on this again, question, can these spindles be saved or just start looking for replacement. Plan on putting bronze bushings in axle

Edited January 29, 2020 by gt14rider

[19richie66 16,880]

I bored out my axle to 1” and then installed 7/8” ID/1” OD bronze bushings. I reamed them out, drilled a hole for the grease fitting and they worked great. Also installed thrust washers and bearings between the spindle and axle. Steers pretty nice.

[The Tuul Crib 7,332]

I would find some bar stock and

make a new one.

[19richie66 16,880]

I had no other option at the time but they don’t seem to be to complicated to make if you can cut the weld on the bottom.

[gt14rider 693]

Thanks Tool crib.  What type      of bar stock is best for             the spindle.

[WVHillbilly520H 10,369]

8 hours ago, gt14rider said:

Thanks Tool crib.  What type      of bar stock is best for             the spindle.

CRS Cold Rolled Steel if you are welding it,... the tool steels (with high nickel and chromium content become very brittle at the weld) will fail when welded. JMO from a machinist stand point.

[The Tuul Crib 7,332]

26 minutes ago, WVHillbilly520H said:

CRS Cold Rolled Steel if you are welding it,... the tool steels (with high nickel and chromium content become very brittle at the weld) will fail when welded. JMO from a machinist stand point.

[The Tuul Crib 7,332]

I have found some  of the cold roll steel

stock at tractor supply. If you have a

local machine shop they should have

if as well .

[gt14rider 693]

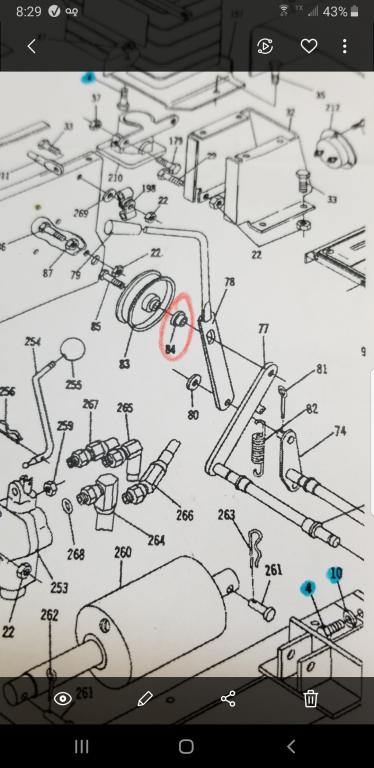

Hay all,  working on some bushings, can anyone give me some specs on this spacer, between pulley and linkage, ( see parts diagram # 84) Is it a steel spacer or brass flange bushing?         ID x OD x length.                 P/N # 100431 or 7435

[pfrederi 17,129]

13 hours ago, gt14rider said:

Hay all,  working on some bushings, can anyone give me some specs on this spacer, between pulley and linkage, ( see parts diagram # 84) Is it a steel spacer or brass flange bushing?         ID x OD x length.                 P/N # 100431 or 7435



7435 can be replaced by 100309 which is still available you need to add a couple washers as spacers as flange is thinner



7435 is steel 3/8" bore  Flange is 3/4" OD  5/16" thick  Shaft portion is 3/16" long  7/16" OD



Edited February 2, 2020 by pfrederi

[gt14rider 693]

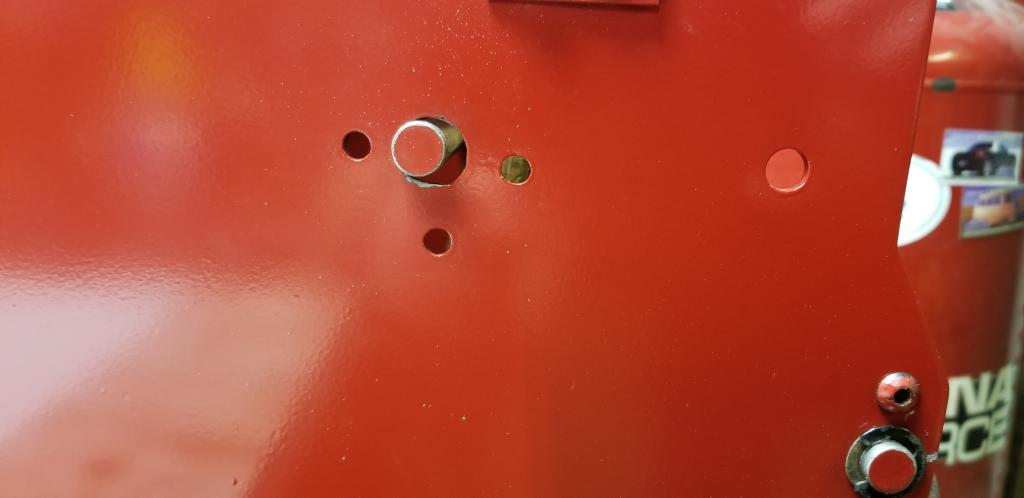

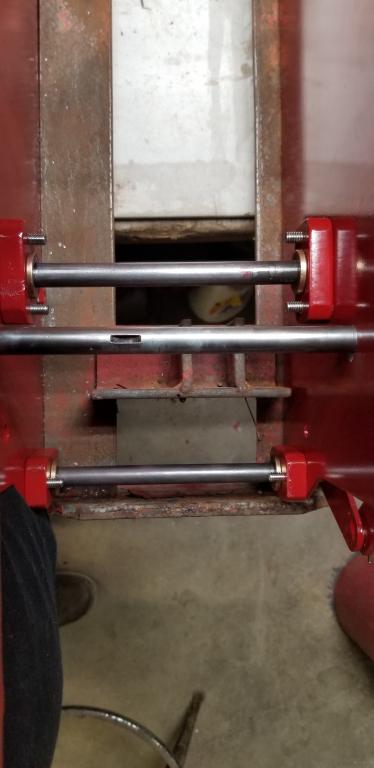

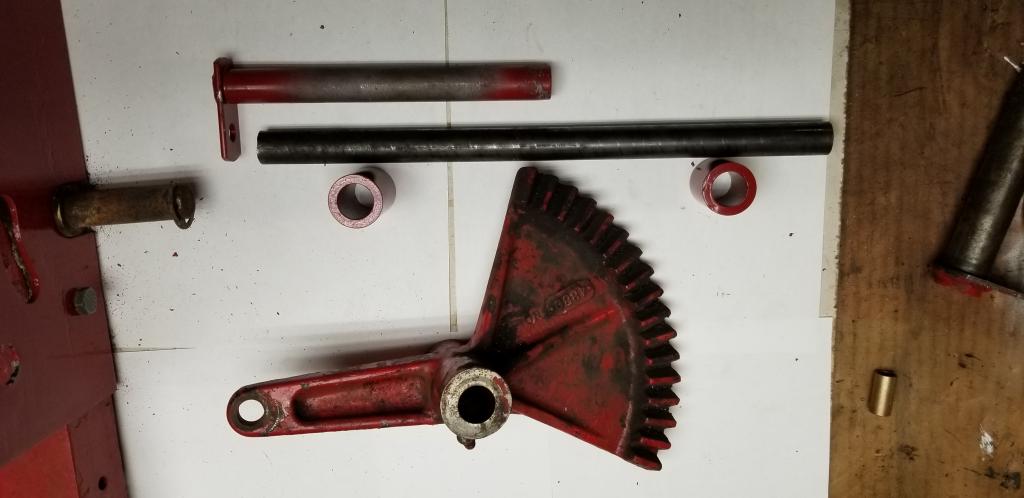

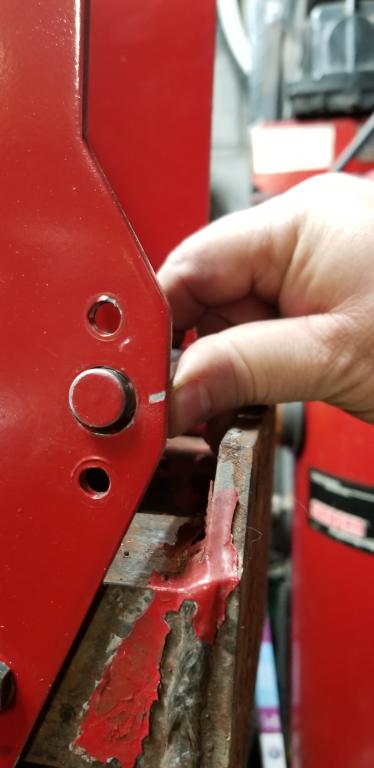

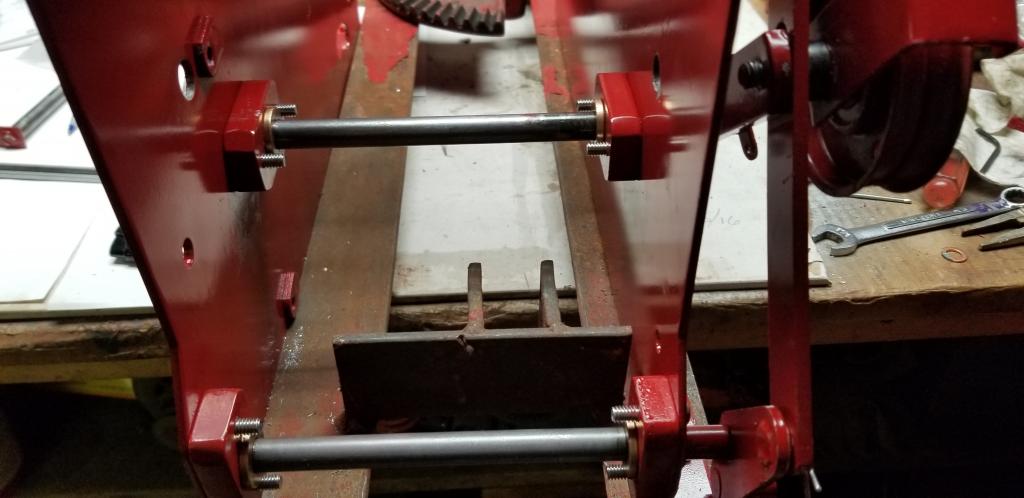

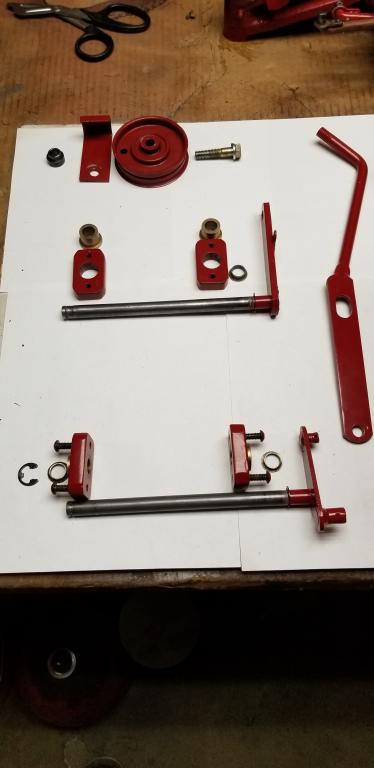

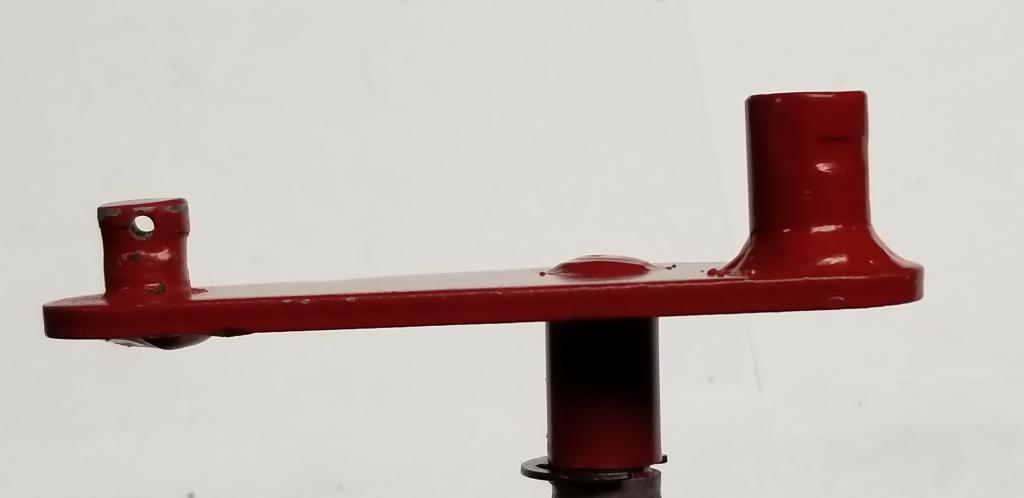

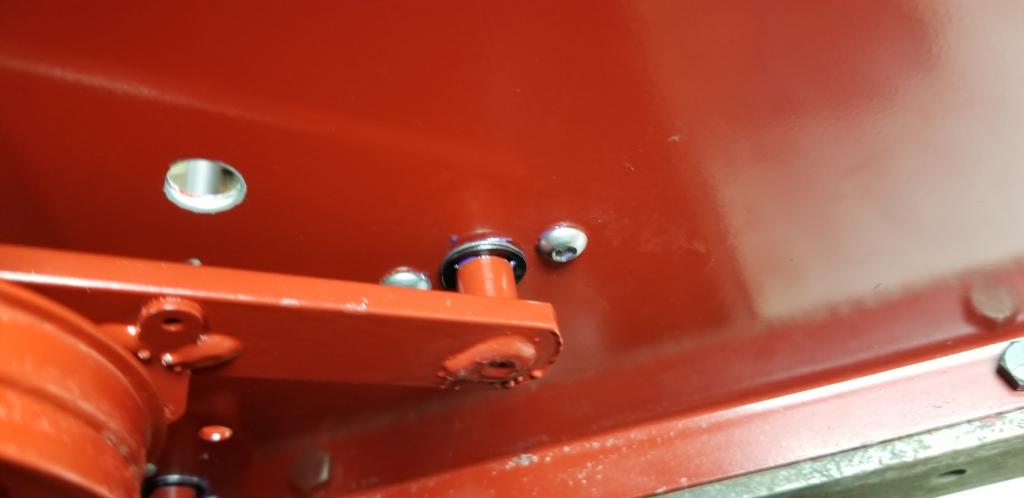

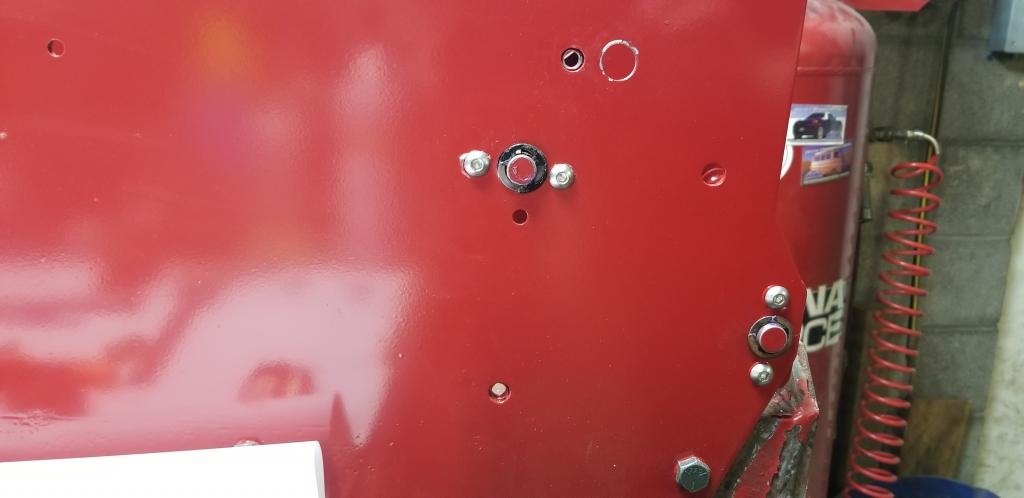

So I'm working on all pivot points, Going to put brass/bronze bushings in Getting axle bushing, Spindle bushing, Steering shaft bushings, So started looking at brake handle and linkage and bushing 7879 were not the only bushings, P/O made bushing blocks , the shaft wore the side plate egg shaped, so cleaning thing up,going to weld and redrill holes, took some pics and test fit linkage. Steering fan will get bushing and new pin.

[pfrederi 17,129]

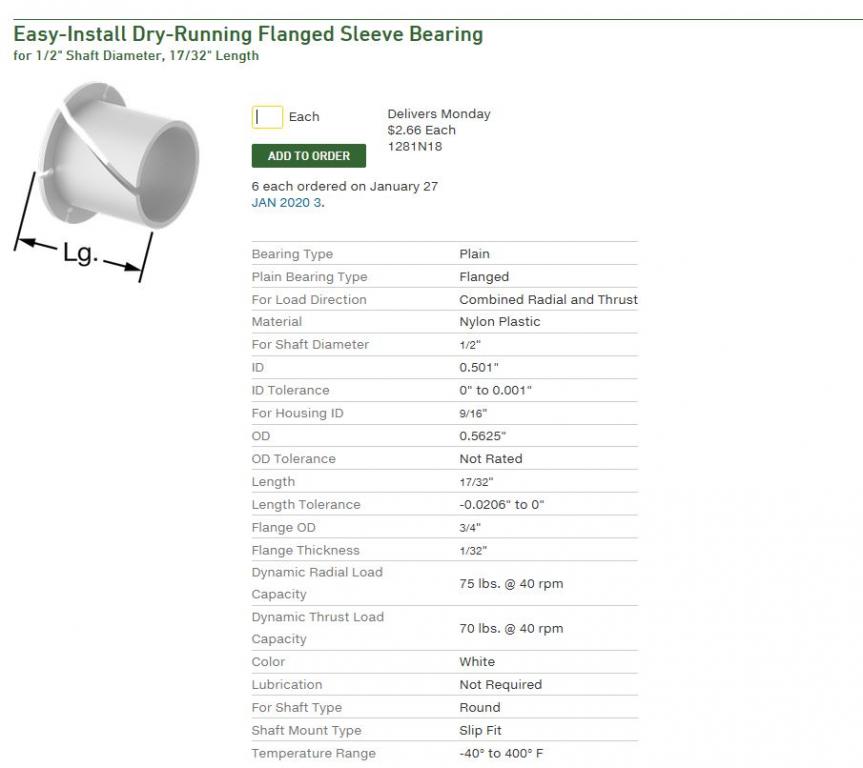

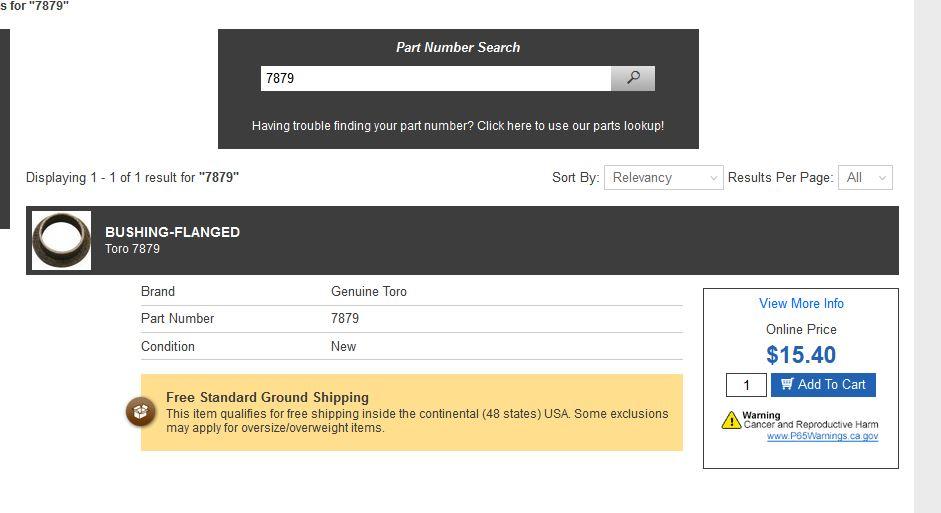

I looked at the thin metal bushings 7879 as most of mine were worn out...but $15.40 too much!!  Where did you get yours??  I am going with some nylon ones from McMaster.
