By Rob R

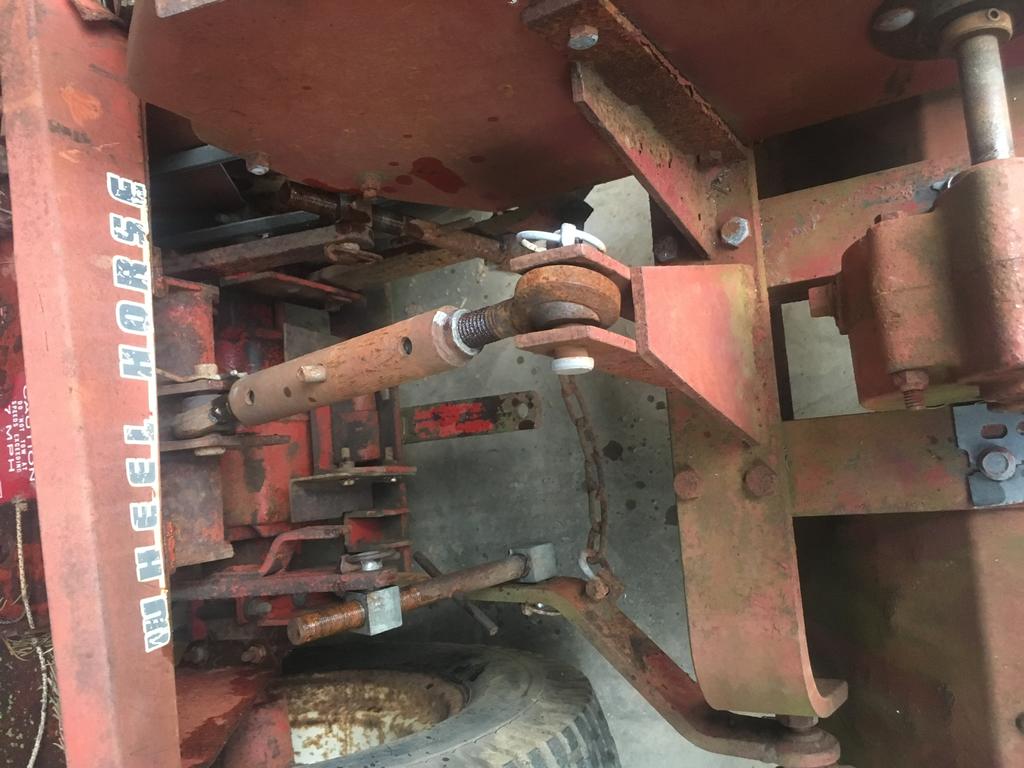

I finally broke something serious on my GT14 the Lift arm that is attach (by chain) to the plow snapped off at the receiver arm top which is attached to the Hydro cylinder on the bottom. It appears the broken arm was welded there (see pics) my big question is how do get the "H" arm which is mounted on each side of the tractor by the steel plates the go up from the tractor frame out. I took off the four mounting bolts for it but it is tightly fit in aforementioned side plates I can move it up and down but cannot get it out. Is it relatively easy to remove one of the side plates and if yes which side is the easiest the pedal side left side (from the back) or the right side (from the back). Has anyone from the square experienced this problem, does anyone have this lift assembly. Any and all comments welcomed. p.s. I have used this beast for 10 years with zero major issues guess the stress of the lifting finally got to the arm which obviously is under tremendous pressure......Rob
-
By Rob R

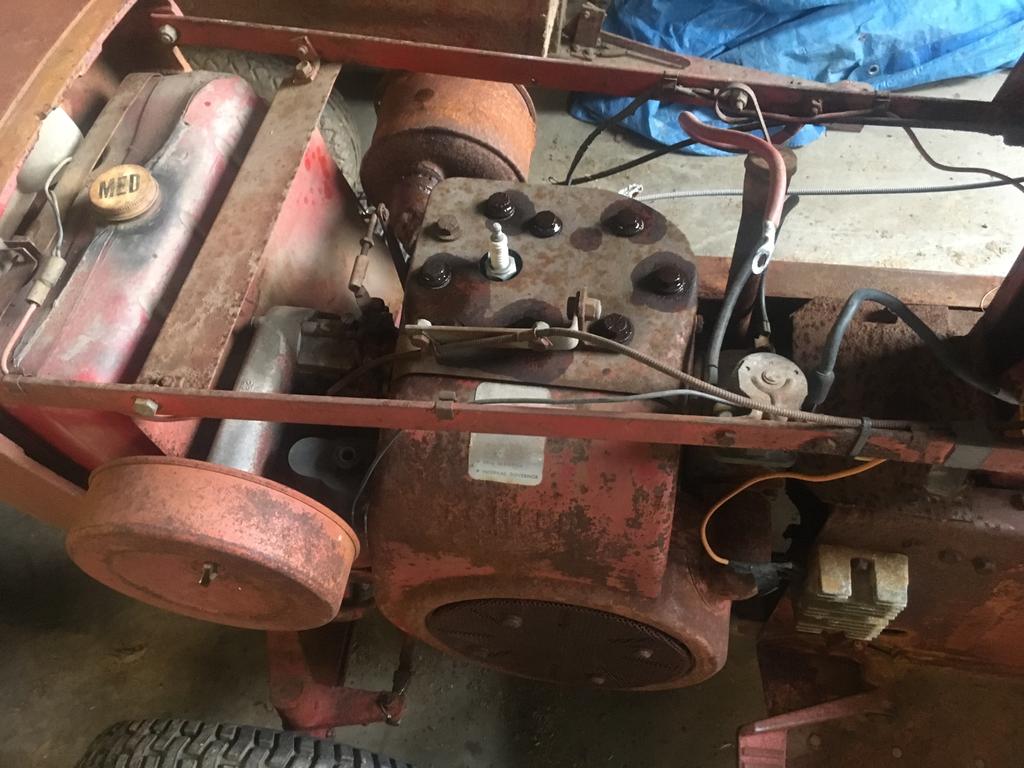

Hi Guys, got a K321 14HP Kohler in house with all the electrical components removed. I cleaned and aligned the points, added a 12v (resistor coil) positive 12V battery feed to positive terminal, ran a line from the negative side of the coil to the points. I know I have to add a condenser also to the negative side. My question is does location of the condenser matter i.e. next to the coil or is closer to the points better. Thanks Rob
-
By tractorboy79
I was looking around on ebay and noticed that hydraulic actuators from John Deere 312, 317, etc models appear to be Identical to a Gt14 or d series lift cylinder. My question is would a new cylinder from ebay be able to replace one that is on a gt14 or d series?
Images below of cylinders to show similaritys.
-
By wh315-8
I have a question about the 69’ model. I took my tank out to work on carb easier. A couple weeks later as I put it back together & after cleaning everything; I replaced the white weatherstripping that was at bottom of tank and on the corners of the strap. Seems to be all that holds it in place. Because the strap around the tank will not go around the metal bracket on bottom and fit the tank. And even if it did the strap would only line up with the bracket mounting bolts which would be in the way. What did I miss? Didn’t pay close enough attention when I took it apart and can’t see in the parts diagram where the strap does go around the bracket. The weather stripping is tacky enough that the tank stays in place and it is a made to fit perfectly in position. Just seems that the metal strap is pointless.
-
By tractorboy79

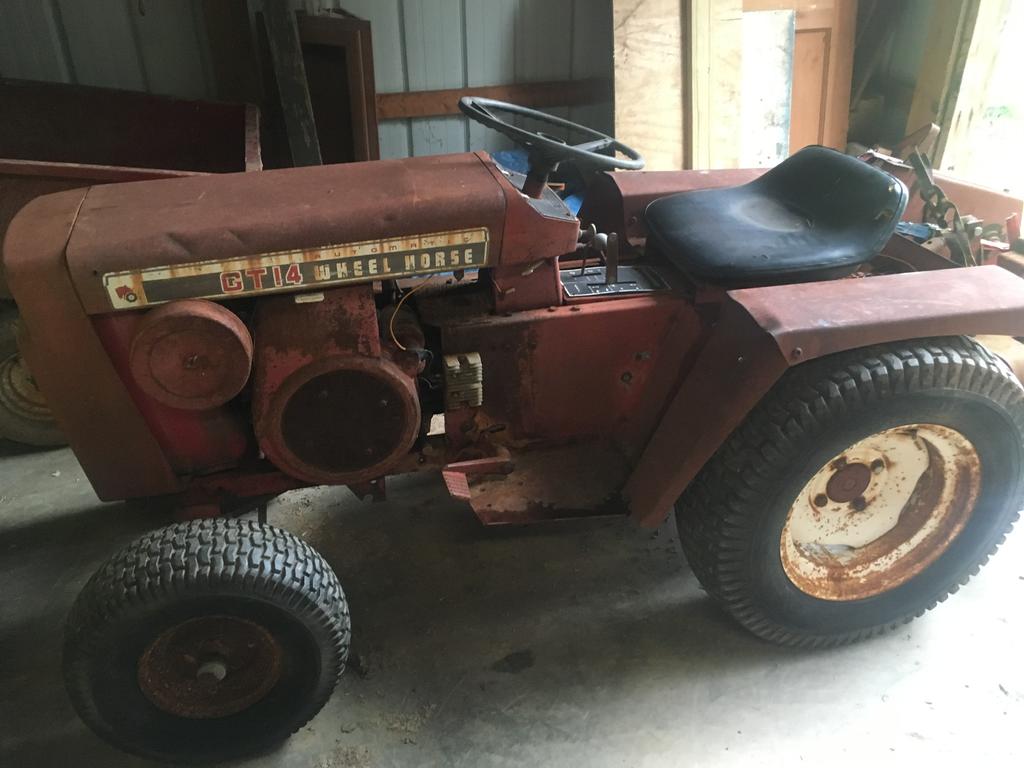

I have a old gt14 and the plastic plates or control panels are way past their prime, and I saw someone was remarking them with a 3d printer a little while back and I was looking to se if I could find the file but no luck. If anybody has info that would be amazing. Thanks for your time and anything helps.
-
