Jason B

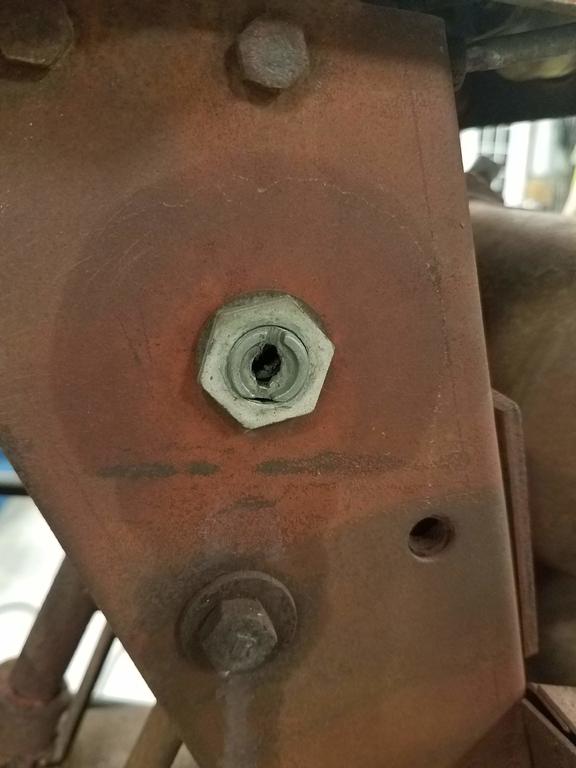

Can you help ID this wheel horse?

Recommended Posts

I believe you're right, just wanted confirmation. Don't want to break these hens' teeth. I'm nervous after going through the fiasco I did by frying the charging coils and then searching for replacements.

Share this post


Link to post
Share on other sites

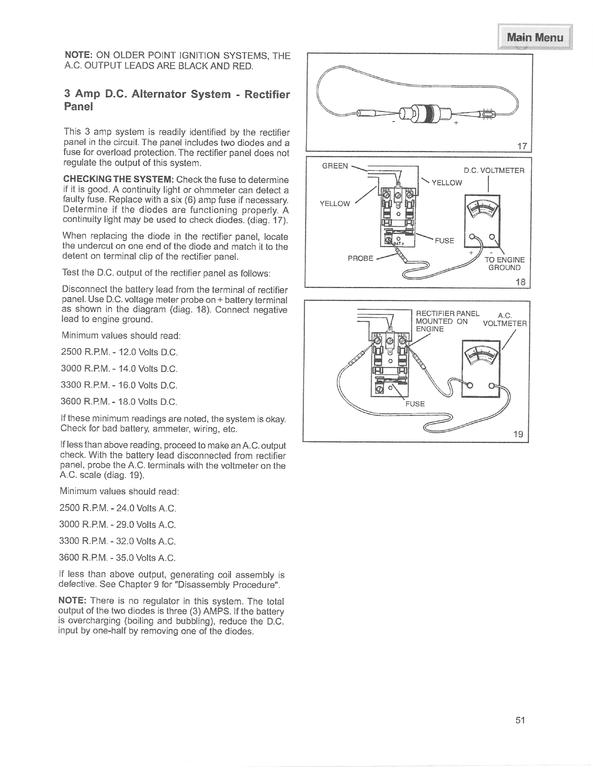

Your connections are correct. Green wire to go to center post in rectifier and from there to on/off switch, Two white wires from generating coils to two outside posts on rectifier.  Notch on diodes towards fuse or battery.

Looks like the condenser I specified for you is not going to work on that unit. You do not have a separate clamp for it. You will need one with clamp attached already.This one:

https://www.ebay.com/itm/New-CONDENSER-for-Ignition-Set-fits-Tecumseh-H22-H25-H30-H35-H40-H50-H60-H70-H80/263431601952?hash=item3d55bf3f20:g:Le4AAOSwRTVaV8TX:rk:8:pf:0

Edited by formariz

Share this post


Link to post
Share on other sites

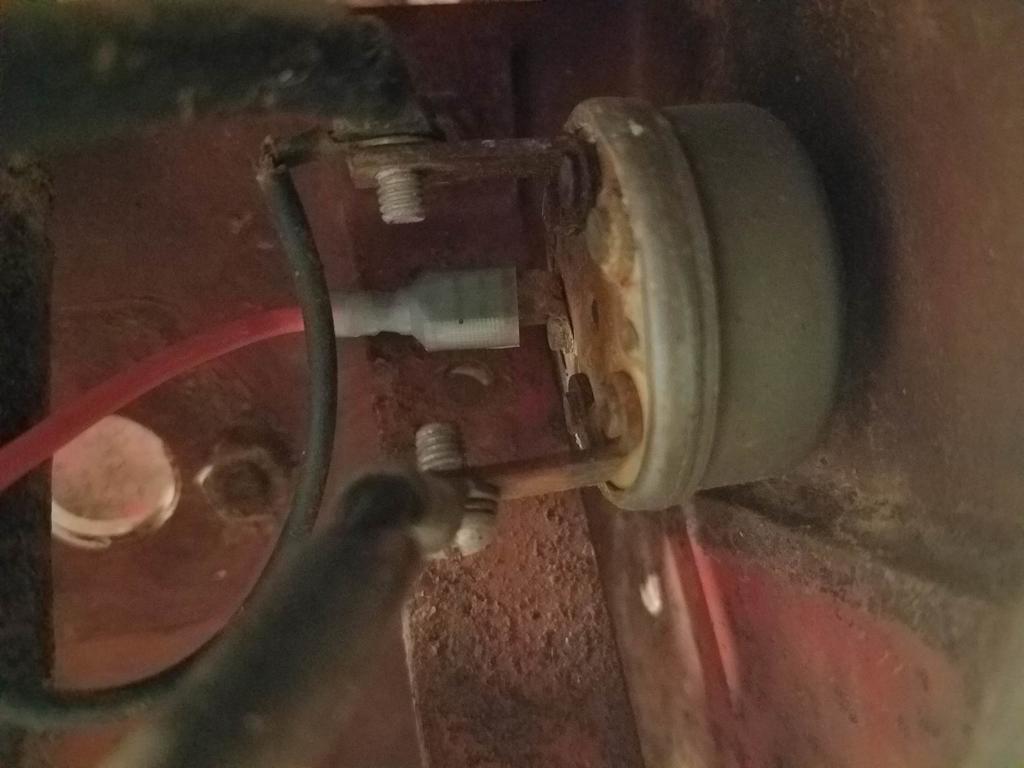

Take the wires off that stud and re-test. make sure that spring does not touch anything. may be just the picture but

make sure that green wire does not touch anything either. A lot of times  it is in that area somewhere.







Share this post


Link to post
Share on other sites
